凯斯Case_Part Number_广州千韧科技有限公司

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (26) - FRAME Case Agriculture

Pos.Part NoQtyParts nameComments1.ZA104650[1] FRAME IHASSEMBLY - front 2.ZA740950[1] DECAL CAS- warning Superseded by part number: ZA211862 3.ZA206987[1] PRODUCT GRAPHIC IHDECAL - warning 4.ZA104136[2] DECAL CAS- warning 5.NSS[1] NOT SOLD SEPARAT CONDECAL - important (Order kit 1265869C93) 7.413-1032[6] BOLT,Hex, 5/8" - 11 x 2", Gr 5 CAS- hex, 5/8 NC x 2 inch Superseded by part number: 86505999 8.20166R1[4] BOLT,Hex, 5/8" - 11 x 6", Gr 5 IH- hex, 5/8 NC x 6 inch Superseded by part numb

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (22) - HITCH, P.I.N. 001281 AND AFTER Case Agriculture

Pos.Part NoQtyParts nameComments1.ZA104550[1] TRAILER HITCH CASHITCH ASSEMBLY 2.96330C1[1] PRODUCT GRAPHIC IHDECAL - caution 3.96332C1[1] PRODUCT GRAPHIC IHDECAL - warning 4.96319C1[1] DECAL IH- caution 5.NSS[1] NOT SOLD SEPARAT CONDECAL - important (Order kit 1265869C93) 6.28425R1[1] WASHER IH- flat, 21/32 x 1-1/2 x 3/16 inch (16 x 38 x 4 mm) Superseded by part number: 86624156 7.NLS[1] NO LONGER SERVICED BAS- hex, 5/8 NC x 1-1/2 inch 8.436525C1[4] RIVET,Pop, 1/4" x 1/2" IH- mandre

2025/01/21

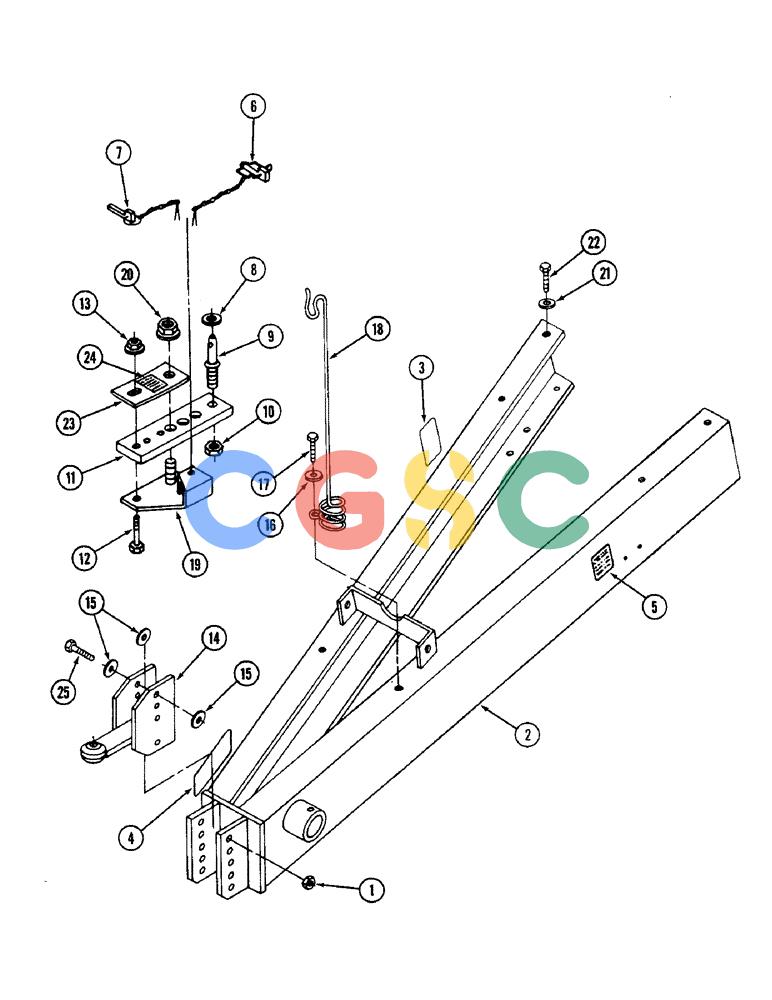

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (20) - HITCH, PRIOR TO P.I.N. 001280 Case Agriculture

Pos.Part NoQtyParts nameComments1.9413956[1] LOCK NUT,1/2"-13, GB IHNUT - hex, 1/2 inch NC Superseded by part number: 231-4138 2.ZA104721[1] HITCH ASSY IHHITCH ASSEMBLY 3.96332C1[1] PRODUCT GRAPHIC IHDECAL - warning 4.96319C1[1] DECAL IH- caution 5.NSS[1] NOT SOLD SEPARAT CONDECAL - important (Order kit 1265869C93) 6.119522C1[1] PIN IH- klik 7.176868H1[1] PIN IH- klik 8.21214R1[1] WASHER IH- flat, 1-5/32 x 2 x 7/64 inch (29 x 50 x 2 mm) Superseded by part number: 495-81192 9.472790

2025/01/21

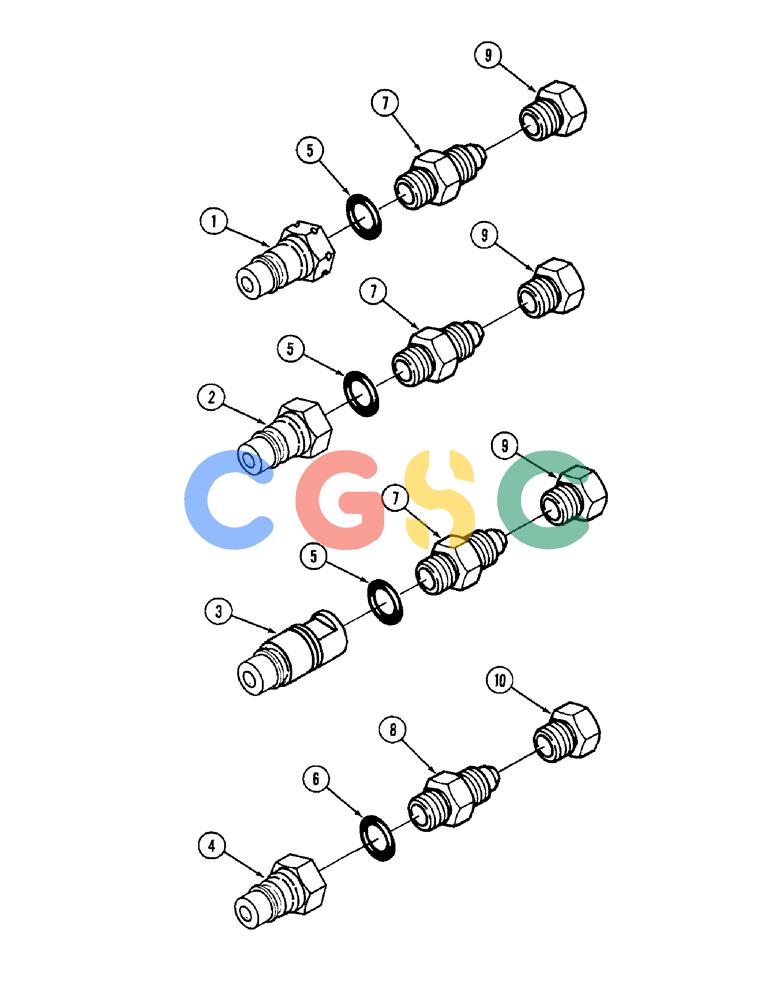

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (18) - HYDRAULIC SELF-SEALING COUPLINGS Case Agriculture

Pos.Part NoQtyParts nameComments1.395149R1[1] QUICK MALE COUPLING IHCOUPLING ASSEMBLY - poppet type male, 7/8-14 inch (Will work with ISO female coupling but at low efficiency) Superseded by part number: 86615558 2.1272399C2[1] QUICK MALE COUPLING IHCOUPLING ASSEMBLY - self sealing male, 7/8 NF Superseded by part number: 86615558 3.544787R91[1] COUPLING, BREAK AWAY IHCOUPLING ASSEMBLY - ball type male, 7/8-14 inch (Will not work with ISO female coupling) Superseded by part number: 1341843C1 4

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (16) - HYDRAULIC BALE SLICER CYLINDER, 2 INCH BORE (50 MM) X 8 INCH STROKE (203 MM) Case Agriculture

Pos.Part NoQtyParts nameComments1.ZA206042[1] CYLINDER CASASSEMBLY - hydraulic 2.495-11053[9] WASHER,1/2", SAE CASNUT - hex, 3/8 inch NF Superseded by part number: 87364, 72187259 3.444660[1] DRAIN PLUG,Sq Soc, 3/8"-18 NPTF IHPLUG - square head automotive pipe, 3/8 inch 4.ZA207021[1] BASE CAS- cylinder Superseded by part number: 737734 5.ZA207014[4] TIE-ROD CASROD - tie Superseded by part number: B17260 6.NSS[3] NOT SOLD SEPARAT CONO-RING 8.274640[1] LOCK NUT,3/4"-16, GC IHNUT - hex loc

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (14) - HYDRAULIC LATCH CYLINDER, 3 INCH BORE (76 MM) X 16 INCH STROKE (406 MM) Case Agriculture

Pos.Part NoQtyParts nameComments1.ZA104773[1] CYLINDER IHASSEMBLY - hydraulic 2.120378[8] NUT,Hex, 1/2" - 13, Gr 5 IHNUT, 1/2"-13, G5 Superseded by part number: 280431 3.444660[1] DRAIN PLUG,Sq Soc, 3/8"-18 NPTF IHPLUG - square head automotive pipe, 3/8 inch 4.ZA104995[1] BASE IH- cylinder 5.ZA104997[4] ROD IH- tie 6.NSS[3] NOT SOLD SEPARAT CONO-RING 8.851124C1[1] NUT IH- hex lock, 3/4 inch NC Superseded by part number: 131-909 9.812169C1[1] PISTON IH Superseded by part number: B1727

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (12) - BALE SLICER ATTACHMENT Case Agriculture

Pos.Part NoQtyParts nameComments1.810601C1[1] HYDRAULIC HOSE,9.53mm ID x 4191mm L IHHOSE ASSEMBLY - 162 inch (4114 mm) long 2.1261399C1[1] HYDRAULIC HOSE,6.35mm ID x 4570mm L IHHOSE ASSEMBLY - 174 inch (4419 mm) long 3.ZA105617[1] PLATE IH- pivot 4.ZA206042[1] CYLINDER CAS- hydraulic (See Page 17) 5.ZA105801[1] KNIFE IH 6.ZA105603[1] TUBE IH 7.ZA105615[1] PIVOT IH 8.ZA105612[1] PIN IH 9.407211R1[2] CLIP IHPIN - klik (Package of 20) 10.ZA105609[1] CABLE IH- actuator stop 11.29

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (10) - HYDRAULIC SYSTEM AND LATCH Case Agriculture

Pos.Part NoQtyParts nameComments1.9413979[2] LOCK NUT,3/8"-16, GC IHNUT - hex lock, 3/8 inch NC Superseded by part number: 232-4136 2.21403R1[8] WASHER IH- flat, 13/32 x 1 x 1/8 inch (10 x 25 x 3 mm) Superseded by part number: 87613212 3.96339C1[2] CAMSHAFT BEARING,0.3752" ID x 1.25" OD x 0.8025" IH- cam follower (Replaces ZA015882) 4.24621R1[2] BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8 IH Superseded by part number: 326-636 5.445608[2] BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5 IH- hex, 1/2 NC x 5-1/2 inc

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (08) - FLASHING WARNING LIGHTS Case Agriculture

Pos.Part NoQtyParts nameComments1.ZA708451[3] BRACKET IH- light 2.ZA707964[8] TERMINAL CONNECTOR,14 - 16 IHTERMINAL 3.ZA103734[1] LIGHT CAS- tail - (Red) . .9417866[1] BULB,C6, #1156, 12.8V IH-LAMP (No. 1156) Superseded by part number: 529068 4.ZA103735[2] LIGHT CAS- flasher (Amber) Superseded by part number: ZA708294 5.291207C1[12] CLAMP IHTIE - hose Superseded by part number: 529070 6.299614C1[3] CLAMP IH- cable Superseded by part number: 515-25127 7.NSS[1] NOT SOLD SEPARAT CONWIRE -

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (06) - ACTUATOR Case Agriculture

Pos.Part NoQtyParts nameComments. .ZA105658[1] ACTUATOR IH Superseded by part number: 700709661 1.1281482C1[1] HOUSING IH- rear Superseded by part number: 700704854 2.1281483C1[5] ADJUSTMENT SCREW IH 3.1281484C1[1] GEAR IH 4.1281485C1[1] CLUTCH IH 5.1281486C1[1] COVER IH Superseded by part number: 700709904 6.1281487C1[1] KIT IHMOTOR Superseded by part number: 700704871 7.1281488C1[1] HOUSING IH- front 8.NSS[1] NOT SOLD SEPARAT CONCOVER - tube . .1281489C1[1] SEAL KIT CASKIT - seal

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (01-2) - GENERAL INFORMATION Case Agriculture

Pos.Part NoQtyParts nameComments

2025/01/21

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (01-1) - 3450 ROUND TIE BALER Case Agriculture

Pos.Part NoQtyParts nameComments

2025/01/21

凯斯零件查询(3440) - CASE IH ROUND BALER (1/87-12/87) (62) - DECALS, ENGLISH LANGUAGE Case Agriculture

Pos.Part NoQtyParts nameComments. .1265869C94[1] KIT CAS- decal 1.NSS[1] NOT SOLD SEPARAT CONDECAL - important, bale ejection wedges 3.96319C1[1] DECAL IH- caution, 540 RPM PTO 4.96322C1[1] PRODUCT GRAPHIC IHDECAL - caution, 1000 RPM PTO (Not used this application) 6.ZA105196[2] PRODUCT GRAPHIC IHDECAL - warning, keep away from rear 8.96332C1[1] PRODUCT GRAPHIC IHDECAL - warning, rotating drive lines 11.ZA104136[2] DECAL CAS- danger, keep away from pickup and belts 13.ZA105194[2] P

2025/01/21

凯斯零件查询(8455) - CASE IH ROUND BALER (STANDARD) (1/92-12/99) (4-02) - ELECTRICAL SENSOR AND ACTUATOR ASSEMBLY Case Agriculture

Pos.Part NoQtyParts nameComments1.73528[1] SELF-TAP SCREW CAS3/8-16 x 1-1/2 HWHTCTS 2.568395R1[1] SPACER,5/8" Tube x 5/8" IH Superseded by part number: 567987R1 3.515-23159[1] CLAMP,5/8", Insul, 3/8" Bolt CASLine 5/8", Insul, 3/8" Bolt Superseded by part number: 86594406 4.121-115[5] SERRATED BOLT,Hex, 5/16" - 18 x 3/4" CAS 5.231-5145[5] SERRATED NUT,Flg, USR, 5/16"-18 CASNUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458 6.515-25127[6] CLAMP,1/2", Insul, 1/2" Bolt CASLin

2025/01/21

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (122) - BALE SHAPE SENSOR ASSEMBLY, CONTINUED FROM PAGE 121 Case Agriculture

Pos.Part NoQtyParts nameComments10.7058266[2] SPRING IH 11.8025637[2] SWITCH L- Sensor 12.700116155[2] PLATE HFI- Switch 13.700116140[2] SUPPORT HFI 14.702700045[2] LOCK NUT L1/2-20 Nut - Spiralock 15.495-11053[6] WASHER,1/2", SAE CAS1/2 Narrow Plain Washer Superseded by part number: 87364, 72187259 16.700116156[2] CRANK CAS- Bearing, Cam 17.700705612[2] CAM FOLLOWER LBearing - Cam Superseded by part number: 86536275 18.705525[6] WASHER CAS5/16 Narrow Plain Washer Superseded by par

2025/01/21

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (042) - ELECTRICAL SENSOR AND ACTUATOR ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON Case Agriculture

Pos.Part NoQtyParts nameComments1.751487[9] CLAMP CAS Superseded by part number: 86632595 2.755744[1] CLAMP CAS Superseded by part number: 86594406 3.700708971[1] HARNESS CAS- Wiring, Front 4.700119161[3] SWITCH LAssembly (S.N. CFH0015001 thru 0015766) 5.700710211[2] ACTUATOR IHSwitch Assembly 6.700116136[1] SUPPORT HFI- Switch (S.N. CFH0015001 thru 0015766) 7.700708970[1] HARNESS CAS- Wiring, Rear 8.700708965[1] PLUG CAS 9.700708964[1] WIRE CONNECTOR CASConnector - Male Superseded

2025/01/21

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (040) - ELECTRICAL SENSOR AND ACTUATOR ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 Case Agriculture

Pos.Part NoQtyParts nameComments1.751487[9] CLAMP CAS Superseded by part number: 86632595 2.722470[1] MOUNTING CLIP CASTie - Nylon Superseded by part number: 529070 3.700707362[1] HARNESS HFI- Wiring 4.700707353[3] SENSOR CAS 5.700707354[2] CONNECTION,ELECTRIC IHActuator 6.700116136[1] SUPPORT HFI- Switch 7.701953[2] SELF-TAP SCREW CAS5/16-18 x 3/4 HWHTCTS Superseded by part number: 172463 8.705657[6] WASHER CAS3/8 Narrow Plain Washer Superseded by part number: 495-11041, 495-11041, N

2025/01/21

凯斯零件查询(3440) - CASE IH ROUND BALER (1/87-12/87) (60) - DECALS, IDENTIFICATION Case Agriculture

Pos.Part NoQtyParts nameComments. .95995C91[1] PACKAGE IHKIT - decal, CaseIH trademark 1.NSS[2] NOT SOLD SEPARAT CONDECAL - CaseIH trademark, 4-1/16 inch (104 MM) long . .95993C91[1] DECAL IHKIT - decal, Case International name, for red background Superseded by part number: 1973425C1, 1973422C1, 192847A2, 1973420C1 . .95994C91[1] DECAL IHKIT - decal, Case International name, for red background Superseded by part number: 1973427C1, 1973428C1 . .95996C91[1] DECAL IHKIT - decal, model designa

2025/01/21

凯斯零件查询(3440) - CASE IH ROUND BALER (1/87-12/87) (58) - SAFETY CHAIN Case Agriculture

Pos.Part NoQtyParts nameComments. .100682C3[1] CHAIN (AG) IHCHAIN ASSEMBLY - safety, 5/16 link x 59-1/4 inch (8 x 1 504 MM) 1.148558C1[1] CLEVIS IH- safety chain Superseded by part number: 1279163C1 2.271729[1] BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5 IH- hex, 5/8 NC x 3-1/2 inch Superseded by part number: 413-1056, 413-1056, NLS 3.231-14410[1] NUT,5/8"-11, GB CASNUT, LOCK, 5/8"-11, GB Superseded by part number: 86639566 4.80280173[1] BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5 IMO- hex, 3/4 NC x 2-3/4 in

2025/01/21

凯斯零件查询(3440) - CASE IH ROUND BALER (1/87-12/87) (56) - BALE COUNTER Case Agriculture

Pos.Part NoQtyParts nameComments. .ZA105788[1] PACKAGE IHKIT - bale counter 1.ZA103965[1] COUNTER IHASSEMBLY - bale 2.656707R91[1] ARM IHLEVER ASSEMBLY - bale counter 3.NSS[1] NOT SOLD SEPARAT CONSCREW - slotted head, no. NF x 5/16 inch (Order 656707R91) 4.495525R1[1] SPRING IH- extension 5.159203[4] SCREW,Cross Pan Hd, #4 - 40 x 1/2" IH- pan head cross recess, no. 4 NC x 1/2 inch Superseded by part number: 440-1048
