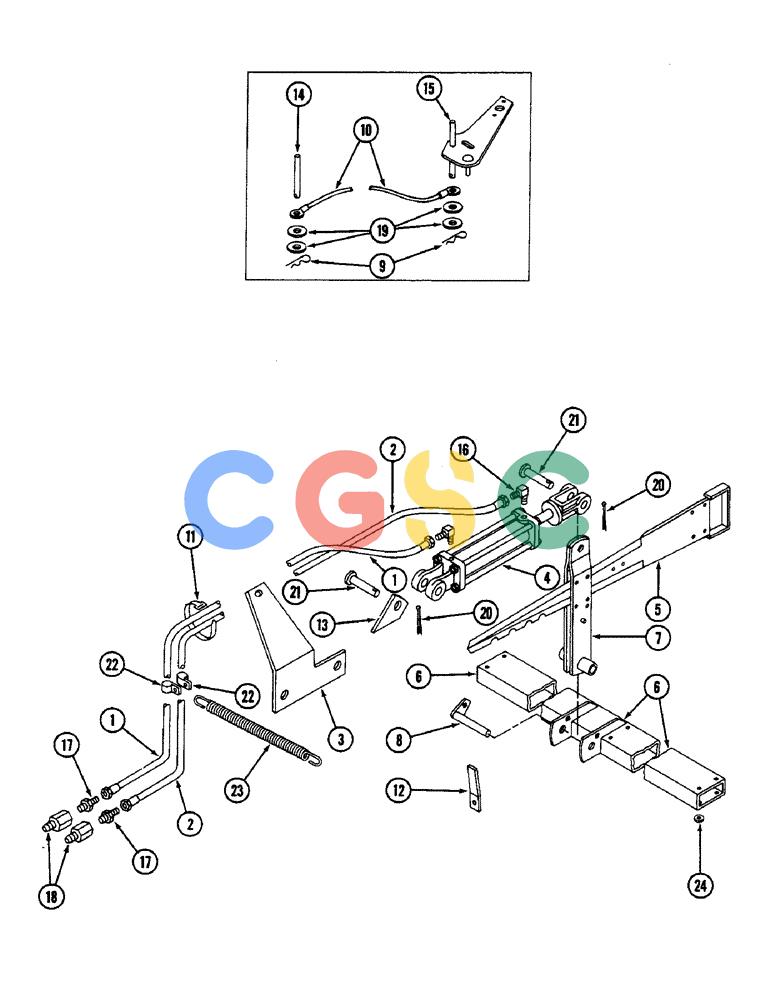

| 1. | 810601C1 | [1] |
HYDRAULIC HOSE,9.53mm ID x 4191mm L |
IHHOSE ASSEMBLY - 162 inch (4114 mm) long |
| 2. | 1261399C1 | [1] |
HYDRAULIC HOSE,6.35mm ID x 4570mm L |
IHHOSE ASSEMBLY - 174 inch (4419 mm) long |
| 3. | ZA105617 | [1] |
PLATE |
IH- pivot |
| 4. | ZA206042 | [1] |
CYLINDER |
CAS- hydraulic (See Page 17) |
| 5. | ZA105801 | [1] |
KNIFE |
IH |
| 6. | ZA105603 | [1] |
TUBE |
IH |
| 7. | ZA105615 | [1] |
PIVOT |
IH |
| 8. | ZA105612 | [1] |
PIN |
IH |
| 9. | 407211R1 | [2] |
CLIP |
IHPIN - klik (Package of 20) |
| 10. | ZA105609 | [1] |
CABLE |
IH- actuator stop |
| 11. | 291207C1 | [6] |
CLAMP |
IHSTRAP - tie Superseded by part number: 529070 |
| 12. | ZA105605 | [1] |
GUIDE |
IH- belt |
| 13. | ZA105616 | [1] |
ANCHOR |
IH |
| 14. | ZA105611 | [1] |
PIN |
IH- 1/2 x 3.4 inch long |
| 15. | ZA105646 | [1] |
PLATE |
IH- pivot |
| 16. | 333934R1 | [2] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF |
IH- 90 degree, 3/8 NPTF Superseded by part number: 235131 |
| 17. | ZA105659 | [2] |
FITTING |
IHRESTRICTOR - orifice (.030) |
| . . | 570828R1 | [2] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro |
IH- 1/2 OD tube Superseded by part number: 128825 |
| 18. | REF | [2] |
INSTRUCTION |
NHCONNECTOR - (See Page 19) |
| 19. | NLS | [4] |
NO LONGER SERVICED |
BAS- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 26 x 2 mm) |
| 20. | 103409 | [2] |
PIN, SPLIT (COTTER),3/16" x 1 1/2" |
IH Superseded by part number: 20328R1 |
| 21. | 27257R1 | [2] |
HEADED PIN,1" x 3" |
IHPIN - headed, 1 x 3 inch Superseded by part number: 87023161 |
| 22. | 98959R1 | [2] |
CLAMP |
IH Superseded by part number: 86625035 |
| 23. | 97767C1 | [1] |
SPRING |
IH |
| 24. | 120394 | [4] |
WASHER,3/8", SAE |
IHWASHER - flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm) Superseded by part number: 87016 |
