约翰迪尔零件查询622 - AMT FUEL PUMP POMPE A CARBURANT KRAFTSTOFFPUMPE POMPA DELLA BENZINA BOMBA DE COMBUSTIBLE BRAENSLEPUMP [BEPC John Deere online
2025/01/21

约翰迪尔零件查询622 - AMT FUEL PUMP POMPE A CARBURANT KRAFTSTOFFPUMPE POMPA DELLA BENZINA BOMBA DE COMBUSTIBLE BRAENSLEPUMP [BEPC John Deere online

Pos.Part NoQtyParts nameComments1.M77474[1] Gasket (SUB AM109212) 2.M77475[1] Diaphragm 3.M77476[2] Valve (SUB AM109212) 4.M77477[1] Gasket (SUB AM109212) 5.M77478[1] Diaphragm (SUB AM109212) 6.M77479[1] Gasket (SUB AM109212) 7.M88776[4] Pin (SUB AM109212) 8.AM106164[1] Fuel Pump (SUB AM109212)
约翰迪尔零件查询600 - AMT FRAMEEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT FRAMEEPC John Deere online

Pos.Part NoQtyParts nameComments1.M96653[2] Pin (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) 2.RE27199[1] Main Frame (SUB AW26685) (ALSO ORDER (2) 19M8197, W39768, W39769 AND W39770) 2.AW26585[1] Main Frame (SUB AW26685) (ALSO ORDER (2) 19M8197, W39768, W39769 AND W39770) 2.AW26685[1] Main Frame 3.19M7167[20] Cap Screw M10 X 25 4.14M7167[8] Lock Nut M10 4.14M7167[28] Lock Nut (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M10 5.AM108564[4]
约翰迪尔零件查询600 - AMT HYDRAULIC DUMP CYLINDEREPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT HYDRAULIC DUMP CYLINDEREPC John Deere online

Pos.Part NoQtyParts nameComments1.W39894[1] Seal (ROD WIPER) 2.W39895[1] Breather 3.T59014[1] O-Ring 4.AW26479[1] Rod (INCLUDES PISTON) 5.AW26477[1] Housing 6.W39891[1] Hydr. Cylinder Rod Guide 7.W40141[2] Back-Up Ring 8.AW26444[1] Hydraulic Cylinder
约翰迪尔零件查询600 - AMT Hydraulic PumpEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT Hydraulic PumpEPC John Deere online

Pos.Part NoQtyParts nameComments1.W39945[2] Bolt 2.AW26480[1] Motor NLA 3.W39892[1] Coupling NLA 4.H64810[1] O-Ring 5.W39896[1] Seal 6.........[1] Adapter Fitting (ORDER AW26474) 7.R45186[1] O-Ring (SUB T77857) 8.AW26481[1] Check Valve 9.U10778[2] O-Ring 10.W39899[2] Retainer 11.AW26476[2] Filter 12.........[1] Hydraulic Pump (ORDER AW26474) 13.AW26475[1] Pressure Relief Valve (LOW PRESSURE) (ORDER AW26474) 14.AW26478[1] Pressure Relief Va
约翰迪尔零件查询600 - AMT HYDRAULIC DUMPEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT HYDRAULIC DUMPEPC John Deere online

Pos.Part NoQtyParts nameComments1.37M7464[5] Screw M10 X 20 2.KK4893B[1] Pin Fastener (SUB FOR J18724) 3.AW26418[1] Bracket 4.W40522[1] Label "CAUTION", (SUB FOR W39746) 5.AW26857[1] Wiring Harness (SUB FOR AW26446) 6.R44097[1] Nut (SUB FOR W39906) 7.R44096[1] Lock Plate (SUB FOR W39907) 8.W39908[1] Nut 9.AW26448[1] Toggle/Rocker Switch 10.W39902[1] Shim 1/2 X 1 X .025" 11.W39748[1] Label "RAISE/LOWER" 12.AW26443[1] Hydraulic Pump NLA

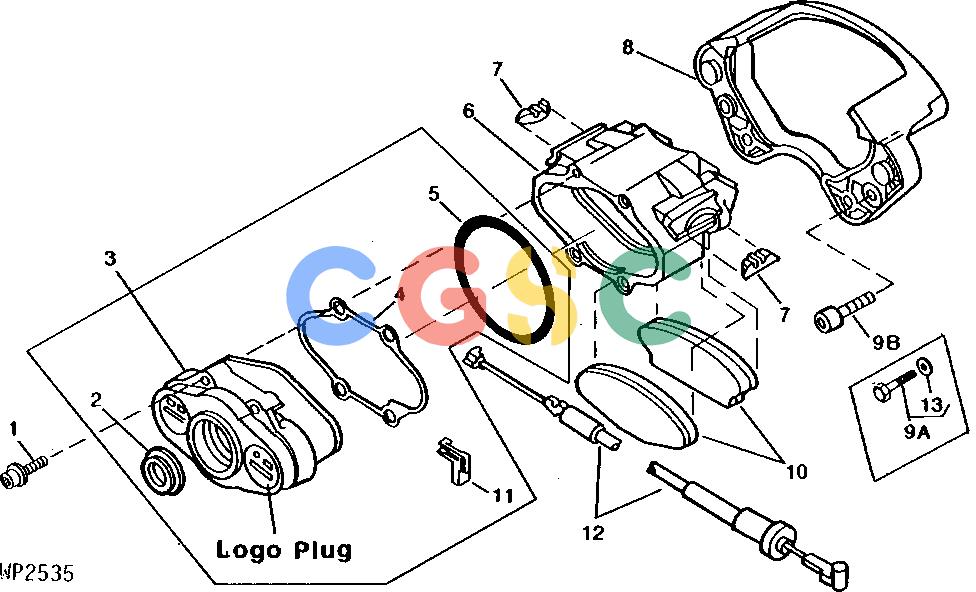

约翰迪尔零件查询600 - AMT BRAKE CALIPEREPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT BRAKE CALIPEREPC John Deere online

Pos.Part NoQtyParts nameComments1.AW26813[4] Screw (SUB FOR R93127 AND R93128) 2.R93126[1] Boot 3.AW26457[1] Disk Brake Caliper Assy (IF ORIGINAL CALIPER WITH "GLUE-IN" CABLE IS REPLACED, AW26459 CABLE MUST ALSO BE ORDERED.) (RH BOTTOM PULL) (BOTH RH AND LH CALIPERS IDENTIFIED WITH GREY "HB" LOGO PLUG MUST BE REPLACED; ORDER AW26457 RH CALIPER, AW26458 LH CALIPER AND (2) AW26459 3.AW26457[1] Disk Brake Caliper Assy (IF ORIGINAL CALIPER WITH "GLUE-IN" CABLE IS REPLACED, AW2645
约翰迪尔零件查询600 - AMT BRAKE LEVEREPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT BRAKE LEVEREPC John Deere online

Pos.Part NoQtyParts nameComments1.W39787[4] Screw 2.RE32914[1] Cover (INCLUDES (2) W40790) 3.RE32915[1] Lever 4.RE32913[1] Balancer 5.R93125[2] Snap Ring 6.W40312[1] Torsion Spring 7A.W39632[1] Cam 7B.AW26972[1] Cam (INCLUDES SCREW AND WASHER, WHICH ARE NOT AVAILABLE AS SEPARATE SERVICE PARTS) 8.W39633[1] Push Nut 9.W39634[1] Spring 10.R93124[1] Pin 11.21M7022[1] Screw M5 X 20 (SUB FOR R88360) (USE WITH AM108505) 12A.AM108504[1] Housing (SUB FOR R
约翰迪尔零件查询600 - AMT STEERING FORKEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT STEERING FORKEPC John Deere online

Pos.Part NoQtyParts nameComments1.AW26409[1] Fork (SUB FOR RE28143) 2.19H3373[1] Cap Screw 5/8" X 9" 3.R89833[2] Grip 4.M96382[1] Spacer (SUB FOR R88690) (SUB FOR W40742) 5.M96375[2] Bushing (BUSHING IS A PRESS FIT) (SUB FOR M44968) 6.19H3459[1] Cap Screw 3/8" X 13-1/2" 7.19M7358[4] Cap Screw M10 X 40 8.24M7028[4] Washer 10.500 X 20 X 2 MM 8.24H1309[4] Washer 13/32" X 1-1/16" X 0.120" 9.AM108525[2] Shock Absorber (REPLACE SHOCKS IN PAIRS) (S

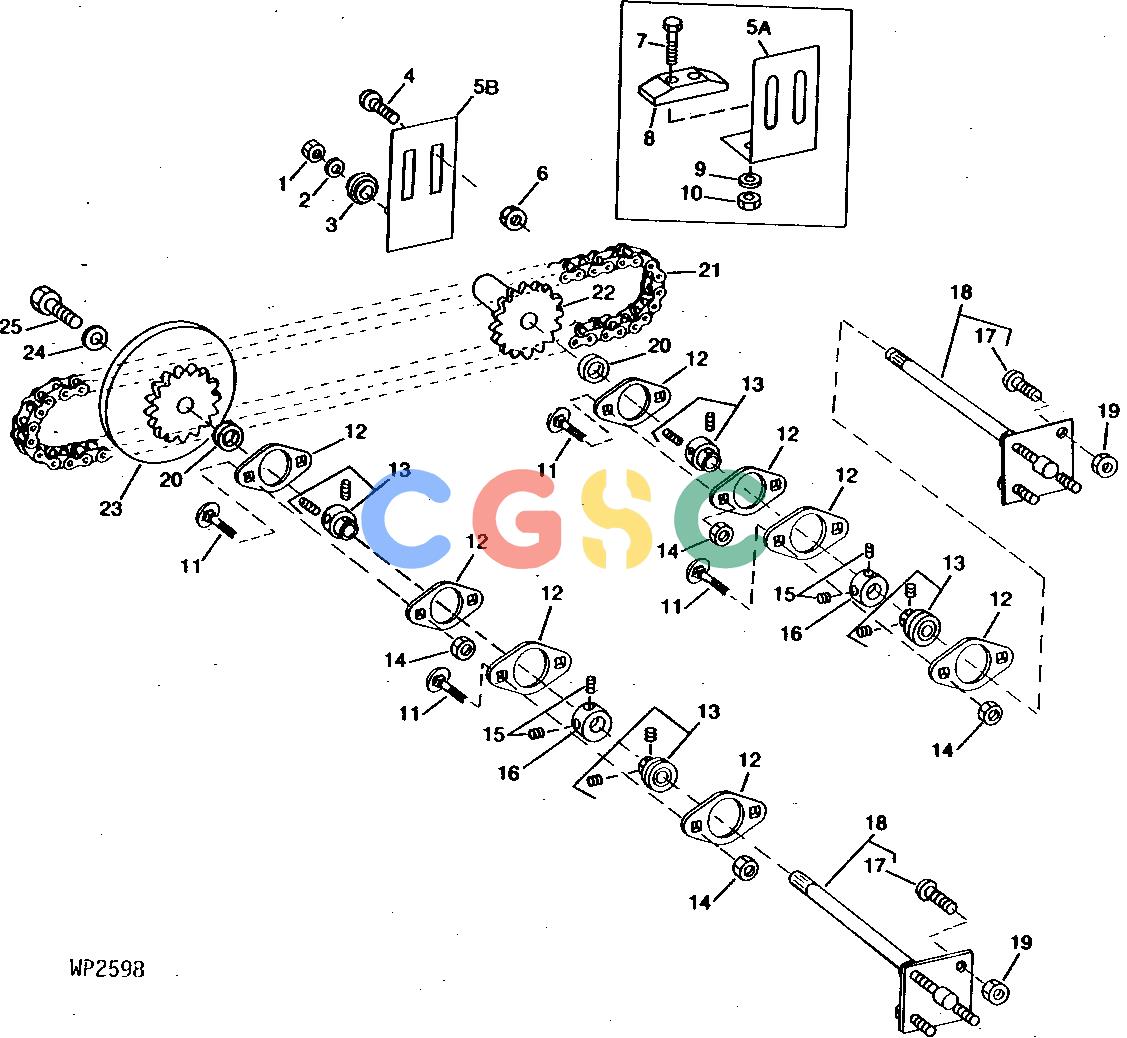

约翰迪尔零件查询600 - AMT DRIVE SPROCKETS, CHAIN AND AXLES (37")EPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT DRIVE SPROCKETS, CHAIN AND AXLES (37")EPC John Deere online

Pos.Part NoQtyParts nameComments1.14M7167[2] Lock Nut M10 2.24M7178[2] Washer 10.500 X 30 X 2.500 MM 3.W40951[2] Idler (USE AN115321 SPROCKET IN PLACE OF W40951 ROLLER IDLER FOR HEAVY DUTY APPLICATIONS.) 3.AN115321[2] Idler Sprocket (USE AN115321 SPROCKET IN PLACE OF W40951 ROLLER IDLER FOR HEAVY DUTY APPLICATIONS.) 4.03M7191[4] Bolt M10 X 25 5A.R87622[2] Angle (USE AN115321 SPROCKET IN PLACE OF W40951 ROLLER IDLER FOR HEAVY DUTY APPLICATIONS.) (SUB AW27217, W40

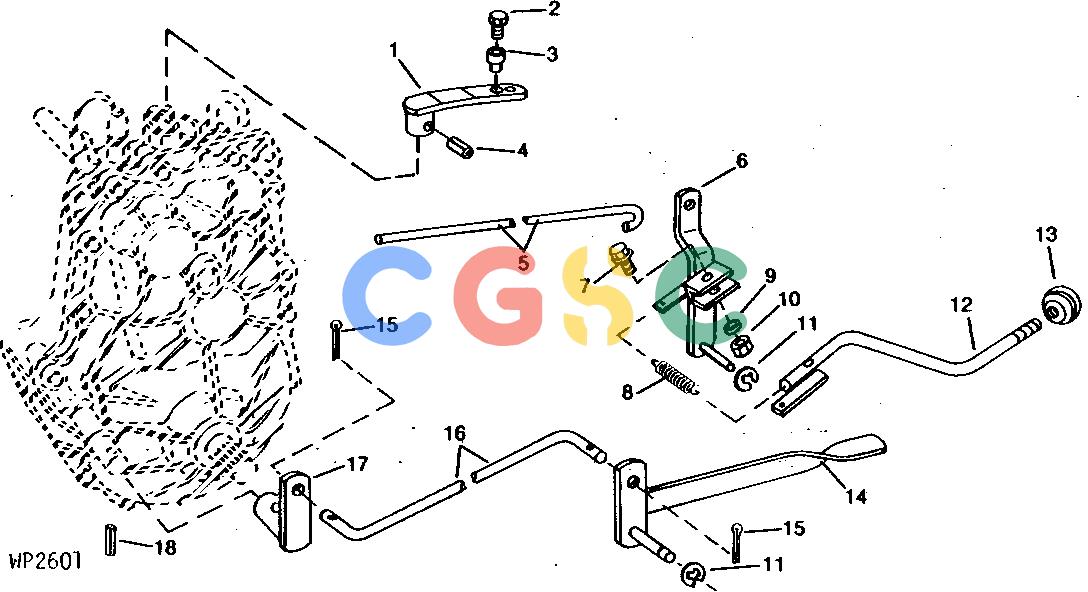

约翰迪尔零件查询600 - AMT SHIFT AND DIFFERENTIAL LOCK LINKAGE (AMT WIDTH 1290 MM)EPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT SHIFT AND DIFFERENTIAL LOCK LINKAGE (AMT WIDTH 1290 MM)EPC John Deere online

Pos.Part NoQtyParts nameComments1.AW26976[1] Lever 2.19M8425[1] Cap Screw M6 X 16 3.W39957[1] Bushing 4.34H314[1] Spring Pin 1/4" X 1-1/4" 5.W39958[1] Linkage 6.RE28479[1] Arm 7.19M7160[1] Cap Screw M6 X 30 8.T17443[1] Spring 9.24H1287[1] Washer 9/32" X 5/8" X 0.065" 10.14M7165[1] Lock Nut M6 11.R30437[2] Snap Ring 12.AM108561[1] Lever 13.AL58296[1] Knob 14.RE28872[1] Pedal 15.11M7082[2] Cotter Pin 2.500 X 25 MM 16.R89684[1] Linkage
约翰迪尔零件查询600 - AMT SHIFT AND DIFFERENTIAL LOCK LINKAGE (AMT WITH 930 MM)EPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT SHIFT AND DIFFERENTIAL LOCK LINKAGE (AMT WITH 930 MM)EPC John Deere online

Pos.Part NoQtyParts nameComments1.AW26976[1] Lever (SUB FOR RE28480) 2.R72654[4] Snap Ring 3.34H314[1] Spring Pin 1/4" X 1-1/4" 4.11M7082[2] Cotter Pin 2.500 X 25 MM 5.R89263[1] Linkage (SUB AW26976, W39957, W39958 AND 19M7560) 6.RE28479[1] Arm 7.34H314[1] Spring Pin 1/4" X 1-1/4" 8.RE29080[1] Lever NLA 9.AL58296[1] Knob 10.T17443[1] Spring 11.RE28872[1] Pedal 12.34H331[1] Spring Pin 5/16" X 1-1/2" 13.AW27184[1] Arm (SUB FOR RE29059 OR
约翰迪尔零件查询600 - AMT Secondary Driven SheaveEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT Secondary Driven SheaveEPC John Deere online

Pos.Part NoQtyParts nameComments1.R91410[1] Key 2.R91685[1] Pulley (SUB AW26934) 3.R91686[1] Pulley (SUB AW26934) 4.AW26933[1] Adapter Kit PKG (6) (SUB FOR RE32988) 5.R91688[1] Compression Spring 5.ET16546[1] Spring (NLA) 6.26H74[1] Shaft Key 3/16" X 5/8" (SUB FOR R91689) 7.R91690[1] Bracket 8.L1152N[1] Snap Ring 9.AET10637[1] Pulley (SUB FOR RE28875 OR AW26934) 10.RE28721[1] V-Belt
约翰迪尔零件查询600 - AMT PRIMARY DRIVE SHEAVEEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT PRIMARY DRIVE SHEAVEEPC John Deere online

Pos.Part NoQtyParts nameComments1.R91209[1] Key 2.R91576[1] Pulley (SUB RE32981) 3.R91577[1] Pulley (SUB RE32981) 4.RE30981[1] Spider (SUB RE32981) 5.RE30978[1] Spring Kit PKG (3) 5.AM108521[1] Spring Kit PKG (3) 6.RE30980[1] Roller PKG (3) 6.AM108522[1] Arm Kit PKG (3) 7.M95399[1] Plate 8.RE30982[1] Plate Kit 9.L1152N[1] Snap Ring 10.ET16544[1] Retainer (SUB FOR R91582) 11.M96352[3] Compression Spring 12.ET16542[3] Bumper 13.AM10
约翰迪尔零件查询600 - AMT FLYWHEEL AND CLUTCH COVERSEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT FLYWHEEL AND CLUTCH COVERSEPC John Deere online

Pos.Part NoQtyParts nameComments1.19M7300[4] Cap Screw M6 X 10 2.R91184[1] Screen 3.M78941[1] Housing (SUB FOR R91181) 4.R88207[1] Cover 5.19M7881[1] Screw M8 X 20 6.R91827[1] Bolt 7.14M7166[2] Lock Nut M8 8.RE31584[1] Bracket (SUB R88578 AND 19M7162) 9.24M7207[2] Washer 8.400 X 24 X 2 MM 10.14M7166[1] Lock Nut M8 11.24M7095[4] Washer 8.400 X 15 X 1.600 MM 12.19M7932[4] Cap Screw M8 X 16 13.R88578[1] Angle 14.19M7162[1] Cap Screw
约翰迪尔零件查询600 - AMT Horn Kit (XXXXXX - )EPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT Horn Kit (XXXXXX - )EPC John Deere online

Pos.Part NoQtyParts nameComments1.T55501[1] Cap 2.AR20235[1] Switch 3.AM105855[1] Wiring Lead 4.14M7298[2] Flange Nut M8 5.M94395[1] Strap 6.AM107657[1] Horn (INCLUDES STRAP) 7.19M8318[1] Screw (USED ON AMT 600) M8 X 45 8.12M7032[2] Lock Washer 8.400 MM 9.AM105856[1] Wiring Lead (GROUND) 10.M41966[1] Bushing (USED ON AMT 600) 11.19M7933[1] Cap Screw (USED ON AMT 622) M6 X 25 12.24H1821[1] Washer (USED ON AMT 622) 9/32" X 47/64" X 1/16"
约翰迪尔零件查询600 - AMT Horn Kit ( - XXXXXX)EPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT Horn Kit ( - XXXXXX)EPC John Deere online

Pos.Part NoQtyParts nameComments1.........[1] Switch 2.........[1] Wiring Harness 3.........[1] Horn ...AW26901[1] Kit (SUB BM18004 FROM COMPLETE GOODS) (SUB AM105853)
约翰迪尔零件查询600 - AMT DIRECTION INDICATOR LIGHT KITEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT DIRECTION INDICATOR LIGHT KITEPC John Deere online

Pos.Part NoQtyParts nameComments1.M43835[6] Electrical Connector Assy 2.12M6680[2] Lock Washer 12.500 MM 3.24H1748[2] Washer 1/2" X 1-1/4" X 0.105" 4.14M7459[2] Nut M10 5.24M7028[2] Washer 10.500 X 20 X 2 MM 6.........[2] Holder 7.........[2] Bulb 8.........[2] Gasket 9.........[2] Lens 10.........[4] Screw 11.AW26910[2] Turn Signal Lamp (FRONT) 12.........[1] Boot (ORDER AW26912) 13.R77476[1] Electrical Connector Assy 14.T28585[5] Electri

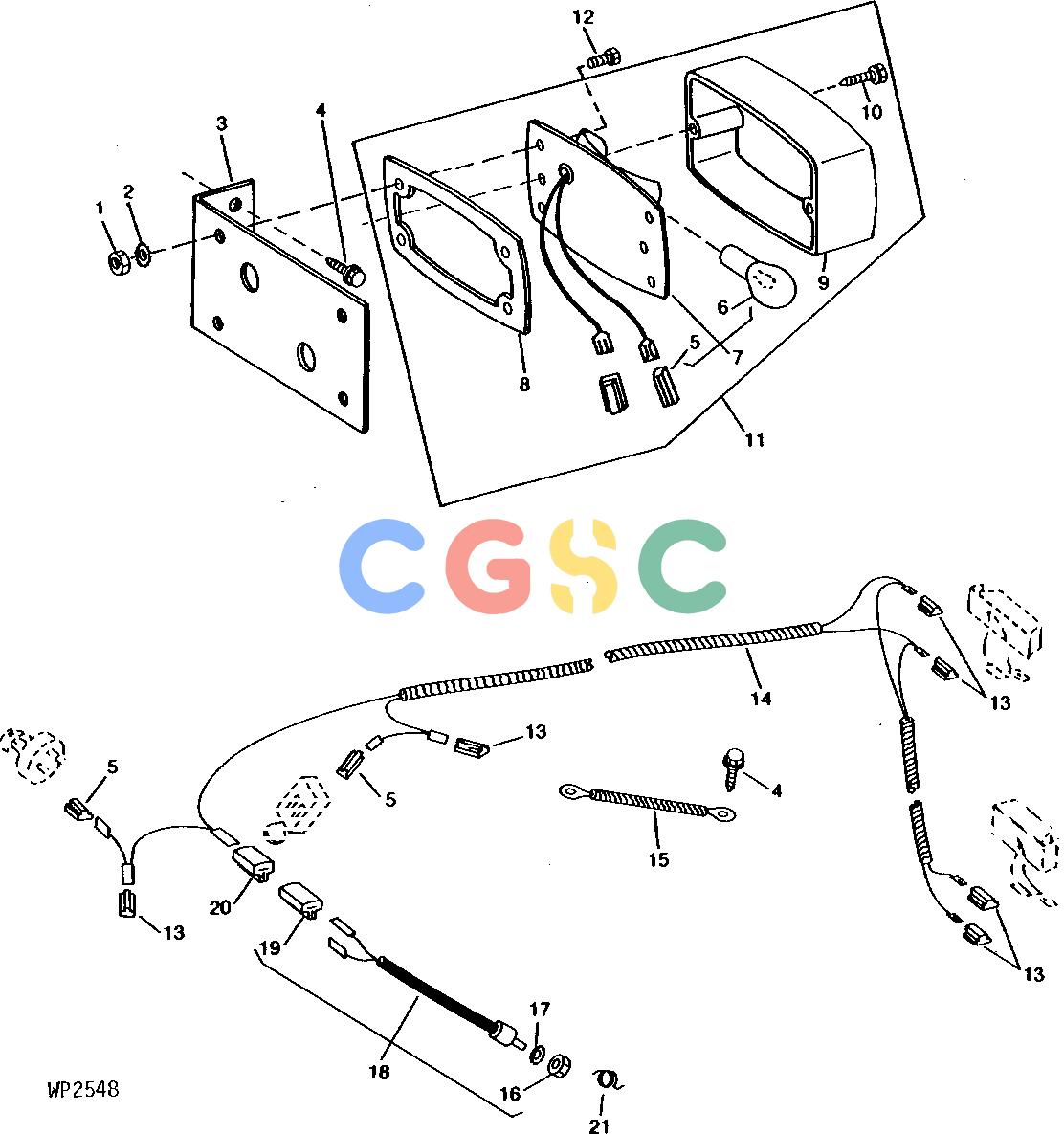

约翰迪尔零件查询600 - AMT STOP LIGHT KITEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT STOP LIGHT KITEPC John Deere online

Pos.Part NoQtyParts nameComments1.14H1026[8] Nut 0.138" 2.12H353[8] Lock Washer 0.138" 3.W40603[2] Bracket 4.37H129[5] Screw 5.M43835[4] Electrical Connector Assy 6.AR48041[2] Bulb (GE 1157) 7.........[2] Holder 8.W40750[2] Gasket 9.........[2] Lens 10.37M7198[4] Screw 11.AW26899[2] Stop Light 12.21H1308[8] Screw 0.138" X 3/8" 13.T28585[6] Electrical Connector Assy 14.AW26873[1] Wiring Harness (INCLUDES T28586, (2) U46370 AND (6) T28585) 1
约翰迪尔零件查询600 - AMT HOURMETER KITEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT HOURMETER KITEPC John Deere online

Pos.Part NoQtyParts nameComments1.H77698[1] Tie Band (SUB FOR M66044) 2.U46370[1] Electrical Connector Assy 3.AM37023[1] Wiring Harness 4.M43835[2] Electrical Connector Assy 5.14H605[1] Nut 0.164" 6.12H315[1] Lock Washer 0.164" 7A.M87064[1] Retainer ORDER M112003 7B.M112003[1] Retainer USE WITH AM115625 7C.M121675[1] Clip USE WITH AM125427 8A.AM115625[1] Hour Meter ORDER AM125427; ALSO ORDER M121675; SUB FOR AM100385 8B.AM125427[1] Hour Meter
约翰迪尔零件查询600 - AMT HEADLIGHTEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT HEADLIGHTEPC John Deere online

Pos.Part NoQtyParts nameComments1.RE30948[1] Bulb 2.37H195[2] Screw 0.190" X 3/8" 3.AW27203[1] Headlight (ALSO ORDER M96371) (SUB FOR RE28080) 4.14H786[1] Nut 1/4" 5.19H1996[1] Cap Screw 1/4" X 2"
