约翰迪尔零件查询600 - AMT DIRECTION INDICATOR LIGHT KITEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT DIRECTION INDICATOR LIGHT KITEPC John Deere online

Pos.Part NoQtyParts nameComments1.M43835[6] Electrical Connector Assy 2.12M6680[2] Lock Washer 12.500 MM 3.24H1748[2] Washer 1/2" X 1-1/4" X 0.105" 4.14M7459[2] Nut M10 5.24M7028[2] Washer 10.500 X 20 X 2 MM 6.........[2] Holder 7.........[2] Bulb 8.........[2] Gasket 9.........[2] Lens 10.........[4] Screw 11.AW26910[2] Turn Signal Lamp (FRONT) 12.........[1] Boot (ORDER AW26912) 13.R77476[1] Electrical Connector Assy 14.T28585[5] Electri
约翰迪尔零件查询600 - AMT STOP LIGHT KITEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT STOP LIGHT KITEPC John Deere online

Pos.Part NoQtyParts nameComments1.14H1026[8] Nut 0.138" 2.12H353[8] Lock Washer 0.138" 3.W40603[2] Bracket 4.37H129[5] Screw 5.M43835[4] Electrical Connector Assy 6.AR48041[2] Bulb (GE 1157) 7.........[2] Holder 8.W40750[2] Gasket 9.........[2] Lens 10.37M7198[4] Screw 11.AW26899[2] Stop Light 12.21H1308[8] Screw 0.138" X 3/8" 13.T28585[6] Electrical Connector Assy 14.AW26873[1] Wiring Harness (INCLUDES T28586, (2) U46370 AND (6) T28585) 1
约翰迪尔零件查询600 - AMT HOURMETER KITEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT HOURMETER KITEPC John Deere online

Pos.Part NoQtyParts nameComments1.H77698[1] Tie Band (SUB FOR M66044) 2.U46370[1] Electrical Connector Assy 3.AM37023[1] Wiring Harness 4.M43835[2] Electrical Connector Assy 5.14H605[1] Nut 0.164" 6.12H315[1] Lock Washer 0.164" 7A.M87064[1] Retainer ORDER M112003 7B.M112003[1] Retainer USE WITH AM115625 7C.M121675[1] Clip USE WITH AM125427 8A.AM115625[1] Hour Meter ORDER AM125427; ALSO ORDER M121675; SUB FOR AM100385 8B.AM125427[1] Hour Meter
约翰迪尔零件查询600 - AMT HEADLIGHTEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT HEADLIGHTEPC John Deere online

Pos.Part NoQtyParts nameComments1.RE30948[1] Bulb 2.37H195[2] Screw 0.190" X 3/8" 3.AW27203[1] Headlight (ALSO ORDER M96371) (SUB FOR RE28080) 4.14H786[1] Nut 1/4" 5.19H1996[1] Cap Screw 1/4" X 2"

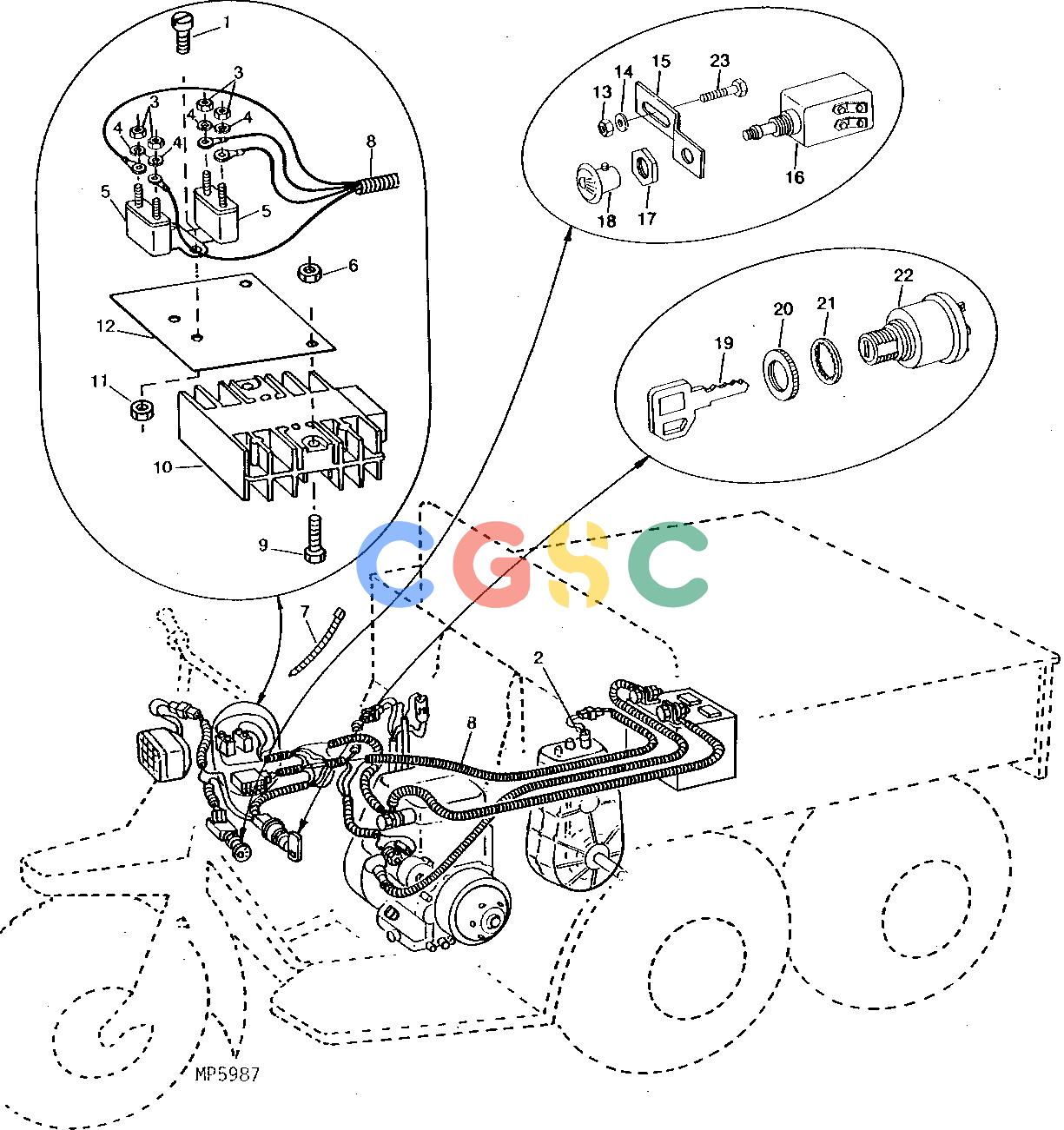

约翰迪尔零件查询600 - AMT MAIN WIRING HARNESSEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT MAIN WIRING HARNESSEPC John Deere online

Pos.Part NoQtyParts nameComments1.19M8146[2] Screw M5 X 16 2.AM877735[1] Switch (NEUTRAL START) (SUB FOR RE28083) 3.14H631[4] Nut 0.190" 4.12M7060[4] Washer 5.300 MM 5.AR28403[2] Circuit Breaker 20 AMP 6.14M7165[2] Lock Nut M6 7.R44302[AR] Tie Band 4.6 X 171 MM (0.18" X 6.75") 7.H77698[AR] Tie Band 4.7 X 360 MM (0.18" X 14.2") 8.RE28081[1] Wiring Harness 9.19M7160[2] Cap Screw M6 X 30 10.M70121[1] Voltage Regulator NLA; SUB FOR RE28144
约翰迪尔零件查询600 - AMT FLYWHEELEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT FLYWHEELEPC John Deere online

Pos.Part NoQtyParts nameComments1.PT10001[1] Grommet 2.PT10000[1] Cover NLA 3.PT9999[1] Cap NLA 4.TY6126[1] Spark Plug (NGK BR4HS) 4.TY6122[1] Spark Plug (NGK BPR4HS, EXTENDED NOSE) 4.........[1] Spark Plug (CHAMPION RL92YC, HOTTER HEAT RANGE) 5.PT13898[1] Nut (SUB FOR R91439) 6.M88488[1] Washer (SUB FOR R91438 AND PT13948) 7.19M6614[3] Cap Screw M6 X 12 8.24M7088[3] Washer 6.600 X 12 X 1.600 MM 9.PT12128[2] Clamp 10.R91436[4] Screw
约翰迪尔零件查询600 - AMT STARTER MOTOREPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT STARTER MOTOREPC John Deere online

Pos.Part NoQtyParts nameComments1.19M7177[2] Cap Screw M6 X 35 2.PT13946[1] Cover KIT 3.PT13930[1] Shifter (NLA) 4.PT13936[1] Switch (ORDER AM120843) 5.PT13943[1] Cap 6.PT13947[1] Washer SET, (NLA) 7.M121575[1] Armature (SUB FOR PT13931) 8.PT13945[2] Bolt 9.21M7216[2] Screw M4 X 20 10.PT13942[1] Kit BUSHING, (SUB FOR AM118860) (ORDER AM120843) 11.PT13941[1] Cover (NLA) 12.PT13938[1] Brush 13.PT13939[2] Spring (NLA) 14.PT13944[1
约翰迪尔零件查询600 - AMT MUFFLER ATTACHMENTEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT MUFFLER ATTACHMENTEPC John Deere online

Pos.Part NoQtyParts nameComments1.AW26798[1] Kit (QUIET MUFFLER KIT INCLUDES INSTALLATION INSTRUCTIONS) 2.M121981[1] Gasket NLA; SUB FOR PT14137 3.03M7188[2] Bolt M8 X 40 4.14M7166[2] Lock Nut M8 5.24M7055[2] Washer 8.400 X 16 X 1.600 MM 6.R59468[1] Spring 7.W40356[1] Angle 8.37H228[1] Screw 9.AW26849[1] Arrestor 10.AW26848[1] Spark Arresting Muffler 11.W40385[1] Plate 12.24H1283[4] Washer 7/32" X 1/2" X 0.049" 13.R55326[4] Rivet 14.14M727
约翰迪尔零件查询600 - AMT EXHAUST PIPEEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT EXHAUST PIPEEPC John Deere online

Pos.Part NoQtyParts nameComments1.37H43[4] Screw 2.RE30016[1] Arrestor SCREEN 3.RE30015[1] Exhaust Pipe 4.14M7273[2] Nut M8 5.12H303[2] Lock Washer 5/16" 6.M68144[2] Stud NLA; ORDER MIU11949 7.M121981[1] Gasket NLA; SUB FOR PT14137 8.M95341[1] Bracket (THIS BRACKET CAN BE FIELD INSTALLED TO PREVENT MUFFLER BREAKING. INSTRUCTIONS ARE INCLUDED) 9.TY22467[1] Clamp (SUB FOR AR21839)
约翰迪尔零件查询600 - AMT GOVERNOR AND THROTTLE LINKAGEEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT GOVERNOR AND THROTTLE LINKAGEEPC John Deere online

Pos.Part NoQtyParts nameComments1.R91230[1] Bolt 2.R91432[1] Bolt 3.R91227[1] Panel (ENGINE SERIAL NUMBER SHOWN.) (SUB W40616, (2) R93185 AND 24M1754) 3.R93022[1] Panel (ENGINE SERIAL NUMBER SHOWN FIRST, CHASSIS SERIAL NUMBER SHOWN SECOND.) (SUB W40616) 3.W40616[1] Panel (CHASSIS SERIAL NUMBER SHOWN.) 4.19M8425[3] Cap Screw M6 X 16 5.M78945[1] Spring (SUB FOR R91431) 6A.R91223[1] Lever (CHASSIS SERIAL NUMBER SHOWN.) (SUB W40223 AND 21M7230) 6B.W40223[1]
约翰迪尔零件查询524K - LOADER, FOUR-WHEEL DRIVE Transmission Speed SensorEPC John Deere online
2025/01/25

约翰迪尔零件查询524K - LOADER, FOUR-WHEEL DRIVE Transmission Speed SensorEPC John Deere online

Pos.Part NoQtyParts nameComments1.AT210773[3] Sensor TORQUE CONVERTER INPUT SPEED SENSOR TORQUE CONVERTER OUTPUT SPEED SENSOR INTERNAL CLUTCH SPEED SENSOR 2.19M7932[1] Cap Screw M8 X 16 3.T179510[1] Sensor TRANSMISSION OUTPUT SHAFT SPEED SENSOR 4.T176796[1] O-Ring 5.AT175750[1] Plug 6.R104558[3] O-Ring 7.R73599[1] O-Ring 8.T174236[1] O-Ring 9.T173217[1] Fitting Plug
约翰迪尔零件查询524K - LOADER, FOUR-WHEEL DRIVE Front Axle Temperature SensorEPC John Deere online
2025/01/25

约翰迪尔零件查询524K - LOADER, FOUR-WHEEL DRIVE Front Axle Temperature SensorEPC John Deere online

Pos.Part NoQtyParts nameComments1.AT390644[1] Coolant Temperature Sensor AXLE TEMPERATURE SENSOR 2.T283860[1] Bracket 3.T279632[1] Bracket 4.28H3382[1] Bushing 0.546" X 0.840" X 5/8" 5.T64784[1] Clip 6.19M7813[1] Screw M12 X 45 7.24M7240[3] Washer 13 X 25 X 3 MM 8.57M10650[1] Clip Kit 9.T75197[1] Clamp 10.19M7866[2] Screw M8 X 20 11.19M7361[3] Cap Screw M12 X 50 12.AT391275[1] Fitting 13.U12547[1] O-Ring 14.T70502[1] Grommet 15.14M7396[
约翰迪尔零件查询310SK TC - BACKHOE, LOADER Transmission Speed SensorEPC John Deere online
2025/01/28

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Transmission Speed SensorEPC John Deere online

Pos.Part NoQtyParts nameComments1.AT210773[1] Sensor SPEED SENSOR 2.L171236[1] O-Ring
约翰迪尔零件查询643K - FELLER BUNCHER Wiring Harness - Saw Stop Solenoid and Speed Sensor HardwareEPC John Deere online
2025/01/25

约翰迪尔零件查询643K - FELLER BUNCHER Wiring Harness - Saw Stop Solenoid and Speed Sensor HardwareEPC John Deere online

Pos.Part NoQtyParts nameComments1.AT376728[1] Wiring Harness 2.T70659[2] Clamp 3.19M7783[5] Screw M10 X 16 4.T74410[2] Clamp 5.R44302[2] Tie Band 6.F125299[1] Bracket 7.AT376249[1] Sensor Wiring Harness 8.AT376883[1] Wiring Lead
约翰迪尔零件查询600 - AMT Heavy Duty Air Cleaner Attachment (XXXXXX - )EPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT Heavy Duty Air Cleaner Attachment (XXXXXX - )EPC John Deere online

Pos.Part NoQtyParts nameComments1.M94737[1] Wing Nut 2.M76264[1] Washer 3.M89679[1] Ejector 4.M89678[1] End 5.M75143[1] Wing Nut (SUB M89681) 6.M75144[1] Air Filter (SUB AM108243) 7.M70165[1] O-Ring 8.M89677[1] Housing NLA 9.AM105778[1] Air Cleaner NLA 10.M95364[1] Jet (MAIN CARBURETOR JET, NO. 95) 11.W39897[1] Support 12.37M7464[4] Screw M10 X 20 13.W41014[1] Bracket 14.19M7881[2] Screw M8 X 20 15.14M7166[2] Lock Nut M8 16.M12
约翰迪尔零件查询600 - AMT AIR CLEANEREPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT AIR CLEANEREPC John Deere online

Pos.Part NoQtyParts nameComments1.W40135[1] Cover (NLA) (SUB FOR PT13910, THIS APPLICATION) 2.PT13960[1] Filter Element 3.PT13959[1] Filter Element 4.R91251[1] Plate (SUB RE30572) 5.R91252[1] Gasket 6.RE30572[1] Air Cleaner (NLA) 7.PT13908[1] Clip (SUB PT18313) 8.PT10166[1] Tube 9.19M6614[2] Cap Screw M6 X 12
约翰迪尔零件查询600 - AMT Fuel Pump (Kawasaki 49040-2062) (132306 - )EPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT Fuel Pump (Kawasaki 49040-2062) (132306 - )EPC John Deere online

Pos.Part NoQtyParts nameComments1.M77474[1] Gasket (SUB AM109212) 2.M77475[1] Diaphragm 3.M77476[2] Valve (SUB AM109212) 4.M77477[1] Gasket (SUB AM109212) 5.M77478[1] Diaphragm (SUB AM109212) 6.M77479[1] Gasket (SUB AM109212) 7.M88776[4] Pin (SUB AM109212) 8.AM106164[1] Fuel Pump (SUB AM109212)
约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR, FEED ROLLS F042686 11 24 TF1045 [TF1045]EPC John Deere online
2025/01/21

约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR, FEED ROLLS F042686 11 24 TF1045 [TF1045]EPC John Deere online

Pos.Part NoQtyParts nameComments F022545[1] Hydraulic Motor F047239[1] Hydraulic Motor 1.F035132[1] GUIDING PIN 2.F035181[1] GUIDING PIN 2.F049666[1] GUIDING PIN 3.F049659[1] Sign 4.F049660[1] VALVE HOUSING 5.F049661[1] Plate 6.F049662[1] Plate 6.F049670[1] Plate 7.F035368[1] DISC 8.F035367[1] FLAT PIECE 9.F035366[1] Guide 10.F035370[1] Spacer 11.F049663[2] Plug 12.F022640[1] SUPPORT RING 13.F022639[2] SUPPORT RING 14.F035371[1] Spring Washer
约翰迪尔零件查询600 - AMT FUEL TANK AND LINESEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT FUEL TANK AND LINESEPC John Deere online

Pos.Part NoQtyParts nameComments1.RE28090[1] Gauge NLA; ORDER AM143246 1.AM143246[1] Gauge 2.M95849[2] Clamp (SUB FOR (2) M88514) 3.14M7166[1] Lock Nut M8 4.24M7207[1] Washer 8.400 X 24 X 2 MM 5.M149638[1] Bushing FUEL TANK, (SUB FOR M88976 OR M119928) 6.AM38719[1] Hand Operated Valve 7.RE30297[1] Fuel Tank (SUB FOR R88579) 8.TY22464[6] Clamp (SUB FOR (6) AR21836) 9.AM116304[1] Fuel Filter (SUB FOR AM38708, THIS APPLICATION) 10.........[1] Ho
约翰迪尔零件查询600 - AMT CAMSHAFT AND VALVESEPC John Deere online
2025/01/21

约翰迪尔零件查询600 - AMT CAMSHAFT AND VALVESEPC John Deere online

Pos.Part NoQtyParts nameComments1.PT14036[1] Exhaust Valve (NLA) 2.M78929[4] Retainer (SUB FOR PT13895) (SUB AM116773) 3.PT13905[2] Spring (SUB AM116773) 4.PT13896[2] Plate (SUB AM116773) 5.AM106592[1] Cap Kit CONTAINS CAPS FROM 2.70 MM (.106") TO 3.65 MM (.144") THICK 6.PT13964[2] Tappet 7.M800496[1] Ball Bearing (SUB FOR PT14205) 8.........[1] Governor (12) WEIGHTS, (SUB RE32787 AND R93021) 8.RE32787[1] Governor (6) WEIGHTS 9.21M7265[3] Screw
