约翰迪尔零件查询600 - AMT PISTON AND CRANKSHAFTEPC John Deere online

Pos.Part NoQtyParts nameComments1.PT13993[1] Piston Ring Kit STANDARD 1.PT13911[AR] Piston Ring Kit 0.25 MM (0.010") OVERSIZE 1.PT13912[AR] Piston Ring Kit 0.50 MM (0.020") (NLA) OVERSIZE 2.PT13994[1] Piston STANDARD 2.PT13913[AR] Piston 0.25 MM (0.010") OVERSIZE 2.PT13914[AR] Piston 0.50 MM (0.020") (NLA) OVERSIZE 3.PT13995[1] Piston Pin NLA 4.PT13893[2] Snap Ring 5.PT14004[1] Connecting Rod 6.PT14008[1] Gear 6.M88487[1] Shaft Key NLA; SUB

2025/01/21

约翰迪尔零件查询600 - AMT CYLINDER BLOCKEPC John Deere online

Pos.Part NoQtyParts nameComments1.19M6614[7] Cap Screw M6 X 12 2.24M7088[7] Washer 6.600 X 12 X 1.600 MM 3.PT13891[1] Nut (SUB FOR R91425) 4.R91182[1] Cover 5.24M7095[7] Washer 8.400 X 15 X 1.600 MM 6.M78923[1] Cylinder Head (SUB FOR PT13873) 7.M70281[1] Stud (SUB 19M7295) 8.M68144[2] Stud NLA; ORDER MIU11949 9.M121981[1] Gasket NLA; SUB FOR PT14137 10.14M7274[6] Nut M10 11.24M7096[6] Washer 10.500 X 18 X 1.600 MM 12.PT13957[1] Gaske

2025/01/28

约翰迪尔零件查询410 - BACKHOE, LOADER BACKHOE CONTROL VALVE ASSEMBLY [02H08]EPC John Deere online

Pos.Part NoQtyParts nameComments1.U41161[1] Port Plate L.H., CLOSED CENTER 2.........[14] O-Ring (A) 1/16" X 1-1/8" O.D. (SUB FOR U11326, THIS APPLICATION) 3.........[7] O-Ring (A) 1/16" X 1-3/4" O.D. (SUB FOR U15415, THIS APPLICATION) 4.AU41882[2] Valve (SUB AT62848) 4.AT62848[2] Spool Valve STABILIZER 5.AU41885[1] Spool Valve CROWD 6.AU41883[1] Spool Valve BUCKET 7.AT34643[1] Spool Valve SWING 8.AT35260[1] Spool Valve BOOM 9.U41160[1] End P

2025/01/28

约翰迪尔零件查询410 - BACKHOE, LOADER OIL LINES AND FITTINGS (BACKHOE BOOM, CROWD AND BUCKET CIRCUITS) (SERIAL NO. 335231- ) [02H22]EPC John Deere online

Pos.Part NoQtyParts nameComments1.U12547[1] O-Ring (SUB FOR F3171R) 2.AU40260[3] Adapter Fitting 3.19H2633[4] Cap Screw 3/8" X 1-1/2" 4.U43641[4] Clamp 5.T11234[4] Lock Nut 6.AU40911[1] Hydraulic Hose - Fabricate 1 337 MM LONG (1/2" X 92") (CROWD CYLINDER HEAD END) 7.AU42523[1] Hydraulic Hose - Fabricate 1 048 MM LONG (1/2" X 120") (ROD END OF CROWD CYLINDER) 8.AU10807[1] Hydraulic Hose - Fabricate 1 067 MM LONG (1/2" X 42") (ROD END BOOM CYLINDER) 9.AT3539

2025/01/29

约翰迪尔零件查询410G - BACKHOE, LOADER Main Hydraulic System ReservoirEPC John Deere online

Pos.Part NoQtyParts nameComments1.AT174743[1] Filler Cap 2.AT161638[1] Strainer SERVICE ONLY 3.........[1] Hose (MAKE FROM M87571) (CTL) 4.AR77962[2] Hose Clamp 5.AT199541[1] Level Gauge 6.T185683[2] Clip 7.24M7239[2] Washer 10.700 X 21 X 2.500 MM 8.19M7662[2] Cap Screw M10 X 30 9.T184657[1] Spacer 10.24H1311[1] Washer 13/32" X 1-1/4" X 0.220" 11.19M8637[1] Cap Screw M10 X 40 12.R29936[1] O-Ring 12.R26375[1] O-Ring 13.R36636[1] Fitting Plu

2025/01/28

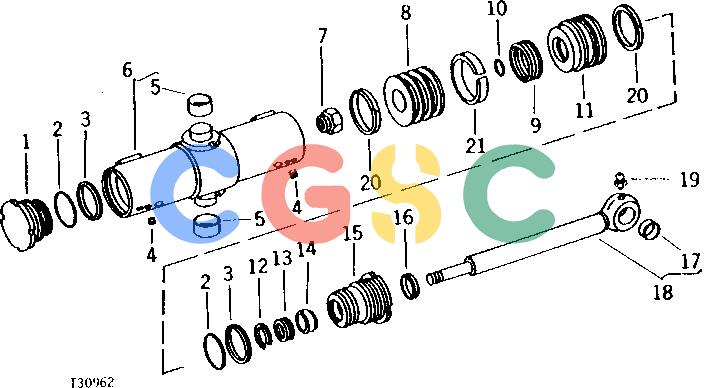

约翰迪尔零件查询300B - BACKHOE, LOADER BACKHOE SWING CYLINDER (9250 BACKHOE) [02F16]EPC John Deere online

Pos.Part NoQtyParts nameComments1.U43249[1] Cylinder Head 2.L2301CU[2] O-Ring (B) 3.L2309CU[2] Back-Up Ring (B) 4.22H842[2] Set Screw 1/4" X 5/16" 5.U43246[2] Bushing 6.AT38043[1] Hydraulic Cylinder Barrel 7.U43861[1] Lock Nut 8.T39038[1] Piston 9.T37381[1] Packing (B) (SUB FOR R72830) 10.R1138R[1] O-Ring (B) 11.T39037[1] Piston 12.N10193[1] Snap Ring 13.R76801[1] Packing (B) (SUB FOR T35850) 14.U41578[1] Wear Ring (B) 15.T39036[1] G

2025/01/28

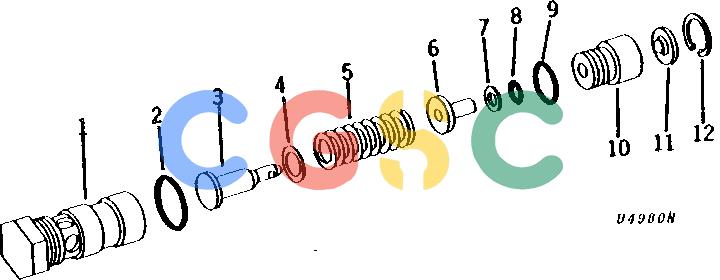

约翰迪尔零件查询300B - BACKHOE, LOADER RELIEF VALVE CARTRIDGES (9250 BACKHOE) [02F06]EPC John Deere online

Pos.Part NoQtyParts nameComments1.........[1] Cage (SUB AU40529, AU40751, AU40752 OR AU40753) 2.32240[1] O-Ring 3.........[1] Guide (SUB AU40529, AU40751, AU40752 OR AU40753) 4.........[AR] Shim 0.25 MM (.010") (SUB AU40529, AU40751, AU40752 OR AU40753) 4.........[AR] Shim 0.38 MM (.015") (SUB AU40529, AU40751, AU40752 OR AU40753) 4.........[AR] Shim 0.76 MM (.030") (SUB AU40529, AU40751, AU40752 OR AU40753) 4.........[AR] Shim 1.47 MM (.058") (SUB AU40529, A

2025/01/28

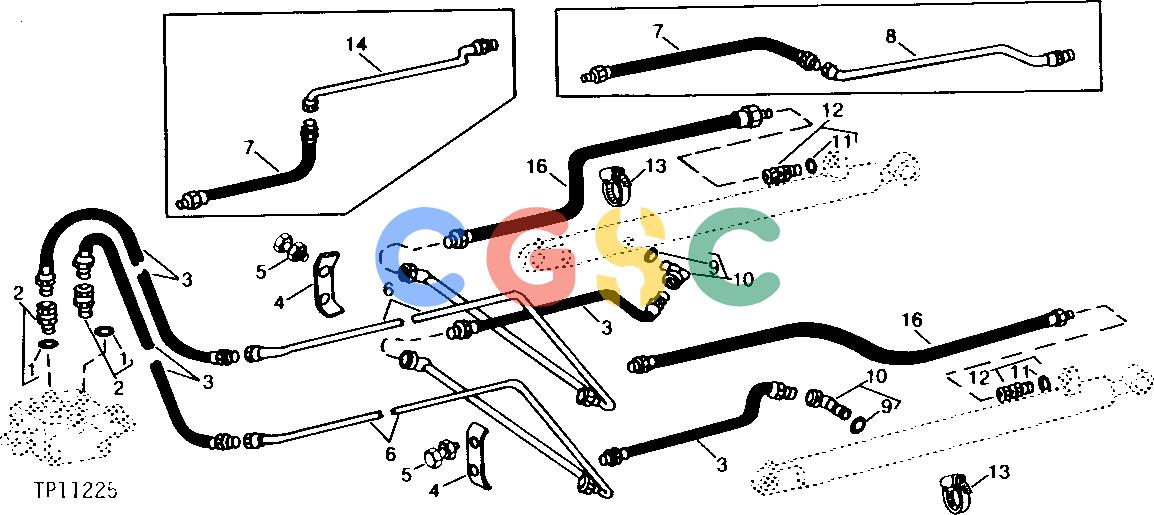

约翰迪尔零件查询300B - BACKHOE, LOADER LOADER BUCKET CIRCUIT [02E09]EPC John Deere online

Pos.Part NoQtyParts nameComments1.R26906[2] O-Ring 2.AU11753[1] Union Fitting (SUB FOR U11009, THIS APPLICATION) (USED) 3.AU40697[3] Hydraulic Hose - Fabricate 508 MM LONG (1/2" X 20") (SUB FOR AU42182) 4.U43301[4] Clamp 5.19H2633[8] Cap Screw 3/8" X 1-1/2" 5.12H304[8] Lock Washer 3/8" 6.AU42151[2] Oil Line 7.AU10862[2] Hydraulic Hose - Fabricate 571 MM LONG (1/2" X 22-1/2") 8.AU42154[1] Tube R.H. (SUB AU13294) 9.R26375[2] O-Ring (SUB FOR U10778)

2025/01/28

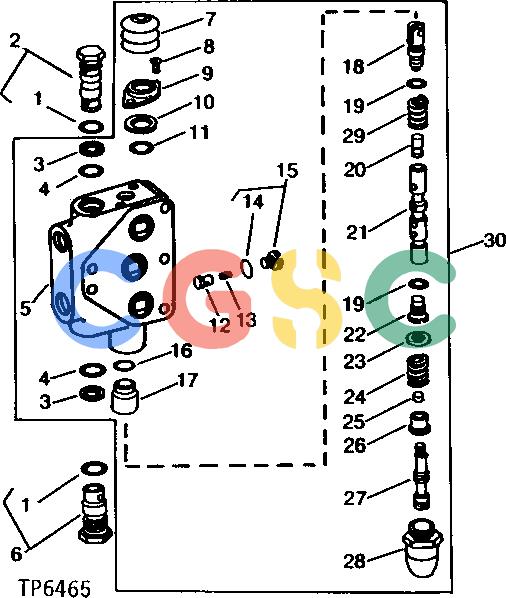

约翰迪尔零件查询300B - BACKHOE, LOADER BUCKET SECTION OF LOADER CONTROL VALVE (SERIAL NO. 259738- ) [02E07]EPC John Deere online

Pos.Part NoQtyParts nameComments1.32240[2] O-Ring (B) 2.AU40752[1] Pressure Relief Valve 18 961 KPA (190 BAR) (2750 PSI) 3.U40727[2] Back-Up Ring (B) 4.P47908[2] O-Ring (B) 5.........[1] Valve (SUB AT29939) 6.AU40528[1] Pressure Relief Valve 10 343 KPA (104 BAR) (1500 PSI) 7.U42834[1] Boot 8.21H1352[2] Screw 1/4" X 3/8" 9.U42827[1] Retainer 10.U42835[1] Washer 11.T57246[1] O-Ring (B) (SUB FOR T30946, THIS APPLICATION) 12.U41172[1] Plunger

2025/01/28

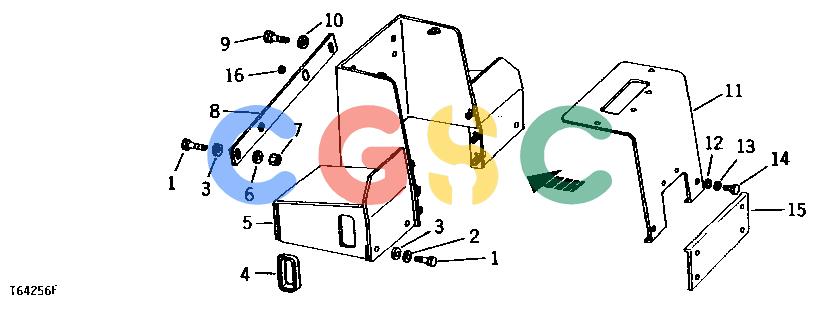

约翰迪尔零件查询300B - BACKHOE, LOADER BACKHOE VALVE BOX (9250 BACKHOE) [02E21]EPC John Deere online

Pos.Part NoQtyParts nameComments1.19H3239[6] Cap Screw 3/8" X 1-1/4" 2.12H304[4] Lock Washer 3/8" 3.24H1305[6] Washer 13/32" X 13/16" X 0.065" 4.R20759[2] Grommet 5.AT42429[1] Box 6.12H304[2] Lock Washer 3/8" 7.14H812[2] Nut 3/8" 8.U41123[1] Strap 9.19H1895[3] Cap Screw 1/2" X 3/4" 10.24H1625[1] Washer 17/32" X 1" X 0.120" 11.U41121[1] Valve Cover UPPER 12.24H1287[8] Washer 9/32" X 5/8" X 0.065" 13.12H302[8] Lock Washer 1/4" 14

2025/01/28

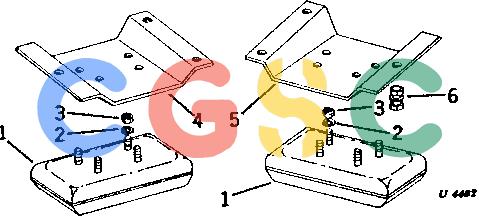

约翰迪尔零件查询300B - BACKHOE, LOADER BACKHOE STREET PADS (9250 BACKHOE) [02E22]EPC John Deere online

Pos.Part NoQtyParts nameComments1.........[2] Flat Shoe (SUB FOR AT13110) (ALSO ORDER T74183 AND T74184) RUBBER, 10" ( AT125939 NO LONGER AVAILABLE) (ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PA.16365) (PHONE 800-289-1456) 2.12H301[8] Lock Washer 1/2" 3.14H865[8] Nut 1/2" 4.U41042[1] Bracket PAD, STREET, R.H. 5.U41043[1] Bracket PAD, STREET, L.H. 6.19H2994[6] Cap Screw HS, SAE 8, 5/8" X 1-1/2" 6.12H294[6] Lock Washer 5/8" 6.14H1039[6] Nut

2025/01/28

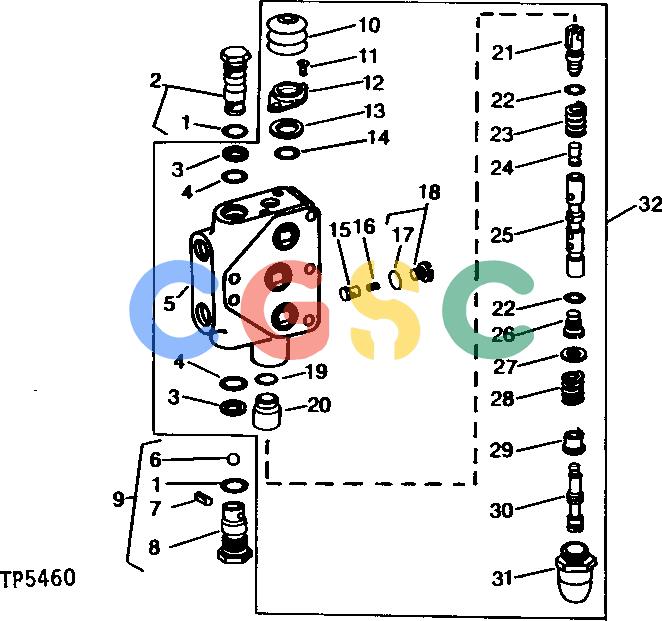

约翰迪尔零件查询300B - BACKHOE, LOADER BOOM SECTION OF LOADER CONTROL VALVE (SERIAL NO. 259738- ) [02E06]EPC John Deere online

Pos.Part NoQtyParts nameComments1.32240[2] O-Ring (B) 2.U11427[1] Plug 3.U40727[2] Back-Up Ring (B) 4.P47908[2] O-Ring (B) 5.........[1] Housing (SUB AT29938) 6.U11498[1] Ball 7.34H264[1] Spring Pin 5/32" X 7/8" 8.U11499[1] Plug (SUB AU10997) 9.AU10997[1] Check Valve 10.U42834[1] Boot 11.21H1352[2] Screw 1/4" X 3/8" 12.U42827[1] Retainer 13.U42835[1] Washer 14.T57246[1] O-Ring (B) (SUB FOR T30946, THIS APPLICATION) 15.U41172[1] Pl

2025/01/28

约翰迪尔零件查询300B - BACKHOE, LOADER RELIEF VALVE FOR LOADER CONTROL VALVE (SERIAL NO. 259738- ) [02E08]EPC John Deere online

Pos.Part NoQtyParts nameComments1.........[1] Relief Valve (SUB AU40752 OR AU40528) 2.32240[1] O-Ring 3.........[1] Guide (SUB AU40752 OR AU40528) 4.........[AR] Shim .25 MM (.010") (SUB AU40752 OR AU40528) 4.........[AR] Shim .38 MM (.015") (SUB AU40752 OR AU40528) 4.........[AR] Shim .76 MM (.030") (SUB AU40752 OR AU40528) 4.........[AR] Shim 1.47 MM (.058") (SUB AU40752 OR AU40528) (SUB FOR R43549, THIS APPLICATION) 5.........[1] Spring FOR 18 961 KP

2025/01/21

约翰迪尔零件查询600 - AMT Fuel Pump (Kawasaki 49040-2058) ( - 132305)EPC John Deere online

Pos.Part NoQtyParts nameComments1.M88776[6] Pin (SUB AM109212) 2.M88804[2] Valve NLA 3.M88803[1] Diaphragm 4.M88802[1] Gasket 5.M88805[1] Gasket NLA 6.M88806[1] Diaphragm NLA 7.M119388[1] Gasket NLA; SUB FOR M88807 8.AM101074[1] Fuel Pump (SUB AM109212)

2025/01/21

约翰迪尔零件查询600 - AMT CARBURETOREPC John Deere online

Pos.Part NoQtyParts nameComments1.PT13880[2] Stud 2.PT14024[1] Insulator NLA 3.M121549[2] Gasket (SUB FOR PT14025) 4.21M7268[4] Screw M3 X 6 5.PT12127[1] Valve THROTTLE 6.PT14022[1] Shaft THROTTLE 7.M126416[1] Jet PILOT, (SUB FOR PT12009) 8.PT14034[1] Bolt 9.M95150[1] Shaft CHOKE, (SUB FOR R91262) 10.R91264[1] Spring 11.PT14018[1] Valve CHOKE 12.M71955[1] Screw IDLE 13.M88544[1] Compression Spring 14.M88544[1] Compression Spring

约翰迪尔零件查询600 - AMT Heavy Duty Air Cleaner Attachment ( - XXXXXX)EPC John Deere online

2025/01/21

约翰迪尔零件查询600 - AMT PISTON AND CRANKSHAFTEPC John Deere online

约翰迪尔零件查询600 - AMT CYLINDER BLOCKEPC John Deere online

约翰迪尔零件查询410 - BACKHOE, LOADER BACKHOE CONTROL VALVE ASSEMBLY [02H08]EPC John Deere online

约翰迪尔零件查询410 - BACKHOE, LOADER OIL LINES AND FITTINGS (BACKHOE BOOM, CROWD AND BUCKET CIRCUITS) (SERIAL NO. 335231- ) [02H22]EPC John Deere online

约翰迪尔零件查询410G - BACKHOE, LOADER Main Hydraulic System ReservoirEPC John Deere online

约翰迪尔零件查询300B - BACKHOE, LOADER BACKHOE SWING CYLINDER (9250 BACKHOE) [02F16]EPC John Deere online

约翰迪尔零件查询300B - BACKHOE, LOADER RELIEF VALVE CARTRIDGES (9250 BACKHOE) [02F06]EPC John Deere online

约翰迪尔零件查询300B - BACKHOE, LOADER LOADER BUCKET CIRCUIT [02E09]EPC John Deere online

约翰迪尔零件查询300B - BACKHOE, LOADER BUCKET SECTION OF LOADER CONTROL VALVE (SERIAL NO. 259738- ) [02E07]EPC John Deere online

约翰迪尔零件查询300B - BACKHOE, LOADER BACKHOE VALVE BOX (9250 BACKHOE) [02E21]EPC John Deere online

约翰迪尔零件查询300B - BACKHOE, LOADER BACKHOE STREET PADS (9250 BACKHOE) [02E22]EPC John Deere online

约翰迪尔零件查询300B - BACKHOE, LOADER BOOM SECTION OF LOADER CONTROL VALVE (SERIAL NO. 259738- ) [02E06]EPC John Deere online

约翰迪尔零件查询300B - BACKHOE, LOADER RELIEF VALVE FOR LOADER CONTROL VALVE (SERIAL NO. 259738- ) [02E08]EPC John Deere online

约翰迪尔零件查询600 - AMT Fuel Pump (Kawasaki 49040-2058) ( - 132305)EPC John Deere online

约翰迪尔零件查询600 - AMT CARBURETOREPC John Deere online

约翰迪尔零件查询600 - AMT Heavy Duty Air Cleaner Attachment ( - XXXXXX)EPC John Deere online

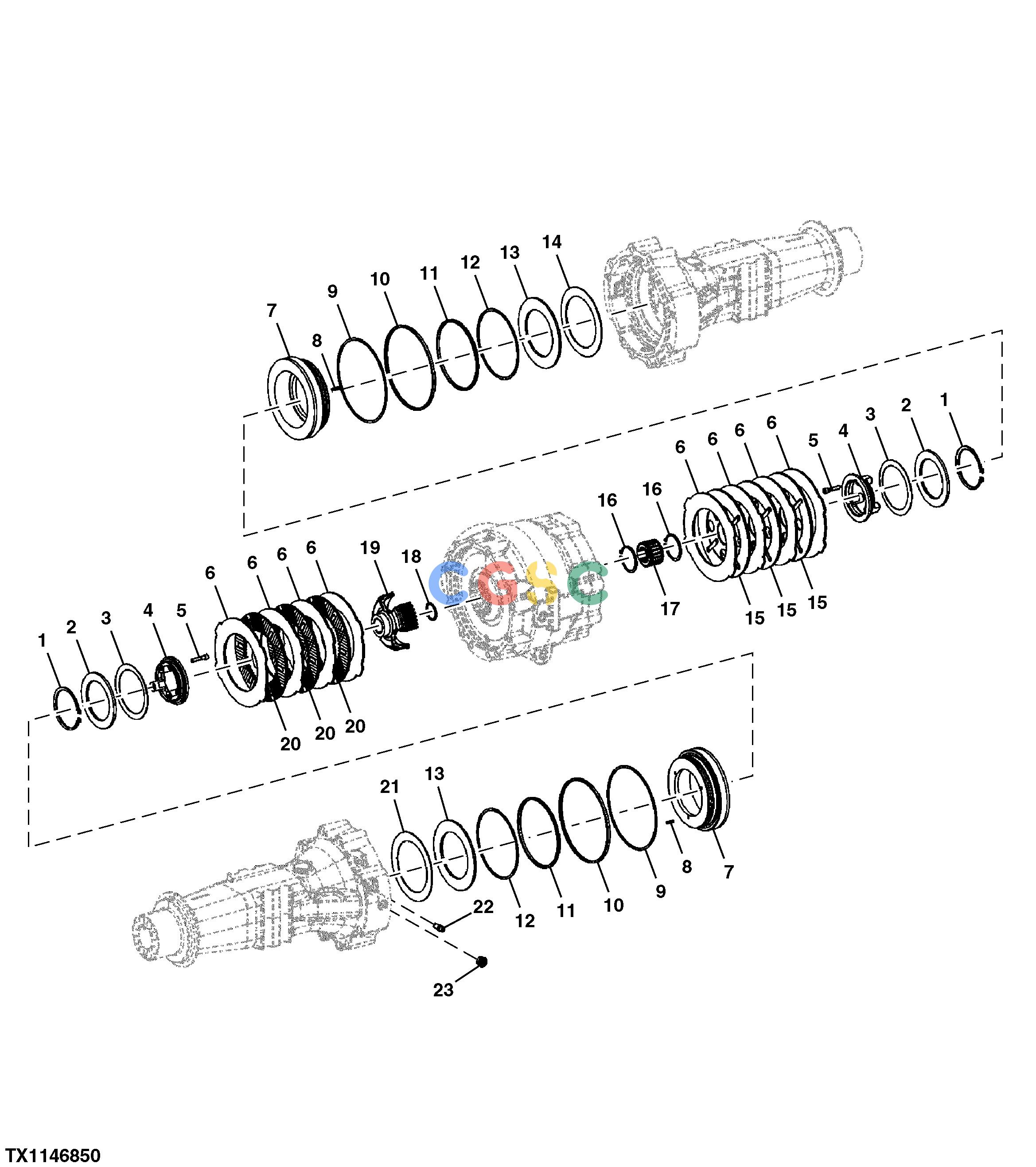

约翰迪尔零件查询410K TC - BACKHOE, LOADER Service Brake Clutch Disc and Disc Carrier ( - 270515)EPC John Deere online

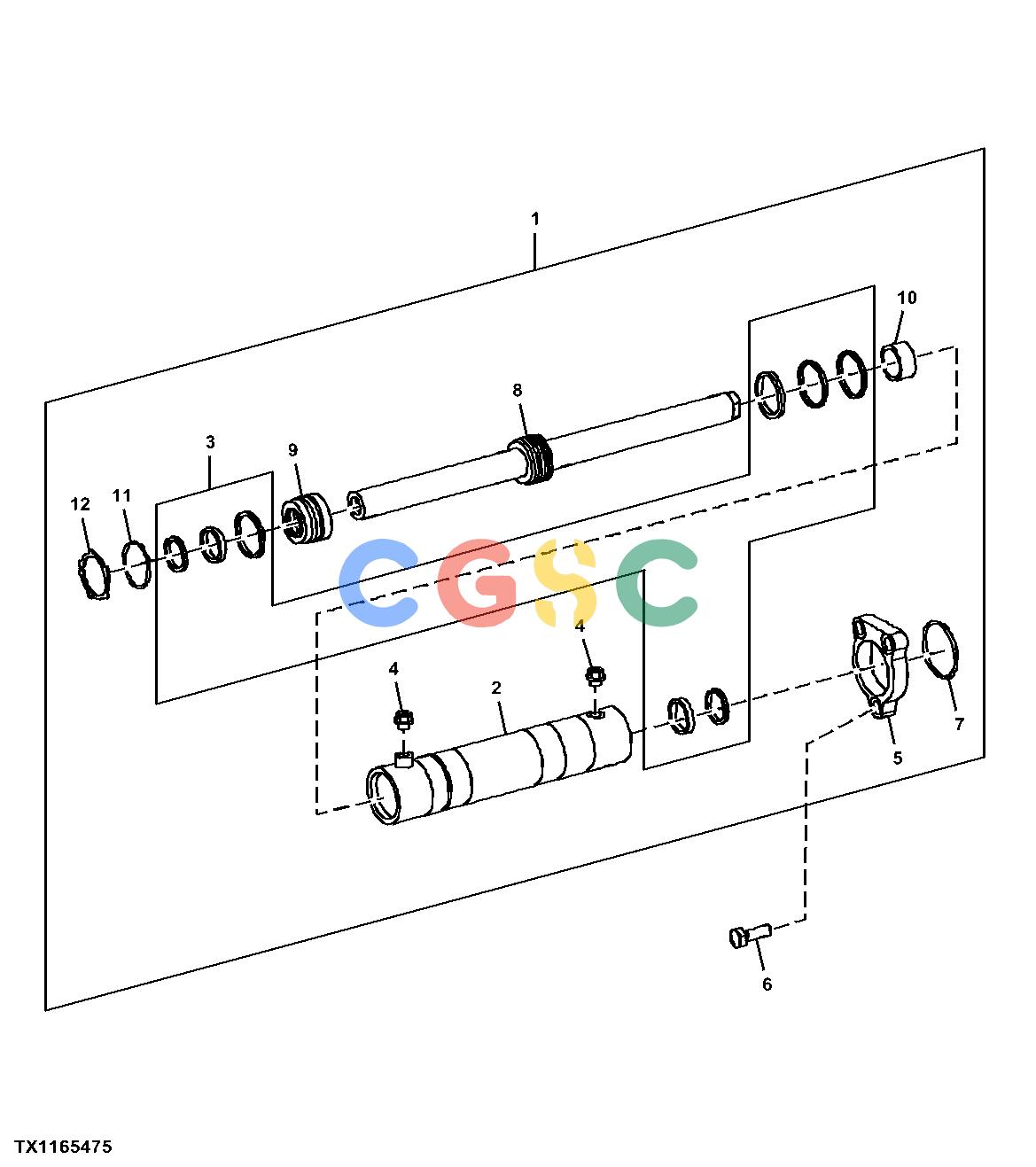

约翰迪尔零件查询410K TC - BACKHOE, LOADER Steering Cylinder and Repair Kit with MFWDEPC John Deere online

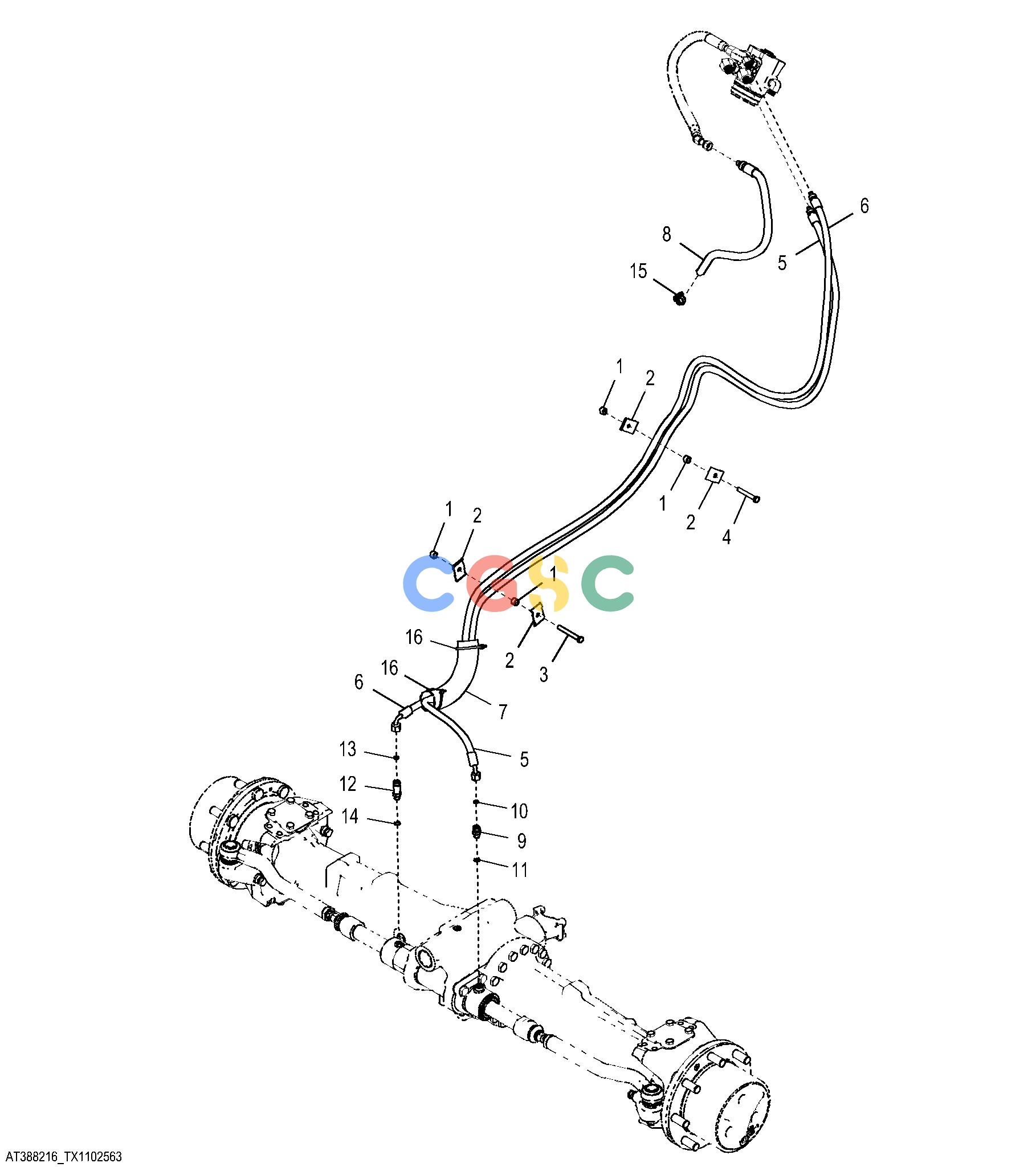

约翰迪尔零件查询410K TC - BACKHOE, LOADER Steering Hydraulics (With Mechanical Front Wheel Drive)EPC John Deere online

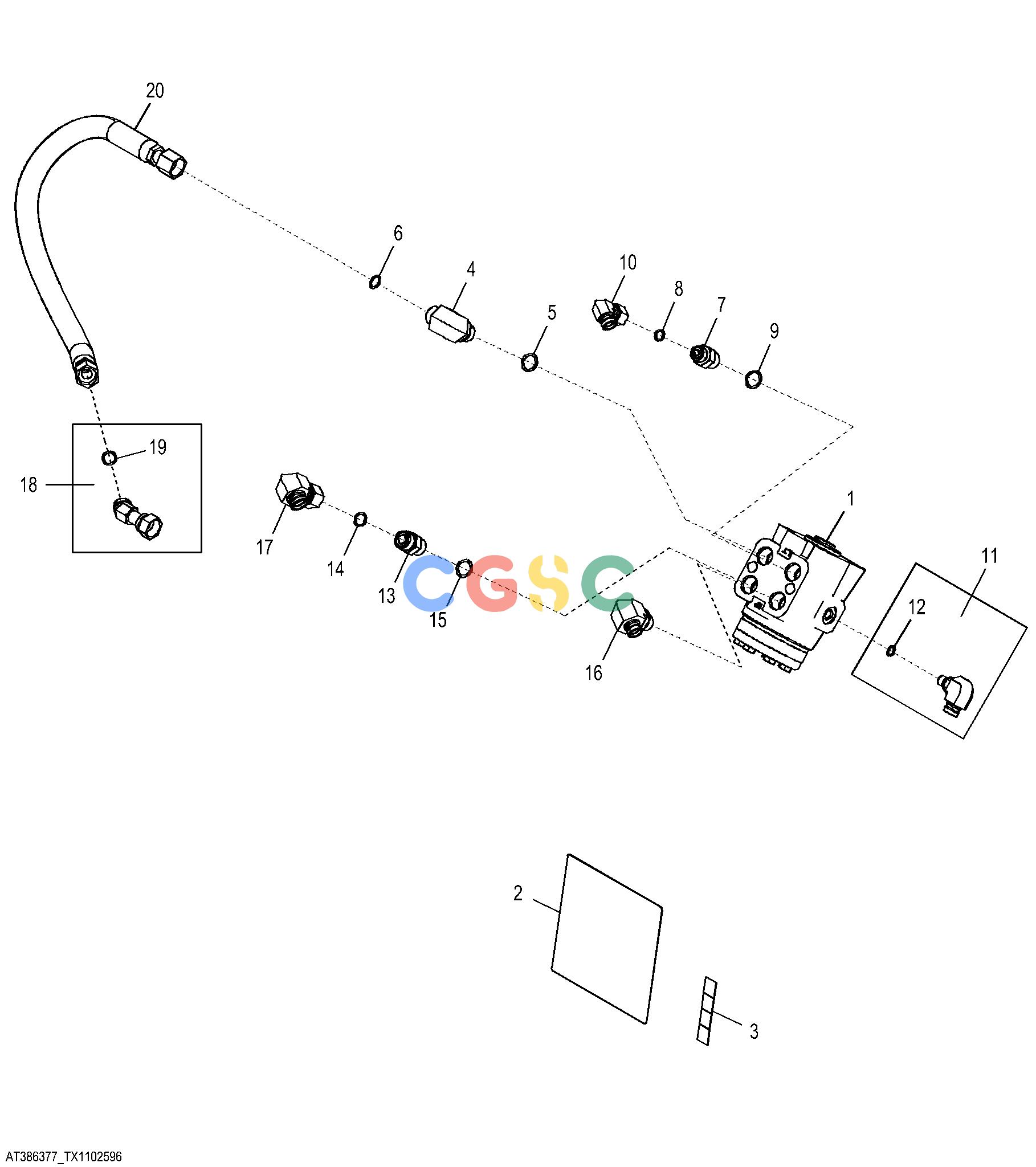

约翰迪尔零件查询410K TC - BACKHOE, LOADER Steering Hydraulic ValveEPC John Deere online
