卡特零件查询（725） 252-9556: WIRING GP-LIGHTING
2025/01/21

卡特零件查询（725） 252-9556: WIRING GP-LIGHTING

Pos.Part NoQtyParts nameComments1.2V-2043[1]NUT-BULKHEAD(1-5/8-12-THD) 2.3S-2093[26]STRAP-CABLE 3.225-8758Y[2]LAMP GP-SIGNAL(24-VOLT, 21/5-WATT)(STOP, TAIL, TURN) 4.227-4233[2]PLATE AS (EACH INCLUDES)8T-3597M[4]NUT-WELD(M12X1.75-THD) 5.237-5512Y[1]WARNING GP-BACKUP 6.237-6288[1]HARNESS AS-CHASSIS(REAR) 102-8802[1]KIT-RECEPTACLE(2-PIN) 102-8806[1]KIT-RECEPTACLE(8-PIN) (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)8T-8737[2]PLUG-SEAL 186-37
卡特零件查询（725） 254-7623: WIRING GP-FRONT
2025/01/21

卡特零件查询（725） 254-7623: WIRING GP-FRONT

Pos.Part NoQtyParts nameComments1.7K-1181[3]STRAP-CABLE 2.177-3458[2]CLAMP 3.254-7629[1]HARNESS AS-FRONT
卡特零件查询（725） 225-8758: LAMP GP-SIGNAL
2025/01/21

卡特零件查询（725） 225-8758: LAMP GP-SIGNAL

Pos.Part NoQtyParts nameComments1.8T-8729[4]PIN-CONNECTOR(16-GA TO 18-GA) 2.9X-4492[1]LAMP-FLOOD(24-VOLT, 5-WATT)(STOP, TAIL) 3.9X-4493[1]LAMP(24-VOLT, 21-WATT)(TURN SIGNAL) 4.102-8804[1]KIT-RECEPTACLE(4-PIN) (INCLUDES RECEPTACLE AS & WEDGE)5.426-5377[1]LAMP(STOP, TAIL, TURN) 6.5C-2890M[2]NUT(M6X1-THD) 7.2U-2453[2]WASHER(5.6X12.6X1.22-MM THK) PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY
卡特零件查询（725） 149-5822: CONTROL GP-XMSN & HOIST
2025/01/21

卡特零件查询（725） 149-5822: CONTROL GP-XMSN & HOIST

Pos.Part NoQtyParts nameComments1.232-3774Y[1]CONTROL GP-XMSN & HOIST(ELECTRONIC) 2.8C-8585M[4]SCREW-BUTTON HEAD(M10X1.5X20-MM) MMETRIC PARTYSEPARATE ILLUSTRATION
卡特零件查询（725） 239-5025: CONTROL GP-UNPRGMED MONITOR
2025/01/21

卡特零件查询（725） 239-5025: CONTROL GP-UNPRGMED MONITOR

Pos.Part NoQtyParts nameComments(NO SERVICED PARTS)
卡特零件查询（725） 246-8975: WIRING GP-CAB
2025/01/21

卡特零件查询（725） 246-8975: WIRING GP-CAB

Pos.Part NoQtyParts nameComments3E-6389Y[1]LAMP GP-DOME(24-VOLT)(CAB) 260-0162Y[1]LAMP GP-FLOOD(24-VOLT) 8T-4137M[12]BOLT(M10X1.5X20-MM) 095-0642M[2]BOLT-SOCKET HEAD(M5X0.8X50-MM) 096-4833M[2]BOLT-SOCKET HEAD(M5X0.8X20-MM) 162-7264[1]CABLE AS 124-0174[1]CLIP(LOOP) 4P-7581[1]CLIP(LADDER) 5P-9085[3]CLIP(LOOP) 6D-3479[2]CLIP(LOOP) 6D-4246[1]CLIP(LOOP) 8M-2770[1]CLIP(LOOP) 8M-2773[3]CLIP(LOOP) 205-4285[1]CONVERTER-POWER(24-VOLT TO 12-VOLT) 8D-6946[1]FLASHER AS(24-VOLT)(TU
卡特零件查询（725） 239-1134: VALVE GP-ETHER STARTING
2025/01/21

卡特零件查询（725） 239-1134: VALVE GP-ETHER STARTING

Pos.Part NoQtyParts nameComments1.7N-9801[1]GASKET 2.102-8802[1]KIT-RECEPTACLE(2-PIN) (INCLUDES RECEPTACLE AS & WEDGE)3.8T-8729[2]PIN-CONNECTOR(16-GA TO 18-GA) 4.358-4889[1]FILTER(ETHER START)
卡特零件查询（725） 250-2005: ALTERNATOR GP-CHARGING
2025/01/21

卡特零件查询（725） 250-2005: ALTERNATOR GP-CHARGING

Pos.Part NoQtyParts nameComments1.2U-9234[1]BUSHING 2.200-2232Y[1]ALTERNATOR GP-CHARGING(24-VOLT, 75-AMPERE) 3.235-4483[1]BRACKET 4.3E-4353[3]WASHER-HARD(11X25X3-MM THK) 5.6V-1819M[3]BOLT(M10X1.5X100-MM) 6.7X-2543M[1]BOLT(M10X1.5X120-MM) 7.8T-4121[1]WASHER-HARD(11X21X2.5-MM THK) MMETRIC PARTRREMANUFACTURED PART MAY BE AVAILABLEYSEPARATE ILLUSTRATION
卡特零件查询（725） 200-2232: ALTERNATOR GP-CHARGING
2025/01/21

卡特零件查询（725） 200-2232: ALTERNATOR GP-CHARGING

卡特零件查询（725） 3E-6328: ALARM GP
2025/01/21

卡特零件查询（725） 3E-6328: ALARM GP

Pos.Part NoQtyParts nameComments1.102-8802[1]KIT-RECEPTACLE(2-PIN) (INCLUDES RECEPTACLE AS & WEDGE)2.8T-8729[2]PIN-CONNECTOR(16-GA TO 18-GA)
卡特零件查询（725） 441-2727: KIT-MIRROR
2025/01/21

卡特零件查询（725） 441-2727: KIT-MIRROR

Pos.Part NoQtyParts nameComments1.8T-4137M[3]BOLT(M10X1.5X20-MM) 2.8T-4121[3]WASHER-HARD(11X21X2.5-MM THK) 3.3S-2093[36]STRAP-CABLE 4.8T-8729[10]PIN-CONNECTOR(16-GA TO 18-GA) 5.208-4540Y[1]HARNESS AS-WIRING(HEATED MIRROR)(RH) 6.236-5334[1]WIRE AS 7.271-2824[1]SWITCH AS-ROCKER(HEATED MIRROR) 8.327-7732[1]MIRROR AS-CONVEX 326-8729[1]COVER AS-REAR 9.328-1905Y[1]HARNESS AS-WIRING(HEATED MIRROR)(LH) 10.353-3585[1]MIRROR-CONVEX(RH) 11.353-3587[1]MIRROR-CONVEX(LH) 12.373-1753[1]
卡特零件查询（725） 140-2092: BATTERY & WIRING GP
2025/01/21

卡特零件查询（725） 140-2092: BATTERY & WIRING GP

Pos.Part NoQtyParts nameComments1.2G-8767[2]WASHER(10.5X60X3-MM THK) 2.8T-0389M[4]LOCKNUT(M10X1.5-THD) 3.3E-8320[1]PLATE-INSTRUCTION(BATTERY) 4.263-6342[43]CLIP 5.6G-2256[2]CLAMP 6.7N-0718Y[1]SWITCH GP-DISCONNECT(BATTERY) 7.7U-5417[1]CABLE AS(STARTER) 159-8050ECABLE(00-GA, BLACK)(36-CM) 235-2677[1]TERMINAL-RING 235-2678[1]TERMINAL-RING 8.8S-2634[1]COVER AS 9.8S-4211C[2]PLATE 10.9X-3404[2]BATTERY(12-VOLT, MAINTENANCE FREE, WET) 11.119-1364[1]CABLE AS(DISCONNECT TO GROUND
卡特零件查询（725） 279-4913: MUFFLER GP
2025/01/21

卡特零件查询（725） 279-4913: MUFFLER GP

Pos.Part NoQtyParts nameComments1.4B-5272B[3]WASHER(12.7X31.7X2-MM THK) 2.6U-2703[1]BRACKET-ANGLE 3.6U-5219[2]U-CLAMP AS 4.8C-5608C[3]SPACER(6.5X9.5X25.4-MM THK) 5.8T-6431[2]ROD END 6.9N-1941[1]CLAMP-V BAND 7.9X-9896C[6]MOUNT(ISOLATION) 8.142-0485M[2]NUT(M10X1.5-THD) 9.173-2328[1]PIPE AS 10.175-9079M[1]ROD-LINK 11.176-8234[2]CLAMP 12.190-5341[1]CLAMP 13.197-4834[1]SEAL 14.197-4835[1]PLATE-RETAINER 15.202-1838[3]CLAMP-V BAND 16.205-3625[1]PLATE AS 17.211-2326[3]BOS
卡特零件查询（725） 229-8090: MUFFLER GP
2025/01/21

卡特零件查询（725） 229-8090: MUFFLER GP

Pos.Part NoQtyParts nameComments1.4B-5272B[3]WASHER(12.7X31.7X2-MM THK) 2.6U-5219[1]U-CLAMP AS 3.8T-6431[2]ROD END 4.9N-1941[1]CLAMP-V BAND 5.142-0485M[2]NUT(M10X1.5-THD) 6.[1]MUFFLER AS 7.173-2328[1]PIPE AS 8.173-2331[1]PIPE AS 9.175-3377[1]SUPPORT AS 10.175-3380[2]PLATE 11.175-4780[1]PLATE AS 12.175-7262[1]PLATE 13.175-9076[2]MOUNTING 14.175-9077[1]PLATE 15.175-9078[1]PLATE 16.175-9079M[1]ROD-LINK 17.176-8102[1]CLAMP 18.176-8232[1]TUBE AS 19.1
卡特零件查询（725） 300-4460: LINES GP-FUEL
2025/01/21

卡特零件查询（725） 300-4460: LINES GP-FUEL

Pos.Part NoQtyParts nameComments1.6U-0456[1]STRAP 2.8T-9655[8]MOUNT-ISOLATION 3.145-6127I[1]HOSE AS 4.190-8977Y[1]PUMP GP-FUEL PRM & WATER SEP 5.191-1782[1]SPACER(8.5X12.7X38.2-MM THK) 6.203-2107[1]HOSE 7.204-9221I[1]HOSE AS 8.305-3684[1]PLATE-IDENTIFICATION(FUEL PRIMING PUMP ON, OFF) 9.230-7857[1]SPACER(11X20X56-MM THK) 10.232-1374[1]BRACKET 11.232-1376[2]SPACER(8.5X12.7X139.1-MM THK) 12.434-4877I[1]HOSE AS 13.148-8336[2]CONNECTOR AS (EACH INCLUDES)3J-1
卡特零件查询（725） 469-6103: KIT-OIL COOLER & LINES GASKET
2025/01/21

卡特零件查询（725） 469-6103: KIT-OIL COOLER & LINES GASKET

Pos.Part NoQtyParts nameComments2S-0795[2]GASKET 3J-6933[2]GASKET 9Y-6089[1]GASKET 227-4892[1]GASKET 224-2675[1]SEAL 224-6357[1]SEAL-INTEGRAL 2N-5243[2]SEAL-O-RING 3E-6788[1]SEAL-O-RING 5P-7701[3]SEAL-O-RING 5P-8068[2]SEAL-O-RING 6V-3250[2]SEAL-O-RING 6V-3251[1]SEAL-O-RING 6V-5048[1]SEAL-O-RING 6V-5064[3]SEAL-O-RING 6V-5134[3]SEAL-O-RING 6V-9027[1]SEAL-O-RING 8J-4351[1]SEAL-O-RING 113-5304[2]SEAL-O-RING 117-3036[1]SEAL-O-RING 213-9396[1]SEAL-O-RING 214-756
卡特零件查询（725） 244-0823: FAN GP-SUCTION
2025/01/21

卡特零件查询（725） 244-0823: FAN GP-SUCTION

Pos.Part NoQtyParts nameComments1.209-6222[1]SPIDER AS-FAN(6-BLADE) 2.243-2620[1]SUPPORT AS 206-5540[1]BRACKET 8T-3612M[6]NUT-WELD(M8X1.25-THD) 3.247-6883[1]BOSS 4.2K-4821[1]LOCKNUT(5/8-18-THD) 5.5P-1076[4]WASHER-HARD(13.5X30X4-MM THK) 6.8T-4121[6]WASHER-HARD(11X21X2.5-MM THK) 7.8T-4122[1]WASHER-HARD(17X32X3.5-MM THK) 8.8T-4139M[4]BOLT(M12X1.75X30-MM) 9.8T-4196M[6]BOLT(M10X1.5X35-MM) 10.1U-6605BTAPE-REFLECTIVE BUSE AS REQUIREDMMETRIC PART
卡特零件查询（725） 264-8055: VALVE & MTG GP-HOIST CONTROL
2025/01/21

卡特零件查询（725） 264-8055: VALVE & MTG GP-HOIST CONTROL

Pos.Part NoQtyParts nameComments1.260-0285Y[1]VALVE GP-HOIST CONTROL 2.8T-4223[2]WASHER-HARD(13.5X25.5X3-MM THK) 3.8T-5041M[2]BOLT(M12X1.75X120-MM) MMETRIC PARTYSEPARATE ILLUSTRATION

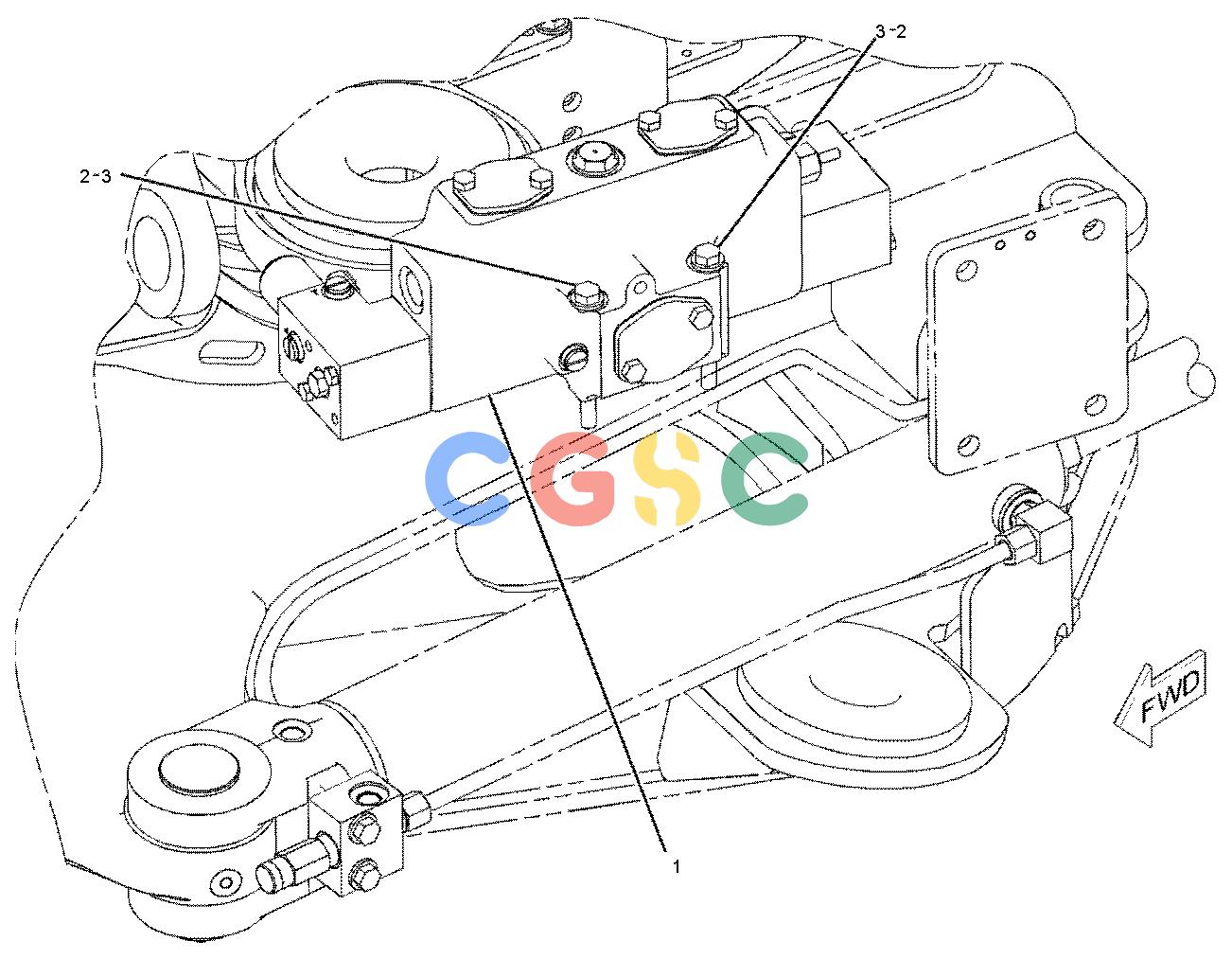

卡特零件查询（725） 241-8328: VALVE & MTG GP-HOIST CONTROL
2025/01/21

卡特零件查询（725） 241-8328: VALVE & MTG GP-HOIST CONTROL

卡特零件查询（725） 306-5858: TANK GP-HYDRAULIC
2025/01/21

卡特零件查询（725） 306-5858: TANK GP-HYDRAULIC

Pos.Part NoQtyParts nameComments1.1U-1643[1]VALVE(HYDRAULIC TANK) 2.1U-2827[1]GUIDE-VALVE 3.2D-4202[1]PLATE 4.2J-0917[1]RETAINER 5.4J-1704[1]SEAT-VALVE 6.4T-8698[1]WASHER(12.2X62X3.5-MM THK) 7.5D-1911[1]COVER-HYDRAULIC CAP 8.5D-7927[1]STRAINER AS-OIL(HYDRAULIC TANK) 5F-3488[1]END-STRAINER 9.5J-2926[1]SPRING 11.246-2641[1]PADLOCK GP 5P-8500[1]KEY 12.6J-3795[1]SCREEN AS(HYDRAULIC TANK) 13.6P-3860[1]SPRING 14.7B-3039[1]SPRING 15.7H-1447[1]CAP-FILLER(HYDRAULIC TANK) 1
