卡特零件查询（725） 229-1443: ROCKER ARM GP

Pos.Part NoQtyParts nameComments1.7W-7235[1]BUTTON 2.229-5279[1]SCREW-ADJUSTMENT 3.238-1814[1]ROCKER ARM AS 2D-6642[2]BALL 4.8L-2777[1]SEAL-O-RING 5.245-6095[1]NUT-HEX THIN(M12X1.5-THD)

2025/01/21

卡特零件查询（725） 230-7168: PULLEY GP-CRANKSHAFT

Pos.Part NoQtyParts nameComments1.230-7167[1]PULLEY(8-GROOVE)(CRANKSHAFT)

2025/01/21

卡特零件查询（725） 123-0789: PULLEY GP-ALTERNATOR

Pos.Part NoQtyParts nameComments1.123-0790[1]PULLEY(8-GROOVE)(ALTERNATOR)

2025/01/21

卡特零件查询（725） 117-2766: DAMPER GP

Pos.Part NoQtyParts nameComments1.179-0092[1]ADAPTER 2.167-8125[1]DAMPER AS 3.136-4183M[8]BOLT-12 POINT HEAD(M10X1.5X30-MM) 4.9X-2027[8]WASHER(11X18X2-MM THK) MMETRIC PART

2025/01/21

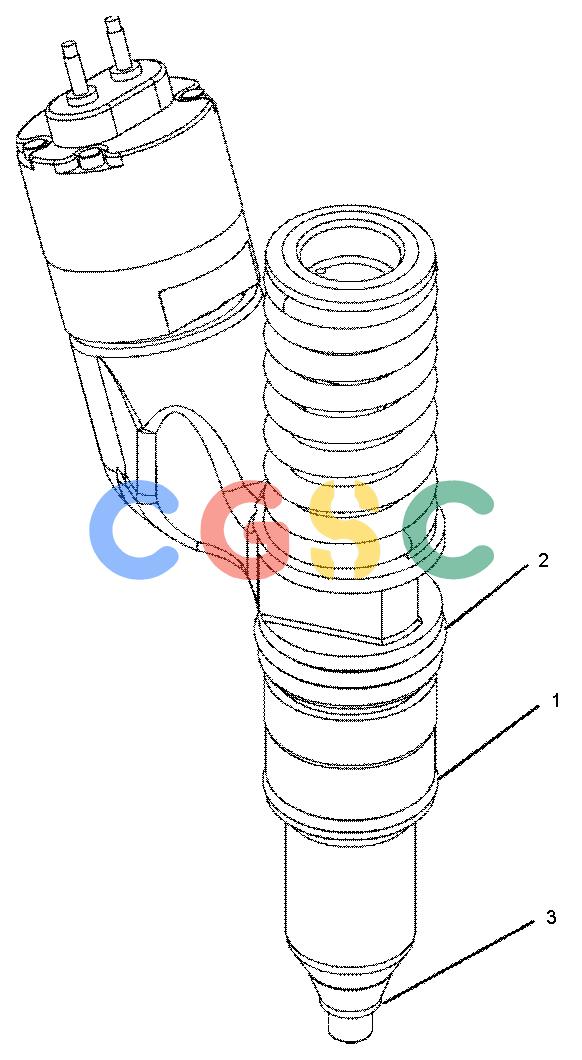

卡特零件查询（725） 249-0712: INJECTOR GP-FUEL

Pos.Part NoQtyParts nameComments1.230-3728[1]SEAL-O-RING 2.230-3775[1]SEAL-O-RING 3.9X-7317[1]SEAL-O-RING

2025/01/21

卡特零件查询（725） 191-5336: CYLINDER GP-HYDRAULIC

Pos.Part NoQtyParts nameComments1.3B-8488[1]FITTING-GREASE(1/8-27 PTF) 2.141-5864[1]BOLT(M30X3.5X90-MM) 3.154-6413[1]ROD AS 3A.6V-5002[1]BEARING-ALIGNING 4.164-5475[1]HEAD 5.169-6563[1]PISTON 6.184-3039[1]VALVE 7.187-8083[1]VALVE GP-RELIEF(STEERING CYLINDER) 2M-9780[1]SEAL-O-RING 161-6149[1]SEAL-O-RING 100-7000[1]RING-BACKUP 8.191-4514[1]MANIFOLD 9.085-8091M[2]BOLT(M10X1.5X55-MM) 10.141-8580[1]RING-RETAINING 11.167-2195[1]SEAL AS-BUFFER 12.167-2304[1]SEAL-U-CUP 13

2025/01/21

卡特零件查询（725） 486-6230: CYLINDER HEAD GP

Pos.Part NoQtyParts nameComments1.198-4963Y[1]FASTENER GP-CYLINDER HEAD 2.221-9392[1]GASKET 3.486-6227Y[1]CYLINDER HEAD GP YSEPARATE ILLUSTRATION

2025/01/21

卡特零件查询（725） 162-2232: COOLER GP-TRANSMISSION OIL

Pos.Part NoQtyParts nameComments1.8M-9307[1]PLUG(TRANNSMISSION COOLER CORE) 2.9Y-6089[1]GASKET 3.100-8525[1]GASKET 4.115-4517[1]CORE AS-ENGINE OIL COOLER 5.122-0763[1]ELBOW 6.124-5043[1]COUPLING 7.131-6645[1]HOSE 8.155-7970[1]BONNET-OIL COOLER 9.165-2101[1]ELBOW 10.165-2102[1]BONNET(TRANSMISSION OIL COOLER) 11.166-3506[1]CORE AS(TRANSMISSION OIL) 12.166-3747[1]BRACKET AS 13.178-0223[1]BRACKET 14.061-7540[2]SEAL-O-RING 15.105-8901[2]GASKET-OIL COOLER(OIL COOLER) 16.1

2025/01/21

卡特零件查询（725） 233-5220: PUMP GP-ENGINE OIL

Pos.Part NoQtyParts nameComments1.9Y-8076[1]SHAFT AS-OIL PUMP(8-TEETH)(ENGINE) 2.6D-7146[1]SEAL-O-RING 3.208-9283M[4]BOLT-FLANGE HEAD(M8X1.25X30-MM) 4.9Y-8075[1]SHAFT AS-OIL PUMP(8-TEETH)(ENGINE) MMETRIC PART

2025/01/21

卡特零件查询（725） 240-8461: ROCKER ARM GP

Pos.Part NoQtyParts nameComments1.183-4365M[1]SCREW-ADJUSTMENT(M10X1.5-THD) 2.2Y-5829M[1]NUT(M10X1.5-THD) 3.240-8460[1]ROCKER ARM AS(INLET) MMETRIC PARTRREMANUFACTURED PART MAY BE AVAILABLE

2025/01/21

卡特零件查询（725） 305-0618: CYLINDER HEAD GP

Pos.Part NoQtyParts nameComments1.198-4963Y[1]FASTENER GP-CYLINDER HEAD 2.221-9392[1]GASKET(CYLINDER HEAD) 3.305-0617Y[1]CYLINDER HEAD GP RREMANUFACTURED PART MAY BE AVAILABLEYSEPARATE ILLUSTRATION

2025/01/21

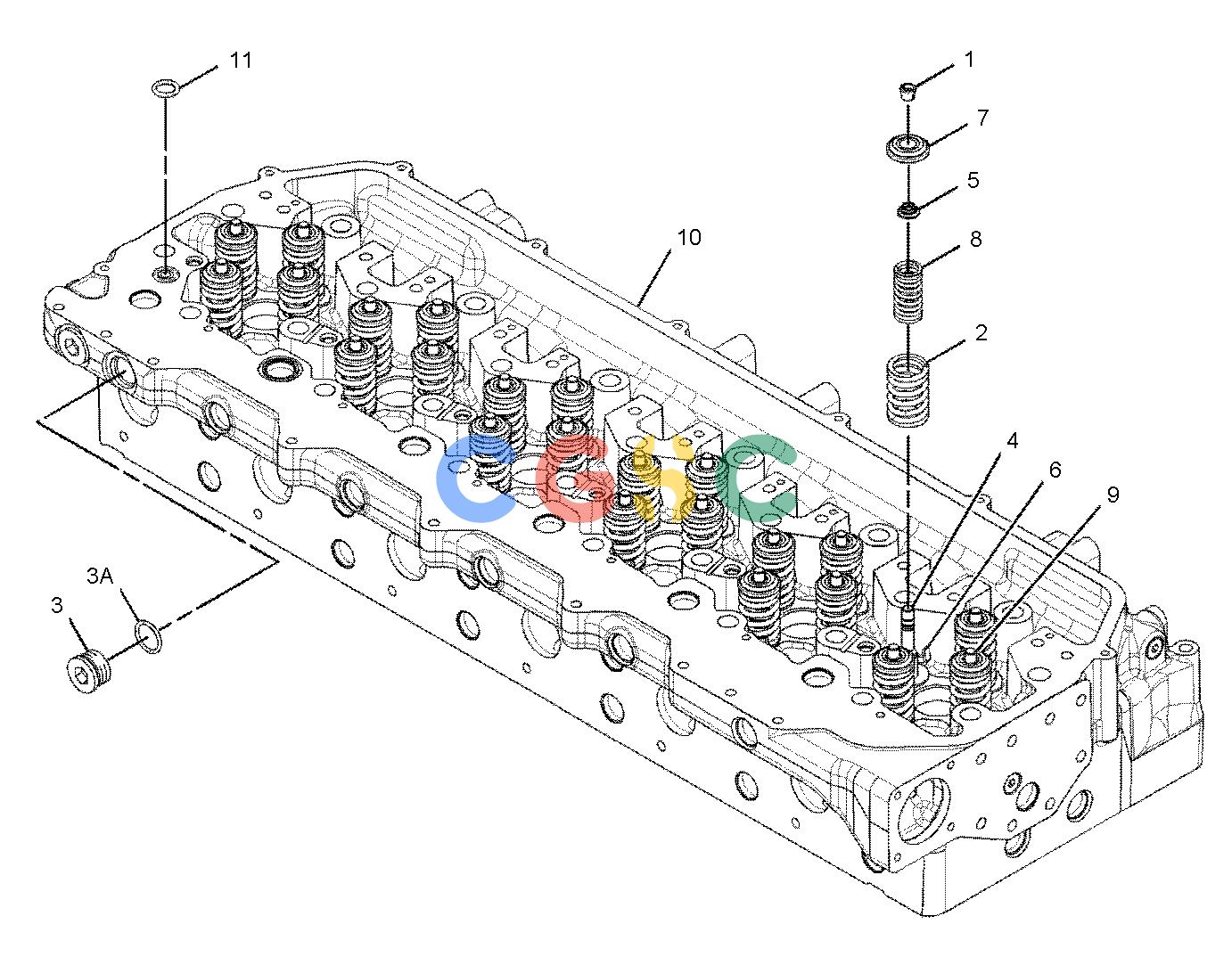

卡特零件查询（725） 305-0617: CYLINDER HEAD GP

Pos.Part NoQtyParts nameComments1.2A-4429[48]LOCK-RETAINER 2.332-2152[24]SPRING-VALVE 3.353-5140[2]PLUG AS (EACH INCLUDES)3A.6V-5063[1]SEAL-O-RING 9S-8008[1]PLUG(1-1/16-12-THD) 4.248-1467[12]VALVE-EXHAUST 5.163-2478[24]SEAL-VALVE STEM 6.224-3125[12]BASE 7.7C-8581[24]ROTOCOIL AS 8.224-4441[24]SPRING(VALVE) 9.252-7802[12]VALVE-INLET 10.345-3752Y[1]CYLINDER HEAD AS 11.5P-5598[1]SEAL-O-RING RREMANUFACTURED PART MAY BE AVAILABLEYSEPA

2025/01/21

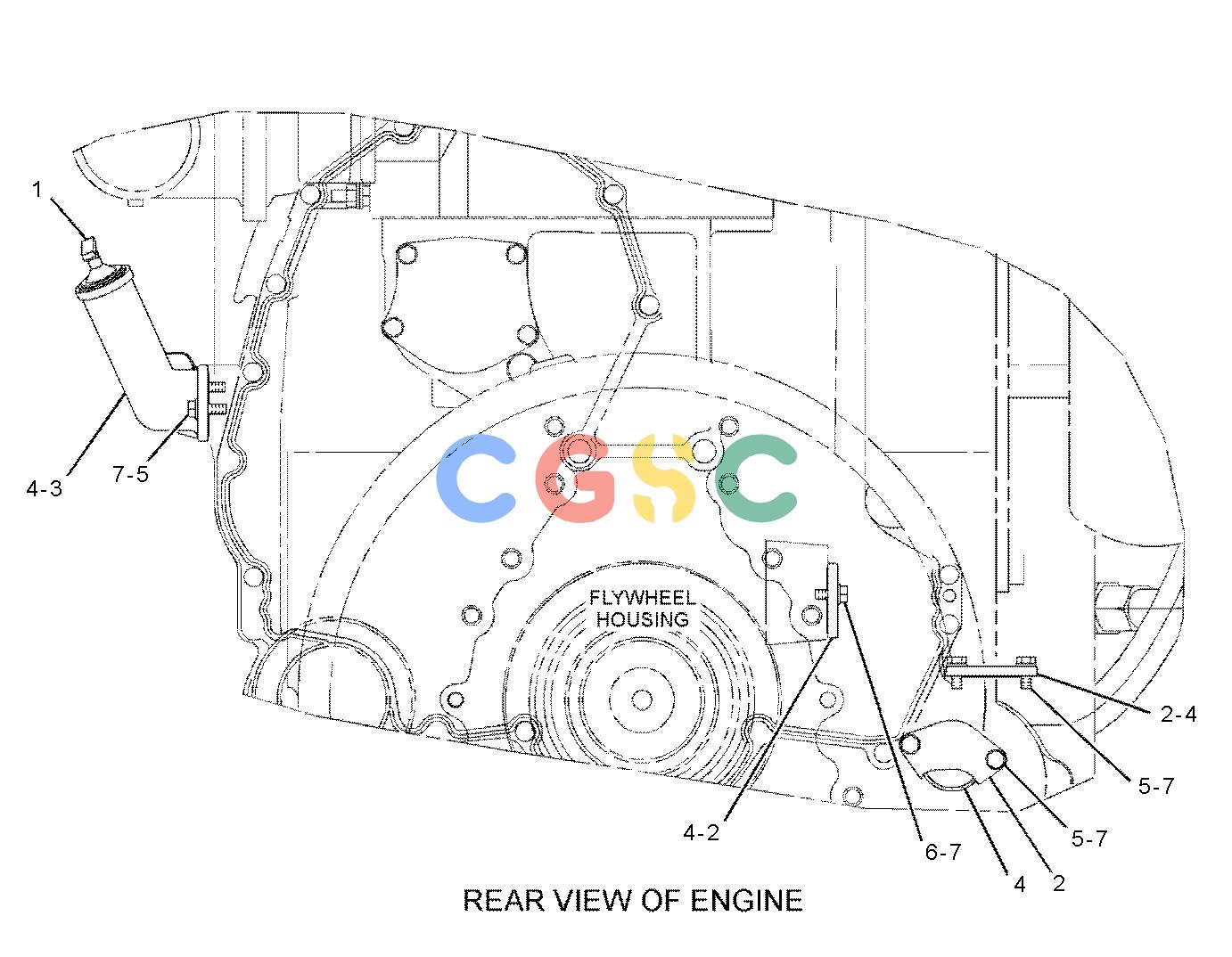

卡特零件查询（725） 231-0151: FILLER GP-ENGINE OIL

Pos.Part NoQtyParts nameComments1.241-5645[1]CAP AS-ENGINE OIL FILLER 2.7C-1445[3]COVER 3.264-4288[1]TUBE-OIL FILLER 4.061-9455[4]SEAL-O-RING 5.6V-3940M[6]BOLT(M8X1.25X25-MM) 6.6V-5217M[2]BOLT(M8X1.25X20-MM) 7.9M-1974[8]WASHER-HARD(8.8X16X2-MM THK) MMETRIC PART

2025/01/21

卡特零件查询（725） 257-4095: CYLINDER HEAD GP

Pos.Part NoQtyParts nameComments1.2A-4429[48]LOCK-RETAINER 2.214-0586[24]SPRING(OUTER) 3.6V-5063[2]SEAL-O-RING 4.224-3028[12]VALVE-INLET 5.9S-8008[2]PLUG(1-1/16-12-THD) 6.224-3030[12]VALVE-EXHAUST 7.7E-7977[24]ROTOCOIL AS (EACH INCLUDES)7E-7978[1]SHIELD 8.224-3125[12]BASE 9.224-4441[24]SPRING(VALVE)(INNER) 10.308-6358Y[1]CYLINDER HEAD AS 11.5P-5598[1]SEAL-O-RING 12.163-2478[24]SEAL-VALVE STEM YSEPARATE ILLUSTRATION

2025/01/21

卡特零件查询（725） 301-1102: BRACKET AS-FILTER

Pos.Part NoQtyParts nameComments1.7T-1099[1]LINK

2025/01/21

卡特零件查询（725） 240-8271: CYLINDER HEAD GP

Pos.Part NoQtyParts nameComments1.2A-4429[48]LOCK-RETAINER 2.214-0586[24]SPRING 3.6V-5063[2]SEAL-O-RING 4.224-3028[12]VALVE-INLET 5.9S-8008[2]PLUG(1-1/16-12-THD) 6.224-3030[12]VALVE-EXHAUST 7.7E-7977[24]ROTOCOIL AS (EACH INCLUDES)7E-7978[1]SHIELD 9.224-3125[12]BASE 10.224-4441[24]SPRING(VALVE) 11.245-4031Y[1]CYLINDER HEAD AS 12.5P-5598[1]SEAL-O-RING YSEPARATE ILLUSTRATION

2025/01/21

卡特零件查询（725） 240-7679: CYLINDER HEAD GP

Pos.Part NoQtyParts nameComments1.198-4963Y[1]FASTENER GP-CYLINDER HEAD 2.221-9392[1]GASKET(CYLINDER HEAD) 3.240-8271Y[1]CYLINDER HEAD GP YSEPARATE ILLUSTRATION

2025/01/21

卡特零件查询（725） 484-2155: CYLINDER HEAD AS

Pos.Part NoQtyParts nameComments1.260-4855[12]INSERT-VALVE SEAT(INLET) 331-5007ABINSERT-VALVE SEAT(0.13-MM OS, INLET) 331-5008ABINSERT-VALVE SEAT(0.26-MM OS, INLET) 331-5009ABINSERT-VALVE SEAT(0.51-MM OS, INLET) 2.263-4920[6]SLEEVE-INJECTOR(INLET) 3.268-2953[24]GUIDE-VALVE 4.300-3566[12]INSERT-VALVE SEAT(EXHAUST) 5.353-5140[1]PLUG AS 6V-5063[1]SEAL-O-RING 9S-8008[1]PLUG(1-1/16-12-THD) 6.9X-7430[6]SEAL-O-RING 7.166-2904[12]SEAL-O-RING 8.183-3407[7]PLUG AS
