卡特零件查询（725） 234-5600: TANK GP-HYDRAULIC
2025/01/21

卡特零件查询（725） 234-5600: TANK GP-HYDRAULIC

Pos.Part NoQtyParts nameComments1.1U-1643[1]VALVE(HYDRAULIC TANK) 2.1U-2827[1]GUIDE-VALVE 3.2D-4202[1]PLATE 4.2J-0917[1]RETAINER 5.4J-1704[1]SEAT-VALVE 6.4T-8698[1]WASHER(12.2X62X3.5-MM THK) 7.5D-1911[1]COVER-HYDRAULIC CAP 8.5D-7927[1]STRAINER AS-OIL(HYDRAULIC TANK FILL) 5F-3488[1]END-STRAINER 9.5J-2926[1]SPRING 11.246-2641[1]PADLOCK GP 5P-8500[1]KEY 12.6J-3795[1]SCREEN AS(HYDRAULIC TANK FILL) 13.6P-3860[1]SPRING 14.7B-3039[1]SPRING 15.7H-1447[1]CAP-FILLER(HYDRAULIC
卡特零件查询（725） 306-5881: TANK & MTG GP-HYDRAULIC
2025/01/21

卡特零件查询（725） 306-5881: TANK & MTG GP-HYDRAULIC

Pos.Part NoQtyParts nameComments1.306-5858Y[1]TANK GP-HYDRAULIC 2.7X-0515[3]WASHER-HARD(17X35X5-MM THK) 3.8T-4140M[2]BOLT(M16X2X60-MM) 4.8T-7338M[1]BOLT(M16X2X45-MM) MMETRIC PARTYSEPARATE ILLUSTRATION
卡特零件查询（725） 234-5599: TANK & MTG GP-HYDRAULIC
2025/01/21

卡特零件查询（725） 234-5599: TANK & MTG GP-HYDRAULIC

Pos.Part NoQtyParts nameComments1.234-5600Y[1]TANK GP-HYDRAULIC 2.7X-0515[5]WASHER-HARD(17X35X5-MM THK) 3.7X-2554M[2]BOLT(M16X2X70-MM) 4.8T-4132M[2]NUT(M16X2-THD) 5.8T-7338M[1]BOLT(M16X2X45-MM) MMETRIC PARTYSEPARATE ILLUSTRATION
卡特零件查询（725） 280-0954: ROTATING GP-PUMP
2025/01/21

卡特零件查询（725） 280-0954: ROTATING GP-PUMP

Pos.Part NoQtyParts nameComments1.280-0964[1]PLATE 2.235-5767[9]PISTON AS 3.196-0225[1]PLATE 4.6E-6155[1]BEARING 5.6E-4009[1]SPRING 6.168-3379[3]PIN 7.6E-6158[1]RING 8.6E-3341[1]SEAT-SPRING
卡特零件查询（725） 174-9570: FILTER GP-WATER SEP & FUEL
2025/01/21

卡特零件查询（725） 174-9570: FILTER GP-WATER SEP & FUEL

Pos.Part NoQtyParts nameComments1.326-1644[1]FILTER AS-WATER SEP & FUEL(PRIMARY) 1A.220-8678[1]SEAL-RING(FUEL, WATER SEPARATOR) 2.343-5527[1]BOWL AS 2A.5F-9144[1]SEAL-O-RING 2B.8F-7219[1]SEAL-O-RING
卡特零件查询（725） 133-5671: FILTER GP-WATER SEP & FUEL
2025/01/21

卡特零件查询（725） 133-5671: FILTER GP-WATER SEP & FUEL

Pos.Part NoQtyParts nameComments1.137-4367[1]BASE AS 2.513-4490[1]FILTER ELEMENT-WTR SEP & FUEL(STANDARD EFFICIENCY) 3.129-0375[1]BOWL AS-WATER COLLECTION(FUEL FILTER, WATER SEPARATOR) -OR-155-2629A[1]BOWL AS-WATER COLLECTION(12-VOLT HEATER) -OR-157-1206A[1]BOWL AS-WATER COLLECTION(24-VOLT HEATER) 141-0284[1]KIT-FUEL FILTER & WATER SEP (INCLUDES SEAL & GASKET)ANOT PART OF THIS GROUP
卡特零件查询（725） 355-0051: FILTER GP-FUEL
2025/01/21

卡特零件查询（725） 355-0051: FILTER GP-FUEL

Pos.Part NoQtyParts nameComments1.3S-2093[4]STRAP-CABLE 2.8S-4950[1]CAP(FLARED 37-DEG) 3.116-5410Y[1]COVER GP-FUEL FILTER BASE 4.139-6873Y[1]VALVE GP-FUEL BYPASS(FILTER) 5.233-6742Y[1]VALVE GP-CHECK(FUEL) 6.234-5013Y[1]SENSOR GP-TEMPERATURE 7.237-9314[1]BASE AS 9S-4167[1]STUD-HOLLOW(1-14X1.47-IN) 8.238-5081[1]SEAL-O-RING 9.240-2630[1]BRACKET AS 10.274-6719[1]SENSOR GP-PRESSURE 11.275-1253Y[1]SWITCH GP-PRESSURE(FUEL FILTER) 12.354-7737[1]HARNESS AS-SENSOR 102-8806[1]KIT-
卡特零件查询（725） 233-5221: PUMP GP-ENGINE OIL
2025/01/21

卡特零件查询（725） 233-5221: PUMP GP-ENGINE OIL

Pos.Part NoQtyParts nameComments1.7C-1821[1]COUPLING 2.7C-1822[1]COUPLING 3.233-5220Y[1]PUMP GP-ENGINE OIL 4.493-6920[1]TUBE AS 5.235-1451[1]ELBOW-OIL PUMP 6.346-4897[1]SEAL-O-RING 8.3E-6788[1]SEAL-O-RING 9.5P-8068[2]SEAL-O-RING 10.6V-3834[1]SEAL-O-RING 11.6V-5134[3]SEAL-O-RING 12.6V-2317M[2]BOLT(M8X1.25X30-MM) 13.6V-5221M[5]BOLT(M8X1.25X80-MM) 14.7X-0870M[1]BOLT(M8X1.25X140-MM) 15.8J-4351[1]SEAL-O-RING 16.9M-1974[8]WASHER-HARD(8.8X16X2-MM THK) MMETRIC
卡特零件查询（725） 224-8170: LINES GP-TURBOCHARGER OIL
2025/01/21

卡特零件查询（725） 224-8170: LINES GP-TURBOCHARGER OIL

Pos.Part NoQtyParts nameComments1.197-8418[1]GASKET 2.197-8419[1]GASKET(TURBOCHARGER) 3.224-8171[1]HOSE AS(SUPPLY) 4.224-8172[1]TUBE AS(DRAIN) 5.319-6226[1]ELBOW AS 8T-6876[1]ELBOW 214-7568[1]SEAL-O-RING 228-7090[1]SEAL-O-RING 6.225-6948[1]SEAL-O-RING 7.6V-5218M[6]BOLT(M8X1.25X35-MM) 8.9M-1974[6]WASHER-HARD(8.8X16X2-MM THK) MMETRIC PART
卡特零件查询（725） 236-4781: LINES GP-ENGINE OIL FILTER
2025/01/21

卡特零件查询（725） 236-4781: LINES GP-ENGINE OIL FILTER

Pos.Part NoQtyParts nameComments1.185-6050[1]BRACKET AS 2.236-4783I[1]HOSE AS 3.8T-4121[12]WASHER-HARD(11X21X2.5-MM THK) 4.8T-4133M[4]NUT(M10X1.5-THD) 5.8T-4137M[4]BOLT(M10X1.5X20-MM) 6.8T-4195M[4]BOLT(M10X1.5X30-MM) 7.6U-0456[1]STRAP IREFER TO HYDRAULIC INFORMATION SYSTEMMMETRIC PART
卡特零件查询（725） 227-9521: FILTER GP-ENGINE OIL
2025/01/21

卡特零件查询（725） 227-9521: FILTER GP-ENGINE OIL

Pos.Part NoQtyParts nameComments1.1M-3381[4]SPACER(0.438X0.75X1-IN THK) 2.1R-0716[1]FILTER AS-ENGINE OIL(STANDARD EFFICIENCY) 3.7C-9542[1]COVER-FILTER BASE 4.8C-3445[1]CAP-DUST(FLUID SAMPLING VALVE) 5.102-5828[1]COVER 6.102-5829[1]ADAPTER 7.104-7995[1]BASE GP-OIL FILTER 2P-4304[1]STUD-HOLLOW 8.130-7904I[1]HOSE AS 9.185-7821I[1]HOSE AS 10.185-7910[1]PLATE 11.199-6417[1]ELBOW AS 5K-9090[1]SEAL-O-RING 7M-8485[1]SEAL-O-RING 186-3705[1]ELBOW 12.0S-1566[2]BOLT(5/8-11X1.5-
卡特零件查询（725） 141-5502: ACTUATOR GP-PILOT CONTROL
2025/01/21

卡特零件查询（725） 141-5502: ACTUATOR GP-PILOT CONTROL

Pos.Part NoQtyParts nameComments1.5S-6980[1]RING-RETAINING 2.366-4695[3]PLUG AS (EACH INCLUDES)3J-1907[1]SEAL-O-RING 360-3679[1]PLUG-CONNECTOR(9/16-18-THD) 3.137-4756[1]SPRING 4.141-5497[1]SPRING 5.141-5498[1]SPRING 6.159-8402[1]SPRING 7.077-3241[1]SEAL-O-RING 8.486-7563[1]SOLENOID AS(PILOT CONTROL ACTUATOR) 1S-9593[2]STRAP-CABLE 102-8802[1]KIT-RECEPTACLE(2-PIN) (INCLUDES RECEPTACLE AS & WEDGE)8T-8729[2]PIN-CONNECTOR(16-GA TO 18-GA) 129-3
卡特零件查询（725） 267-0007: BREATHER GP
2025/01/21

卡特零件查询（725） 267-0007: BREATHER GP

Pos.Part NoQtyParts nameComments1.9Y-1758[1]GASKET(CRANKCASE BREATHER) 2.9Y-4357[1]BREATHER AS(CRANKCASE) 3.8T-0275M[4]BOLT(M6X1X50-MM) 4.9X-8267[4]WASHER(6.6X12X2-MM THK) MMETRIC PART
卡特零件查询（725） 530-2298: BASE GP-OIL FILTER
2025/01/21

卡特零件查询（725） 530-2298: BASE GP-OIL FILTER

Pos.Part NoQtyParts nameComments1.4N-8150[2]SPRING 2.7C-3081[1]SPACER(6.88X9.53X50-MM THK) 3.7C-3082[1]RETAINER 4.7C-3083[1]SEAT-RELIEF VALVE SPRING 5.7C-3954[1]SPRING AS 6.224-3405[1]VALVE AS(OIL PUMP BYPASS) 7.251-6668[1]BASE AS-OIL FILTER 2P-4304[1]STUD-HOLLOW 3B-0623[1]PLUG-CUP 3P-1896[2]PLUG-CUP 7W-6390[1]STUD-FILTER BASE 8.319-6234[3]PLUG AS (EACH INCLUDES)9S-9334[1]PLUG 238-5084[1]SEAL-O-RING 9.392-9208[2]PLUNGER-VALVE(RELIEF) 10.183-3407[1]PL
卡特零件查询（725） 419-8637: BASE GP-OIL FILTER
2025/01/21

卡特零件查询（725） 419-8637: BASE GP-OIL FILTER

卡特零件查询（725） 226-8631: AFTERCOOLER GP-AIR
2025/01/21

卡特零件查询（725） 226-8631: AFTERCOOLER GP-AIR

卡特零件查询（725） 260-0252: ROCKER ARM GP
2025/01/21

卡特零件查询（725） 260-0252: ROCKER ARM GP

Pos.Part NoQtyParts nameComments1.224-4418[1]SHAFT AS 1A.3S-6605[2]PLUG-CUP 2.242-1401[2]BASE AS 3.242-7418[1]BASE 4.260-0251Y[2]ROCKER ARM GP(UNIT INJECTOR) 5.261-2290Y[2]ROCKER ARM GP(INLET) 6.261-2294Y[2]ROCKER ARM GP(EXHAUST) 7.241-0847M[2]BOLT(M12X1.75X93-MM) MMETRIC PARTYSEPARATE ILLUSTRATION
卡特零件查询（725） 260-0251: ROCKER ARM GP
2025/01/21

卡特零件查询（725） 260-0251: ROCKER ARM GP

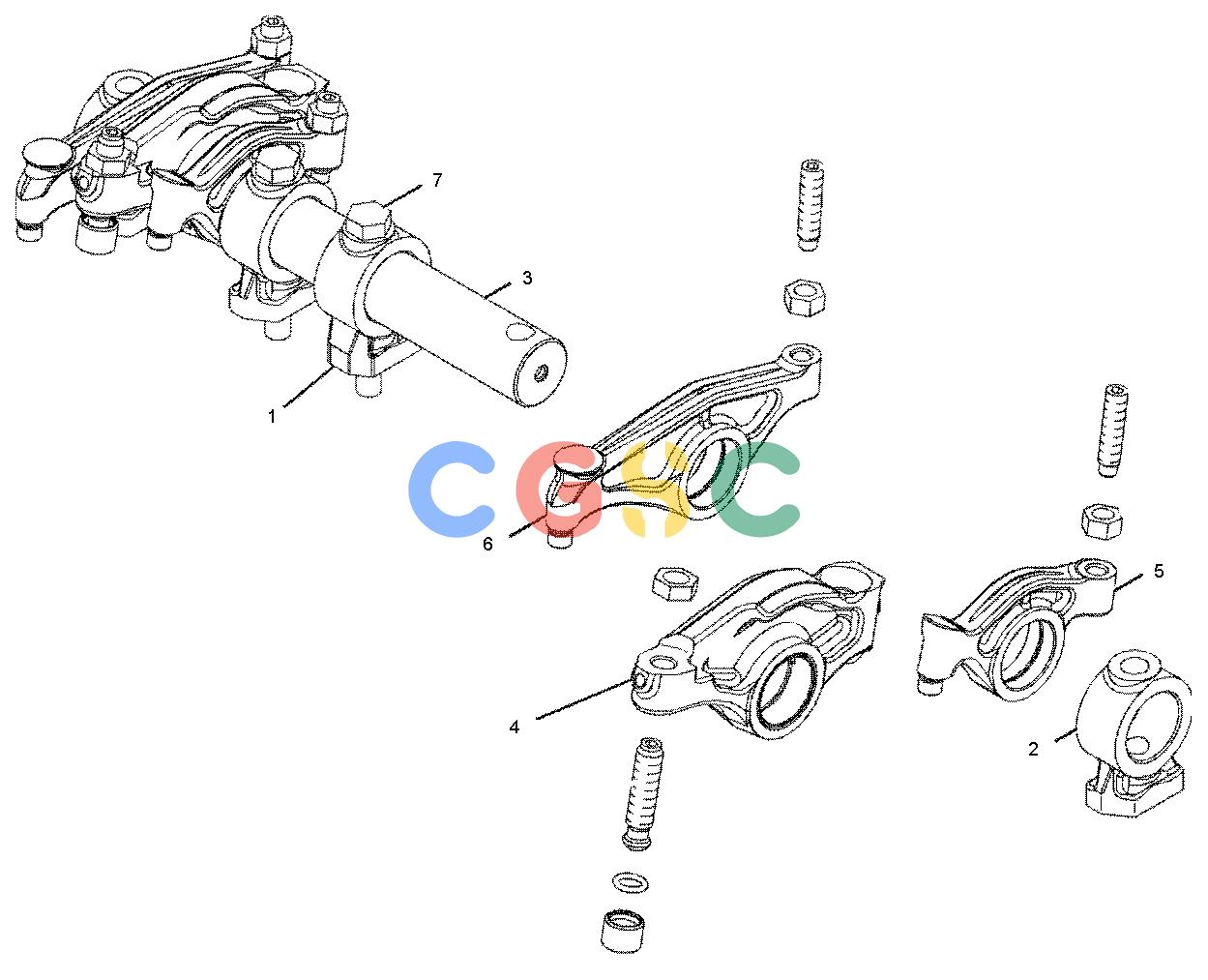

卡特零件查询（725） 241-0835: ROCKER ARM GP
2025/01/21

卡特零件查询（725） 241-0835: ROCKER ARM GP

卡特零件查询（725） 240-8463: ROCKER ARM GP
2025/01/21

卡特零件查询（725） 240-8463: ROCKER ARM GP

Pos.Part NoQtyParts nameComments1.183-4365M[1]SCREW-ADJUSTMENT(M10X1.5-THD) 2.240-8462[1]ROCKER ARM AS(EXHAUST) 3.2Y-5829M[1]NUT(M10X1.5-THD) MMETRIC PARTRREMANUFACTURED PART MAY BE AVAILABLE
