纽荷兰New Holland_Part Number_广州千韧科技有限公司

2025/01/21

纽荷兰零件查询(D65) - EXTERNAL BRAKES (001) - SPRING APPLY CYLINDER (POWER OFF BRAKING) New Holland Constructuion

Pos.Part NoQtyParts nameComments1.86552331[1]BRAKE CYLINDER,12.7mm StrokeBASCylinder Assy., Spring Apply (Mico), Includes: 1 thru 20 3.NSS[1]NOT SERVICED SEPARATELYCONHousing 4.86552335[1]SPRINGBAS 6.F1NN2N476AA[1]PLUGFORBleeder Superseded by part number: 81877014 7.81877015[1]SCREW,5/16" - 24 x 1"FORBleeder 13.F1NN2N478AA[1]STOPFOR 16.81877021[1]RETAINERFORNut 17.100038[1]NUT,M12 x 1.75, Cl 8NHNUT, LOCK, M12 x 1.75, Cl 8 18.81877022[1]SPRINGFOR 20.F1NN2L469AA[1]PLUGFOREnd Super

2025/01/21

纽荷兰零件查询(D65) - DRIVE AXLE (1/99-) (003) - OSCILLATION AXLE MOUNTING New Holland Constructuion

2025/01/21

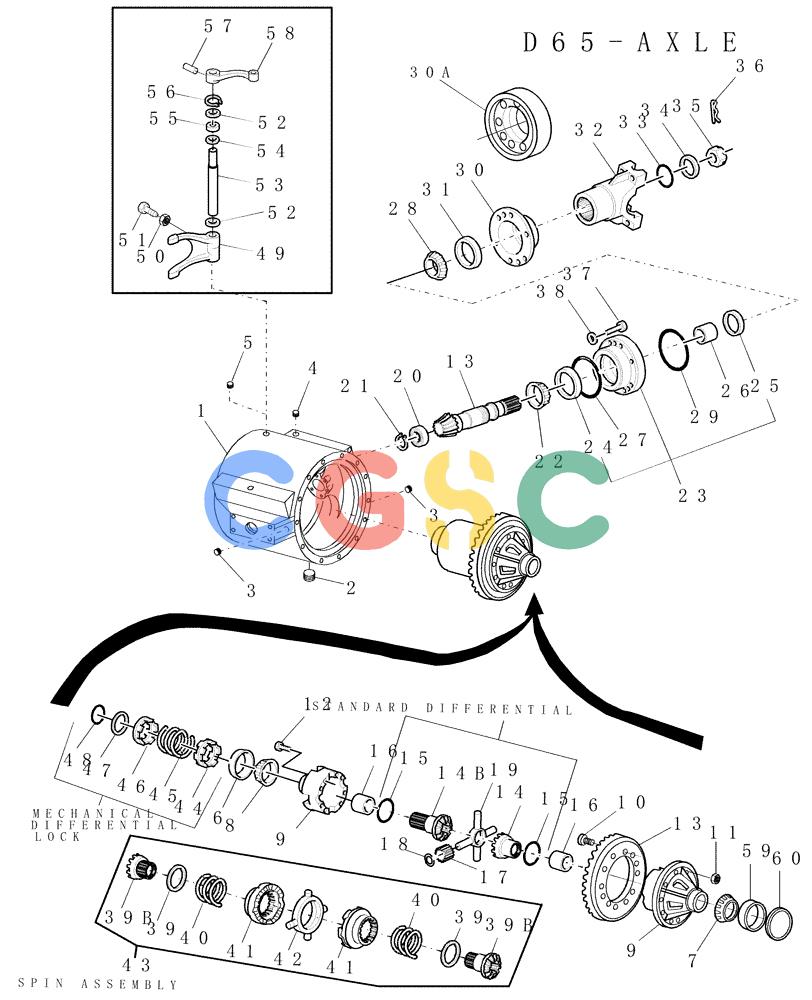

纽荷兰零件查询(D65) - DRIVE AXLE (1/99-) (002) - AXLE CENTER HOUSING ASSEMBLY,W/DIFFERENTIAL & RELATED PARTS New Holland Constructuion

2025/01/21

纽荷兰零件查询(D60HS) - EXTERNAL BRAKES (001) - SPRING APPLY CYLINDER (POWER OFF BRAKING) New Holland Constructuion

Pos.Part NoQtyParts nameComments1.86552331[1]BRAKE CYLINDER,12.7mm StrokeBASCylinder Assy., Spring Apply (Mico), Includes: 1 thru 20 3.NSS[1]NOT SERVICED SEPARATELYCONHousing 4.86552335[1]SPRINGBAS 6.F1NN2N476AA[1]PLUGFORBleeder Superseded by part number: 81877014 7.81877015[1]SCREW,5/16" - 24 x 1"FORBleeder 13.F1NN2N478AA[1]STOPFOR 16.81877021[1]RETAINERFORNut 17.100038[1]NUT,M12 x 1.75, Cl 8NHNUT, LOCK, M12 x 1.75, Cl 8 18.81877022[1]SPRINGFOR 20.F1NN2L469AA[1]PLUGFOREnd Super

2025/01/21

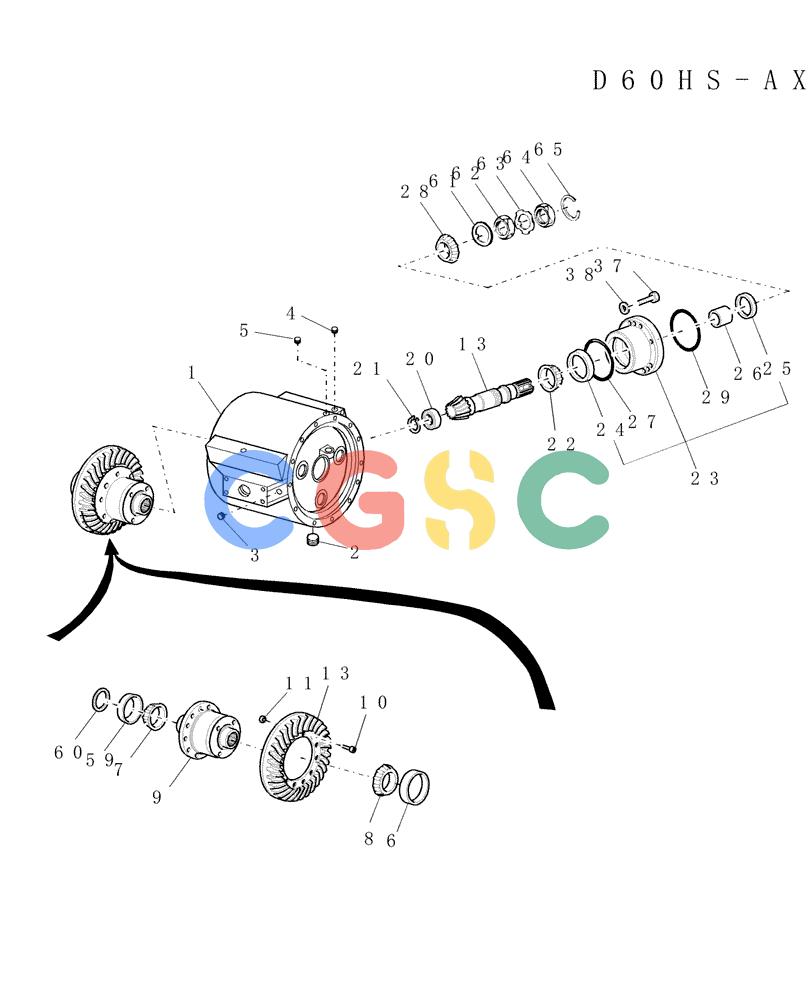

纽荷兰零件查询(D60HS) - DRIVE AXLE (3/00-) (002) - AXLE CENTER HOUSING, W/DIFFERENTIAL & RELATED PARTS New Holland Constructuion

Pos.Part NoQtyParts nameComments1.E7NN4032LA[1]WOBBLE BOXBASHousing Assy., Differential, CW, Incl. Ref.2-6 Superseded by part number: 82959782 2.263136[1]MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTFNHPLUG, MAGNETIC, Sq. Soc, 3/4"-14 NPTF 3.87811S36[2]DRAIN PLUG,3/4"-14BASPLUG, DRAIN, , Standard 3/4"-14 Superseded by part number: 83909107 4.21T4022[1]BREATHERGIDifferential Housing Vent 5.D0NN4N206A[1]PLUGBASCenter Housing, No Spin 6.957E4222[1]BEARING ASSY,107.975 mm ID x 158.775 mm OD x 23.02 mmB

2025/01/21

纽荷兰零件查询(D60) - EXTERNAL BRAKES (002) - SPRING APPLY/HYDRAULIC APPLY CYLINDER (POWER OFF/SERVICE BRAKING) New Holland Constructuion

Pos.Part NoQtyParts nameComments1.86552332[1]BRAKE CYLINDER,12.7mm StrokeBASCylinder Assy., Power Off/Service (Mico), Includes: 1 thru 20, 31 thru 37 3.NSS[1]NOT SERVICED SEPARATELYCONHousing 4.86552335[1]SPRINGBAS 6.F1NN2N476AA[1]PLUGFORBleeder Superseded by part number: 81877014 7.81877015[1]SCREW,5/16" - 24 x 1"FORBleeder 13.F1NN2N478AA[1]STOPFOR 16.81877021[1]RETAINERFORNut 17.100038[1]NUT,M12 x 1.75, Cl 8NHNUT, LOCK, M12 x 1.75, Cl 8 18.81877022[1]SPRINGFOR 20.F1NN2L469AA[1

2025/01/21

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (011) - CENTER HOUSING & RELATED PARTS - SA020,SA661,SA680,SA685,SA690, SA756 New Holland Constructuion

Pos.Part NoQtyParts nameComments1.E0NN4032LA[1]SUMPBASHousing Assy., 2 Speed PTO, W/Hydraulic Brake, Start Year: 01-JAN-81 2.957E4222[1]BEARING ASSY,107.975 mm ID x 158.775 mm OD x 23.02 mmBASCup, Start Year: 01-JAN-81 Superseded by part number: 81803420 3.C5NN2N477A[2]BUSHINGFORBrake, Start Year: 01-JAN-81 Superseded by part number: 81802602 4.87811S36[2]DRAIN PLUG,3/4"-14BASPLUG, DRAIN, , Sq Hd 3/4"-14, Start Year: 01-JAN-81 Superseded by part number: 83909107 5.83992225[1]1 Speed, PTO, S

2025/01/21

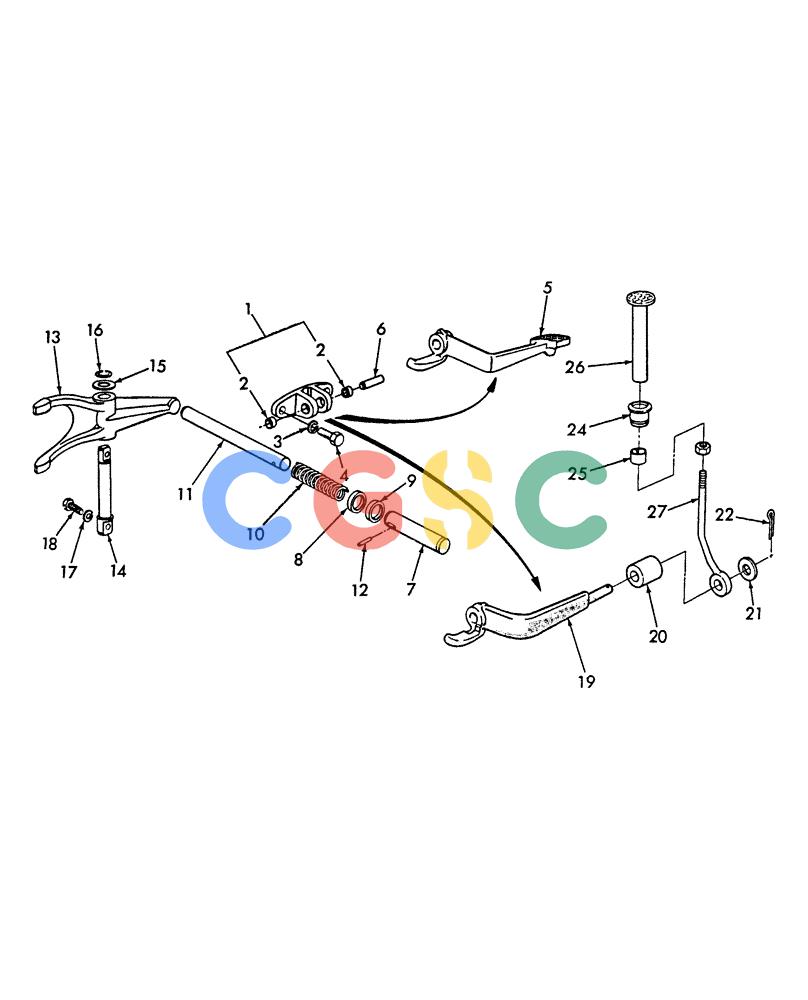

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (010) - DIFFERENTIAL LOCK CONTROLS - SA020,SA661,SA680,SA685,SA690,SA756 New Holland Constructuion

Pos.Part NoQtyParts nameComments1.D9NN4N060AA[1]HANGERBASAssy. Includes: Ref. 2, Start Year: 01-JAN-81 Superseded by part number: 83928483 2.81803339[2]BRONZE BUSHINGFORBushing, Start Year: 01-JAN-81 3.81547[1]BEARING WASHER,7/16"NHWASHER, LOCK, 7/16", Start Year: 01-JAN-81 4.9627887[2]BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full ThdNH, Start Year: 01-JAN-81 5.82980499[1]PEDALMEX, Start Year: 01-JAN-81 6.81803342[1]SHAFT,19.05mm OD x 57.15mm LFOR, Start Year: 01-JAN-81 7.81803347[1]SLEEV

2025/01/21

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (009) - AXLE, DIFFERENTIAL & RELATED PARTS - SA020, SA661, SA680, SA685, SA690, SA756 New Holland Constructuion

Pos.Part NoQtyParts nameComments1.D8NN4010JA[1]AXLE HOUSINGFORHousing Assy., R.H., D60, Includes: Ref. 2 thru 6, Start Year: 01-JAN-81 Superseded by part number: 83934812 1.D8NN4011GA[1]AXLE HOUSINGFORHousing Assy., L.H., D60, Includes: Ref. 2 thru 6, Start Year: 01-JAN-81 Superseded by part number: 83934813 1.E7NN4010AA[1]HOUSINGBASAssy., R.H., D60CHD1, Includes: Ref. 2 thru 6 Superseded by part number: 83959621 1.83959622[1]HOUSINGBASAssy., L.H., D60CHD1, Includes: Ref. 2 thru 6 2.8180334

2025/01/21

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (008) - OSCILLATION AXLE MOUNTING New Holland Constructuion

Pos.Part NoQtyParts nameComments1.D3NN4N147A29Z[1]SUPPORTFORPivot Rear Superseded by part number: 81834052 2.86512947[2]90 ELBOW,90º, 7/16"-20, 37º x 1/8"-27, NPTFBHB 3.280375[8]NUT,3/4"-10, GCWINNut, Lock, GC, 3/4"-10 4.86512328[8]WASHER,19.46mm ID x 35.05mm OD x 3.43mm ThkNH 5.280128[8]BOLT,Hex, 3/4" - 10 x 3", Gr 8FORScrew, Cap, HH, G8, 3/4"-10 x 3" 6.D8NN4N138AA[1]COTTER PINFORPin Assy. 6A.D5NN4N207A[2]LOCKING TABFORTab, Pivot Pin Bolt Lock 7.88725[4]BOLT,Hex, 3/4" - 10 x 1 3/4"

2025/01/21

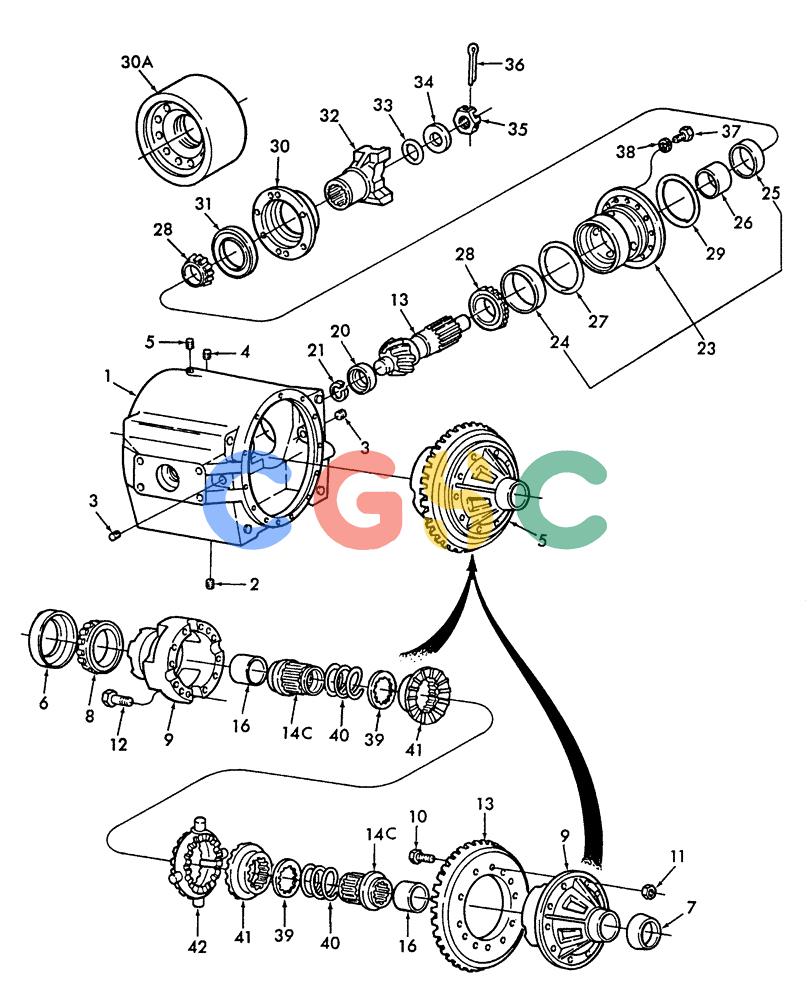

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (007) - AXLE CENTER HOUSING ASSEMBLY, W/NO SPIN New Holland Constructuion

Pos.Part NoQtyParts nameComments1.82959791[1]SUMPBASHousing Assy., Axle Differential, Center, Standard, Includes: Ref. 2 thru 6 1.82959782[1]WOBBLE BOXBASHousing Assy., Axle Differential, Center, D60CHD2, Includes: Ref. 2 thru 6 2.263136[1]MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTFNHPLUG, MAGNETIC, , Drain, Transmission Drain Sq. Soc, 3/4"-14 NPTF 3.83909107[2]DRAIN PLUG,Hdls Sq Skt, 3/4" - 14WINPLUG, DRAIN, , Standard 3/4"-14 4.21T4022[1]BREATHERGIAxle, Differential Housing Vent 5.D0NN4N206A

2025/01/21

纽荷兰零件查询(F4HFE613J*A006) - ENGINE 5801757723 - 47544094 (1/14-) (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE New Holland Constructuion

Pos.Part NoQtyParts nameComments1.2859674[1]SENSORTOR Superseded by part number: 2.4895477[1]O-RING,2.62mm Thk x 13.94mm IDTORID = 0.549 x 0.103 3.NSS[1]NOT SERVICED SEPARATELYCON 4.4899110[3]SCREW,Hex Flg, M6 x 1 x 20TORM6 x 1.0 x 20

2025/01/21

纽荷兰零件查询(F4HFE613J*A006) - ENGINE 5801757723 - 47544094 (1/14-) (55.012.AA) - ENGINE, SENSOR,TEMPERATURE New Holland Constructuion

Pos.Part NoQtyParts nameComments1.4897224[1]SENSORTOR

2025/01/21

纽荷兰零件查询(F4HFE613F*A001) - ENGINE 5801753674 - 47541731 (1/14-) (55.015.AC) - ENGINE, SENSOR New Holland Constructuion

Pos.Part NoQtyParts nameComments1.84370070[1]HOUSINGBRR 2.84370071[1]STUDBRR Superseded by part number: 3.2852817[1]O-RINGTOR Superseded by part number: 14453881 4.4899124[1]WASHERTOR 5.2854282[1]NUTTORM6 x 1 Superseded by part number: 17037821 6.2852820[1]O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 DuroTORID = 17.17 x 1.78 Superseded by part number: 17278481 7.NSS[1]NOT SERVICED SEPARATELYCONSensor, Incl in 8 8.4890190[1]SENSORTORASSY, Incl 6, 7 9.4899110[1]SCREW,Hex Flg, M6 x 1 x 2

2025/01/21

纽荷兰零件查询(F4HFE613F*A001) - ENGINE 5801753674 - 47541731 (1/14-) (55.014.AD) - ENGINE, SENSOR New Holland Constructuion

Pos.Part NoQtyParts nameComments1.4895817[1]BOLT,Flng, M6 x 1 x 20mm, Cl 10.9TORM6 x 1.0 x 20 2.2852821[1]SENSORTORASSY, Incl 3, 4 Superseded by part number: 504372225 3.NSS[1]NOT SERVICED SEPARATELYCONSensor, Incl in 2 4.4895477[1]O-RING,2.62mm Thk x 13.94mm IDTORID = 0.549 x 0.103

2025/01/21

纽荷兰零件查询(F4HFE613F*A001) - ENGINE 5801753674 - 47541731 (1/14-) (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE New Holland Constructuion

Pos.Part NoQtyParts nameComments1.2859674[1]SENSORTOR Superseded by part number: 2.4895477[1]O-RING,2.62mm Thk x 13.94mm IDTORID = 0.549 x 0.103 3.NSS[1]NOT SERVICED SEPARATELYCON 4.4899110[3]SCREW,Hex Flg, M6 x 1 x 20TORM6 x 1.0 x 20

2025/01/21

纽荷兰零件查询(F4HFE613F*A001) - ENGINE 5801753674 - 47541731 (1/14-) (55.012.AA) - ENGINE, SENSOR,TEMPERATURE New Holland Constructuion

Pos.Part NoQtyParts nameComments1.4897224[1]SENSORTOR

2025/01/21

纽荷兰零件查询(F5HFL463A*F001) - ENGINE 5801390425 - 84315306 (47374655) (10/13-) (55.014.AN) - EXHAUST MANIFOLD, SENSOR New Holland Constructuion

Pos.Part NoQtyParts nameComments

2025/01/21

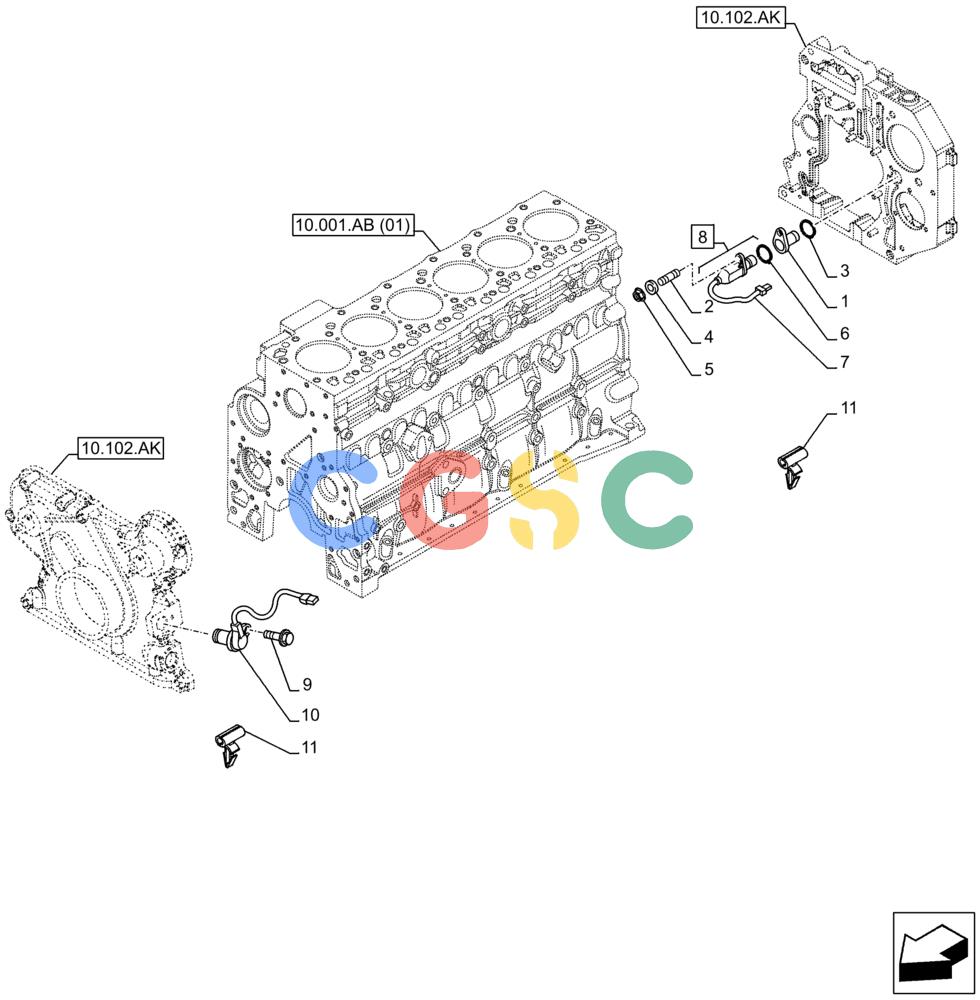

纽荷兰零件查询(F4HFE6132*A003) - ENGINE 5801753676 - 47541755 (1/14-) (55.015.AC) - ENGINE, SENSOR New Holland Constructuion

Pos.Part NoQtyParts nameComments1.84370070[1]HOUSINGBRR 2.84370071[1]STUDBRR Superseded by part number: 3.2852817[1]O-RINGTOR Superseded by part number: 14453881 4.4899124[1]WASHERTOR 5.2854282[1]NUTTORM6 x 1 Superseded by part number: 17037821 6.2852820[1]O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 DuroTORID = 17.17 x 1.78 Superseded by part number: 17278481 7.NSS[1]NOT SERVICED SEPARATELYCONSensor, Incl in 8 8.4890190[1]SENSORTORASSY, Incl 6, 7 9.4899110[1]SCREW,Hex Flg, M6 x 1 x 2

2025/01/21

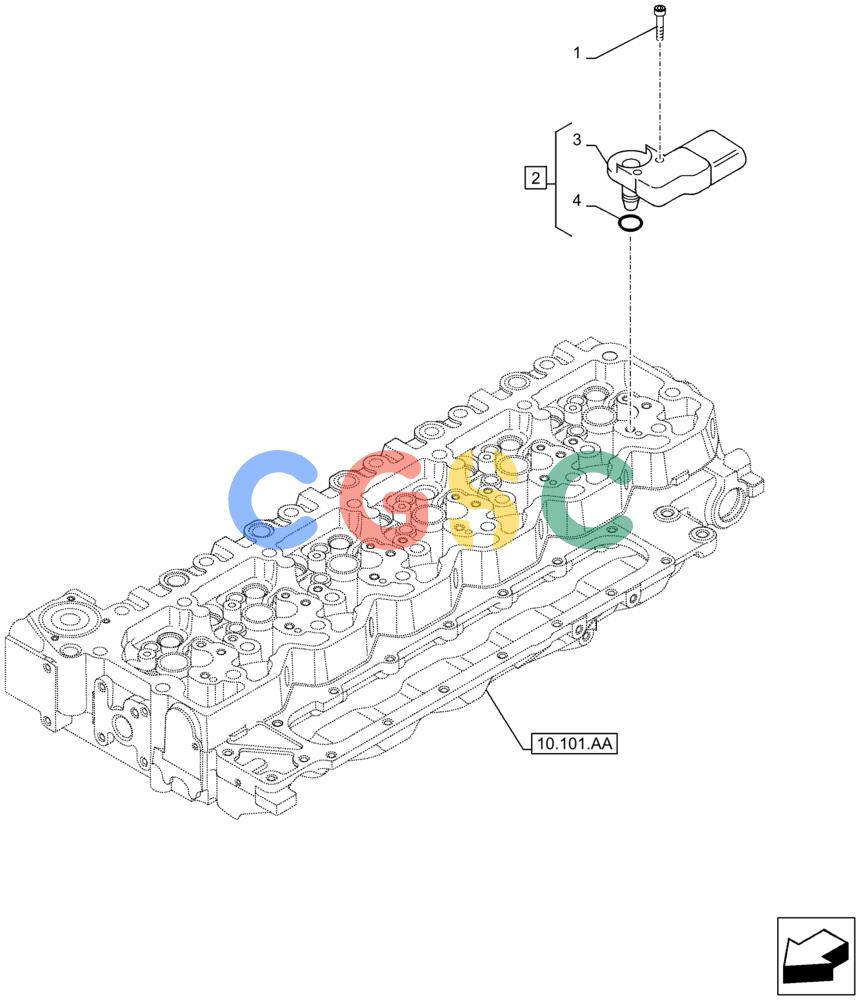

纽荷兰零件查询(F4HFE6132*A003) - ENGINE 5801753676 - 47541755 (1/14-) (55.014.AD) - ENGINE, SENSOR New Holland Constructuion

Pos.Part NoQtyParts nameComments1.4895817[1]BOLT,Flng, M6 x 1 x 20mm, Cl 10.9TORM6 x 1.0 x 20 2.2852821[1]SENSORTORASSY, Incl 3, 4 Superseded by part number: 504372225 3.NSS[1]NOT SERVICED SEPARATELYCONSensor, Incl in 2 4.4895477[1]O-RING,2.62mm Thk x 13.94mm IDTORID = 0.549 x 0.103

纽荷兰零件查询(D65) - EXTERNAL BRAKES (001) - SPRING APPLY CYLINDER (POWER OFF BRAKING) New Holland Constructuion

纽荷兰零件查询(D65) - DRIVE AXLE (1/99-) (003) - OSCILLATION AXLE MOUNTING New Holland Constructuion

纽荷兰零件查询(D65) - DRIVE AXLE (1/99-) (002) - AXLE CENTER HOUSING ASSEMBLY,W/DIFFERENTIAL & RELATED PARTS New Holland Constructuion

纽荷兰零件查询(D60HS) - EXTERNAL BRAKES (001) - SPRING APPLY CYLINDER (POWER OFF BRAKING) New Holland Constructuion

纽荷兰零件查询(D60HS) - DRIVE AXLE (3/00-) (002) - AXLE CENTER HOUSING, W/DIFFERENTIAL & RELATED PARTS New Holland Constructuion

纽荷兰零件查询(D60) - EXTERNAL BRAKES (002) - SPRING APPLY/HYDRAULIC APPLY CYLINDER (POWER OFF/SERVICE BRAKING) New Holland Constructuion

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (011) - CENTER HOUSING & RELATED PARTS - SA020,SA661,SA680,SA685,SA690, SA756 New Holland Constructuion

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (010) - DIFFERENTIAL LOCK CONTROLS - SA020,SA661,SA680,SA685,SA690,SA756 New Holland Constructuion

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (009) - AXLE, DIFFERENTIAL & RELATED PARTS - SA020, SA661, SA680, SA685, SA690, SA756 New Holland Constructuion

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (008) - OSCILLATION AXLE MOUNTING New Holland Constructuion

纽荷兰零件查询(D60) - DRIVE AXLE (1/80-12/90) (007) - AXLE CENTER HOUSING ASSEMBLY, W/NO SPIN New Holland Constructuion

纽荷兰零件查询(F4HFE613J*A006) - ENGINE 5801757723 - 47544094 (1/14-) (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE New Holland Constructuion

纽荷兰零件查询(F4HFE613J*A006) - ENGINE 5801757723 - 47544094 (1/14-) (55.012.AA) - ENGINE, SENSOR,TEMPERATURE New Holland Constructuion

纽荷兰零件查询(F4HFE613F*A001) - ENGINE 5801753674 - 47541731 (1/14-) (55.015.AC) - ENGINE, SENSOR New Holland Constructuion

纽荷兰零件查询(F4HFE613F*A001) - ENGINE 5801753674 - 47541731 (1/14-) (55.014.AD) - ENGINE, SENSOR New Holland Constructuion

纽荷兰零件查询(F4HFE613F*A001) - ENGINE 5801753674 - 47541731 (1/14-) (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE New Holland Constructuion

纽荷兰零件查询(F4HFE613F*A001) - ENGINE 5801753674 - 47541731 (1/14-) (55.012.AA) - ENGINE, SENSOR,TEMPERATURE New Holland Constructuion

纽荷兰零件查询(F5HFL463A*F001) - ENGINE 5801390425 - 84315306 (47374655) (10/13-) (55.014.AN) - EXHAUST MANIFOLD, SENSOR New Holland Constructuion

纽荷兰零件查询(F4HFE6132*A003) - ENGINE 5801753676 - 47541755 (1/14-) (55.015.AC) - ENGINE, SENSOR New Holland Constructuion

纽荷兰零件查询(F4HFE6132*A003) - ENGINE 5801753676 - 47541755 (1/14-) (55.014.AD) - ENGINE, SENSOR New Holland Constructuion
