斗山零件查询INSTRUMENT PANEL 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1020919[1] COVER 1.K1020643[1] COVER 11.S3452564[8] SCREW 2.K1020920[1] BRACKET 3.K1020647[1] COVER(L.H) 4.K1020648[1] COVER(R.H) 7.K1020921[16] INSERT 8.S4012533[16] NUT

2025/01/21

斗山零件查询FUEL TANK COVER 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1020666[-] FUEL TANK COVER 1.S8040061[1] O-RING 10.K1023033[1] KNOB 15.K1020581[1] COVER 16.K1020613[1] BRACKET 17.S5020603[1] WASHER;PLAIN M10 18.K1020615[1] PIN 19.S6540600[2] RING;RETAINING 2.K1023098[1] PLUG;MAGNETIC 20.K1019750[1] SPRING 22.S0505263[2] BOLT 23.K1023130[4] WASHER;HARDENED 24.S4016333[2] NUT 25.K1023163[1] GASKET 26.K1021878[1] BAR 27.K1019113[1] SPRING 28.K1019123[1] CASE 29.S0504463[2] BOL

2025/01/21

斗山零件查询FLOOR PLATE 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1021276[-] FLOOR PLATE ASS'Y 1.K1021295[1] PLATE;UPPER 2.S0511663[10] BOLT 3.K1023129[10] WASHER 4.K1022256[50] SPONGE 5.K1019744[1] SPONGE

2025/01/21

斗山零件查询ENGINE THROTTLE CONTROL 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1021259[-] THROTTLE CONTROL 1.K1021587[1] LEVER 10.S0512263[2] BOLT 11.S4016633[2] NUT 12.K1023131[1] WASHER;SPRING 2.K1022285[1] SPACER 3.K1021260[1] CABLE;ENGINE-THROTTLE 4.K1021261[1] BRACKET 5.K1023140[1] WASHER 6.S5760111[2] PIN;COTTER 7.S180333H[2] PIN 8.K1023118[1] NUT;LOCK 9.K1023146[4] WASHER;HARDENED

2025/01/21

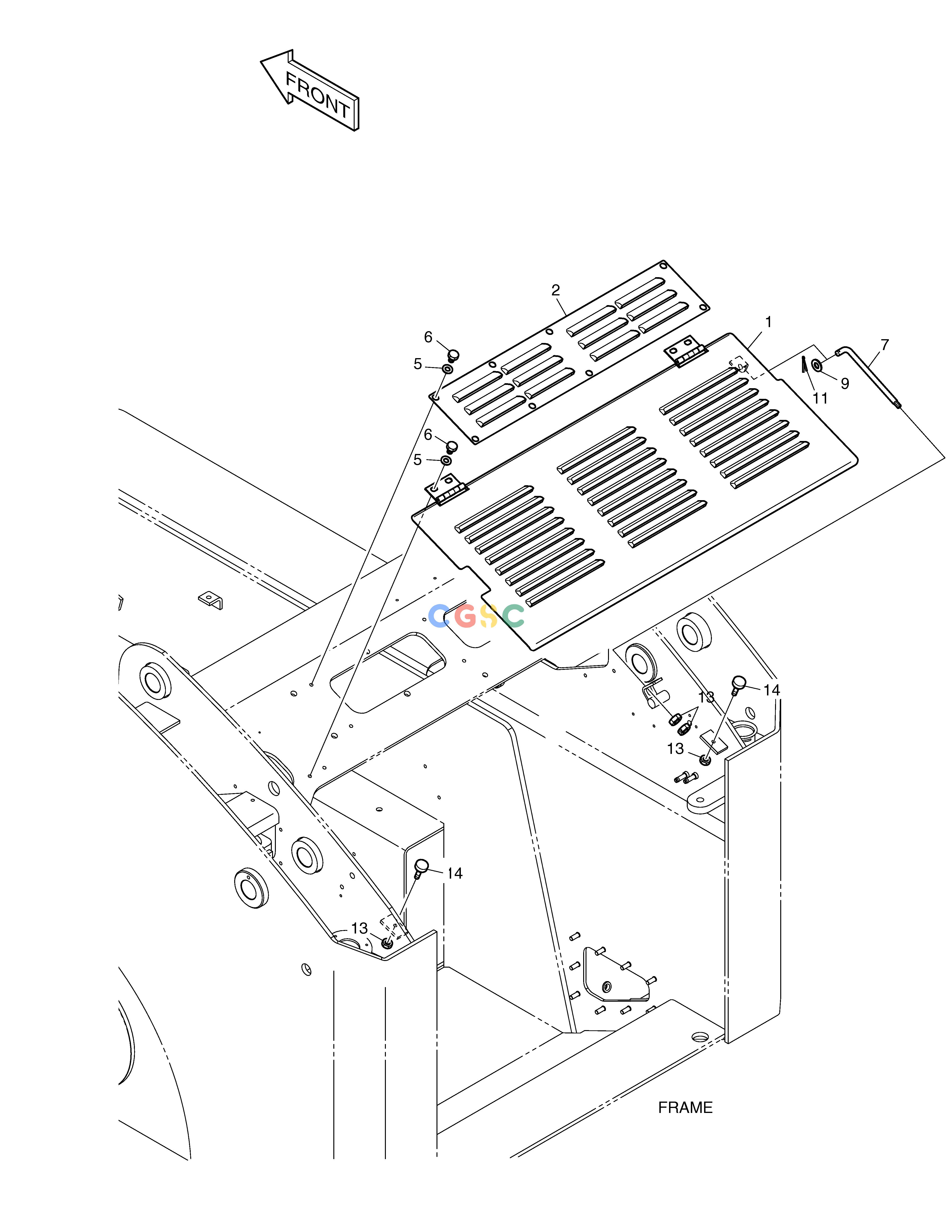

斗山零件查询ENGINE HOOD 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1020674[-] ENGINE HOOD 1.K1020944[1] COVER;HOOD 11.S180130H[1] PIN;SNAP 13.S4016533[4] NUT 14.K1019084[2] BOLT;KNOB 2.K1020668[1] PLATE;LOUVERD 5.K1023146[10] WASHER;HARDENED 6.S0508463[10] BOLT 7.K1020868[1] BAR;HOOD LOCK 9.S5102303[1] . WASHER

2025/01/21

斗山零件查询ELECTRIC WIRING 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1021278[-] ELECTRIC WIRING 1.K1021279[1] HARNESS;E/G 10.K1021222[1] COVER 11.K1021029[1] PLATE;HOUSING 12.K1020101[1] CLIP 13.K1020755[1] PLATE;NAME 14.K1022975[3] CLIP 15.K1023157[3] WASHER;HARDENED 16.K1021219[1] BRACKET;COVER 17.S4016241[4] NUT 18.K1023156[8] WASHER 19.K1019084[1] BOLT;KNOB 2.K1021867[1] HARNESS;CANOPY 20.K1022974[2] CLIP 21.S0504663[2] BOLT 22.S3450853[6] SCREW 23.S5000213[10] . WASHER 24.K

2025/01/21

斗山零件查询ELECTRIC PARTS-INSTRUMENT PANEL 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.300605-00021[-] 1.K1020919[1] COVER 10.K1022998[1] LAMP;WARNING 10A.K1019111[4] BULB 11.K1023040[1] GAUGE;FUEL 12.K1022896[1] LAMP;PARKING 12A.K1022897[1] LAMP;PILOT(PARKING) 13.K1022999[1] LAMP;PILOT(STOP) 13A.K1022899[1] LAMP;PILOT(STOP) 14.K1023000[1] LAMP;PILOT 14A.K1022900[1] LAMP;PILOT 16.S3450583[6] SCREW 18.K1020567[1] PANEL (R.H) 19.K1019659[1] SWITCH;STARTER 19A.K1019104[1] KEY;STARTER 20.K1019048[1] SWITCH

2025/01/21

斗山零件查询ELECTRIC PARTS-BATTERY 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1021262[-] ELECTRIC PARTS-BATTERY 1.2506-1104[1] BATTERY 10.S0511463[2] BOLT 11.K1023135[2] WASHER;LOCK 12.K1022971[2] CLIP;BAND 13.K1022300[1] BOLT;STUD 2.K1022954[1] HOLDER;BATTERY 3.K1022955[1] BOLT;STUD 4.S4540603[2] NUT;WING M10X1.5 5.K1019069[1] CABLE;BATTERY 6.K1022956[1] CABLE;EARTH 7.K1022957[2] CLIP 8.S4016633[2] NUT 9.K1022958[1] SPACER

2025/01/21

斗山零件查询FLOOR PLATE DX160LC Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.622-00426G[-] FLOOR PLATE ASS'Y 1.2120-2166D55[4] BOLT 10.133-00229A[1] LEVER;TRAVEL (L.H) 11.133-00230A[1] LEVER;TRAVEL (R.H) 12.621-02892G[1] PLATE;FLOOR 621-02892J 12.621-02892J[1] PLATE;FLOOR 13.621-01507[1] PLATE 621-01507A 13.621-01507A[1] PLATE 14.161-00381[1] RUBBER,PEDAL(R.H) 15.161-00382[1] RUBBER;PEDAL(L.H) 16.2120-2166D4[6] BOLT 17.S2211866[4] BOLT 18.S5110603[4] WASHER 19.195-01683A[1] BRACKET,PEDAL(R.H)

2025/01/21

斗山零件查询BUCKET 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments1.K1023410[1] BUCKET ASS'Y

2025/01/21

斗山零件查询BOTTOM PLATE 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1020659[-] BOTTOM PLATE 1.K1020987[1] COVER 2.S0508663[13] BOLT 3.K1023146[13] WASHER;HARDENED 4.K1019995[1] COVER 5.K1020816[2] PLATE

2025/01/21

斗山零件查询BOOM MOUNTING 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1020673[-] BOOM MOUNTING 1.K1022596[2] CYLINDER;BOOM 10.K1023144[18] WASHER 11.S0508663[18] BOLT 12.K1020151[2] BUSHING 13.K1020012[2] PAD;RUBBER 14.K1023147[4] WASHER;HARDENED 15.S0512263[4] BOLT 16.K1020047[2] PIN 19.S5102603[4] . WASHER 2.K1022624[2] CYLINDER;BUCKET 20.K1020162[1] PLATE;STOPPER 21.K1020163[1] SPACER 22.K1019967[2] PIN 23.K1020423[2] PIN 24.K1020420[4] PIN 25.K1020421[4] PIN 26.K1020487[8] PL

2025/01/21

斗山零件查询BOOM LOCK 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1020052[-] BOOM LOCK 1.K1020046[1] LOCK 2.K1022286[1] LEVER 3.S5760301[1] PIN 4.S180333H[1] PIN 5.K1019874[1] KNOB 6.K1019876[1] BOLT 7.K1019877[1] NUT 8.K1020244[20] CHANNEL

2025/01/21

斗山零件查询SENSOR & SWITCH DX160LC-3 Doosan parts catalog online

Pos.Part NoQtyParts nameComments1.301308-00036[1]

2025/01/21

斗山零件查询BOOM 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments1.K1021819[1] BOOM ASS'Y

2025/01/21

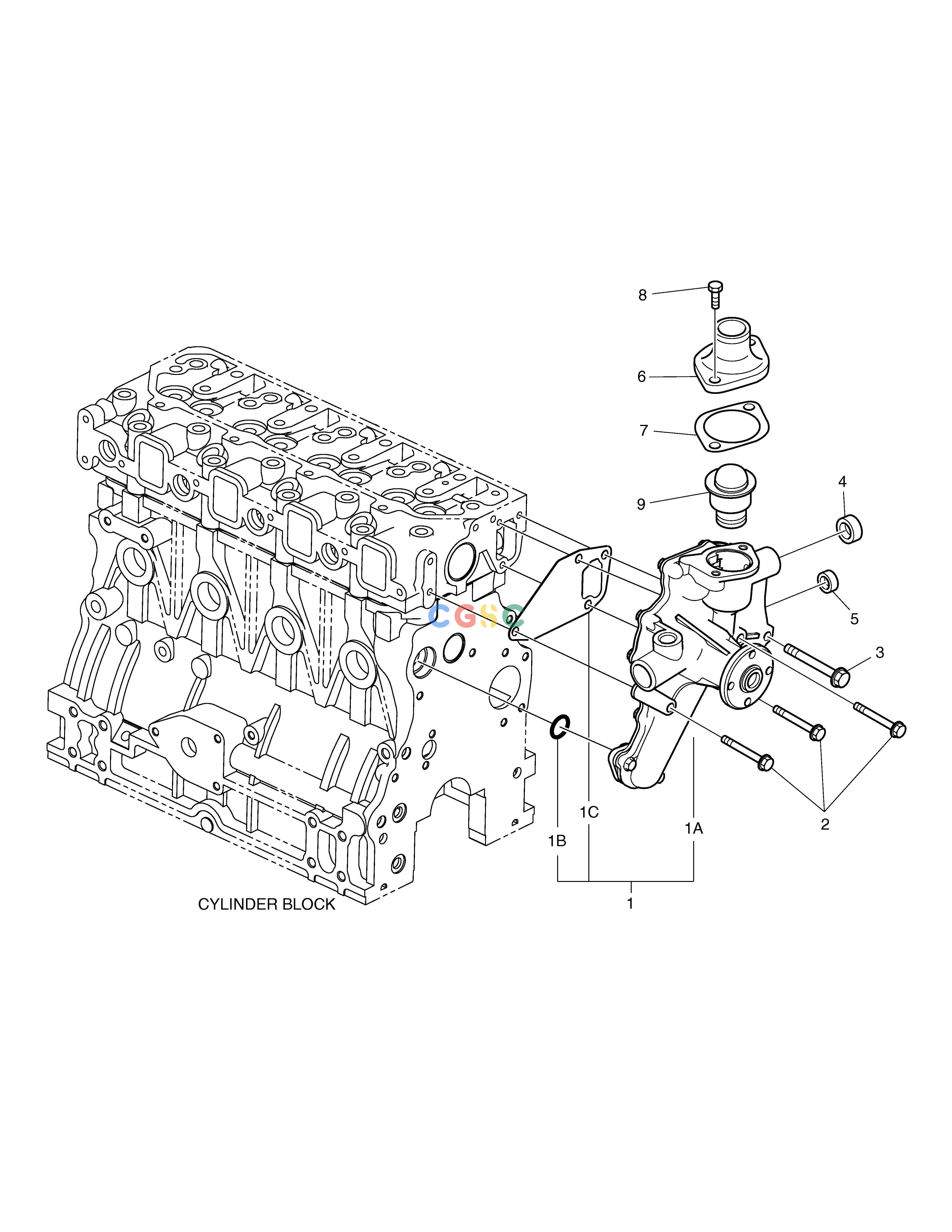

斗山零件查询WATER PUMP 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019347[-] WATER PUMP 1.K1019348[1] KIT;WATER PUMP 1A.K1019349[1] PUMP;WATER 1B.K1019350[1] SEAL;O-RING 1C.K1019351[1] GASKET;WATER PUMP 2.K1019352[3] SCREW 3.K1019234[1] SCREW 4.K1019353[3] PLUG;PIPE 5.K1019354[1] PLUG;PIPE 6.K1019345[1] PIPE;WATER OUTLET 7.K1019404[1] GASKET;THERMOSTAT 8.K1019346[2] SCREW 9.K1019181[1] THERMOSTAT

2025/01/21

斗山零件查询TURBO CHARGER PLUMBING 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019335[-] TURBOCHARGER PLUMBING 1.K1019336[1] SCREW 2.K1019337[1] SEAL 3.K1019338[1] PLUG

2025/01/21

斗山零件查询STARTING MOTOR 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019333[-] STARTING MOTOR 1.K1019334[1] MOTOR;STARTER 2.K1019361[2] SCREW

2025/01/21

斗山零件查询ROCKER ARM 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019317[-] ROCKER LEVER 1.K1019318[1] ROCKER ARM ASS'Y 1A.K1019319[1] SUPPORT;ROCKER ARM 1B.K1019320[3] SUPPORT;ROCKER ARM 1C.K1019321[3] SPRING 1D.K1019322[1] SHAFT;ROCKER ARM 1E.K1019323[8] ARM;ROCKER 1F.K1019324[8] SCREW 1G.K1019325[8] NUT 1H.K1019326[1] SCREW 1i.K1019327[2] RING;RETAINING 2.K1019328[4] BOLT;STUD 3.K1019329[4] WASHER;LOCK 4.K1019330[4] NUT

2025/01/21

斗山零件查询PISTON 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019302[-] ENGINE PISTON 1.K1019303[4] PISTON ASS'Y 1A.K1019304[1] PISTON 1B.K1019305[1] SET;PISTON RING 1BA.K1019306[1] RING;PISTON 1BB.K1019307[1] RING;PISTON 1BC.K1019308[1] RING;OIL 2.K1019309[4] PIN;PISTON 3.K1019310[8] RING;RETAINING 4.K1019311[4] METAL;CONNECTING ROD 4.140112-00003[4] 5.K1019405[4] CONNECTING ROD SET 5A.K1019314[2] SCREW 5B.K1019315[1] BUSHING 5C.K1019316[1] ROD;CONNECTING
