第2页_斗山Doosan_Part Number_广州千韧科技有限公司

2025/01/21

斗山零件查询OIL PUMP 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019280[-] LUBE OIL PUMP 1.K1019281[1] PUMP;OIL 1A.K1019282[1] PUMP;OIL 1B.K1019283[1] GEAR;OIL PUMP 2.K1019284[1] GASKET;OIL PUMP 3.K1019285[4] SCREW

2025/01/21

斗山零件查询OIL PAN 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019290[-] OIL PAN 1.K1019291[1] PAN;OIL 10.K1019298[1] SCREW 11.K1019299[1] ADAPTER;OIL PAN 12.K1019300[2] SCREW 13.K1019301[22] SCREW 2.K1019292[1] MAGNET 3.K1019293[1] PLUG;THREADED 4.K1019233[1] SEAL;RING 5.K1019232[4] SCREW 6.K1019294[2] SCREW 7.K1019295[1] GASKET 8.K1019296[1] PIPE;OIL SUCTION 9.K1019297[2] SCREW

2025/01/21

斗山零件查询OIL LEVEL GAUGE 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019369[-] OIL LEVEL GAUGE 1.K1019370[1] PLUG;OIL GAUGE 2.K1019371[1] TUBE;OIL GAUGE 3.K1019372[1] DIPSTICK 4.K1019378[1] SEAL;RING

2025/01/21

斗山零件查询OIL FILTER 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019364[-] LUBE OIL FILTER 1.K1019276[1] HEAD;OIL FILTER 2.K1019277[1] GASKET 3.K1019126[1] OIL FILTER 4.K1019278[3] SCREW 5.K1019365[1] BOLT;STUD 6.K1019233[1] SEAL;RING 7.K1019279[1] NUT

2025/01/21

斗山零件查询OIL FILLER 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019286[-] OIL FILLER ARRANGEMENT 1.K1019287[2] CAP;FILLER 1A.K1019288[1] CAP;FILLER 1B.K1019289[1] SEAL;RING

2025/01/21

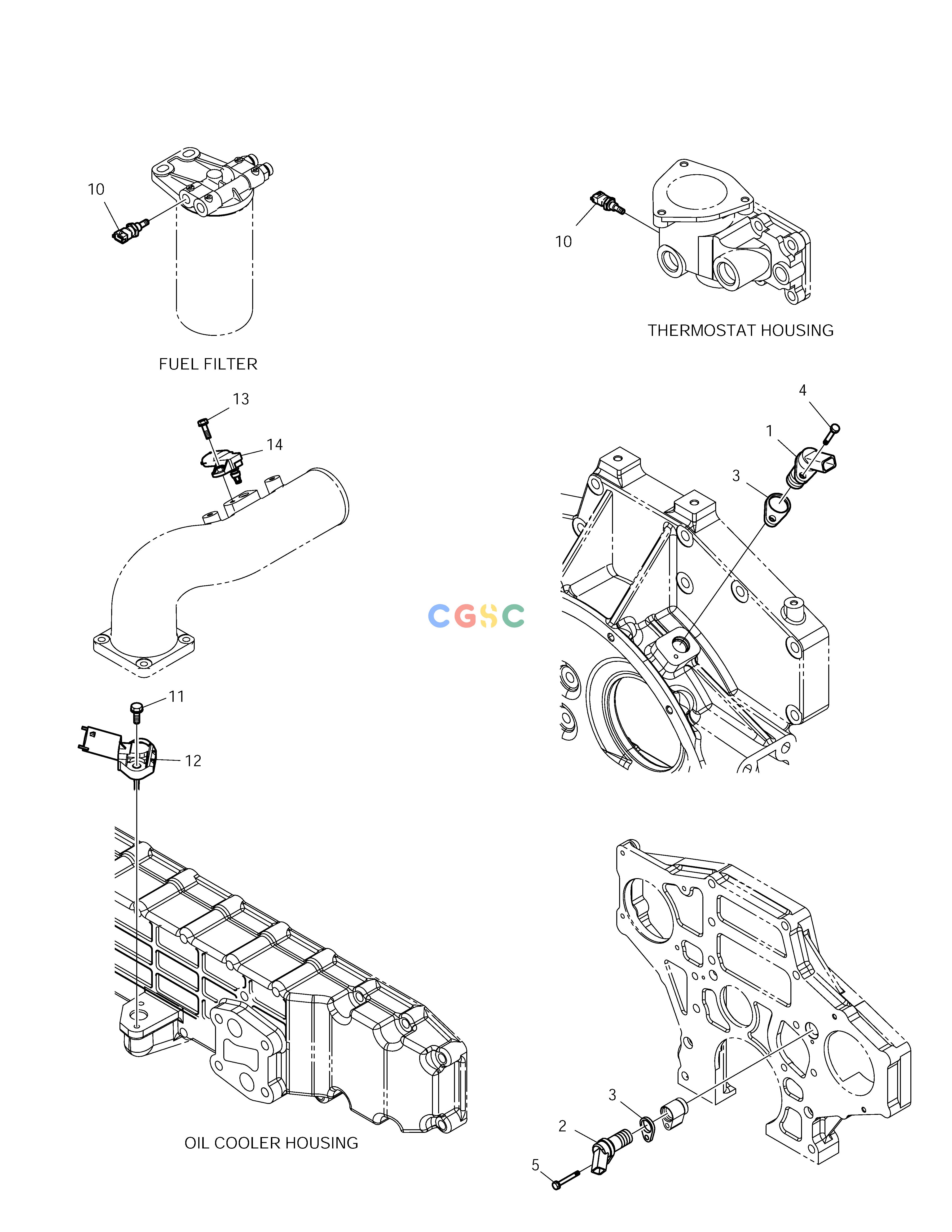

斗山零件查询SENSOR DX160LC Doosan parts catalog online

Pos.Part NoQtyParts nameComments1.65.27103-7014[1] SENSOR;CRANK CAM SPEED 10.65.27423-7003[2] SENSOR;TEMP 11.06.01923-2913[2] BOLT ASS`Y M6X20 12.65.27427-7001[1] SENSOR;OIL PRESSURE 13.06.01923-2913[1] BOLT ASS`Y M6X20 14.65.27444-7001[1] SENSOR;BOOST PRESSURE 2.65.27103-7014[1] SENSOR;CRANK CAM SPEED 3.65.11308-0005[2] SHIM 3.65.11308-0006[2] SHIM 3.65.11308-0007[2] SHIM 3.65.11308-0008[2] SHIM 4.06.01923-2913[1] BOLT ASS`Y M6X20 5.06.01923-2919[1] BOLT ASS`

2025/01/21

斗山零件查询OIL COOLER 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019362[-] ENGINE OIL COOLER 1.K1019363[1] COOLER;OIL 10.K1019368[1] O-RING 2.K1019270[1] ELBOW;UNION 3.K1019271[1] HOSE 4.K1019272[1] HOSE 5.K1019273[2] CLAMP;HOSE 6.K1019274[2] CLAMP;HOSE 7.K1019275[1] NIPPLE;PIPE 8.K1019366[1] O-RING 9.K1019367[1] PLUG;PIPE

2025/01/21

斗山零件查询INTAKE MANIFOLD 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019265[-] AIR INTAKE MANIFOLD 1.K1019266[1] MANIFOLD;INTAKE 2.K1019267[1] GASKET;INTAKE MANIFOLD 3.K1019406[5] SCREW

2025/01/21

斗山零件查询INJECTOR 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019260[-] INJECTOR 1.K1019261[4] INJECTOR ASS'Y 1A.K1019262[1] INJECTOR 1B.K1019263[1] SEAL;INJECTOR 1C.K1019264[1] SPACER

2025/01/21

斗山零件查询INJECTION PUMP MOUNTING 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019202[-] FUEL PUMP MOUNTING 1.K1019203[3] BOLT;STUD 10.K1019211[2] BOLT 11.K1019171[1] SCREW 2.K1019179[4] NUT 3.K1019204[1] O-RING 4.K1019205[1] GEAR;INJ PUMP 5.K1019206[1] WASHER;LOCK 6.K1019207[1] NUT 7.K1019208[1] BRACKET 8.K1019209[1] BRACKET 9.K1019210[1] SCREW

2025/01/21

斗山零件查询INJECTION PIPE 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019212[-] FUEL PLUMBING 1.K1019213[1] PIPE;INJECTOR 10.K1019221[1] HOSE;FUEL DRAIN 11.K1019222[2] CLAMP 12.K1019223[1] CONNECTOR 13.K1019224[2] BRACKET 14.K1019225[1] CLAMP 2.K1019214[1] PIPE;INJECTOR 3.K1019215[1] PIPE;INJECTOR 4.K1019216[1] PIPE;INJECTOR 5.K1019217[1] CLAMP;TUBE 6.K1019187[2] NUT 7.K1019218[1] PIPE;FUEL 8.K1019219[4] RING;SEAL 9.K1019220[4] NUT

2025/01/21

斗山零件查询FUEL INJECTION PUMP 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019199[-] FUEL INJECTION PUMP 1.K1019200[1] PUMP;INJECTION 2.K1019201[1] KEY;WOODRUFF 3.A298177[1]

2025/01/21

斗山零件查询FRONT GEAR COVER 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019226[-] FRONT GEAR COVER 1.K1019227[1] PLATE;GEAR COVER 10.K1019171[1] SCREW 11.K1019234[3] SCREW 12.K1019235[2] SCREW 13.K1019236[7] SCREW 14.K1019237[1] SCREW 15.K1019179[4] NUT 16.K1019375[1] COVER;ACCESSORY DRIVE 17.K1019374[1] GASKET;ACC DRIVE COVER 18.K1019376[2] SCREW 19.K1019278[1] SCREW 2.K1019228[1] COVER;FRONT 20.K1019385[5] SCREW 2A.K1019229[1] COVER;FRONT 2B.K1019230[1] SEAL;OIL 3.K1019177[1] COVER

2025/01/21

斗山零件查询FLYWHEEL HOUSING 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019192[-] FLYWHEEL HOUSING 1.K1019193[1] HOUSING;FLYWHEEL 2.K1019194[10] SCREW 3.K1019195[4] PIN 4A.K1019197[1] CARRIER;SEAL 4B.K1019198[1] SEAL;OIL 5.K1019178[9] SCREW

2025/01/21

斗山零件查询FAN DRIVE BELT 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1022367[-] FAN DRIVE BELT 1.K1022361[1] BELT 2.K1019191[1] PULLEY;FAN

2025/01/21

斗山零件查询EXHAUST MANIFOLD 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019355[-] EXHAUST MANIFOLD 1.K1019356[1] MANIFOLD;EXHAUST 2.K1019357[2] GASKET;EXHAUST MANIFOLD 3.K1019179[4] NUT 4.K1019294[4] SCREW 5.K1019358[2] STUD 6.K1019359[2] STUD 7.K1019360[1] GASKET

2025/01/21

斗山零件查询ELECTRIC PARTS 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019130[-] AIR HEATER STARTING AID 1.K1019131[4] PLUG;GLOW 2.K1019132[1] CONNECTOR;ELECTRICAL 3.K1019332[1] SWITCH;OIL PRESSURE 4.K1019382[1] ADAPTER 5.K1019380[1] CONTROLLER;PREHEAT 6.K1019381[1] SENSOR;PREHEAT

2025/01/21

斗山零件查询CYLINDER HEAD COVER 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019339[-] VALVE COVER 1.K1019340[1] COVER;CYL. HEAD 2.K1019341[1] GASKET;CYL. HEAD COVER 3.K1019342[4] BOLT 4.K1019343[4] SEAL

2025/01/21

斗山零件查询CYLINDER HEAD 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019238[-] CYLINDER HEAD 1.K1019239[1] CYLINDER HEAD ASSY 1A.K1019240[4] VALVE;INTAKE 1B.K1019241[4] VALVE;EXHAUST 1C.K1019242[2] PIN;ROLL 1D.K1019243[8] SEAL;VALVE STEM 1E.K1019244[8] SPRING;VALVE 1F.K1019245[8] RETAINER;VALVE SPRING 1G.K1019246[16] COLLET;VALVE 1i.K1019247[1] HEAD;CYLINDER 1iA.K1019147[4] PLUG;PIPE 1iB.K1019248[4] PLUG;EXPANSION 1iC.K1019249[4] GUIDE;VALVE STEM 1iD.K1019250[4] GUIDE;VALVE STEM 1iE.K10

2025/01/21

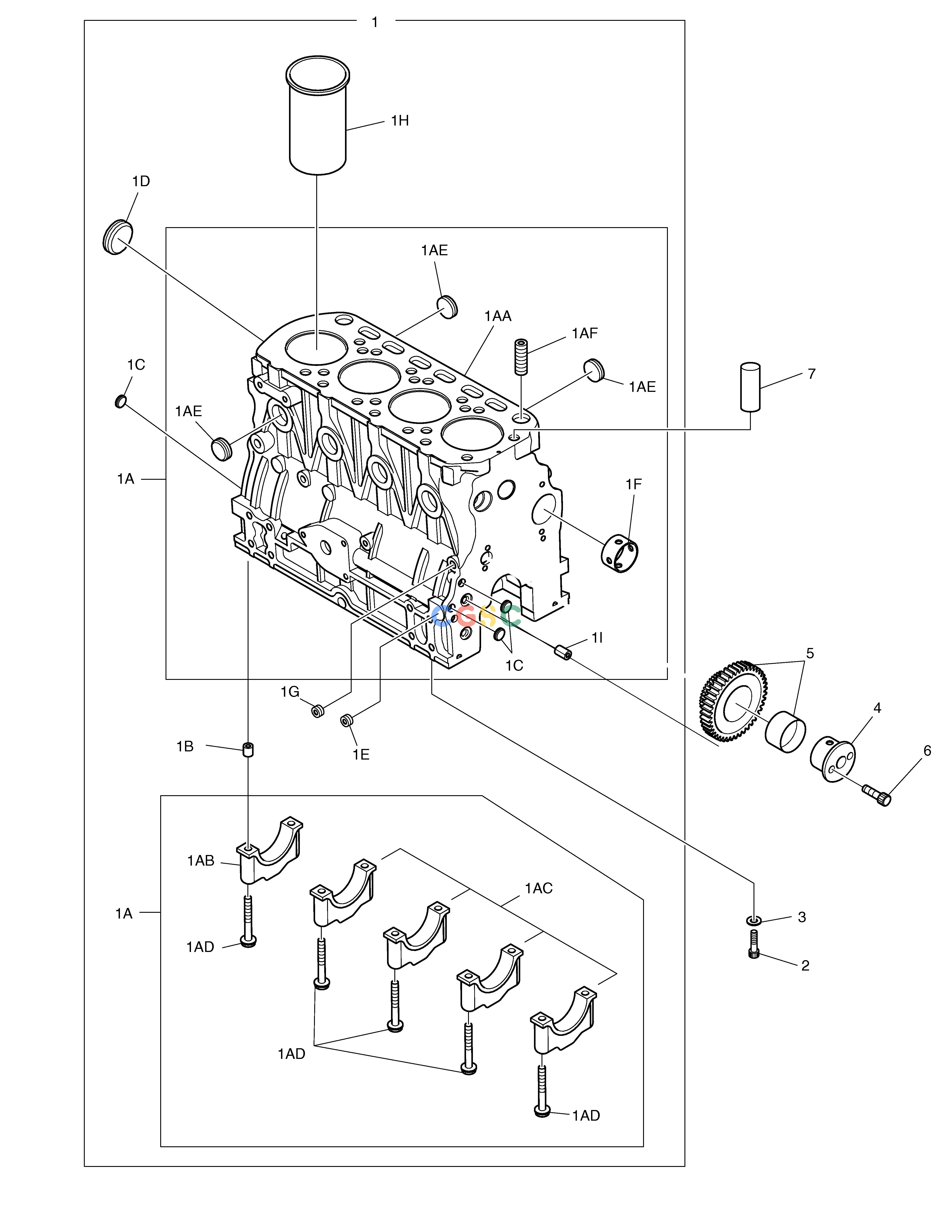

斗山零件查询CYLINDER BLOCK 440 PLUS Doosan parts catalog online

Pos.Part NoQtyParts nameComments-.K1019135[-] CYLINDER BLOCK 1.K1019136[1] BLOCK;CYLINDER 1A.K1019137[1] BLOCK;CYLINDER 1AA.K1019138[1] BLOCK;CYLINDER 1AB.K1019139[1] CAP;MAIN BEARING 1AC.K1019140[4] CAP;MAIN BEARING 1AD.K1019141[10] SCREW;HEX FLANGE HEAD CAP 1AE.K1019142[8] PLUG;EXPANSION 1AF.K1019143[1] PLUG;THREADED 1B.K1019144[1] PIN;ROLL 1C.K1019145[3] PLUG;EXPANSION 1D.K1019146[1] PLUG;EXPANSION 1E.K1019147[3] PLUG;PIPE 1F.K1019148[1] BUSHING 1G.K1
