第5页_久保田Kubota_Part Number_广州千韧科技有限公司

2025/01/21

久保田零件查询T06904 REAR WHEEL (29 X 12.00-15) REAR AXLE/REAR WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641417700[1] ASSY REAR WHEEL 0.0000(lbs); 0.000 020.6641417710[1] ASSY REAR WHEEL LH 0.0000(lbs); 0.000 030.6641417720[1] WHEEL 28.6000(lbs); 13.000 040.9601661130[1] TIRE 31.6800(lbs); 14.400 050.3415911850[1] VALVE TIRE 0.0286(lbs); 0.013 060.3824011690[1] CAP VALVE 0.0044(lbs); 0.002 070.3215027740[1] CORE VALVE 0.0066(lbs); 0.003 080.6641417730[1] LABEL TIRE LH 0.0022(lbs); 0.001 090.6641417740[1] ASSY REAR

2025/01/21

久保田零件查询T06902 REAR WHEEL (8-16) REAR AXLE/REAR WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641517500[1] ASSY REAR WHEEL 121.0000(lbs); 55.00 020.6641517510[1] ASSY REAR WHEEL LH 59.4000(lbs); 27.000 030.6641417520[1] WHEEL 23.5400(lbs); 10.700 040.9601805120[1] TUBE 3.5200(lbs); 1.600 050.9601805130[1] TIRE 33.8800(lbs); 15.400 060.3215027700[1] ASSY VALVE 0.0022(lbs); 0.001 070.3215027740[1] CORE VALVE 0.0066(lbs); 0.003 080.3824011690[1] CAP VALVE 0.0044(lbs); 0.002 090.3227027710[1] NUT RIM 0.0

2025/01/21

久保田零件查询T06800 REAR AXLE CASE REAR AXLE/REAR WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments010.6740112613[1] CASE AXLE LH 19.1400(lbs); 8.700 020.0112351035[4] BOLT 0.0550(lbs); 0.025 030.0112351250[6] BOLT 0.1210(lbs); 0.055 040.0501200816[2] PIN STRAIGHT 0.0154(lbs); 0.007 050.0633135012[1] PLUG 0.0528(lbs); 0.024 060.0471701200[1] WASHER WITH RUBBER 0.0044(lbs); 0.002 070.6659111240[1] GASKET 0.0000(lbs); 0.000 080.6721111140[6] PLUG BLIND 0.0022(lbs); 0.001 090.6740112710[1] CASE AXLE RH 22.0000(lb

2025/01/21

久保田零件查询T06700 REAR AXLE REAR AXLE/REAR WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments010.6661117114[2] AXLE REAR 10.2080(lbs); 4.640 020.0810106306[2] BEARING BALL 0.7700(lbs); 0.350 030.6661117120[2] SEAL OIL 0.1980(lbs); 0.090 040.6661117130[2] GEAR 55T 5.2800(lbs); 2.400 050.0810106208[2] BEARING BALL 0.7810(lbs); 0.355 060.0461200300[2] CIRCLIP EXTERNAL 0.0066(lbs); 0.003 070.6661117143[2] COLLAR 1.1330(lbs); 0.515 080.0461100800[2] CIR CLIP INTERNAL 0.0440(lbs); 0.020

2025/01/21

久保田零件查询T06600 DIFF.LOCK PEDAL REAR AXLE/REAR WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments010.6661119100[1] ASSY FORK DIFF.LOCK 0.9240(lbs); 0.420 040.0481110120[1] RING 0.0022(lbs); 0.001 050.6659118340[2] SHIM 0.0022(lbs); 0.001 060.6659118320[1] SPRING 0.0440(lbs); 0.020 070.6721142860[1] ASSY ROD DIFF.LOCK 0.5280(lbs); 0.240 080.6721142870[1] ROD DIFF.LOCK 0.3740(lbs); 0.170 090.6375342350[1] U JOINT 0.0770(lbs); 0.035 100.0211250080[1] NUT 0.0066(lbs); 0.003 110.6659143170[1] LEVER DIFF.LOCK 0.11

2025/01/21

久保田零件查询T06500 REAR DIFFERENTIAL REAR AXLE/REAR WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments010.6775182602[1] ASSY DIFF REAR 8.8000(lbs); 4.000 020.6731182703[1] ASSY GEAR BEVEL 6-37T 4.2900(lbs); 1.950 030.6731114973[1] CASE DIFFERENTIAL 1.5400(lbs); 0.700 040.6771114912[1] SHAFT DIFF.PINION 0.3080(lbs); 0.140 050.6771114920[2] PINION DIFF. 12T 0.2420(lbs); 0.110 070.6731114980[2] COLLAR PINION THRUST 0.0132(lbs); 0.006 080.6659114860[1] COLLAR THRUST 0.2244(lbs); 0.102 090.6661114950[1] BUSH 0.0704(lb

2025/01/21

久保田零件查询T06300 RANGE GEAR SHIFT LEVER MAIN SP-CHANGE LEVEREPC Kubota online

Pos.Part NoQtyParts nameComments010.6740118410[1] SHAFT,RANGE FORK 0.2068(lbs); 0.094 020.6661118420[1] FORK,RANGE SHIFT ; <=51073 0.0000(lbs); 0.000 020.6661118426[1] FORK,RANGE SHIFT ; >=51074 0.3300(lbs); 0.150 030.6206118260[1] SPRING,STOPPER 0.0044(lbs); 0.002 040.0771501605[1] BALL 0.0066(lbs); 0.003 050.6659118170[1] ARM,RANGE SHIFT 0.2332(lbs); 0.106 060.0481100160[1] O RING 0.0022(lbs); 0.001 070.6659118180[1] RETAINER,FORK ROD 0.0264(

2025/01/21

久保田零件查询T06200 MAIN GEAR SHIFT FORK MAIN SP-CHANGE LEVEREPC Kubota online

Pos.Part NoQtyParts nameComments010.6641618110[1] SHAFT FORK ; <=50784 0.0000(lbs); 0.000 010.6641618112[1] SHAFT FORK ; =>50785 0.3344(lbs); 0.152 020.0481106100[1] RING 0.0022(lbs); 0.001 030.6641618120[1] FORK BACK SHIFT ; <=51777 0.0000(lbs); 0.000 030.6641618125[1] FORK BACK SHIFT ; =>51778 0.2860(lbs); 0.130 040.6715618150[1] SPRING SHIFT FORK 0.0066(lbs); 0.003 050.0771500803[1] BALL 0.0044(lbs); 0.002 060.0551150322[1] PIN SPLIT 0

2025/01/21

久保田零件查询T06100 MAIN GEAR SHIFT LEVER MAIN SP-CHANGE LEVEREPC Kubota online

Pos.Part NoQtyParts nameComments010.6715618214[1] SHAFT SHIFT 1.3200(lbs); 0.600 020.6715618220[1] SPRING 0.0242(lbs); 0.011 030.6715618253[1] ARM SHIFT 0.2750(lbs); 0.125 040.6715618280[1] PIN 0.0022(lbs); 0.001 050.6715618290[1] SEAL OIL 0.0220(lbs); 0.010 060.6641618310[1] LEVER MAIN SHIFT ; <=50141 0.0000(lbs); 0.000 060.6641618312[1] LEVER MAIN SHIFT ; =>50142 1.2320(lbs); 0.560 070.0401250080[2] WASHER PLAIN 0.0022(lbs); 0.001 080.01123

2025/01/21

久保田零件查询T05900 MID PTO TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.6706121215[1] CASE DRIVE MID PTO 1.7160(lbs); 0.780 020.0633135016[1] PLUG 0.0880(lbs); 0.040 030.0471701600[1] WASHER WITH RUBBER 0.0066(lbs); 0.003 040.6641621222[1] GEAR 19T 0.9900(lbs); 0.450 050.6706121232[1] SHAFT IDLE 0.4400(lbs); 0.200 060.6706121270[2] BEARING NEEDLE 0.0660(lbs); 0.030 070.9638025140[2] COLLAR SHAFT 0.0308(lbs); 0.014 080.0541100618[1] PIN SPRING 0.0066(lbs); 0.003 090.6641621240[1] S

2025/01/21

久保田零件查询T05800 REAR PTO TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.6620414710[1] SHAFT PTO ; <=52160 0.0000(lbs); 0.000 010.6670614710[1] SHAFT PTO ; =>52161 1.3420(lbs); 0.610 020.0871130204[1] BEARING TAPER-ROLLER 0.2552(lbs); 0.116 030.0871130205[1] BEARING TAPER-ROLLER 0.3256(lbs); 0.148 040.6670414720[1] WASHER 0.0198(lbs); 0.009 050.6375332430[1] WASHER LOCK 0.0022(lbs); 0.001 060.6670414730[1] BOLT 0.0264(lbs); 0.012 070.0401250080[1] WASHER PLAIN 0.0022(lbs); 0.001

2025/01/21

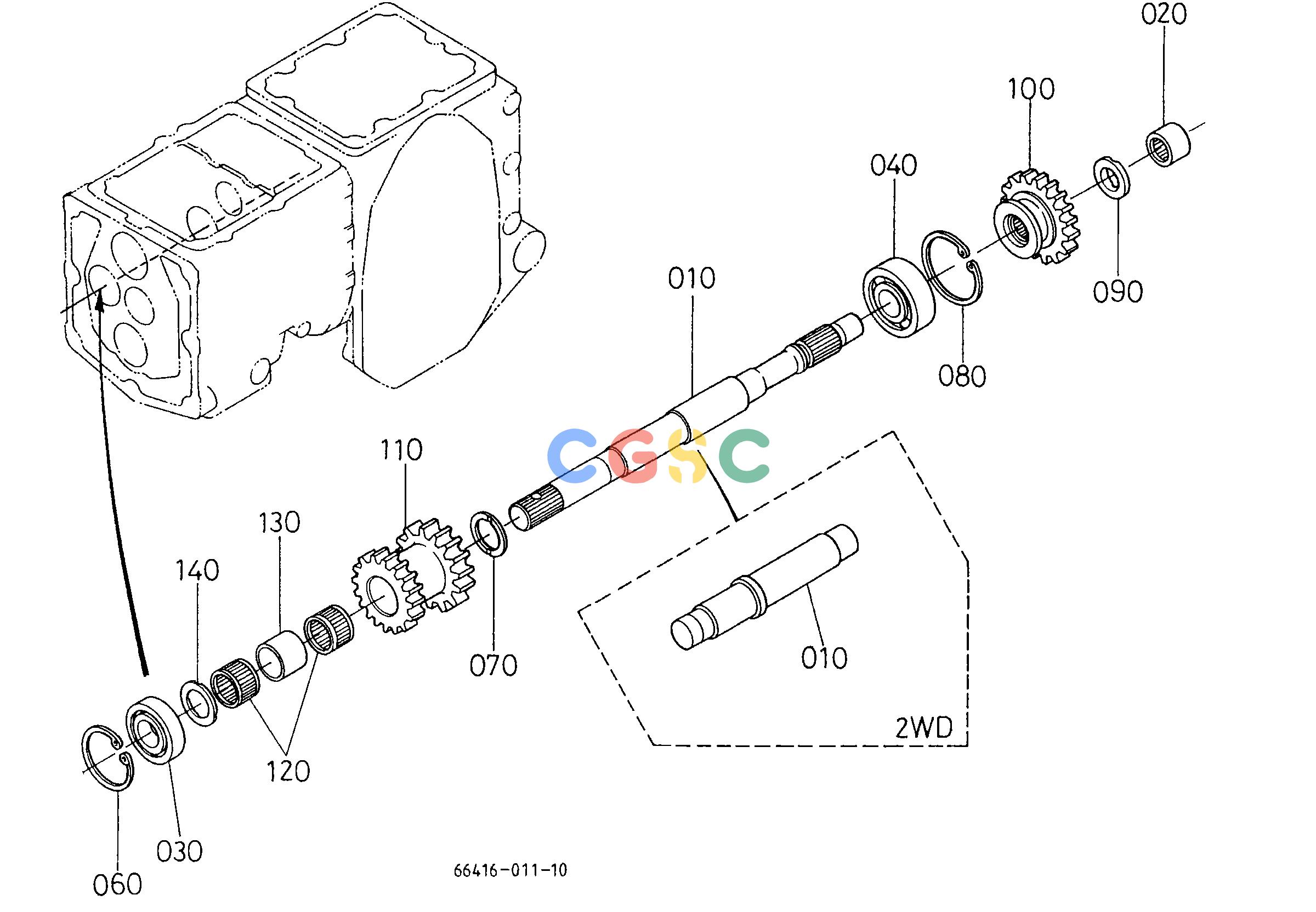

久保田零件查询T05700 REVERSE SHAFT TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641614810[1] SHAFT REVERSE 1.8700(lbs); 0.850 020.6795514620[1] BEARING NEEDLE 0.0110(lbs); 0.005 030.6731114820[1] BEARING BALL 0.1540(lbs); 0.070 040.0810106204[1] BEARING BALL 0.2244(lbs); 0.102 060.0461100420[1] CIR CLIP INTERNAL 0.0132(lbs); 0.006 070.6223114520[1] COLLAR A 0.0110(lbs); 0.005 080.0461100470[1] CIR CLIP INTERNAL 0.0132(lbs); 0.006 090.6661114830[1] COLLAR 0.0352(lbs); 0.016 100.6641614840[1]

2025/01/21

久保田零件查询T06000 FRONT PTO [OPTION] TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.7652131550[1] SHAFT COUPLING 0.7700(lbs); 0.350 030.7652131510[2] PLATE COUPLING 0.0440(lbs); 0.020 040.7652131570[2] BOLT 0.0440(lbs); 0.020 050.0113351022[2] BOLT 0.0550(lbs); 0.025 060.0211850100[2] NUT 0.0110(lbs); 0.005 070.0401350100[6] WASHER PLAIN 0.0088(lbs); 0.004 080.0451260100[2] WASHER SPRING 0.0044(lbs); 0.002 090.6740188512[1] MANUAL INSTRUCTION 0.0132(lbs); 0.006

2025/01/21

久保田零件查询T05600 PINION SHAFT GEAR TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments020.6659114720[1] SPACER 0.0044(lbs); 0.002 030.0822107303[1] BEARING BALL 0.2552(lbs); 0.116 040.6721114620[1] BEARING BALL 0.5060(lbs); 0.230 050.3845021980[1] BEARING BALL 0.4950(lbs); 0.225 060.0461200250[1] CIRCLIP EXTERNAL 0.0044(lbs); 0.002 070.6715614640[2] COLLAR STOP 0.0110(lbs); 0.005 080.6715614660[1] COLLAR 0.0220(lbs); 0.010 090.6661114670[1] SHIM 1.4MM 0.0176(lbs); 0.008 090.6661114680[1] SHIM 1

2025/01/21

久保田零件查询T05500 4TH SHAFT TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.6740114410[1] SHAFT FORTH 11T 1.6940(lbs); 0.770 020.0810106304[1] BEARING BALL 0.3212(lbs); 0.146 030.0810106005[1] BEARING BALL 0.1782(lbs); 0.081 040.0810106202[2] BEARING BALL 0.0968(lbs); 0.044 050.0461200220[1] CIRCLIP EXTERNAL 0.0022(lbs); 0.001 060.6740114440[1] GEAR 13-17T 0.6600(lbs); 0.300 070.6641614450[1] GEAR 19T 1.1000(lbs); 0.500 080.6641614460[1] GEAR 30T; <=50784 0.0000(lbs); 0.000 0

2025/01/21

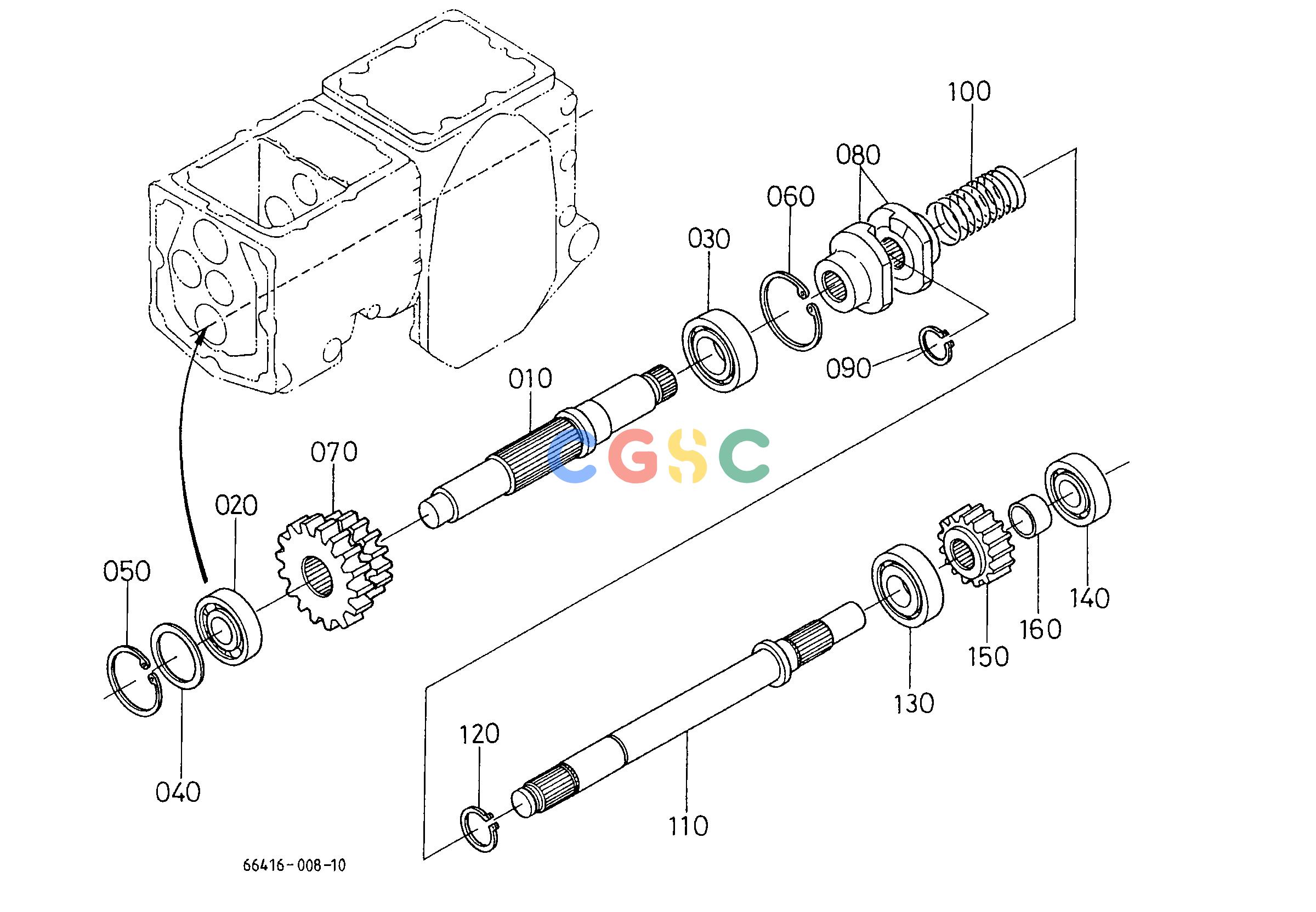

久保田零件查询T05400 3RD SHAFT/5TH SHAFT TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641614310[1] SHAFT THIRD 1.3860(lbs); 0.630 020.0810106303[1] BEARING BALL 0.2464(lbs); 0.112 030.6731114520[1] BEARING BALL ; <=52366 0.2750(lbs); 0.125 030.6641539340[1] BEARING BALL ; =>52367 0.1100(lbs); 0.050 040.6213114170[1] SHIM 0.5MM 0.0044(lbs); 0.002 050.0461100470[1] CIR CLIP INTERNAL 0.0132(lbs); 0.006 060.0461100520[1] CIR CLIP INTERNAL 0.0198(lbs); 0.009 070.6641614322[1] GEAR 13-17T 0.9

2025/01/21

久保田零件查询T05300 2ND SHAFT TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641614210[1] SHAFT SECOND 13T; <=50784 1.4080(lbs); 0.640 010.6641614212[1] SHAFT SECOND 13T; =>50785 1.1000(lbs); 0.500 020.0810106304[1] BEARING BALL 0.3212(lbs); 0.146 030.6731114270[1] BEARING BALL 0.1980(lbs); 0.090 040.6641614230[1] GEAR 29T 0.8360(lbs); 0.380 050.6740114260[1] GEAR 13T; <=50784 0.5060(lbs); 0.230 050.6641614260[1] GEAR 13T; =>50785 0.4620(lbs); 0.210 060.6641614270[1] GEAR 17

2025/01/21

久保田零件查询T05200 1ST SHAFT TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.6731112110[1] COVER SHAFT ; <=50669 3.2340(lbs); 1.470 010.6641612110[1] COVER SHAFT ; =>50670 3.9160(lbs); 1.780 020.6731112120[1] SHAFT FIRST 14T 0.6600(lbs); 0.300 030.6721112130[2] SEAL OIL 0.0330(lbs); 0.015 040.0810106204[1] BEARING BALL 0.2244(lbs); 0.102 050.0810106304[1] BEARING BALL 0.3212(lbs); 0.146 060.6731112150[1] GASKET COVER SPACER ; <=50669 0.0000(lbs); 0.000 060.6641612150[1] GASKET ;

2025/01/21

久保田零件查询T05100 PROPELLER SHAFT TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641614110[1] SHAFT PROPELLER 3.0800(lbs); 1.400 020.0541100628[1] PIN SPRING 0.0132(lbs); 0.006 030.6721114122[1] ASSY JOINT BALL 0.6600(lbs); 0.300 040.6711113710[1] COUPLING BALL OUTER 0.4950(lbs); 0.225 050.6721114133[1] COUPLING BALL INNER 0.1650(lbs); 0.075 060.6711113730[2] GASKET BALL JOINT 0.0044(lbs); 0.002 070.6711113740[1] SUPPORT GASKET 0.0088(lbs); 0.004 080.0461100350[1] CIR CLIP INTERNAL 0.0066(lbs)

2025/01/21

久保田零件查询T05000 TRANSMISSION CASE COVER TRANSMISSIONEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641612400[1] ASSY COVER UPPER F. 10.3400(lbs); 4.700 020.6715618230[2] BUSH 0.0220(lbs); 0.010 030.0631155040[1] PLUG 0.2046(lbs); 0.093 040.0471702150[1] WASHER WITH RUBBER 0.0088(lbs); 0.004 050.0112350828[3] BOLT 0.0308(lbs); 0.014 060.0112351035[2] BOLT 0.0550(lbs); 0.025 070.0112350845[1] BOLT 0.0440(lbs); 0.020 080.0501200816[2] PIN STRAIGHT 0.0154(lbs); 0.007 090.6641612420[1] GAUGE OIL 0.0330(lbs); 0
