第2页_久保田Kubota_Part Number_广州千韧科技有限公司

2025/01/21

久保田零件查询A50101 OIL SWITCH AND THERMO SENSOR ELECTRICAL SYSTEMEPC Kubota online

Pos.Part NoQtyParts nameComments010.3135132830[1] THERMO UNIT 0.0440(lbs); 0.020 020.1553139010[1] SWITCH,OIL ; <=52301 0.0704(lbs); 0.032 020.1A02439010[1] SWITCH(OIL) ; >=52302 0.0770(lbs); 0.035

2025/01/21

久保田零件查询A50100 OIL SWITCH AND THERMO SENSOR ELECTRICAL SYSTEMEPC Kubota online

Pos.Part NoQtyParts nameComments010.3135132830[1] THERMO UNIT 0.0440(lbs); 0.020 020.1A02439010[1] SWITCH(OIL) ; <=52998 0.0770(lbs); 0.035 020.1553139014[1] W-SWITCH OIL PRESSURE ; >=52999 0.0704(lbs); 0.032

2025/02/07

久保田零件查询B10301 SWITCH/SENSOR ELECTRICAL SYSTEMEPC Kubota online

Pos.Part NoQtyParts nameComments010.1A02160015[1] ASSY SOLENOID 0.6380(lbs); 0.290 020.0481406310[1] O RING 0.0044(lbs); 0.002 030.1522188210[2] STUD 0.0110(lbs); 0.005 040.0275150060[2] NUT,FLANGE 0.0110(lbs); 0.005 050.T106032270[1] SENSOR,REVOLUTION 0.0484(lbs); 0.022 060.0102350616[1] BOLT 0.0132(lbs); 0.006 070.1A02439010[1] SWITCH,OIL 0.0770(lbs); 0.035 080.T117365660[1] SENSOR,THERMO 0.0660(lbs); 0.030 090.T106018660[1] SENSOR,REVOLUTION

2025/02/07

久保田零件查询B10303 SWITCH/SENSOR [EXCEPT CAB TYPE[CA]] ELECTRICAL SYSTEMEPC Kubota online

Pos.Part NoQtyParts nameComments010.T106032270[1] SENSOR REVOLUTION 0.0484(lbs); 0.022 020.0102350616[1] BOLT 0.0132(lbs); 0.006 030.1A02439010[1] SWITCH OIL 0.0770(lbs); 0.035 040.T117365660[1] SENSOR THERMO 0.0660(lbs); 0.030 050.T106018660[1] SENSOR REVOLUTION 0.0550(lbs); 0.025 060.0175450614[1] BOLT FLANGE ; <=40668 0.0110(lbs); 0.005 060.0175450616[1] BOLT FLANGE ; =>40669 0.0132(lbs); 0.006 070.TD06031200[1] ASSY UNIT FUEL 0.4620(lbs); 0

2025/02/07

久保田零件查询B10304 SWITCH/SENSOR [CAB TYPE] [CA] ELECTRICAL SYSTEMEPC Kubota online

Pos.Part NoQtyParts nameComments010.T106032270[1] SENSOR REVOLUTION 0.0484(lbs); 0.022 020.0102350616[1] BOLT 0.0132(lbs); 0.006 030.1A02439010[1] SWITCH OIL 0.0770(lbs); 0.035 040.T117365660[1] SENSOR THERMO 0.0660(lbs); 0.030 050.T106018660[1] SENSOR REVOLUTION 0.0550(lbs); 0.025 060.0175450614[1] BOLT FLANGE ; <=40668 0.0110(lbs); 0.005 060.0175450616[1] BOLT FLANGE ; =>40669 0.0132(lbs); 0.006 070.TD06031200[1] ASSY UNIT FUEL 0.4620(lbs); 0

2025/02/07

久保田零件查询B10302 SWITCH/SENSOR ELECTRICAL SYSTEMEPC Kubota online

Pos.Part NoQtyParts nameComments010.1A02160015[1] ASSY SOLENOID 0.6380(lbs); 0.290 020.0481406310[1] O RING 0.0044(lbs); 0.002 030.1522188210[2] STUD 0.0110(lbs); 0.005 040.0275150060[2] NUT,FLANGE 0.0110(lbs); 0.005 050.T106032270[1] SENSOR,REVOLUTION 0.0484(lbs); 0.022 060.0102350616[1] BOLT 0.0132(lbs); 0.006 070.1A02439010[1] SWITCH,OIL 0.0770(lbs); 0.035 080.T117365660[1] SENSOR,THERMO 0.0660(lbs); 0.030 090.T106018660[1] SENSOR,REVOLUTION

2025/01/21

久保田零件查询T12000 ACCESSORIES AND SERVICE PARTS ACCESSORIESEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641662910[1] MANUAL INSTRUCTION ; <=51846 0.0000(lbs); 0.000 010.6641662913[1] MANUAL INSTRUCTION ; =>51847 0.3080(lbs); 0.140 020.1524186610[1] WRENCH FILTER ; <=52128 0.2926(lbs); 0.133 020.1524186612[1] WRENCH FILTER ; =>52129 0.2530(lbs); 0.115 030.6740162930[1] ASSY SPACER CLUTCH 0.0660(lbs); 0.030 040.6721162940[1] PIECE DISTANCE 0.1760(lbs); 0.080 050.6740162950[1] LABEL CLUTCH SPACER 0.0044(lbs); 0.0

2025/01/21

久保田零件查询T11900 LABEL 2 LABELSEPC Kubota online

Pos.Part NoQtyParts nameComments020.1537287230[1] LABEL CAUTION 0.0022(lbs); 0.001 030.1537287210[1] LABEL CAUTION ; <=52781 0.0022(lbs); 0.001 030.1537287213[1] LABEL CAUTION ; =>52782 0.0066(lbs); 0.003 040.6781747180[1] LABEL MAIN SHIFT 0.0022(lbs); 0.001 050.6781747190[1] LABEL MAIN SHIFT 0.0022(lbs); 0.001 060.3520025340[1] LABEL PTO WARNING ENGLISH 0.0044(lbs); 0.002 060.6784047210[1] LABEL PTO FRENCH 0.0022(lbs); 0.001 070.6670647120[1

2025/01/21

久保田零件查询T11800 LABEL 1 LABELSEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641447110[1] LABEL BONNET LH ; <=51810 0.0440(lbs); 0.020 010.6641447112[1] LABEL BONNET LH ; =>51811 0.0594(lbs); 0.027 020.6641447120[1] LABEL BONNET RH ; <=51810 0.0440(lbs); 0.020 020.6641447122[1] LABEL BONNET RH ; =>51811 0.0550(lbs); 0.025 030.3526034912[1] LABEL SAFETY ENGLISH; <=51772 0.0000(lbs); 0.000 030.3526034913[1] LABEL SAFETY ENGLISH; =>51773 0.0110(lbs); 0.005 030.3526134910[1] LABEL SAFE

2025/01/21

久保田零件查询T11702 ROPS [A CA] ## S.No.:B1550E;>=10463, B1550D;>=52391, B1750E;>=10389, B1750D;>=53164 HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641673100[1] ASSY ROPS NOT SALE 0.0000(lbs); 0.000 020.6641672190[1] ASSY BELT SEAT 0.7480(lbs); 0.340 030.0117351430[2] BOLT 0.1144(lbs); 0.052 040.0451250140[2] WASHER SPRING 0.0154(lbs); 0.007 050.0117351025[2] BOLT 0.0462(lbs); 0.021 060.0451260100[2] WASHER SPRING 0.0044(lbs); 0.002 070.0401350100[2] WASHER PLAIN 0.0088(lbs); 0.004 080.0217650100[2] NUT 0.0110(lbs); 0.005 090.6641673170[1] MANUAL INSTRUC

2025/01/21

久保田零件查询T11701 ROPS [A CA] ## S.No.:B1550E;<=10462, B1550D;<=52390, B1750E;<=10388, B1750D;<=53163 HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641672100[1] ASSY ROPS NOT SALE 0.0000(lbs); 0.000 020.6641672170[1] MANUAL CONSTRUCTION NOT SALE; <=51880 0.0066(lbs); 0.003 020.6641672172[1] MANUAL CONSTRUCTION NOT SALE; =>51881 0.0000(lbs); 0.000 030.6641672200[1] HOLDER SEAT BELT M. ; =>51881 0.0616(lbs); 0.028 040.6641672210[1] HOLDER SEAT BELT F. ; =>51881 0.0704(lbs); 0.032 070.6641672190[1] ASSY BELT SEAT 0.7480(lbs); 0.340 080.0117351428[2] BOLT

2025/01/21

久保田零件查询T11600 STEP HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641651120[1] BRACKET STEP LH 1.6500(lbs); 0.750 020.6641651130[1] BRACKET STEP RH 1.8700(lbs); 0.850 030.0112350818[6] BOLT 0.0264(lbs); 0.012 040.6641651140[1] SUPPORT STEP LH 1.1880(lbs); 0.540 050.6641651150[1] SUPPORT STEP RH 1.2980(lbs); 0.590 060.0112350814[2] BOLT 0.0220(lbs); 0.010 070.6641651160[1] STEP LH 6.1600(lbs); 2.800 080.6641651170[1] COMP.STEP RH 6.4680(lbs); 2.940 090.6740151180[2] BUSH RUBBER

2025/01/21

久保田零件查询T11500 SEAT HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.3242072960[1] SEAT [CA] [AU]; <=51777 0.0000(lbs); 0.000 010.3508018400[1] ASSY SEAT [A] RESERVED BY KTC; =>51773 0.0000(lbs); 0.000 010.3242072962[1] SEAT [CA] [AU]; =>51778 17.6000(lbs); 8.000 020.6706145920[1] BRACKET 0.3960(lbs); 0.180 030.0112360816[4] BOLT 0.0220(lbs); 0.010 040.6641645920[1] STAY ; <=51772 0.0000(lbs); 0.000 040.6740145922[1] STAY ; =>51773 0.1760(lbs); 0.080 050.0112360816[2] BOL

2025/01/21

久保田零件查询T11400 FENDER HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641652130[1] GUIDE LEVER 1.1660(lbs); 0.530 020.0301750816[3] SCREW CR-REC-BD-HD 0.0220(lbs); 0.010 030.0451250080[3] WASHER SPRING 0.0044(lbs); 0.002 040.0211450080[3] NUT 0.0110(lbs); 0.005 050.6641652710[1] COMP.FENDER LH ; <=50784 12.7600(lbs); 5.800 050.6641652713[1] COMP.FENDER LH ; =>50785 12.9580(lbs); 5.890 060.6641652720[1] COMP.FENDER RH ; <=50784 13.2000(lbs); 6.000 060.6641652728[1] COMP.FENDER R

2025/01/21

久保田零件查询T11300 TANK SUPPORT HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641651710[1] SUPPORT BONNET REAR 4.3780(lbs); 1.990 020.0112550820[4] BOLT 0.0308(lbs); 0.014 030.6641654150[1] SUPPORT FRAME 2.7500(lbs); 1.250 040.0112550820[4] BOLT 0.0308(lbs); 0.014 050.6641654162[1] SUPPORT TANK 4.1800(lbs); 1.900 060.0112550820[4] BOLT 0.0308(lbs); 0.014 070.6641654170[1] STAY TANK SUPPORT 0.0286(lbs); 0.013 080.0112550820[2] BOLT 0.0308(lbs); 0.014 090.3741054150[2] BUSH 0.0022(lbs);

2025/01/21

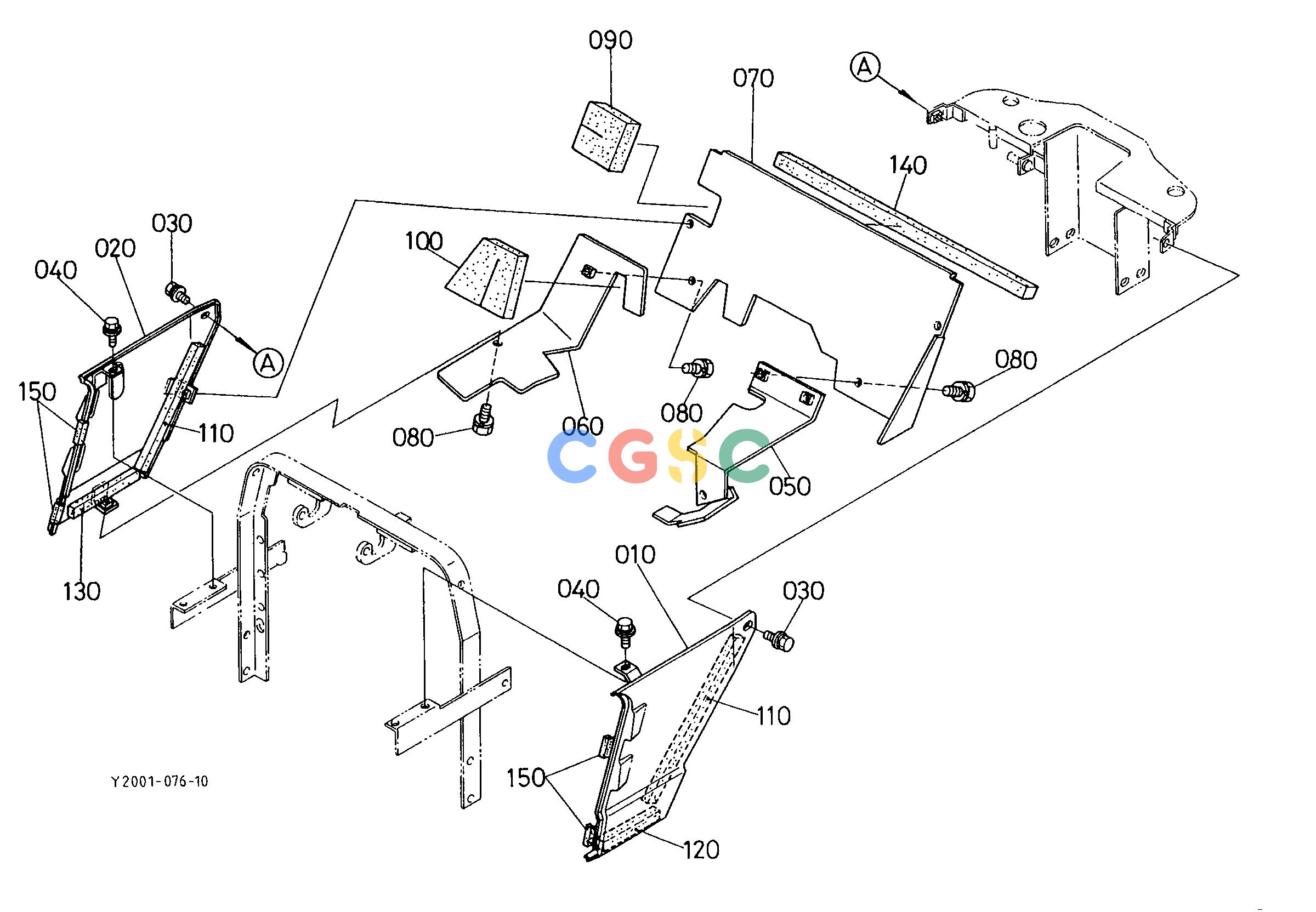

久保田零件查询T11200 DUST COVER HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641651333[1] AUX.SKIRT LH 0.8800(lbs); 0.400 020.6641651344[1] AUX.SKIRT RH 1.0340(lbs); 0.470 030.0112550820[2] BOLT 0.0308(lbs); 0.014 040.0102550620[2] BOLT 0.0440(lbs); 0.020 050.6641651530[1] COVER DUSTPROOF REAR 0.3960(lbs); 0.180 060.6641651520[1] COVER DUSTPROOF REAR 0.3960(lbs); 0.180 070.6641651510[1] COVER DUSTPROOF REAR 1.3420(lbs); 0.610 080.0102350614[5] BOLT 0.0110(lbs); 0.005 090.6641651540[1] BL

2025/01/21

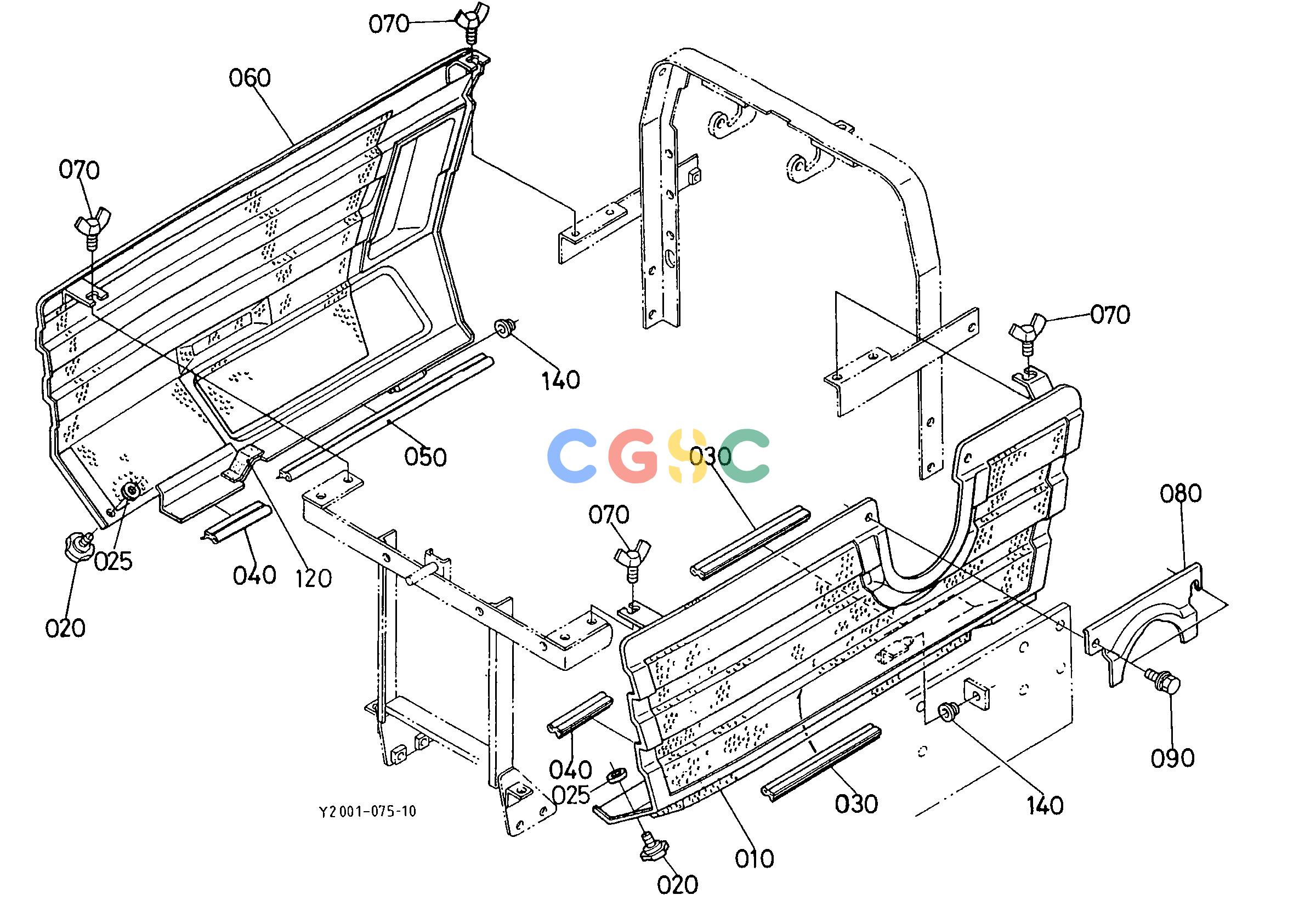

久保田零件查询T11100 SKIRT (SIDE) HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641651310[1] SKIRT LH ; <=50548 0.0000(lbs); 0.000 010.6641651314[1] SKIRT LH ; =>50549 2.0900(lbs); 0.950 020.0182050615[2] BOLT KNOB 0.0374(lbs); 0.017 025.6715654480[2] RUBBER KNOB 0.0022(lbs); 0.001 030.6641651480[2] TRIM SKIRT LH 0.0660(lbs); 0.030 040.6641751380[2] TRIM SKIRT FRONT 0.0330(lbs); 0.015 050.6641751390[1] TRIM SKIRT REAR 0.1540(lbs); 0.070 060.6641651320[1] SKIRT RH 2.5520(lbs); 1.160 07

2025/01/21

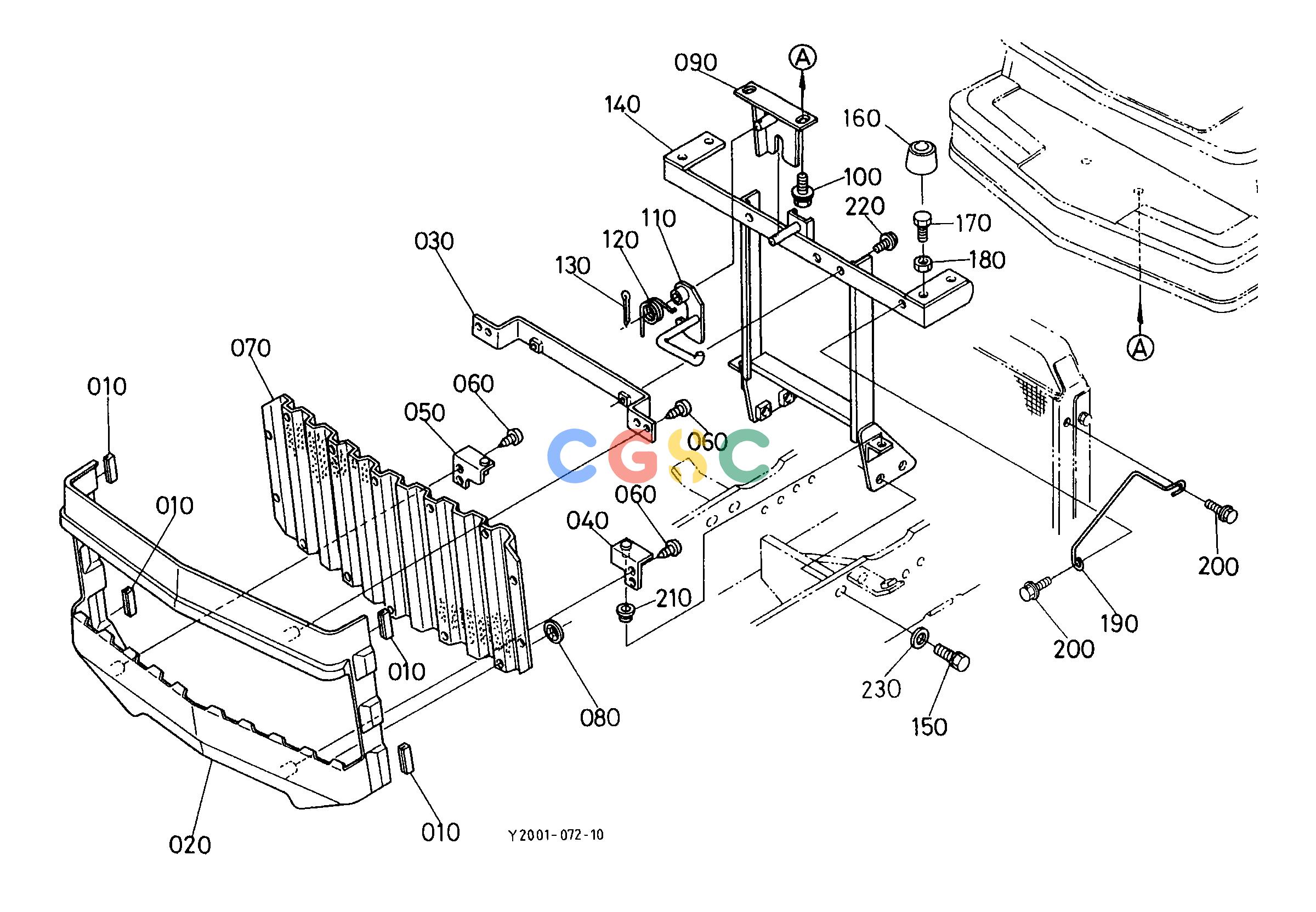

久保田零件查询T11000 SKIRT (FRONT) HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.3715013920[4] CUSHION 0.0110(lbs); 0.005 020.6641651360[1] COVER FRONT 0.6820(lbs); 0.310 030.6641651410[1] STOPPER 0.3080(lbs); 0.140 040.6641651420[1] STOPPER LH 0.1100(lbs); 0.050 050.6641651430[1] STOPPER RH 0.1100(lbs); 0.050 060.0351450612[8] SCREW TAPPING 0.0044(lbs); 0.002 070.6641651370[1] NET DUSTPROOF FRONT 0.2860(lbs); 0.130 080.6740151380[14] NUT 0.0044(lbs); 0.002 090.6641654210[1] LOCKER 0.3960

2025/01/21

久保田零件查询T10900 HOOD COVER REAR HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641655113[1] COVER BONNET REAR ; <=50784 0.0000(lbs); 0.000 010.6641655114[1] COVER BONNET REAR ; =>50785 5.1040(lbs); 2.320 020.0175450616[2] BOLT FLANGE 0.0132(lbs); 0.006 030.3730035140[2] SPACER 0.0132(lbs); 0.006 040.6636151680[2] CUSHION 0.0220(lbs); 0.010 050.0115350830[2] BOLT 0.0286(lbs); 0.013 060.0401560080[2] WASHER PLAIN 0.0220(lbs); 0.010 070.6715641260[1] CAP POST MANUAL STRG. 0.0792(lbs);

2025/01/21

久保田零件查询T10800 LACE HOOD/BONNETEPC Kubota online

Pos.Part NoQtyParts nameComments010.6715647500[1] ASSY LACE FRONT 0.2200(lbs); 0.100 020.6715647510[1] LACE FRONT 0.2728(lbs); 0.124 030.6715647520[1] LACE FRONT LH 0.1914(lbs); 0.087 040.6715647530[1] LACE FRONT RH 0.1936(lbs); 0.088 050.0201450060[6] NUT 0.0044(lbs); 0.002 060.0451260600[6] WASHER SPRING 0.0000(lbs); 0.000 070.6641647550[2] LACE SIDE FRONT 0.4048(lbs); 0.184 080.6641647570[2] LACE SIDE REAR 0.1100(lbs); 0.050 090.0201450060[12] N
