第8页_久保田Kubota_Part Number_广州千韧科技有限公司

2025/01/26

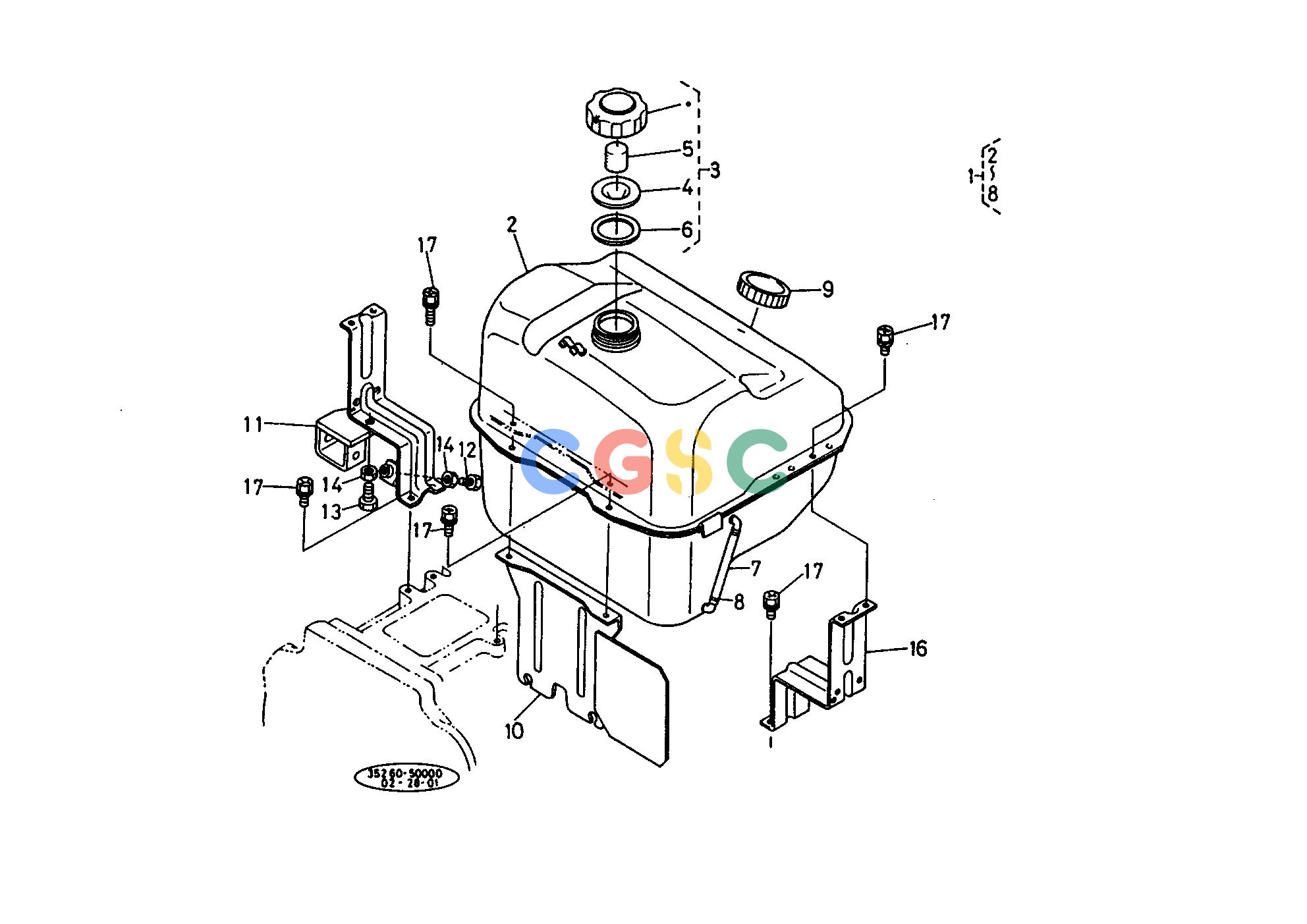

久保田零件查询055000 FUEL TANK BODYEPC Kubota online

Pos.Part NoQtyParts nameComments001.3526035100[1] ASSY TANK FUEL 15.1800(lbs); 6.900 002.9999999999[1] BLANK ORDER BY REF.No.001 0.0000(lbs); 0.000 003.3824035200[1] ASSY CAP 0.1430(lbs); 0.065 004.9999999999[1] BLANK ORDER BY REF.No.003 0.0000(lbs); 0.000 005.9999999999[1] BLANK ORDER BY REF.No.003 0.0000(lbs); 0.000 006.9999999999[1] BLANK ORDER BY REF.No.003 0.0000(lbs); 0.000 007.3415035470[1] GAUGE FUEL 0.0000(lbs); 0.000 008.1001341770[

2025/01/26

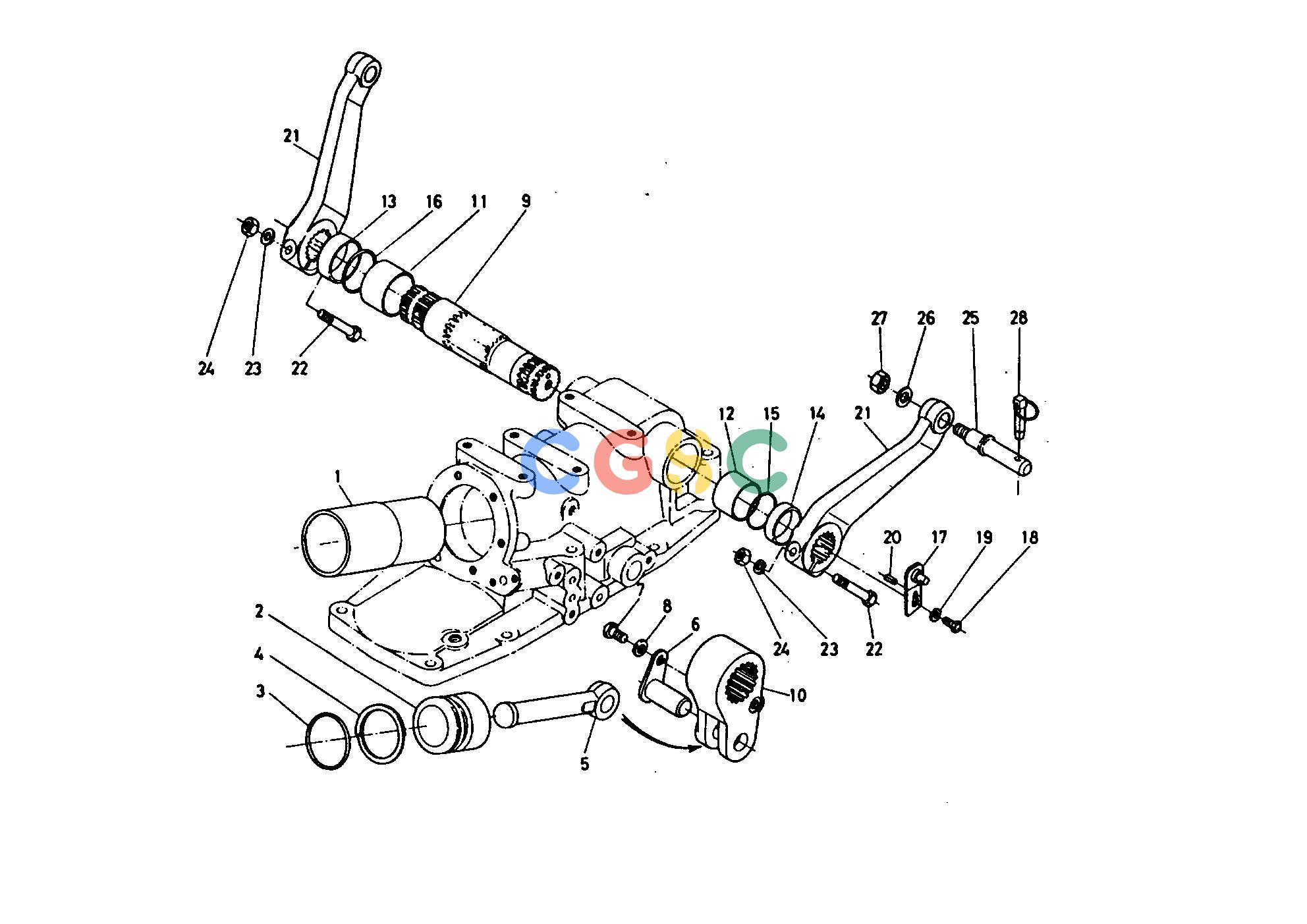

久保田零件查询055000 O/P LIFT ARM SYSTEM HYDRAULIC SYSTEMEPC Kubota online

Pos.Part NoQtyParts nameComments001.3722037130[1] LINER CYLINDER 4.1140(lbs); 1.870 002.3722037310[1] PISTON OIL PRESSURE 2.2440(lbs); 1.020 002.H372037310[1] PISTON OIL PRESSURE 2.2440(lbs); 1.020 003.0481100650[1] O RING 0.0154(lbs); 0.007 004.3422037380[1] RING BACK UP 0.0022(lbs); 0.001 005.3521037320[1] ROD OIL PRESSURE ; =>50001 1.0780(lbs); 0.490 005.3730037320[1] ROD OIL PRESSURE ; =>52236 1.1000(lbs); 0.500 006.3224037340[1] PIN SET 0.

2025/01/27

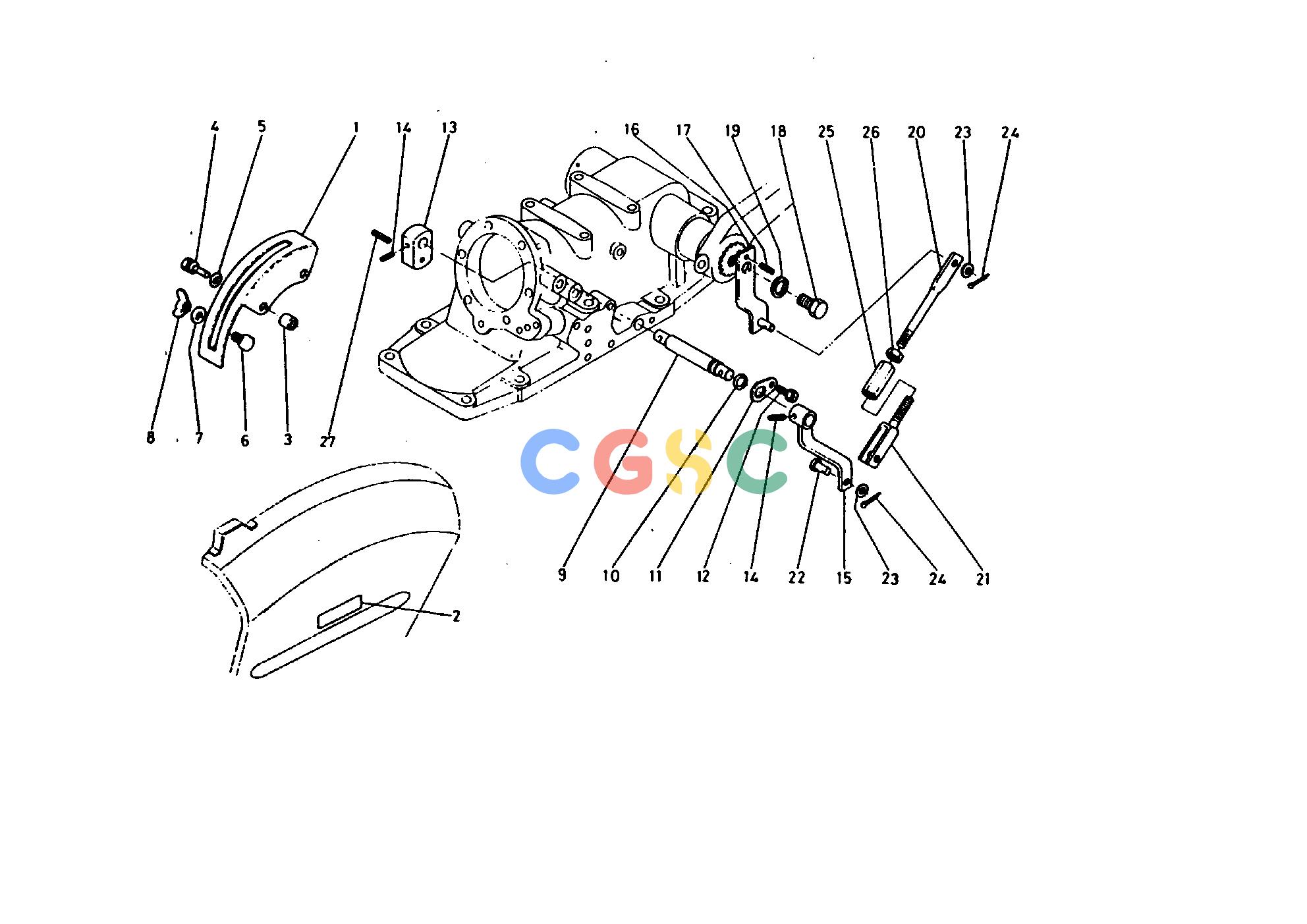

久保田零件查询055000 OIL PRESSURE 3 HYDRAULIC SYSTEMEPC Kubota online

Pos.Part NoQtyParts nameComments001.3426036860[1] GAIDE LEVER 0.6160(lbs); 0.280 002.3224036813[1] LABEL CONTROL 0.0000(lbs); 0.000 003.1430174440[2] COLLAR 0.0000(lbs); 0.000 004.0112050822[2] BOLT 0.0000(lbs); 0.000 005.0401350080[2] WASHER PLAIN 0.0066(lbs); 0.003 006.3236036872[1] STOPPER LEVER 0.0000(lbs); 0.000 007.0401350100[1] WASHER PLAIN 0.0088(lbs); 0.004 008.0287050100[1] NUT WING ; <=10500 0.0330(lbs); 0.015 008.0281050100[1] NUT WI

2025/01/23

久保田零件查询055000 FRONT WHEEL [L185DT] FRONT AXLE AND FRONT WHEEL AND CHASSISEPC Kubota online

Pos.Part NoQtyParts nameComments001.3765043710[1] ASSY FRONT WHEEL RH ; 51352 0.0000(lbs); 0.000 001.3518043710[1] ASSY FRONT WHEEL RH ; =>50001 35.2000(lbs); 16.000 002.9501611120[1] TUBE 1.6940(lbs); 0.770 003.3416043740[1] TIRE 0.0000(lbs); 0.000 004.3765043730[1] WHEEL ; 51352 0.0000(lbs); 0.000 004.3518043730[1]

2025/01/21

久保田零件查询T06400 PTO GEAR SHIFT LEVER MAIN SP-CHANGE LEVEREPC Kubota online

Pos.Part NoQtyParts nameComments010.6641618610[1] SHAFT FORK 0.3960(lbs); 0.180 020.6641618632[1] COLLAR FORK SHAFT 0.0330(lbs); 0.015 030.6731118623[1] FORK PTO SHIFT 0.3850(lbs); 0.175 040.6206118260[1] SPRING STOPPER 0.0044(lbs); 0.002 050.0771501605[1] BALL 0.0066(lbs); 0.003 060.0551150322[1] PIN SPLIT 0.0044(lbs); 0.002 070.6659118220[1] ARM 0.2640(lbs); 0.120 080.0481100160[1] RING 0.0022(lbs); 0.001 090.6659118180[1] RETAINER FORK ROD 0

2025/01/21

久保田零件查询T01401 MUFFLER ENGINEEPC Kubota online

Pos.Part NoQtyParts nameComments010.1575112010[1] COMP.MUFFLER 5.9400(lbs); 2.700 020.1526312370[1] GASKET MUFFLER 0.0330(lbs); 0.015 030.6641654520[1] COVER MUFFLER LH 0.0660(lbs); 0.030 040.6641654530[1] COVER MUFFLER RH 0.0550(lbs); 0.025 050.0215650080[4] NUT 0.0088(lbs); 0.004 060.0451250080[4] WASHER SPRING 0.0044(lbs); 0.002 070.6780053410[1] PIPE MUFFLER 1.2540(lbs); 0.570 080.6780053420[1] BAND PIPE 0.0880(lbs); 0.040 090.0115350865[1] BOL

2025/01/21

久保田零件查询T09101 KNUCKLE ARM [WITHOUT BI-SPEED TURN] FRONT AXLE/FRONT WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments010.6730156510[1] ARM KNUCKLE LH 3.0800(lbs); 1.400 020.6730156520[1] ARM KNUCKLE RH 2.4200(lbs); 1.100 030.0115351035[8] BOLT 0.0550(lbs); 0.025 040.0451250080[8] WASHER SPRING 0.0044(lbs); 0.002 050.6749156500[1] ASSY ROD TIE 2.3760(lbs); 1.080 060.6712156520[1] END TIE ROD LH 0.5280(lbs); 0.240 070.6712156560[1] COVER DUST 0.0176(lbs); 0.008 080.6712156570[1] CLIP 0.0066(lbs); 0.003 090.6712156530[1] END TIE ROD R

2025/01/21

久保田零件查询T08100 BEVEL GEAR [WITH BI-SPEED TURN] FRONT AXLE/FRONT WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments020.0871130305[1] BEARING TAPER-ROLLER 0.5852(lbs); 0.266 030.0871132005[1] BEARING TAPER-ROLLER ; <=52751 0.2530(lbs); 0.115 030.6A10056680[1] BEARING TAPER-ROLLER ; =>52752 0.2420(lbs); 0.110 040.6641656630[1] SPACER 3.7620(lbs); 1.710 050.0481150600[1] RING 0.0044(lbs); 0.002 060.0112350828[3] BOLT 0.0308(lbs); 0.014 070.6659156420[1] BUSH 0.0462(lbs); 0.021 080.6721114952[1] SEAL OIL 0.0330(lbs); 0.015 090.

2025/01/21

久保田零件查询T08901 FRONT WHEEL (6-12B) FRONT AXLE/FRONT WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641557400[1] ASSY TIRE FRONT 61.6000(lbs); 28.000 020.6641557410[1] ASSY TIRE LH 30.4040(lbs); 13.820 030.6641957420[1] WHEEL 13.0020(lbs); 5.910 040.9301601120[1] TUBE 1.5400(lbs); 0.700 050.9601534130[1] TIRE 15.8400(lbs); 7.200 060.3215027740[1] CORE VALVE 0.0066(lbs); 0.003 070.3824011690[1] CAP VALVE 0.0044(lbs); 0.002 080.6641557430[1] LABEL TIRE LH 0.0022(lbs); 0.001 090.6641557440[1] ASSY TIRE RH 0.0

2025/01/21

久保田零件查询T08700 BI-SPEED TURN ROD [WITH BI-SPEED TURN] FRONT AXLE/FRONT WHEELEPC Kubota online

Pos.Part NoQtyParts nameComments010.6641644180[1] ARM BI-S.T.FULCRUM 0.1540(lbs); 0.070 020.0851101420[1] BUSH 0.0154(lbs); 0.007 030.0401150140[1] WASHER PLAIN 0.0154(lbs); 0.007 040.0551150425[1] PIN SPLIT 0.0066(lbs); 0.003 050.6641644220[1] ROD BI-S.T.CHANGE 0.3850(lbs); 0.175 060.6731142830[1] U-JOINT 0.1100(lbs); 0.050 070.0211250080[1] NUT 0.0066(lbs); 0.003 080.0512250822[1] PIN JOINT 0.0220(lbs); 0.010 090.0401250080[1] WASHER PLAIN 0.

2025/01/21

久保田零件查询T01100 INLET MANIFOLD ENGINEEPC Kubota online

Pos.Part NoQtyParts nameComments010.1572711760[1] MANIFOLD INLET 1.3200(lbs); 0.600 020.1526111820[1] GASKET IN-MANIFOLD ; 945300 0.0022(lbs); 0.001 030.1526111830[2] GASKET IN-MANIFOLD ; 945300 0.0022(lbs); 0.001 040.0102350620[4] BOLT 0.0132(lbs); 0.006 050.0105350660[1] BOLT 0.0308(lbs); 0.014 060.153819

2025/01/21

久保田零件查询T01000 CYLINDER HEAD COVER ENGINEEPC Kubota online

Pos.Part NoQtyParts nameComments010.1565614510[1] COVER CYL.HEAD ; 682802 1.3200(lbs); 0.600 020.1538114520[1] GASKET HEAD COVER 0.0110(lbs); 0.005 030.1595292330[3] NUT CAP 0.0220(lbs); 0.010 040.1595196660[3] GASKET 0.0022(lbs); 0.001 050.1522133140[1] PLUG OIL FILLER ; 834111 0.0836(lbs); 0.038 060.0481150300[1

2025/01/21

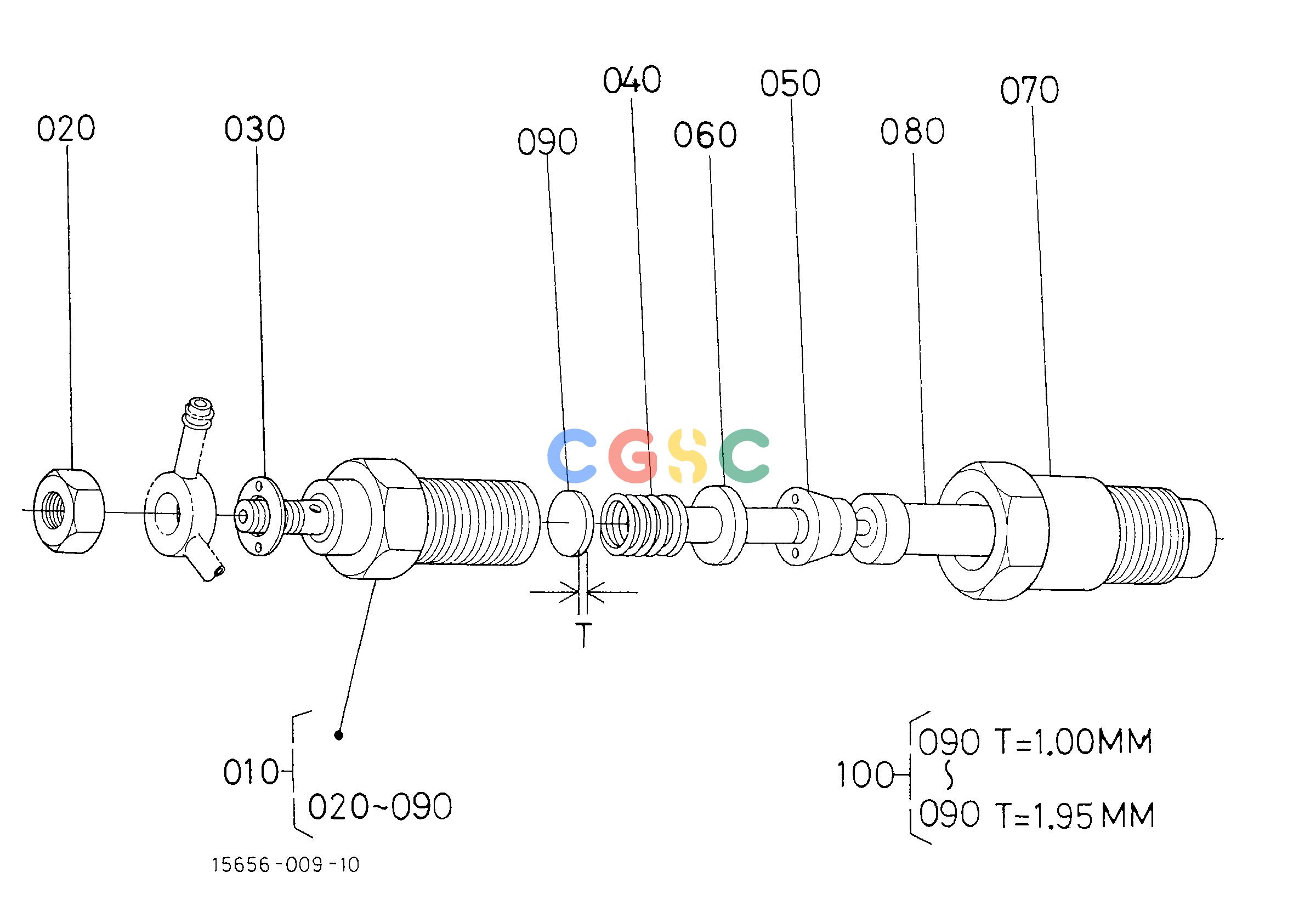

久保田零件查询T00900 NOZZLE HOLDER [COMPONENT PARTS] ENGINEEPC Kubota online

Pos.Part NoQtyParts nameComments010.1526153020[3] ASSY HOLDER NOZZLE ; <=821125 0.0000(lbs); 0.000 010.1920253020[3] ASSY HOLDER NOZZLE ; =>821126 0.5500(lbs); 0.250 020.1522192020[3] NUT 0.0242(lbs); 0.011 030.1522194020[3] WASHER PLAIN 0.0044(lbs); 0.002 040.1522153170[3] SPRING NOZZLE 0.0220(lbs); 0.010 050.1522153350[3] PIECE DISTANCE 0.0352(lbs); 0.016 060.1522153160[3] PUSH ROD 0.0066(lbs); 0.003 070.1522153280[3] NUT NOZZLE 0.1496(lbs); 0.068

久保田零件查询T09600 HYDRAULIC PIPE (PS) HYDRAULIC SYSTEMEPC Kubota online

2025/01/21

久保田零件查询055000 FUEL TANK BODYEPC Kubota online

久保田零件查询055000 O/P LIFT ARM SYSTEM HYDRAULIC SYSTEMEPC Kubota online

久保田零件查询055000 OIL PRESSURE 3 HYDRAULIC SYSTEMEPC Kubota online

久保田零件查询055000 FRONT WHEEL [L185DT] FRONT AXLE AND FRONT WHEEL AND CHASSISEPC Kubota online

久保田零件查询T06400 PTO GEAR SHIFT LEVER MAIN SP-CHANGE LEVEREPC Kubota online

久保田零件查询T01401 MUFFLER ENGINEEPC Kubota online

久保田零件查询T09101 KNUCKLE ARM [WITHOUT BI-SPEED TURN] FRONT AXLE/FRONT WHEELEPC Kubota online

久保田零件查询T08100 BEVEL GEAR [WITH BI-SPEED TURN] FRONT AXLE/FRONT WHEELEPC Kubota online

久保田零件查询T08901 FRONT WHEEL (6-12B) FRONT AXLE/FRONT WHEELEPC Kubota online

久保田零件查询T08700 BI-SPEED TURN ROD [WITH BI-SPEED TURN] FRONT AXLE/FRONT WHEELEPC Kubota online

久保田零件查询T01100 INLET MANIFOLD ENGINEEPC Kubota online

久保田零件查询T01000 CYLINDER HEAD COVER ENGINEEPC Kubota online

久保田零件查询T00900 NOZZLE HOLDER [COMPONENT PARTS] ENGINEEPC Kubota online

久保田零件查询T09600 HYDRAULIC PIPE (PS) HYDRAULIC SYSTEMEPC Kubota online

久保田零件查询T08003 FRONT DIFFERENTIAL [WITH BI-SPEED TURN] FRONT AXLE/FRONT WHEELEPC Kubota online

久保田零件查询T01900 WATER FLANGE ENGINEEPC Kubota online

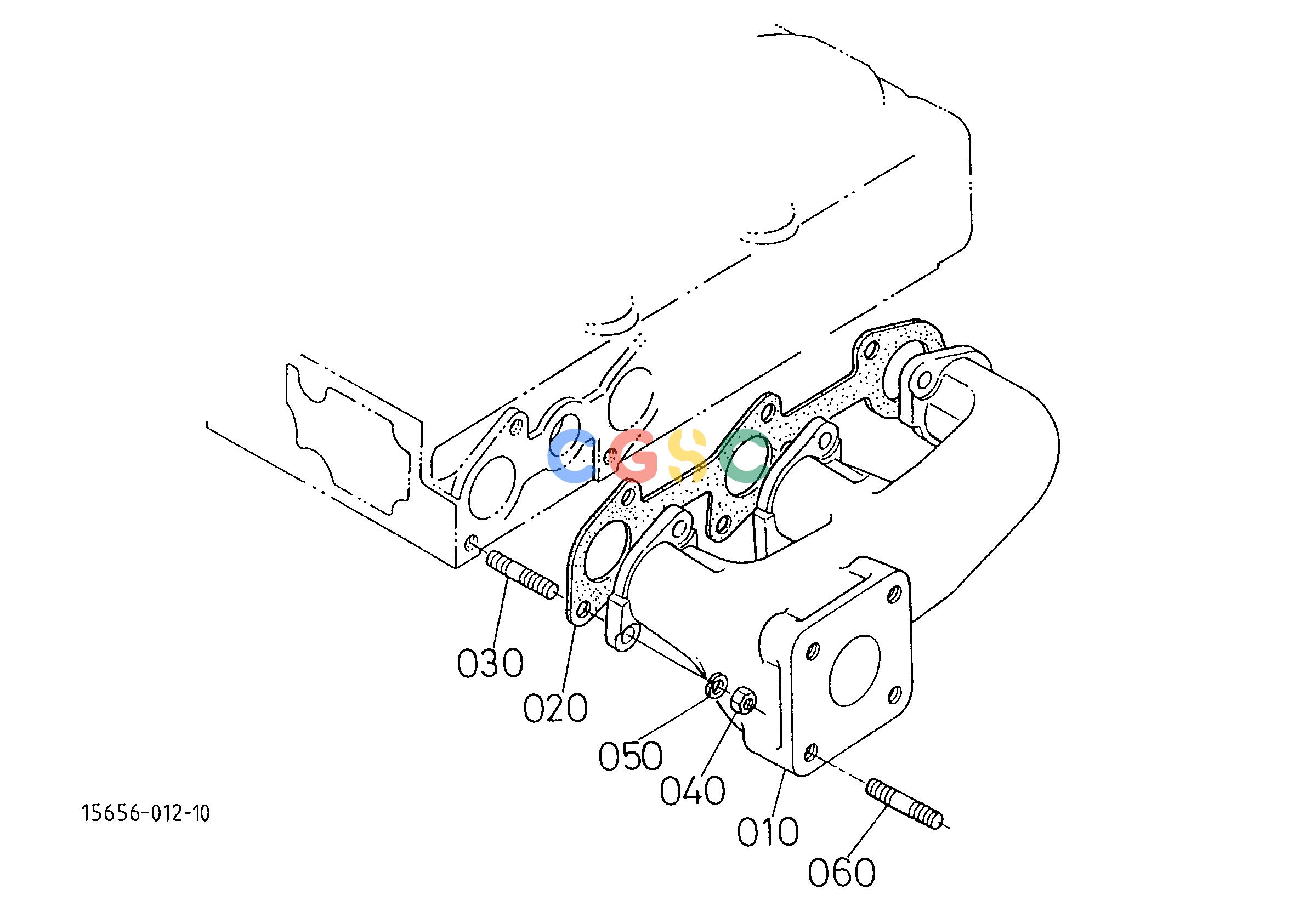

久保田零件查询T01300 EXHAUST MANIFOLD ENGINEEPC Kubota online

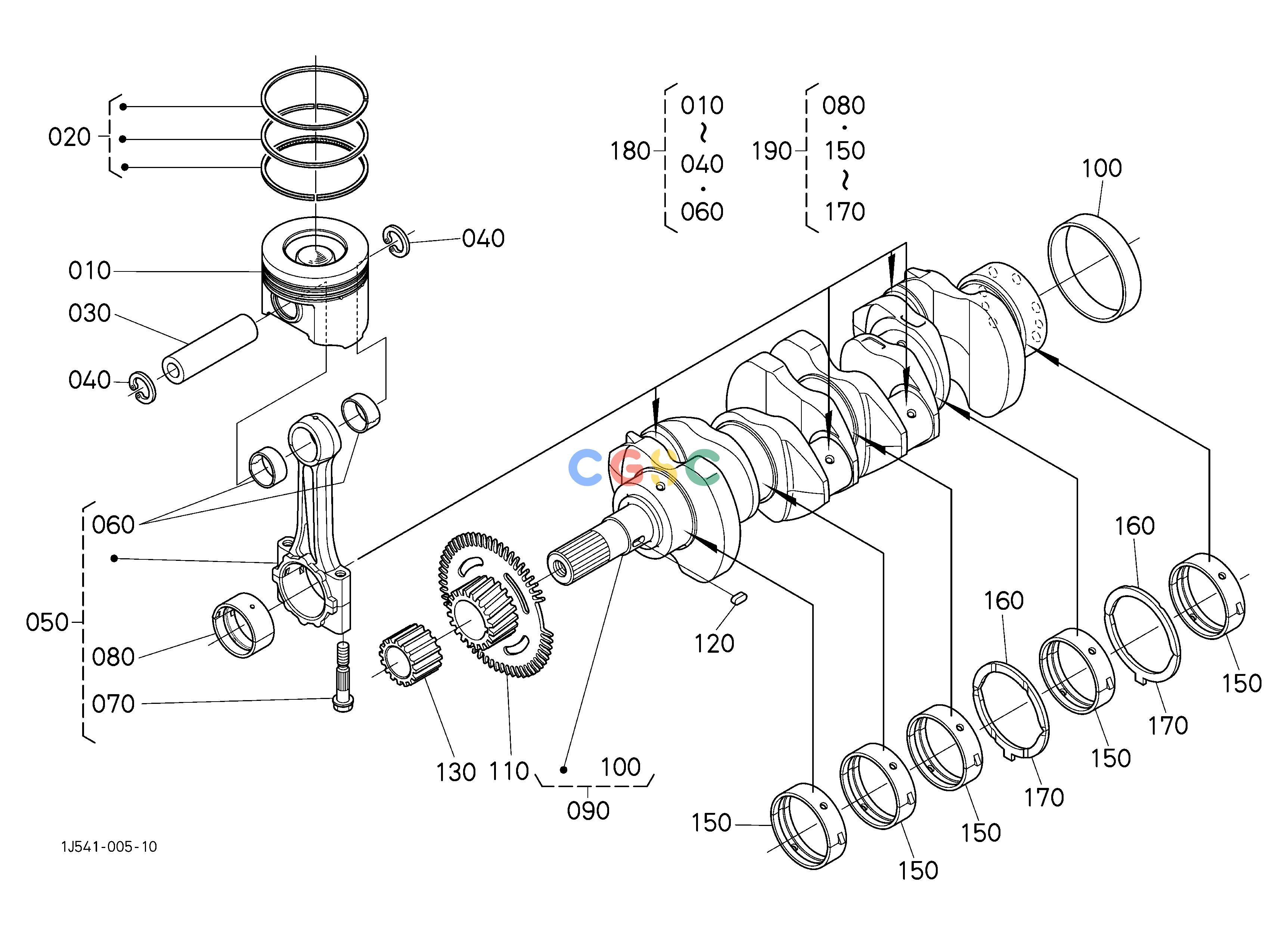

久保田零件查询311000 PISTON AND CRANKSHAFT ENGINEEPC Kubota online

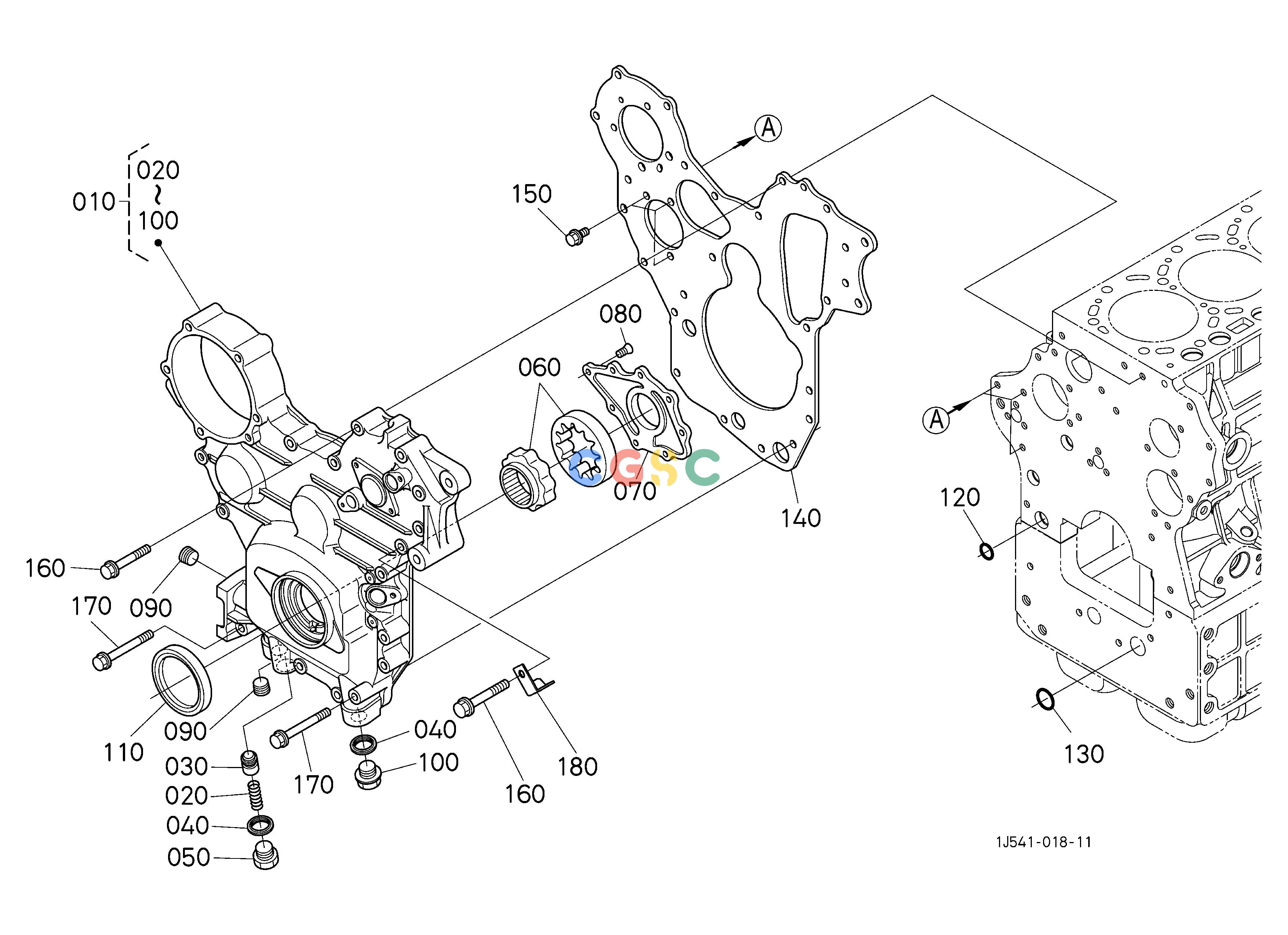

久保田零件查询308000 GEAR CASE ENGINEEPC Kubota online

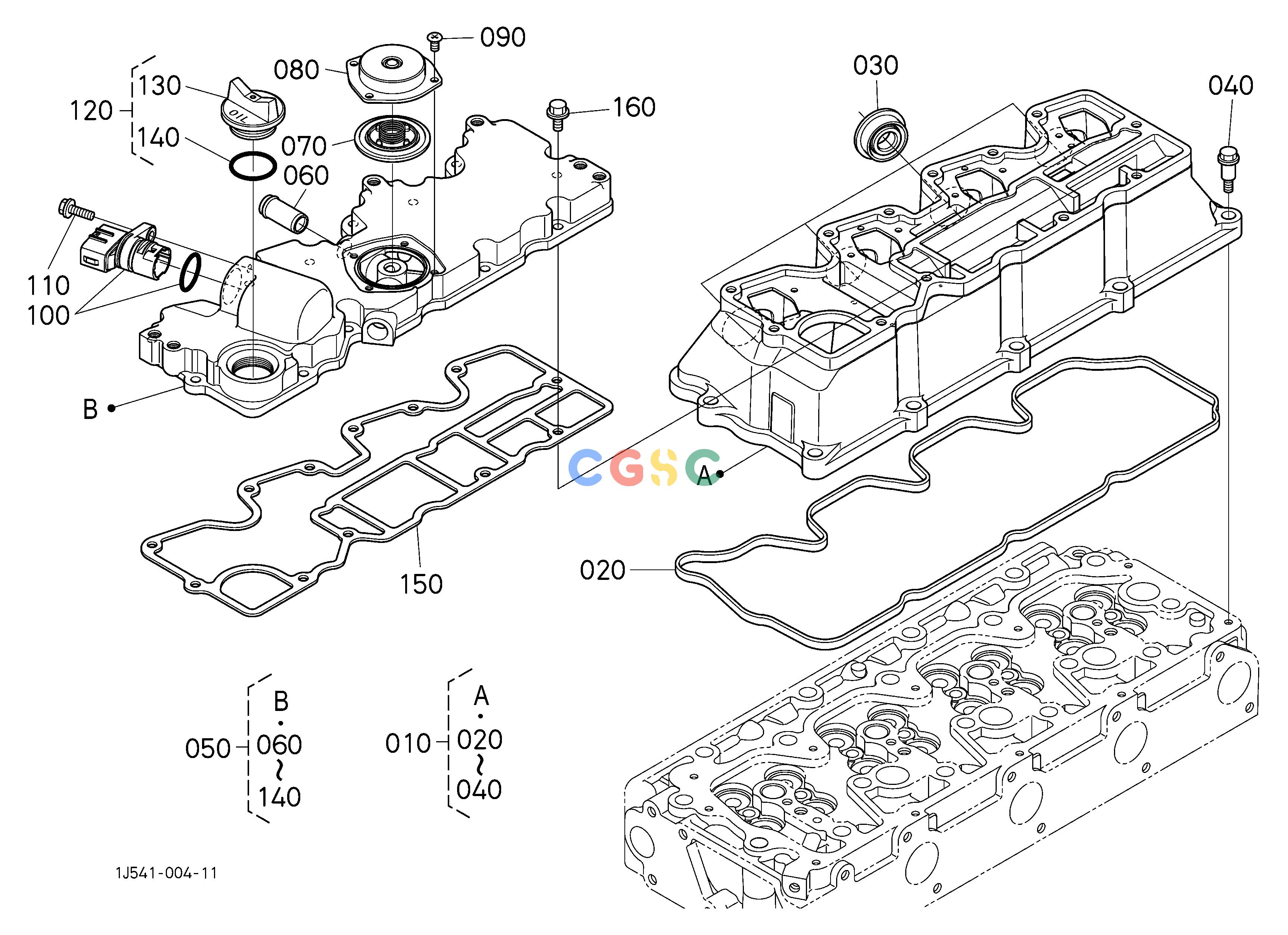

久保田零件查询305000 HEAD COVER ENGINEEPC Kubota online
