2025/01/25

卡特零件查询（AP-1055F） 416-2006: SENSOR GP-SONIC

Pos.Part NoQtyParts nameComments1.107-4749[2]PLATE 2.146-9410[2]COLLAR 3.187-2082[2]LEVER-CONTROL 4.330-8554[1]CABLE AS 4A.111-1308[2]BUSHING 5.331-1991[1]MOUNT AS-SENSOR 8T-3612M[2]NUT-WELD(M8X1.25-THD) 6.332-1018[2]PLATE-TAPPED 7.351-4852[1]LEVER-CONTROL 8.372-0971[1]SENSOR AS-SONIC(GRADE CONTROL) 9.450-9465[2]MOUNT AS 355-8941M[2]NUT-WELD(M16X2-THD) 10.450-9467[4]HANDLE 11.450-9468[1]TUBE AS 12.1G-8781[4]CLAMP(HALF) 13.9X-2480M[4]BOLT(M6X1X45-MM) M

2025/01/25

卡特零件查询（AP-1055F） 362-8687: SENSOR GP-GRADE

Pos.Part NoQtyParts nameComments1.177-2215[1]STRAP-DUAL CLAMP 2.315-6697[1]SENSOR AS-POSITION(ANGLE)(GRADE CONTROL) 334-9446[2]CAP-CONNECTOR 3.362-6642[1]HARNESS AS-CONTROL(GRADE, SLOPE) 9X-3401[8]PIN-CONNECTOR(16-GA TO 18-GA) 8T-8737[4]PLUG-SEAL 102-8801[1]KIT-RECEPTACLE(12-PIN) (INCLUDES RECEPTACLE AS & WEDGE)4.277-1873[2]CLIP(LADDER) 5.7K-1181[2]STRAP-CABLE 6.8T-4224[4]WASHER-HARD(8.8X16X2-MM THK) 7.8T-7547M[4]BOLT(M8X1.25X30-MM) MMETRIC PART

2025/01/25

卡特零件查询（AP-1055F） 145-7028: SENSOR GP-TEMPERATURE

Pos.Part NoQtyParts nameComments1.102-8802[1]KIT-RECEPTACLE(2-PIN) (INCLUDES RECEPTACLE AS & WEDGE)

2025/01/25

卡特零件查询（AP-1055F） 191-8303: SENSOR GP-SPEED

Pos.Part NoQtyParts nameComments1.137-6645[1]PAD-CONNECTOR 2.133-0260[1]BRACKET AVAILABLE REPAIR KIT(S):155-2270[1]KIT-CONNECTING PLUG(2-PIN) (INCLUDES PLUG AS & WEDGE)

2025/01/25

卡特零件查询（AP-1055F） 385-1174: SENSOR GP-PRESSURE

Pos.Part NoQtyParts nameComments1.341-0643[2]SEAL-RECTANGULAR

2025/01/25

卡特零件查询（AP-1055F） 465-1275: SENSOR GP-POSITION

Pos.Part NoQtyParts nameComments1.1G-6811[2]SHAFT 2.6R-4365[2]CLAMP AS 3.110-2124[2]CLAMP 4.239-2111[2]CABLE AS-COILED (EACH INCLUDES)237-7508[1]LINK 241-8153[2]PLUG AS 5.526-3545C[2]SENSOR(SONIC) 6.416-1467Y[1]SENSOR GP-POSITION(MATERIAL FEED) 7.466-1769[2]SUPPORT-SENSOR 8.344-5674M[2]NUT(M8X1.25-THD) 9.8M-2770[2]CLIP(LOOP) 10.8T-4896[2]WASHER-HARD(10.2X18.5X2.5-MM THK) 11.8T-7547M[2]BOLT(M8X1.25X30-MM) 12.8T-9377[2]BOLT(3/8-16X2.25-IN) C

2025/01/25

卡特零件查询（AP-1055F） 416-1468: SENSOR GP-POSITION

Pos.Part NoQtyParts nameComments1.239-2111[2]CABLE AS-COILED (EACH INCLUDES)237-7508[1]LINK 241-8153[2]PLUG AS 2.416-1467Y[1]SENSOR GP-POSITION(MATERIAL FEED) 3.424-6959Y[1]SENSOR GP-AUGER(MATERIAL FEED, LH) 4.424-6960Y[1]SENSOR GP-AUGER(MATERIAL FEED, RH) YSEPARATE ILLUSTRATION

2025/01/25

卡特零件查询（AP-1055F） 416-1467: SENSOR GP-POSITION

Pos.Part NoQtyParts nameComments1.1G-6811[2]SHAFT 2.6R-4365[2]CLAMP AS 3.7K-1181[6]STRAP-CABLE 4.110-2124[2]CLAMP 5.164-0841[2]SUPPORT-SENSOR 6.369-4794[2]SENSOR(SONIC) 7.475-6349[2]CABLE AS-COILED (EACH INCLUDES)237-7508[1]LINK 241-8153[2]PLUG AS 10.4P-7429[5]CLIP(LADDER) 13.8T-4121[2]WASHER-HARD(11X21X2.5-MM THK) 14.8T-4136M[2]BOLT(M10X1.5X25-MM) 15.8T-4896[2]WASHER-HARD(10.2X18.5X2.5-MM THK) 16.8T-9377[2]BOLT(3/8-16X2.25-IN) 17.5P-4116[1]WASHER-HARD

2025/01/25

卡特零件查询（AP-1055F） 266-1480: SENSOR GP-POSITION

Pos.Part NoQtyParts nameComments1.122-1751[1]BUSHING 2.122-1750[1]RECEPTACLE AS-CONNECTOR(6-PIN) 3.122-1752[1]CLAMP AS-CABLE 4.9X-1813ESLEEVE(17-CM) EORDER BY THE CENTIMETER

2025/01/25

卡特零件查询（AP-1055F） 423-6434: SENSOR GP-LIQUID LEVEL

Pos.Part NoQtyParts nameComments1.214-7568[1]SEAL-O-RING 2.281-8805[1]RECEPTACLE AS-CONNECTOR 3.9X-3401[3]PIN-CONNECTOR(16-GA TO 18-GA)

2025/01/25

卡特零件查询（AP-1055F） 491-5820: MOUNTING GP-SENSOR

Pos.Part NoQtyParts nameComments1.7X-7943[2]KNOB-CLAMP 2.8T-7547M[1]BOLT(M8X1.25X30-MM) 3.9X-3401[2]PIN-CONNECTOR(16-GA TO 18-GA) 4.524-8961[1]MOUNT AS 7T-1099[1]LINK 5.485-4367[1]GUIDE 6.491-5819[1]TUBE AS 7.491-5821[1]HINGE AS 8.491-5822[1]BRACKET AS 8T-8874M[2]NUT-WELD(M5X0.8-THD) 9.491-5827[1]TUBE AS 10.491-5830[1]MOUNT AS 11.344-5674M[4]NUT(M8X1.25-THD) 12.102-8802[1]KIT-RECEPTACLE(2-PIN) (INCLUDES RECEPTACLE AS & WEDGE)13.5P-4116[9]WASHER-HARD(8.

2025/01/25

卡特零件查询（AP-1055F） 485-2960: MOUNTING GP-SENSOR

Pos.Part NoQtyParts nameComments1.7X-7943[2]KNOB-CLAMP 2.8T-7547M[1]BOLT(M8X1.25X30-MM) 3.9X-3401[2]PIN-CONNECTOR(16-GA TO 18-GA) 4.524-8961[1]MOUNT AS 7T-1099[1]LINK 5.485-4367[1]GUIDE 6.491-1891[2]U-BOLT 7.491-5819[1]TUBE AS 8.491-5821[1]HINGE AS 9.491-5822[1]BRACKET AS 8T-8874M[2]NUT-WELD(M5X0.8-THD) 10.491-5824[1]MOUNT AS 8T-3490M[1]NUT-WELD(M10X1.5-THD) 11.491-5826[1]TUBE AS 12.344-5674M[4]NUT(M8X1.25-THD) 13.344-5675M[4]NUT(M10X1.5-THD) 14.102-8802[1]KIT-REC

2025/01/25

卡特零件查询（AP-1055F） 417-4254: SENSOR GP-ENGINE

Pos.Part NoQtyParts nameComments1.124-3815M[7]BOLT(M8X1.25X16-MM) 2.199-9252[2]SEAL-O-RING 3.199-9267[4]SEAL-O-RING 4.199-9751[1]SEAL-O-RING 5.217-9039[2]STRAP-CABLE 6.256-6454[2]SENSOR-TEMPERATURE(2-PIN) 7.276-5603[1]SEAL-O-RING 8.320-3060[1]SENSOR GP-PRESSURE(ENGINE OIL) 9.320-3061[1]SENSOR GP-PRESSURE 10.320-3062[1]SENSOR GP-PRESSURE 11.320-3063[1]SENSOR GP-PRESSURE 12.332-7865[2]TIE-CABLE 13.339-8822[1]SENSOR AS-TEMPERATURE 281-8802[1]RECEPTACLE AS-CONNECTOR(2-PIN)

2025/01/25

卡特零件查询（AP-1055F） 424-6960: SENSOR GP-AUGER

Pos.Part NoQtyParts nameComments1.4B-1282[2]SCREW-MACHINE(1/4-20X0.75-IN) 2.5D-3546[1]COLLAR 3.6T-8387[1]BEARING 4.6T-8388[2]FLANGE 5.166-0691[1]BLOCK AS-MOUNTING(POSITION SENSOR) 6.266-1480Y[1]SENSOR GP-POSITION(ROTARY) 7.366-7856[1]ARM(AUGER) 8.424-6961[1]PLATE AS 9.424-6962[1]BRACKET AS 10.424-6966[1]COVER 11.424-6969[1]SHAFT 12.473-7681[1]ARM AS(AUGER) 13.449-9060[1]SPRING 14.095-1267M[1]SETSCREW-SOCKET(M10X1.5-THD) 15.2F-7888[2]SCREW-MACHINE(10-32X1.25-IN) 16.3

2025/01/25

卡特零件查询（AP-1055F） 424-6959: SENSOR GP-AUGER

Pos.Part NoQtyParts nameComments1.4B-1282[2]SCREW-MACHINE(1/4-20X0.75-IN) 2.5D-3546[1]COLLAR 3.6T-8387[1]BEARING 4.6T-8388[2]FLANGE 5.166-0691[1]BLOCK AS-MOUNTING(POSITION SENSOR) 6.266-1480Y[1]SENSOR GP-POSITION(ROTARY) 7.366-7856[1]ARM(AUGER) 8.424-6962[1]BRACKET AS 9.424-6963[1]PLATE AS 10.424-6965[1]COVER 11.424-6969[1]SHAFT 12.473-7679[1]ARM AS(AUGER) 13.449-9060[1]SPRING 14.095-1267M[1]SETSCREW-SOCKET(M10X1.5-THD) 15.2F-7888[2]SCREW-MACHINE(10-32X1.25-IN) 16.3

2025/01/25

卡特零件查询（AP-1055F） 424-6958: SENSOR GP-AUGER

Pos.Part NoQtyParts nameComments1.4B-1282[2]SCREW-MACHINE(1/4-20X0.75-IN) 2.5D-3546[1]COLLAR 3.6T-8387[1]BEARING 4.6T-8388[2]FLANGE 5.116-2807[1]KNOB 6.166-0691[1]BLOCK AS-MOUNTING(POSITION SENSOR) 7.167-9664[1]PLATE 8.199-2888[1]COVER 9.199-4165[1]SHAFT 10.199-5112[1]SUPPORT AS 8T-9377[1]BOLT(3/8-16X2.25-IN) 11.266-1480Y[1]SENSOR GP-POSITION(ROTARY) 12.366-7856[1]ARM(AUGER) 13.441-9581[1]ROD 14.095-1267M[1]SETSCREW-SOCKET(M10X1.5-THD) 15.2F-7888[2]SCREW-MACHINE(10-

2025/01/25

卡特零件查询（AP-1055F） 416-1466: SENSOR GP-AUGER

Pos.Part NoQtyParts nameComments1.239-2111[2]CABLE AS-COILED (EACH INCLUDES)237-7508[1]LINK 241-8153[2]PLUG AS 2.416-1465Y[1]SENSOR GP-AUGER(PADDLE) 3.424-6959Y[1]SENSOR GP-AUGER(MATERIAL FEED, LH) 4.424-6960Y[1]SENSOR GP-AUGER(MATERIAL FEED, RH) YSEPARATE ILLUSTRATION

2025/01/25

卡特零件查询（AP-1055F） 416-1465: SENSOR GP-AUGER

Pos.Part NoQtyParts nameComments1.239-2111[2]CABLE AS-COILED (EACH INCLUDES)237-7508[1]LINK 241-8153[2]PLUG AS 2.424-6958Y[2]SENSOR GP-AUGER(PADDLE) 3.425-1213[1]ROD AS(LH) 4.425-1214[1]ROD AS(RH) 5.5C-7261M[2]NUT(M8X1.25-THD) 6.6P-6256[2]RETAINER-SPRING 7.8T-7547M[2]BOLT(M8X1.25X30-MM) MMETRIC PARTYSEPARATE ILLUSTRATION

2025/01/25

卡特零件查询（AP-1055F） 397-2063: SENSOR & MTG GP-SOOT

Pos.Part NoQtyParts nameComments1.326-4516[4]TIE-CABLE 2.464-4912[1]SENSOR GP-SOOT(EXHAUST) 3.349-0951[10]CLIP(LOOP) 4.5P-4115[2]WASHER-HARD(7.2X19X2-MM THK) 5.7X-2536M[5]BOLT(M8X1.25X14-MM) 6.8T-4138M[2]BOLT(M6X1X20-MM) 7.8T-4189M[1]BOLT(M8X1.25X20-MM) 8.8T-4199M[1]BOLT(M8X1.25X12-MM) 9.8T-4224[7]WASHER-HARD(8.8X16X2-MM THK) MMETRIC PARTRREMANUFACTURED PART MAY BE AVAILABLE

2025/01/25

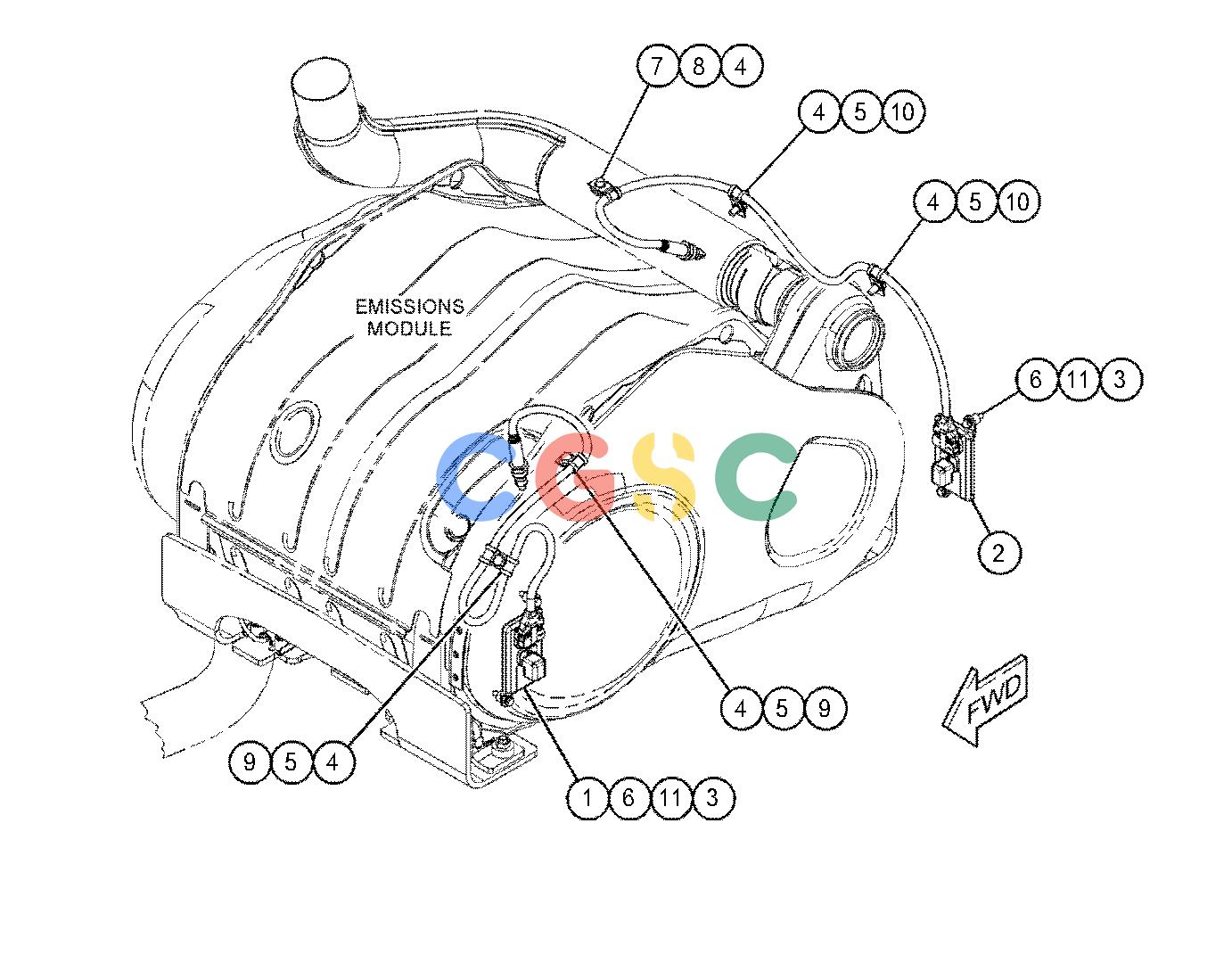

卡特零件查询（AP-1055F） 399-3661: SENSOR & MTG GP-NITROGEN OXIDE

Pos.Part NoQtyParts nameComments1.441-5127[1]SENSOR AS-NITROGEN OXIDE(ENGINE OUTPUT) 2.441-5128[1]SENSOR AS-NITROGEN OXIDE(EXHAUST PIPE OUT) 3.034-9362[4]TUBE 4.342-2135[6]CLIP(LOOP) 5.5P-4116[4]WASHER-HARD(8.8X20.5X2-MM THK) 6.6V-7357M[4]BOLT(M6X1X25-MM) 7.7X-2621M[1]BOLT(M10X1.5X12-MM) 8.7X-7729[1]WASHER(11X25X3-MM THK) 9.8T-4189M[2]BOLT(M8X1.25X20-MM) 10.8T-4200M[2]BOLT(M8X1.25X16-MM) 11.9X-8256[4]WASHER(6.6X12X2-MM THK) MMETRIC PART
