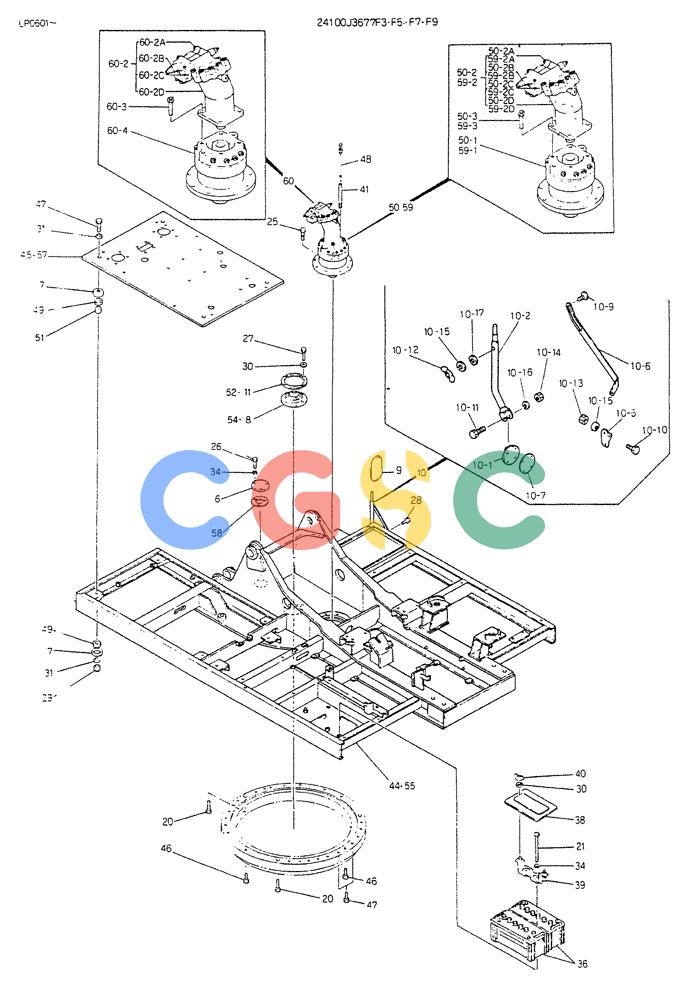

神钢零件查询(K905LC) - EXCAVATOR BTW YP0115 - YP0301 (1/85-12/03) (01-001) - FRAME ASSY UPP(24100J3677FJ) Kobelco

作者：广数供应链运营团队

浏览数：

时间：2025-01-24 09:56:32

工程机械零件图册查询

Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴

Pos.	Part No	Qty	Parts name	Comments
. .	24100J3677F3	[1]	FRAME ASSY, UPP, Serial Range: LP0601-LP1066
. .	24100J3677F5	[1]	FRAME ASSY, UPP, Serial Range: LP1069-LP1248
. .	24100J3677F7	[1]	FRAME ASSY, UPP, Serial Range: YP0115-YP0159
. .	24100J3677F9	[1]	FRAME ASSY. UPP, Serial Range: YP0160-LP1450
6.	2414T1412	[1]	COVER	KOB
7.	2414T1054	[8]	COVER	KOB
8.	2414Z211	[1]	COVER, DUST (54), Serial Range: LP0601-LP0624
9.	2456Z253	[1]	MIRROR	KOBBACK
10.	2416U19F1	[1]	STAY	KOBSTAY
10-1.	2416U15S1	[1]	BRACKET	BRACKET
10-2.	2416U19S2	[1]	STAY	KOB
10-5.	2416U15S5	[1]	SUPPORT	KOB
10-6.	2416U19S6	[1]	STAY	KOB
10-7.	2416U15S7	[1]	PACKING
10-9.	ZS31C06035	[1]	SCREW,Phillips Drive, Pan HD, M6 x 35mm	KOBM06x1.0x35mm
10-10.	ZS16C06014	[1]	SCREW	KOBM06x1.0x16mm Superseded by part number: ZS18C06014
10-11.	ZS16C10050	[1]	CAPSCREW M10x1.50x50mm	CAPSCREW M10x1.50x50mm
10-12.	2416U15S12	[1]	NUT, WING	NUT, WING
10-13.	ZN16C06005	[1]	NUT	KOBM06x1.0mm Superseded by part number: ZN18C06005
10-14.	ZN16C10008	[1]	NUT	KOBM10x1.50mm Superseded by part number: ZN18C10008
10-15.	ZW26X06000	[2]	LOCK WASHER	KOBID 06 x OD 07 x Th 1.5mm
10-16.	ZW26X10000	[1]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
10-17.	ZW16X06000	[1]	WASHER	KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450
11.	2414T1672	[2]	COVER (52), Serial Range: LP0601-LP0624
20.	2420T3453D1	[3]	SCREW	KOBCAPSCREW
21.	R20T0084D16	[2]	SCREW	KOBM10x1.50x220mm
25.	ZS13C16050	[8]	SCREW	KOBM16x2.0x50mm
26.	ZS16C10014	[3]	SCREW	KOBM10x1.50x14mm Superseded by part number: ZS18C10014
27.	ZM11C10025	[4]	BOLT	KOBM10x1.50x25mm (Incls. Lockwasher) Superseded by part number: ZM12C10025
28.	ZM11C06014	[6]	SCREW	KOB
29.	ZN32C16015	[4]	NUT	KOBM16x2.0mm
30.	2418T5373C2	[6]	WASHER	KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346
31.	R16T0152D2	[8]	WASHER	KOBFlat -- ID 17 x OD 30 x Th 3.2mm
34.	ZW26X10000	[5]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
36.	2484U104	[1]	BATTERY	BATTERY
38.	2414P2729	[1]	COVER	KOB
39.	2416P6170	[1]	U-BRACKET	KOB
40.	2420Z753	[2]	NUT	KOB Superseded by part number: 2420Z1372
41.	2420T4039D3	[1]	PIPE, Serial Range: LP0601-LP1230
. .	2420T4039C2D3	[1]	PIPE, Start Serial: LP1231	PIPE, Start Serial: LP1231
44.	2422X627	[1]	FRAME, UPP, Serial Range: LP0601-LP1068
45.	2422N637	[1]	PLATE, FLOOR, Serial Range: LP0601-LP1068
46.	ZS13C16085	[25]	SCREW	KOBM16x2.0x85mm, Serial Range: YP0115-YP0193
. .	ZS13C16085	[23]	SCREW	KOBM16x2.0x85mm YP0194 to
47.	ZS13C16090	[4]	CAPSCREW	KOBSCREW M16x2.0x90mm, Serial Range: YP0115-YP0193
. .	ZS13C16090	[6]	CAPSCREW	KOBSCREW M16x2.0x90mm YP0194 to
48.	2420R502D1	[1]	DIPSTICK	KOBLP0601, Serial Range: -LP1248
49.	2416Z253	[1]	RUBBER SLEEVE	KOBCUSHION
50.	24100N2572F1	[1]	MOTOR ASSY, SWING (59)
50-1.	24100J4539F1	[1]	HYDRAULIC MOTOR	KOBSEE FIG:02-001 Superseded by part number: 24100J6728F2
50-2.	2441U348F1	[1]	MOTOR, HYDR MOTOR SWING	MOTOR, HYDR MOTOR SWING
50-2A.	2436U477S170	[8]	CAPSCREW	CAPSCREW
50-2B.	2436U565F3	[1]	VALVE, BRAKE	VALVE, BRAKE
50-2C.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOBID 34.40 ± 0.33 x OD 40mm
50-2D.	2441U355F1	[1]	HYDRAULIC MOTOR	KOB
50-3.	ZS23C12030	[4]	SCREW,Hex Socket Head, M12 x 30mm	KOBM12x1.75x30mm
51.	2418T9226D1	[4]	SPACER	KOB
52.	2414T1917	[1]	COVER	KOB, Start Serial: LP0625
54.	2414Z21102	[1]	COVER. DUST, Start Serial: LP0625
55.	2422X649	[1]	FRAME UPP, Start Serial: LP1069
57.	2422N698	[1]	PRATE FLOOR, Start Serial: LP1069
58.	R45T0005	[1]	GASKET	KOBPACKING, Start Serial: LP1237
59.	24100N3450F1	[1]	MOTOR ASSY, SWING (60), Serial Range: YP0115-YP0159	MOTOR ASSY, SWING (60), Serial Range: YP0115-YP0159
59-1.	24100J6728F1	[1]	REDUCTION UNIT SEE FIG 01-013	REDUCTION UNIT SEE FIG 01-013
59-2.	2441U348F1	[1]	MOTOR, HYDR	MOTOR, HYDR
59-2A.	2436U477S170	[8]	CAPSCREW	CAPSCREW
59-2B.	2436U565F3	[1]	VALVE, BRAKE	VALVE, BRAKE
59-2C.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOBID 34.40 ± 0.33 x OD 40mm
59-2D.	2441U355F1	[1]	HYDRAULIC MOTOR	KOB
59-3.	ZS23C12030	[4]	SCREW,Hex Socket Head, M12 x 30mm	KOBM12x1.75x30mm
60.	24100N3450F2	[1]	MOTOR ASSY, SWING YP0160 to LP1450
60-2.	2441U348F1	[1]	MOTOR, HYDR	MOTOR, HYDR
60-2A.	2436U477S170	[8]	CAPSCREW	CAPSCREW
60-2B.	2436U565F3	[1]	VALVE, BRAKE	VALVE, BRAKE
60-2C.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOBID 34.40 ± 0.33 x OD 40mm
60-2D.	2441U355F1	[1]	HYDRAULIC MOTOR	KOB
60-3.	ZS23C12030	[4]	SCREW,Hex Socket Head, M12 x 30mm	KOBM12x1.75x30mm
60-4.	24100J6728F2	[1]	HYDRAULIC MOTOR	KOBSEE FIG 01-013
