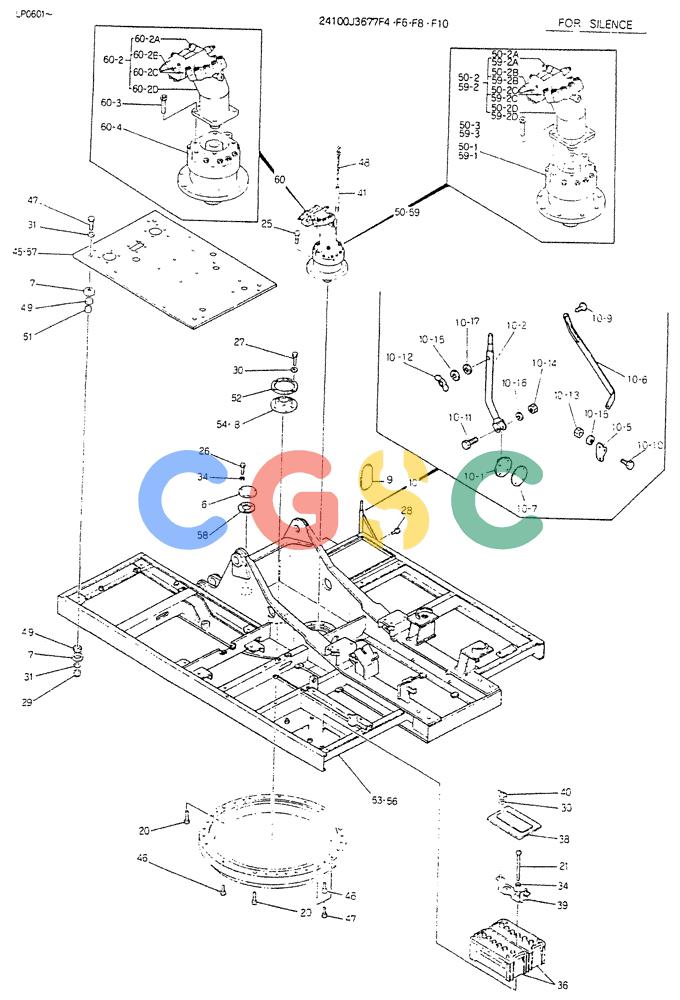

Pos.	Part No	Qty	Parts name	Comments
. .	24100J3677F4	[1]	FRAME ASSY , UPP, Serial Range: LP0601-LP1068
. .	24100J3677F6	[1]	FRAME ASSY, UPP, Serial Range: LPI069-LP1248
. .	24100J3677F8	[1]	FRAME ASSY,UPP, Serial Range: YP0115-LP0159
. .	24100J3677F10	[1]	FRAME ASSY. UPP, Start Serial: YP0160
6.	2414T1412	[1]	COVER	KOB
7.	2414T1054	[8]	COVER	KOB
8.	24142211	[1]	COVER, DUST (54), Serial Range: LP0601-LP0624
9.	2456Z253	[1]	MIRROR	KOBBACK
10.	2416U19F1	[1]	STAY	KOB
10-1.	2416U15S1	[1]	BRACKET	BRACKET
10-2.	2416U19S2	[1]	STAY	KOB
10-5.	2416U15S5	[1]	SUPPORT	KOB
10-6.	2416U19S6	[1]	STAY	KOB
10-7.	2416U15S7	[1]	PACKING
10-9.	ZS31C06035	[1]	SCREW,Phillips Drive, Pan HD, M6 x 35mm	KOBM06x1.0x35mm
10-10.	ZS16C06014	[1]	SCREW	KOBM06x1.0x16mm Superseded by part number: ZS18C06014
10-11.	ZS16C10050	[1]	CAPSCREW M10x1.50x50mm	CAPSCREW M10x1.50x50mm
10-12.	2416U15S12	[1]	NUT, WING	NUT, WING
10-13.	ZN16C06005	[1]	NUT	KOBM06x1.0mm Superseded by part number: ZN18C06005
10-14.	ZN16C10008	[1]	NUT	KOBM10x1.50mm Superseded by part number: ZN18C10008
10-1 5.	ZW26X06000	[2]	LOCK WASHER	KOBID 06 x OD 07 x Th 1.5mm
1C-16.	ZW26X10000	[1]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
10-17.	ZW16X06000	[1]	WASHER	KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450
20.	2420T3453D1	[3]	SCREW	KOB
21.	R20T0084D16	[2]	SCREW	KOBM10x1.50x220mm
25.	ZS13C16050	[8]	SCREW	KOBM16x2.0x50mm
26.	ZS16C10014	[3]	SCREW	KOBM10x1.50x14mm Superseded by part number: ZS18C10014
27.	ZM11C10025	[4]	BOLT	KOBM10x1.50x25mm (Incls. Lockwasher) Superseded by part number: ZM12C10025
28.	ZM11C06014	[6]	SCREW	KOBSEMS-BOLT
29.	ZN32C16015	[4]	NUT	KOBM16x2.0mm
30.	2418T5373C2	[6]	WASHER	KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346
31.	R16T0152D2	[8]	WASHER	KOBFlat -- ID 17 x OD 30 x Th 3.2mm
34.	ZW26X10000	[5]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
36.	2484U104	[2]	BATTERY	BATTERY
38.	2414P2729	[1]	COVER	KOB
39.	2416P6170	[1]	U-BRACKET	KOB
40.	2420Z753	[2]	NUT	KOBNUT Superseded by part number: 2420Z1372
41.	2420T4039D3	[1]	PIPE, Serial Range: LP0601-LP1230
. .	2420T4039C2D3	[1]	PIPE PIPE, Start Serial: LP1231	PIPE PIPE, Start Serial: LP1231
45.	2422N637	[1]	PLATE, FLOOR, Serial Range: LP0601-LP1068
46.	ZS13C16085	[25]	SCREW	KOBM16x2.0x85mm
. .	ZS13C16085	[23]	SCREW	KOBM16x2.0x85mm, Serial Range: YP0194-LP1458
47.	ZS13C16090	[4]	CAPSCREW	KOBSCREW M16x2.0x90mm, Serial Range: YP0115-LP0193
. .	ZS13C16090	[6]	CAPSCREW	KOBSCREW M16x2.0x90mm, Serial Range: YP0194-LP1458
48.	2420R502D1	[1]	DIPSTICK	KOBDIPSTICK, Serial Range: LP0601-LP1248
49.	2416Z253	[8]	RUBBER SLEEVE	KOBCUSHION
50.	24100N2572F1	[1]	MOTOR ASSY, SWING (59)
50-1.	24100J4539F1	[1]	HYDRAULIC MOTOR	KOBSEE FIG 01-013 Superseded by part number: 24100J6728F2
50-2.	2441U348F1	[1]	MOTOR, HYDR SWING	MOTOR, HYDR SWING
50-2A.	2436U477S170	[8]	CAPSCREW	CAPSCREW
50-2B.	2436U565F3	[1]	VALVE, BRAKE VALVE,BRAKE	VALVE, BRAKE VALVE,BRAKE
50-2C.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOBID 34.40 ± 0.33 x OD 40mm
50-20.	2441U355F1	[1]	HYDRAULIC MOTOR	KOB
50-3.	ZS23C12030	[4]	SCREW,Hex Socket Head, M12 x 30mm	KOBM12x1.75x30mm
51.	2418T9226D1	[4]	SPACER	KOB
52.	2414T1917	[1]	COVER	KOB
53.	2422X636	[1]	FRAME. UPP, Serial Range: LP0601-LP1068
54.	2414Z211C2	[1]	COVER, DUST, Start Serial: LP0625
56.	2422X650	[1]	FRAME. UPP, Start Serial: LP1069
57.	2422N698	[1]	PRATE FLOOR, Start Serial: LP1069
58.	R45T0005	[1]	GASKET	KOBPACKING, Start Serial: LP1237
59.	24100N3450F1	[1]	MOTOR ASSY, SWING SWING (60) YP0115, Serial Range: -LP0159	MOTOR ASSY, SWING SWING (60) YP0115, Serial Range: -LP0159
59-1.	24100J6728F1	[1]	REDUCTION UNIT SEE FIG 01-013	REDUCTION UNIT SEE FIG 01-013
59-2.	2441U348F1	[1]	MOTOR, HYDR SWING	MOTOR, HYDR SWING
5 9-2A.	2436U477S170	[8]	CAPSCREW	CAPSCREW
59-2B.	2436U565F3	[1]	VALVE, BRAKE	VALVE, BRAKE
59-2C.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOBID 34.40 ± 0.33 x OD 40mm
59-2D.	2441U355F1	[1]	HYDRAULIC MOTOR	KOB
59-3.	ZS23C12030	[4]	SCREW,Hex Socket Head, M12 x 30mm	KOBM12x1.75x30mm
60.	24100N3450F2	[1]	MOTOR ASSY. SWING YP0160--, Start Serial: LP1450-
60-2.	2441U348F1	[1]	MOTOR, HYDR SWING	MOTOR, HYDR SWING
60-2A.	2436U477S170	[8]	CAPSCREW	CAPSCREW
60-2B.	2436U565F3	[1]	VALVE, BRAKE	VALVE, BRAKE
60-2C.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOBID 34.40 ± 0.33 x OD 40mm
60-2D.	2441U355F1	[1]	HYDRAULIC MOTOR	KOB
60-3.	ZS23C12030	[4]	SCREW,Hex Socket Head, M12 x 30mm	KOBM12x1.75x30mm
60-4.	24100J6728F2	[1]	HYDRAULIC MOTOR	KOBREDUCTION UNIT, SEE FIG 01-013
