1976290C1
|
[1] |

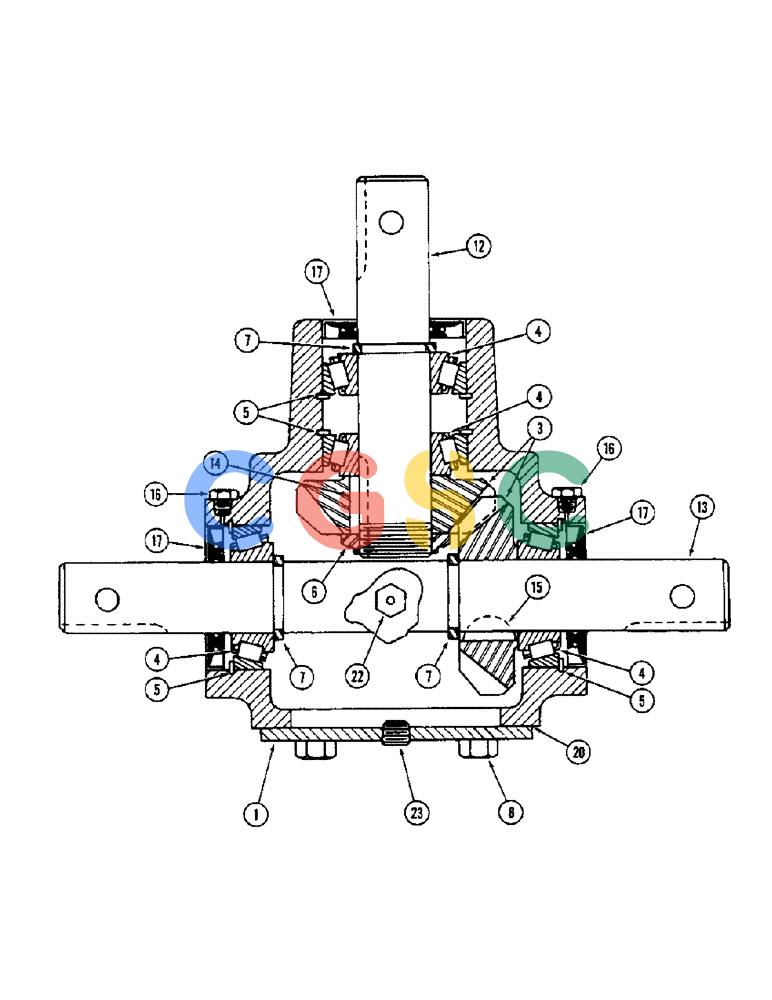

GEARBOX ASSY
|
CAS
GEARBOX ASSEMBLY - snow thrower Superseded by part number: 1978761C1
|
| 1. |
1973042C1
|
[1] |
COVER
|
IH
- gearbox
|
| 3. |
1973043C1
|
[2] |
GEAR
|
IH
- bevel
|
| 4. |
1973044C1
|
[4] |
BEARING ASSY
|
IH
BEARING - gearbox Superseded by part number: 132710, 132709
|
| 5. |
1973045C1
|
[4] |
RING
|
IH
- retaining
|
| 6. |
1973046C1
|
[1] |
NUT
|
IH
- retaining
|
| 7. |
1958290C1
|
[3] |
RING, SNAP
|
IH
RING - retaining
|
| 8. |
413-58
|
[4] |
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
|
CAS
- hex, 5/16 NC x 1/2 inch Superseded by part number: 72187203, 88574
|
| 12. |
1973047C1
|
[1] |
SHAFT
|
IH
- input
|
| 13. |
1973048C1
|
[1] |
SHAFT
|
CAS
- output
|
| 14. |
1973049C1
|
[1] |
BUCKET TOOTH KEY
|
IH
KEY - square
|
| 15. |
218211
|
[1] |
DRIVING SPROCKET
|
NNA
- Woodruff, 1/4 x 3/4 inch Superseded by part number: 126-117, 126-117, NLS
|
| 16. |
444688
|
[4] |
PLUG
|
IH
- hex socket pipe, 1/8 inch PT Superseded by part number: 86637724
|
| 17. |
1973050C1
|
[3] |
SEAL
|
IH
- oil
|
| 20. |
1973051C1
|
[1] |
GASKET
|
IH
- cover
|
| 21. |
1973052C1
|
[1] |
SHIM
|
IH
- bearing
|
| 22. |
1973053C1
|
[1] |
PLUG
|
IH
- vent Superseded by part number: 1976597C1
|
| 23. |
1973054C1
|
[1] |
PLUG
|
IH
- retaining Superseded by part number: 86637724
|
