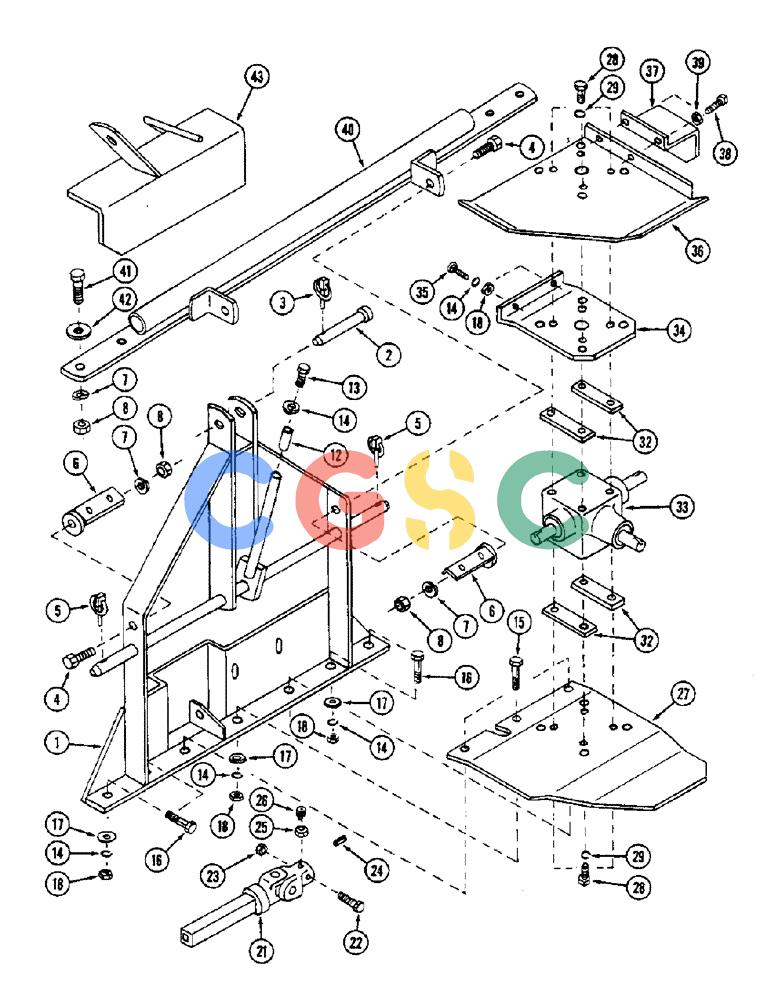

| 1. |
1976286C1
|
[1] |
FRAME
|
CAS
- header mounting
|
| 2. |
1958226C1
|
[1] |
PIN
|
IH
- locating
|
| 3. |
A30338
|
[1] |
PIN
|
CAS
- self locking, 1/4 inch Superseded by part number: 270184
|
| 4. |
413-828
|
[2] |
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707516, 72187217
|
| 5. |
3057346R11
|
[2] |
LINCH PIN
|
IH
PIN - clinch Superseded by part number: 1328218C1
|
| 6. |
1976288C1
|
[2] |
ANCHOR
|
CAS
- spring
|
| 7. |
80679
|
[6] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 8. |
425-108
|
[6] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 12. |
1976287C1
|
[1] |
SPACER
|
CAS
- header
|
| 13. |
413-632
|
[1] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
CAS
- hex, 3/8 NC x 2 inch Superseded by part number: 88436
|
| 14. |
492-11038
|
[10] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 15. |
413-624
|
[3] |
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
|
CAS
- hex, 3/8 NC x 1-1/2 inch Superseded by part number: 72187209, 88044
|
| 16. |
413-620
|
[4] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
- hex, 3/8 NC x 1-1/4 inch Superseded by part number: 72187207, 88011
|
| 17. |
495-21044
|
[7] |
WASHER,3/8"
|
CAS
(flat, 7/16 x 1 x 5/64 inch) 3/8" Superseded by part number: 87779090, 80702
|
| 18. |
425-106
|
[9] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 21. |
1976291C1
|
[1] |
SHAFT
|
CAS
JOINT ASSEMBLY - universal
|
| 22. |
413-536
|
[1] |
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
|
CAS
- hex, 5/16 NC x 2-1/4 inch Superseded by part number: 86505972
|
| 23. |
231-1445
|
[1] |
NUT,5/16"-18, GB
|
CAS
NUT - hex, 5/16 inch NC Superseded by part number: 86050277
|
| 24. |
1954928C1
|
[1] |
KEY
|
CAS
- square
|
| 25. |
25932R1
|
[1] |
JAM NUT,Jam, 3/8"-16, G5
|
IH
- hex jam, 3/8 inch NC Superseded by part number: 329-146
|
| 26. |
139416
|
[1] |
SCREW,Hdls Hex Skt, 3/8" - 16 x 5/8"
|
CAS
- hex socket set, 3/8 NC x 5/8 inch Superseded by part number: 178-56
|
| 27. |
1976289C1
|
[1] |
PLATE
|
CAS
- gearbox mounting
|
| 28. |
413-516
|
[8] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
- hex, 5/16 x 1 inch Superseded by part number: 9635884, 72187198
|
| 29. |
492-11031
|
[8] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 32. |
1976295C1
|
[4] |
SPACER
|
CAS
STRAP - gearbox spacer
|
| 33. |
REF
|
[1] |
INSTRUCTION
|
NH
GEARBOX ASSEMBLY - snow thrower (See page 44)
|
| 34. |
1976292C1
|
[1] |
PLATE
|
CAS
- gearbox mounting
|
| 35. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
BOLT - round head square neck, 3/8 NC x 1 inch Superseded by part number: 80280503
|
| 36. |
1976293C1
|
[1] |
PLATE
|
CAS
- gearbox cover
|
| 37. |
1976294C1
|
[1] |
BRACKET
|
CAS
- gearbox cover
|
| 38. |
25228R1
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
|
IH
- hex lock, 5/16 NC x 3/4 inch Superseded by part number: 326-512
|
| 40. |
1976285C1
|
[1] |
SUPPORT
|
CAS
- mounting
|
| 41. |
413-824
|
[4] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 42. |
25710R1
|
[4] |
WASHER
|
IH
- flat, hardened, 17/32 x 1-1/16 x 9/64 inch Superseded by part number: 86624188
|
| 43. |
1976299C1
|
[1] |
COVER
|
CAS
- PTO
|
