凯斯零件查询(241) - INTERNATIONAL HARVESTER BIGROLL ROUND BALER (1/74-12/79) (A-33) - HYDRAULIC LINES AND FITTINGS, SERIAL NO. 501 THROUGH 3710 Case Agriculture

作者：广数供应链运营团队
浏览数：
时间：2025-01-21 18:22:59
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴

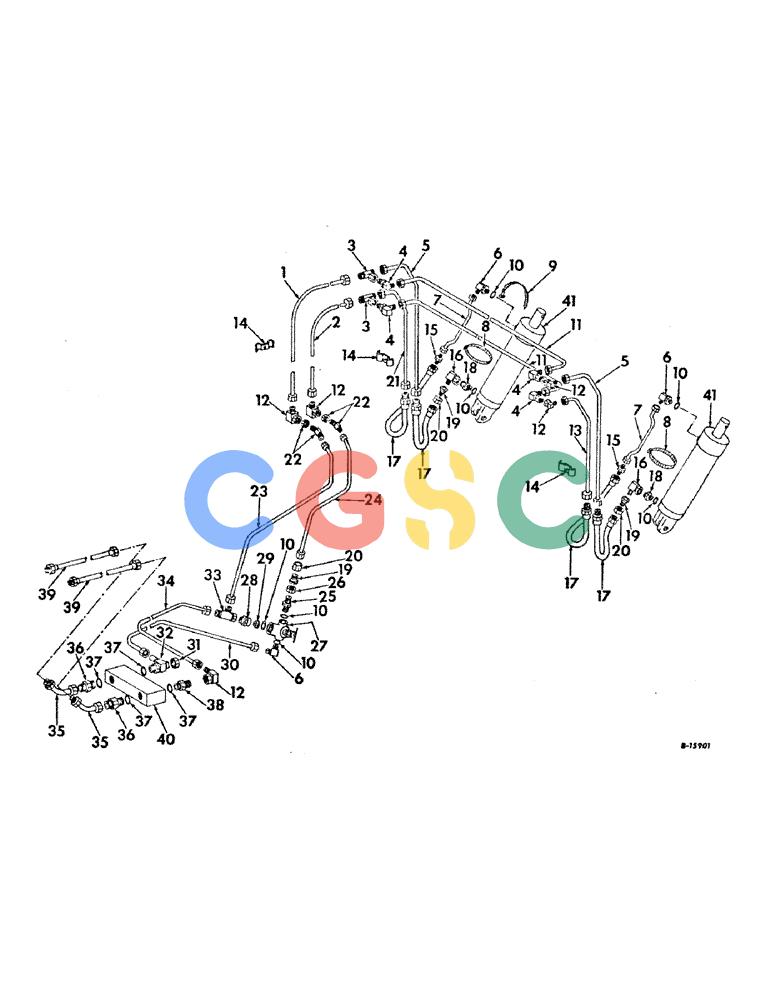

Pos. Part No Qty Parts name Comments
1. 208615C1 [1]     P TUBE ASSY, top vertical
2. 208616C1 [1]     P TUBE ASSY, bottom vertical
3. 9410306 [2]   TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br   IH 9/16-18 37 deg hyd flared tube swivel Superseded by part number: 86513014
4. 673821R1 [4]   ELBOW UNION   IH ELBOW, bulkhead tube
5. 208619C1 [2]     P TUBE ASSY, cyl top
6. 671796R1 [3]   ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring   IH 7/8 to 9/16 hyd reducer Superseded by part number: 86512937
7. 673582R11 [2]   TUBE,0.375" OD, 17, 1.2" Length   IH ASSY, cyl upper
8. 279026R91 [2]   HOSE CLAMP,#36, 1.81/2.75 Type F Worm   IH CLAMP, hose Superseded by part number: 86624194
9. 200549C2 [1]   CLAMP   IH STRAP, hydraulic line
10. 364885R1 [7]   O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro   IH .625 OD tube Superseded by part number: 167269
11. 208617C1 [2]   TUBE   IH top cross
12. 9410280 [5]   ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw   IH 9/16-18 37 deg hyd flared tube Superseded by part number: 86629586
13. 208618C1 [1]     P TUBE ASSY, cyl bottom LH
14. 588322R2 [3]     P CLIP, hyd line
. . 180077 [3]   BOLT,Hex, 5/16" - 18 x 3/4", Gr 5   IH SCREW, 5/16-18 x 3/4 znd hex-hd cap Superseded by part number: 87872
. . 938017R1 [3]   FLANGE NUT,Flg, USR, 5/16"-18   IH 5/16-18 znd hex lock Superseded by part number: 145458
15. 9402786 [2]   UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree   IH 9/16-18 37 deg hyd flared tube Superseded by part number: 128821
16. 9410282 [2]   ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw   IH 7/8-14 37 deg hyd flared tube Superseded by part number: 182977
. . 21862R1 [4]   WASHER   CAS .594 x 1.000 x .105 Superseded by part number: 495-81173
17. 607005R91 [4]   HOSE   IH cyl upper & lower
18. 532875R1 [2]   FITTING   IH RESTRICTOR, hyd line
19. 9403402 [3]   REDUCER,37 Degree, 5/8" x 1/4" Tube   IH 9/16-18 37 deg hyd flared tube Superseded by part number: 86513080
20. 9403529 [3]   TUBE NUT,37 Degree, 7/8"-14, Type B   IH NUT, 7/8-14 37 deg flared tube Superseded by part number: 9626918
21. 208699C1 [1]     P TUBE ASSY, cyl bottom RH
22. 208702C1 [2]   ELBOW   IH 9/16-18 37 deg hyd flared tube
23. 208700C1 [1]   TUBE   IH ASSY, relief valve
24. 208701C1 [1]     P TUBE ASSY, relief valve
25. 9403256 [1]   FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree   IH UNION, 7/8-14 37 deg hyd flared tube bulkhead Superseded by part number: 9610690
26. 9403295 [1]   BHD LOCK NUT,Blkhd, 7/8"-14   IH NUT, 7/8-14 bulkhead union lock Superseded by part number: 595460
28. 213569C1 [1]   CONNECTOR, ELEC   IH CONNECTOR, reducer
29. 213570C1 [1]   PLUG   IH orifice
30. 208614C1 [1]     P TUBE ASSY, rear gate lower, front
31. 9403371 [1]   CAP,37 Degree, 9/16"-18   IH 9/16-18 37 deg hyd flared tube Superseded by part number: 574342
32. 9411130 [1]   TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run   IH 9/16-18 37 deg flared tube adj Superseded by part number: 86513020
33. 9410332 [1]   TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run   IH 9/16 37 deg hyd flared tube swivel, 90 deg Superseded by part number: 129274
34. 208613C1 [1]     P TUBE ASSY, rear gate raise, front
35. 208343C1 [2]   TUBE NUT   IH ADAPTER, 7/8-14 37 deg hyd flared tube
36. 26210R1 [2]   HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring   IH CONNECTOR, 9/16-18 37 deg hyd flared tube short reducer Superseded by part number: 218-5360
37. 364839R1 [4]   O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro   IH 6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube Superseded by part number: 9617873
38. 9410202 [1]   HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring   IH CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel Superseded by part number: 76350
39. 151021H1 [2]   HOSE   IH hyd, tractor to check valve
. . 180132 [2]   BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5   IH SCREW, 3/8-16 x 2-1/4 znd hex-hd cap Superseded by part number: 113-213
. . 482256R1 [2]   BEARING LOCK NUT,Flg, USR, 3/8"-16   IH 3/8-16 znd hex. lock Superseded by part number: 247780
41. 392743R92 [2]   CYLINDER   IH ASSY, hydraulic, refer to cyl, 1 for components
. . 386685R91 [1]   KIT   IH KIT, o-ring & seal
