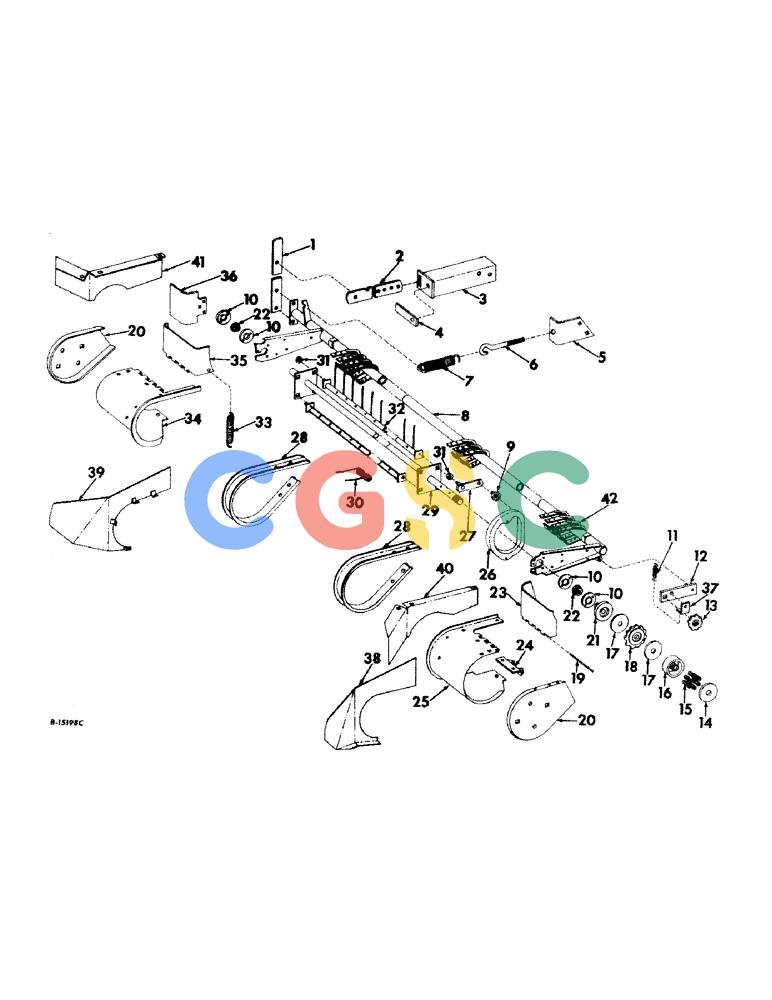

| 1. |
208339C1
|
[1] |
LEVER
|
IH
pickup lift
|
| . . |
180177
|
[2] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
SCREW, 1/2-13 x 1-1/2 znd hex-hd cap Superseded by part number: 113-410
|
| . . |
664573R1
|
[2] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2-13 hex. lock Superseded by part number: 231-4218
|
| 2. |
208566C1
|
[1] |
STRAP
|
IH
pickup latch
|
| . . |
17140R1
|
[1] |
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
|
IH
BOLT, 1/2 x 1-1/4 znd sq-nk crg Superseded by part number: 87868
|
| . . |
9413956
|
[1] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2 PHC p/t lock type 5 Superseded by part number: 231-4138
|
| . . |
18778R1
|
[1] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 type 1 Superseded by part number: 180120
|
| . . |
482256R1
|
[1] |
BEARING LOCK NUT,Flg, USR, 3/8"-16
|
IH
3/8 flange lock Superseded by part number: 247780
|
| . . |
180077
|
[1] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
IH
5/16 x 3/4 type 5 Superseded by part number: 87872
|
| . . |
9412083
|
[1] |
NUT,5/16"-18, GB
|
IH
NUT, 5/16 cad p/t lock type 5 Superseded by part number: 9413994
|
| 3. |
208336C1
|
[1] |
BRACKET
|
IH
ASSY, press roll pivot
|
| . . |
18494R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 znd hex-hd mach Superseded by part number: 424-616
|
| . . |
520175R1
|
[1] |
CLIP
|
IH
PIN, quick attachable Superseded by part number: 1970957C1
|
| 4. |
208342C1
|
[1] |
BAR
|
IH
LATCH, pickup control
|
| . . |
16897R1
|
[1] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 znd sq-nk crg Superseded by part number: 412-512
|
| . . |
932357R1
|
[2] |
HEADED PIN,5/16" x 3"
|
IH
PIN, 5/16 x 3. pln hd type 5
|
| . . |
648002
|
[2] |
1/8" x 3/4"
|
KNIFE
|
| 5. |
208335C1
|
[1] |
BRACKET
|
IH
spring anchor, serial No. 7810 and below
|
| 5. |
218398C1
|
[1] |
SUPPORT ASSY.
|
IH
SUPPORT, spring anchor, serial No. 7811 and above
|
| 6. |
208626C1
|
[1] |
BOLT
|
IH
EYEBOLT, pickup spring
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 7. |
PO27
|
[1] |
SPRING
|
IH
pickup balance, serial No. 7810 and below
|
| 7. |
PO10
|
[1] |
SPRING
|
IH
pickup balance, serial No. 7811 and above
|
| 8. |
208541C1
|
[1] |
FRAME
|
IH
ASSY, pickup
|
| 9. |
202719C91
|
[4] |
BEARING ASSY,1.25" OD x 0.7812"
|
IH
cam follower Superseded by part number: 40714
|
| . . |
20285H
|
[8] |
WASHER
|
IH
13/32 x 3/4 x 11 ga Superseded by part number: 86624144
|
| . . |
666639R1
|
[4] |
LOCK NUT,3/8"-24, GB
|
IH
NUT, 3/8-24 hex. lock
|
| 10. |
612031R1
|
[4] |
FLANGED BEARING
|
IH
bearing Superseded by part number: 50591
|
| 11. |
13985V
|
[1] |
SPRING
|
IH
governor control rod return
|
| . . |
23042R1
|
[3] |
WASHER
|
IH
.531 x 1.000 x .027 Superseded by part number: 87026182
|
| . . |
87395
|
[1] |
COTTER PIN,1/8" OD x 1-1/4" OAL
|
NH
PIN, SPLIT (COTTER), 1/8" x 1-1/4"
|
| 12. |
208563C1
|
[1] |
ARM
|
IH
ASSY, idler
|
| 13. |
582415R91
|
[1] |
DRIVE SPROCKET,9T
|
IH
SPROCKET ASSY, pickup idler
|
| 14. |
202090C1
|
[1] |
WASHER
|
IH
spring clamp
|
| 15. |
M1015
|
[6] |
SPRING
|
IH
clip clutch pressure
|
| . . |
219760
|
[2] |
BACK-UP RING
|
IH
1-14 znd hex. jam Superseded by part number: 425-1516
|
| . . |
576483R1
|
[2] |
LOCK PIN,5/16" x 1 1/2", Slotted
|
IH
Pin, 5/16" x 1 1/2", Slotted Superseded by part number: 86624089
|
| 16. |
202399C1
|
[1] |
HUB
|
IH
pickup slip clutch
|
| 17. |
662291R2
|
[2] |
LINING
|
IH
pickup slip clutch Superseded by part number: 662291R3
|
| 18. |
208573C1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, slip clutch
|
| 19. |
208341C1
|
[2] |
AXLE PIN
|
IH
PIN, throat sheet hinge, serial No. 7810 and below
|
| . . |
137159
|
[2] |
COTTER PIN
|
IH
3/32" x 5/8" Superseded by part number: 432-610, 432-610, NLS
|
| 20. |
208334C3
|
[2] |
SHIELD
|
IH
pickup drive chain
|
| . . |
18764R1
|
[2] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 znd hex-hd mach Superseded by part number: 424-512
|
| . . |
938017R1
|
[8] |
FLANGE NUT,Flg, USR, 5/16"-18
|
IH
5/16-18 znd hex. lock Superseded by part number: 145458
|
| 21. |
662026R4
|
[1] |
HUB
|
IH
pickup slip clutch
|
| 22. |
671681R91
|
[2] |
BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W
|
IH
ASSY, pickup cyl
|
| 23. |
208568C1
|
[1] |
|
P
GUIDE, hay throat LH, serial No. 7810 and below
|
| 24. |
208567C1
|
[2] |
SUPPORT
|
IH
end stripper
|
| 25. |
208560C2
|
[1] |
STRIPPER
|
IH
end LH
|
| 26. |
208622C1
|
[1] |
CAM
|
IH
tine control
|
| . . |
18495R1
|
[3] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 hex-hd mach Superseded by part number: 180124
|
| 27. |
208556C1
|
[4] |
ARM
|
IH
ASSY, cam follower
|
| . . |
668752R1
|
[2] |
WASHER
|
IH
29/32 x 1-1/4 x 16 ga znd (or as required) Superseded by part number: 86624165
|
| . . |
208770C1
|
[4] |
NUT
|
IH
1/2-13 znd hex. lock Superseded by part number: 19605R1
|
| 28. |
208562C1
|
[19] |
STRIPPER
|
IH
center
|
| . . |
27950R1
|
[78] |
SELF-TAP SCREW,Hex Hd, 5/16" x 3/4"
|
CAS
SCREW, 5/16-18 x 3/4 h/whd tap type "T" Superseded by part number: 281-34812
|
| 29. |
208553C2
|
[1] |
SHAFT
|
IH
ASSY, pickup cylinder
|
| 30. |
210614C1
|
[40] |
FINGER,Coiled, 2 Prongs, 178mm L
|
IH
SPRING, pickup tooth
|
| . . |
441582R1
|
[40] |
BOLT,5/16" - 18 x 7/8", Steel
|
IH
pickup spring Superseded by part number: 88992, ZA105429
|
| 31. |
668999R1
|
[8] |
BUSHING
|
IH
meter wheel
|
| . . |
137204
|
[4] |
COTTER PIN,1/8" x 1 1/2"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1 1/2" Superseded by part number: 80708
|
| 32. |
208548C2
|
[4] |
BAR
|
IH
ASSY, pickup tooth
|
| 33. |
PO91
|
[2] |
SPRING
|
IH
serial No. 7810 and below
|
| . . |
21644R1
|
[2] |
PIN,1/4" x 1"
|
IH
Split (Cotter), 1/4" x 1" Superseded by part number: 87401
|
| 34. |
208561C2
|
[1] |
STRIP
|
IH
PER, end RH
|
| 35. |
208569C1
|
[1] |
GUIDE
|
IH
hay throat RH, serial No. 7810 and below
|
| 36. |
208570C2
|
[2] |
GUIDE
|
IH
throat sheet, serial No. 7810 and below
|
| 37. |
214293C1
|
[1] |
SUPPORT
|
IH
pickup spring
|
| . . |
413-412
|
[1] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
|
CAS
Superseded by part number: 9707580, 72187189
|
| . . |
938016R1
|
[1] |
FLANGE NUT,Flg, USR, 1/4"-20
|
IH
1/4 flange lock Superseded by part number: 523282
|
| 38. |
218086C1
|
[1] |
DEFLECTOR
|
IH
upper LH, serial No. 7811 and above
|
| 39. |
218087C1
|
[1] |
DEFLECTOR
|
IH
upper RH, serial No. 7811 and above
|
| 40. |
214479C1
|
[1] |
DEFLECTOR
|
IH
ASSY, lower LH, serial No. 7811 and above
|
| . . |
21737R1
|
[3] |
BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2
|
IH
5/16 x 5/8 crg type 1 Superseded by part number: 598802R1
|
| 41. |
214482C1
|
[1] |
DEFLECTOR
|
IH
ASSY, lower RH, serial No. 7811 and above
|
| 42. |
208546C1
|
[4] |
SUPPORT
|
IH
stripper, 4 leg
|
