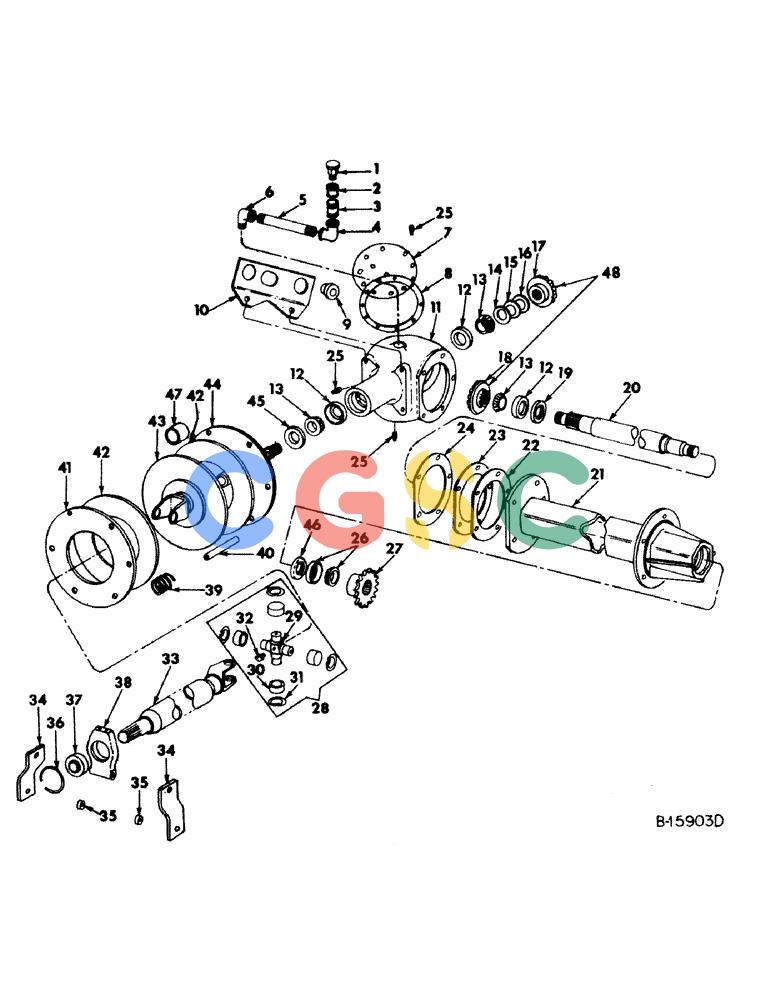

凯斯零件查询(241) - INTERNATIONAL HARVESTER BIGROLL ROUND BALER (1/74-12/79) (A-15) - MAIN DRIVE GEAR CASE Case Agriculture

作者：广数供应链运营团队
浏览数：
时间：2025-01-21 18:22:07
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos. Part No Qty Parts name Comments
1. 153604H1 [1]   BREATHER   IH gear case Superseded by part number: 87283549
2. 120755 [1]   COUPLING,3/8" NPT   IH 3/8, serial No. 501 thru 3710
3. 12469R1 [1]   HYD CONNECTOR   IH NIPPLE, 3/8 x 4-1/2 pipe, serial No. 501 thru 3710 Superseded by part number: 190699
4. 119097 [1]   ELBOW,90º, 3/8" NPT   CAS 3/8 90 deg pipe, serial No. 501 thru 3710
5. 190699 [1]   PIPE,Nipple, 3/8" NPT x 6"   IH NIPPLE, 3/8 x 6 pipe, serial No. 501 thru 3710
6. 217-22 [1]   ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male   CAS 3/8 90 deg street, serial No. 501 thru 3710
7. 210442C1 [1]   COVER ASSY   IH COVER, gear case
. . 18764R1 [6]   HARDWARE,Hex, 5/16"-18 x 3/4", G2   IH BOLT, 5/16 x 3/4 znd hex-hd mach Superseded by part number: 424-512
. . 80681 [6]   LOCK NUT,5/16"   NH WASHER, LOCK, 5/16" Superseded by part number: 83990583
8. 663607R1 [1]   GASKET   IH gear case cover
9. 271928R1 [2]   GROMMET   IH MOUNTING, center bonded Superseded by part number: V56194
. . 180153 [2]   BOLT,Hex, 7/16" - 14 x 2", Gr 5   IH SCREW, 7/16-14 x 2 znd hex-hd cap Superseded by part number: 326-732
. . 271501 [2]   SOCKET   NNA NUT, 7/16-14 znd hex.
. . 23043R1 [2]   WASHER   IH 15/32 x 2 x 11 ga znd Superseded by part number: 87020813
. . 21226R1 [2]   WASHER   IH 1-9/32 x 2 x 11 ga znd Superseded by part number: 86632583
10. 208453C1 [1]   BRACKET   IH gear box support
. . 180173 [2]   BOLT,Hex, 1/2" - 13 x 1", Gr 5   IH Superseded by part number: 113-424
. . 120384 [2]   WASHER,1/2"   IH LOCK, 1/2" Superseded by part number: 116121
11. 548052R1 [1]   CASE   IH PTO gear
12. 618024R1 [3]   BEARING CUP,65.113mm OD x 13.97mm W   IH Output and input shaft Superseded by part number: 86516467
13. 618023R91 [3]   BEARING ASSY,34.93mm ID x 18.2mm W   IH BEARING ASSY, output & input shaft cone
14. 663604R2 [2]   SHIM   IH PTO gear .020
15. 663605R2 [2]   SHIM   IH PTO gear .007
16. 663606R2 [2]   SHIM   IH PTO gear .005
19. 20108D [1]   SEAL   IH oil, replaces 663566R91 Superseded by part number: 663566R91
20. 208450C1 [1]   SHAFT   IH gear case output
. . 453599R1 [2]   WASHER   IH 29/32 x 2-1/4 Superseded by part number: 195-110
. . 427645 [2]   SLOTTED NUT,7/8"-14, G5   IH NUT, 7/8-14 znd slt-hex. Superseded by part number: 26963R1
. . 137204 [2]   COTTER PIN,1/8" x 1 1/2"   IH PIN, SPLIT (COTTER), 1/8" x 1 1/2" Superseded by part number: 80708
21. 204808C1 [1]   HOUSING   IH PTO gear box
. . 180147 [9]   SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5   IH 7/16-14 x 1-1/4 znd hex-hd cap Superseded by part number: 9627887
. . 180149 [1]   LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5   IH BOLT, 7/16 x 1-1/2 type 5 Superseded by part number: 9637916
. . 482161R1 [5]   NUT   IH 7/16-14 znd hex. lock
. . 120383 [5]   LOCK WASHER,Helical Spring, 7/16"   IH WASHER, LOCK, 7/16" Superseded by part number: 81547
22. 663603R1 [2]   SHIM   IH PTO gear vase barrel .005
23. 663602R1 [2]   SHIM   IH PTO gear case barrel .007
24. 663601R1 [2]   SHIM   IH PTO gear case barrel .020
25. 445673 [3]   PIPE PLUG,Sq Hd, 3/8"-18 NPTF   IH PLUG, 3/8-18 automotive sq-hd drain & filler Superseded by part number: 445686
26. 459912R91 [1]   BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"   IH BEARING ASSY, output shaft Superseded by part number: 851494
27. 208451C1 [1]   DRIVE SPROCKET   IH SPROCKET, main drive, 11T
28. 669564R91 [1]   CROSS   IH KIT ASSY, cross repair Superseded by part number: 84355039
30. 669565R91 [4]   CAP   IH CUP ASSY, needle Superseded by part number: 84355039
31. 661657R1 [4]   RING   IH snap
32. 80711 [1]   LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg   NH FITTING, 1/8-27 65 deg angle lub
33. 204278C1 [1]   YOKE,2.13" OD   IH ASSY, tube and stub
34. 208448C1 [2]   STRAP   IH center brg
. . 17452R1 [2]   BOLT,Hex, 1/2"-13 x 1 1/4", G2   IH 1/2 x 1-1/4 znd hex-hd mach Superseded by part number: 180175
. . 664573R1 [2]   LOCK NUT,1/2"-13, GB   IH NUT, 1/2-13 hex. lock Superseded by part number: 231-4218
35. 674732R1 [2]   SPACER   IH BUSHING, PTO pedestal
. . 607895R1 [2]   WASHER   IH 17/32 x 1 x 11 ga znd Superseded by part number: 86624146
36. UA20551 [1]   RING   IH propeller shaft brg
37. 584148R91 [1]   BEARING ASSY,35mm ID x 72mm OD x 25mm W   IH BEARING ASSY, PTO center Superseded by part number: 9808112
38. 662022R1 [1]   BOX   IH SUPPORT, PTO center brg
. . 433163 [1]   BOLT,Hex, 1/2" - 13 x 5", Gr 5   IH SCREW, 1/2 x 5 hex-hd cap Superseded by part number: 87997
. . 9413967 [1]   LOCK NUT,1/2"-13, GB   IH NUT, 1/2-13 cad. hex lock Superseded by part number: 86992215
39. M14033 [6]   SPRING   IH slip clutch compression, serial No. 7810 and below
39. M1015 [6]   SPRING   IH slip clutch compression, serial No. 7811 and above
40. 218085C1 [6]   SPACER   IH clutch spring
. . 189304 [6]   BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5   IH SCREW, 3/8-16 x 3-1/4 znd hex-hd cap Superseded by part number: 113-247
. . 9411655 [6]   LOCK NUT,3/8"-16, GB   IH NUT, 3/8-16 cad hex. lock Superseded by part number: 88902
. . 20803R1 [6]   WASHER   IH 13/32 x 1 x 11 ga znd Superseded by part number: 87613212
41. 467722R1 [1]   PLATE   IH floating clutch
42. 474599R2 [2]   FACING   IH drive clutch Superseded by part number: 474599R3
43. 204279C1 [1]   YOKE   IH ASSY, flanged
43. 208446C91 [1]   SHAFT   IH JOINT ASSY, propeller, includes ref. nos. 28 and 33
44. 460321R12 [1]   SHAFT   IH ASSY, input
. . 137304 [1]   PIN, 1/8 x 1-1/2 znd cot.
45. 380922R91 [1]   OIL SEAL,42.42mm ID x 69.95mm OD x 12.7mm Thk   IH oil
46. 127336H1 [1]   SEAL   IH gear box housing oil
47. 460538R1 [1]   BUSHING   IH flange yoke
48. 126756C1 [1]   GEAR WHEEL   IH GEAR SET, replaces 549251R1 & 549252R2
