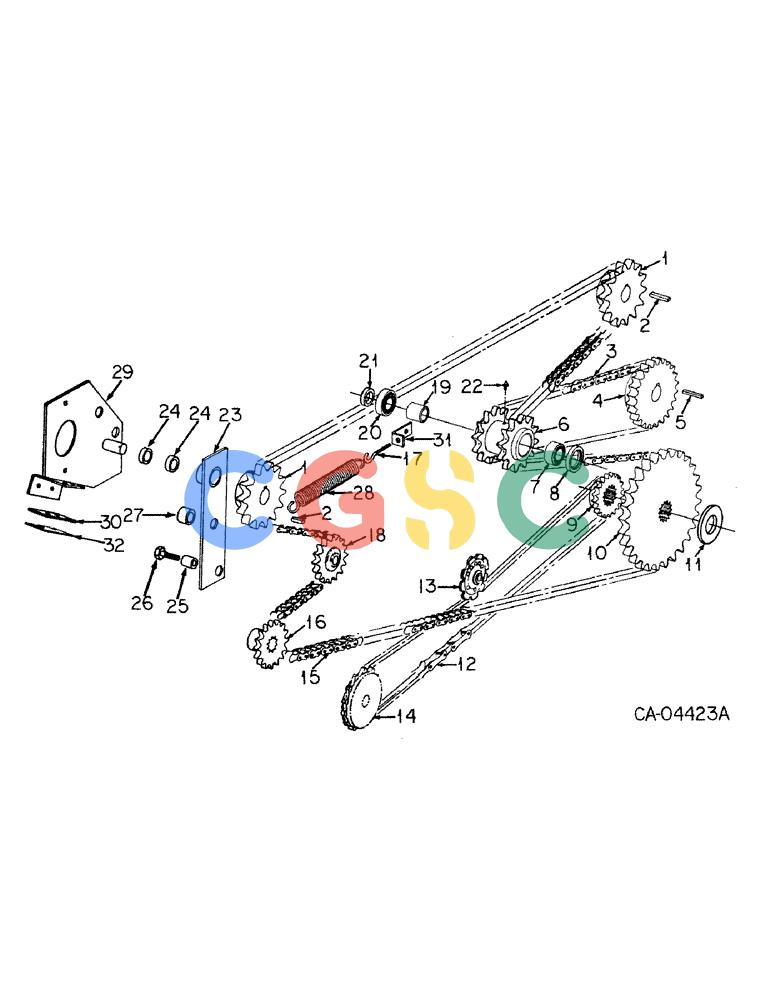

| 1. |
208456C1
|
[2] |
DRIVE SPROCKET
|
IH
SPROCKET, upper belt drive
|
| . . |
426374
|
[2] |
SET SCREW,Hex Soc, 3/8"-16 x 1/2"
|
IH
SCREW, 3/8 x 1/2 c/pt znp hdl/s set Superseded by part number: 87023136
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
SPLIT (COTTER), 3/16" x 2"
|
| . . |
22812R1
|
[20] |
WASHER
|
IH
1.469 x 2.000 x .054, (or as required) Superseded by part number: 495-81220
|
| 2. |
219314C1
|
[2] |
KEY
|
IH
3/8 x 1-9/16 sq parallel
|
| . . |
574532R91
|
[1] |
CLIP, SPRING
|
IH
LINK, #60 single pitch connecting Superseded by part number: 241-1316
|
| 4. |
208459C2
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, press roll
|
| . . |
22210R1
|
[1] |
SET SCREW,Hex Soc, 5/16"-18 x 1/2"
|
IH
SCREW, 5/16 x 1/2 c/pt znp hdl/s set Superseded by part number: 80442
|
| . . |
22050R1
|
[4] |
WASHER
|
IH
1.281 x 1.750 x .054, (or as required) Superseded by part number: 87613234
|
| 5. |
581306R1
|
[1] |
KEY,5/16" Sq x 1 1/4", Par
|
IH
|
| 6. |
208457C2
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, main drive and press roll drive
|
| 7. |
119461R91
|
[1] |
BEARING, ROLLER, CYL,25mm ID x 52mm OD x 20.64mm W
|
IH
ASSY, sprocket, outer
|
| 8. |
208633C1
|
[1] |
OIL SEAL
|
IH
brg oil
|
| 9. |
218406C2
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET, pickup drive
|
| 10. |
208461C1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, drive lower conveyor
|
| . . |
Q359
|
[3] |
|
P
WASHER, 1.781 x 3 x .054 znd
|
| . . |
20705R1
|
[2] |
WASHER
|
IH
1-25/32 x 2-1/4 x 22 ga C-Z, (or as required) Superseded by part number: 87613203
|
| 11. |
388418C1
|
[1] |
SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk
|
IH
.781 x 3.2 x 1/4 ht
|
| . . |
27028R1
|
[1] |
BOLT, 3/4 x 1-1/4 PHC p/t type 8
|
|
| . . |
456929R91
|
[1] |
CHAIN LINK
|
IH
LINK, #2050 double pitch offset Superseded by part number: 86595273
|
| . . |
456980R91
|
[1] |
CHAIN LINK
|
IH
LINK, #2050 double pitch connecting
|
| 13. |
582415R91
|
[1] |
DRIVE SPROCKET,9T
|
IH
SPROCKET ASSY, pickup idler
|
| . . |
589068R1
|
[4] |
WASHER
|
IH
.656 x 1.250 x .090 Superseded by part number: 495-51066
|
| . . |
18721R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2
|
IH
BOLT, 5/8 x 2-1/4 crg type 1 Superseded by part number: 280508
|
| . . |
9413969
|
[1] |
NUT,5/8"-11, GB
|
IH
5/8 cad p/t lock type 5 Superseded by part number: 9413960
|
| . . |
654438R91
|
[2] |
LINK
|
IH
#80 single pitch connecting Superseded by part number: 241-1418
|
| . . |
654440R91
|
[1] |
LINK
|
IH
#80 single pitch roller Superseded by part number: 140774
|
| 17. |
214471C1
|
[1] |
BOLT
|
IH
spring load idler
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 18. |
208455C91
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET ASSY, main drive idler Superseded by part number: 51200277
|
| 19. |
208458C2
|
[1] |
SPACER
|
IH
brg, inner
|
| 20. |
280428C91
|
[1] |
BEARING ASSY,0.9847" ID x 2.0472" OD x 0.5006"
|
IH
ASSY, sprocket, inner Superseded by part number: 467146R91
|
| 21. |
208634C1
|
[1] |
SPACER
|
IH
brg, outer
|
| 22. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 self-tap lub
|
| 23. |
214338C92
|
[1] |
ARM
|
IH
ASSY, idler
|
| 24. |
200465C1
|
[2] |
BUSHING
|
IH
|
| 25. |
650676R1
|
[1] |
SPACER,3/8" X-Strng Pipe x 5/8"
|
IH
Superseded by part number: 199177C1
|
| 26. |
218422C1
|
[1] |
BOLT
|
IH
idler arm
|
| . . |
9411655
|
[2] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, 3/8 cad p/t lock type 5 Superseded by part number: 88902
|
| . . |
120388
|
[2] |
|
NNA
.438 x 1.000 x .064 Superseded by part number: 495-21044, 495-21044, NLS
|
| . . |
87337
|
[2] |
BOLT,Hex, 3/4" - 10 x 3", Gr 5
|
NH
.438 x 1.000 x .064
|
| . . |
9413971
|
[1] |
LOCK NUT,3/4"-10, GB
|
IH
NUT, 3/4 cad p/t lock type 5 Superseded by part number: 280375
|
| . . |
21758R1
|
[2] |
WASHER
|
IH
.781 x 1.250 x .067 znd Superseded by part number: 495-81038
|
| . . |
23041R1
|
[3] |
WASHER
|
IH
1.156 x 1.500 x .054 Superseded by part number: Q162
|
| 27. |
555696R1
|
[1] |
SPACER,3/4" Pipe x 5/8"
|
IH
3/4 x 5/8 std-pipe
|
| . . |
20340R1
|
[1] |
COTTER PIN,1/4" x 1 1/2"
|
IH
Pin, Split (Cotter), 1/4" x 1 1/2" Superseded by part number: 80753
|
| 28. |
218558C1
|
[1] |
SPRING
|
IH
|
| 29. |
214329C1
|
[1] |
SUPPORT
|
IH
ASSY, idler
|
| . . |
18494R1
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 type 1 Superseded by part number: 424-616
|
| . . |
482256R1
|
[4] |
BEARING LOCK NUT,Flg, USR, 3/8"-16
|
IH
3/8 flange lock Superseded by part number: 247780
|
| 30. |
218304C1
|
[1] |
BAR
|
IH
idler adj
|
| . . |
18495R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 type 1 Superseded by part number: 180124
|
| 31. |
214334C1
|
[1] |
ANGLE
|
IH
spring tie
|
| 32. |
219135C1
|
[1] |
CLAMP
|
IH
BAR, idler mounting, .074 in. thick
|
| 32. |
219134C1
|
[1] |
CLAMP
|
IH
BAR, idler mounting, .180 in. thick
|
