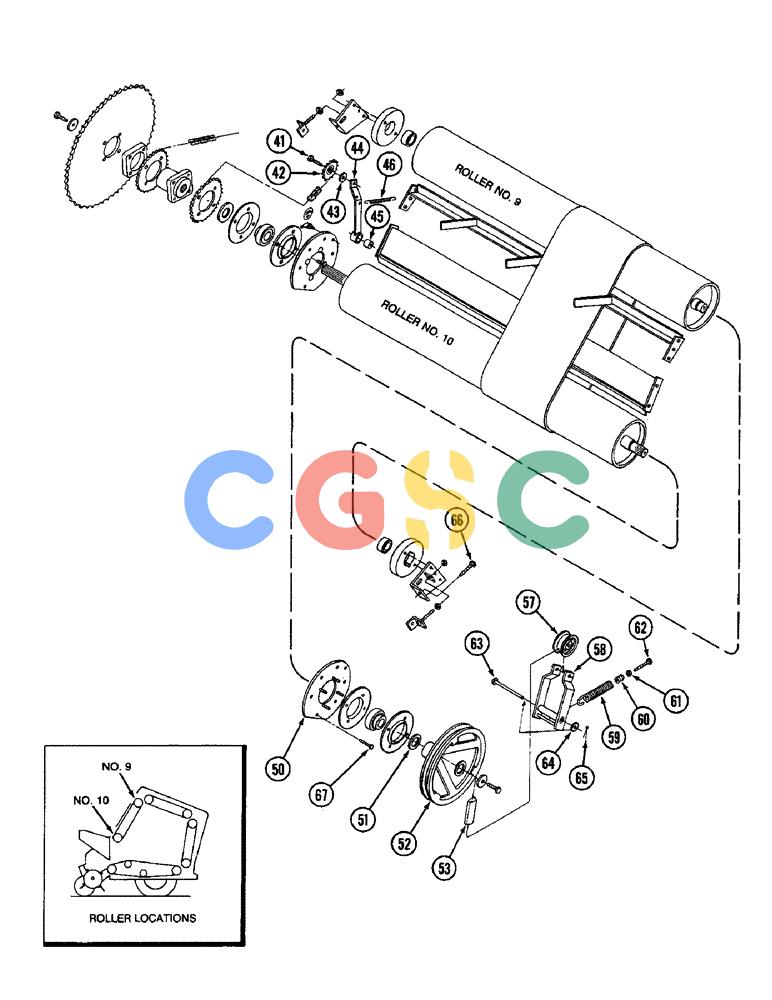

| 41. | 413-1032 | [1] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5 |
CAS- hex, 5/8 NC x 2 inch Superseded by part number: 86505999 |
| 42. | 541857R92 | [1] |
SPROCKET,15T |
IHASSEMBLY - idler (Includes bearing) |
| 43. | 67872C1 | [1] |
WASHER |
IH- flat, 21/32 x 1-1/4 x 1/4 inch (17 x 32 x 6 MM) |
| 44. | ZA104649 | [1] |
ARM |
IHASSEMBLY - idler sprocket |
| 45. | 96315C1 | [1] |
BRONZE BUSHING |
IHBUSHING - idler arm |
| 46. | 1281008C1 | [1] |
SPRING |
IH- extension |
| 50. | ZA104824 | [1] |
PLATE |
IH- left |
| 51. | 22051R1 | [1] |
WASHER |
IH- flat, 1-17/32 x 2-1/4 x 3/64 inch (30 x 57 x 1 MM) Superseded by part number: Q302 |
| 52. | ZA104842 | [1] |
PULLEY |
IH- upper, pickup drive, regular speed, 9 inch (229 MM) OD (See note) |
| 52. | ZA104645 | [1] |
PULLEY |
IH- upper, pickup drive, high speed, 10-3/8 inch (264 MM) OD (See note) |
| 53. | ZA104774 | [1] |
BELT |
IH- Pickup drive, Regular speed (See note) |
| 53. | 668902R1 | [1] |
BELT |
IH- Pickup drive, High speed (See note) |
| 57. | ZA103001 | [1] |
PULLEY |
IH- idler |
| 58. | ZA104215 | [1] |
ARM |
IH- idler pulley |
| 59. | ZA271276 | [1] |
SPRING |
IH- extension |
| 60. | ZA201085 | [1] |
INSERT |
IH- spring |
| 61. | 120378 | [1] |
NUT,Hex, 1/2" - 13, Gr 5 |
IHNUT, 1/2"-13, G5 Superseded by part number: 280431 |
| 62. | 445608 | [1] |
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5 |
IH- hex, 1/2 NC x 5-1/2 inch Superseded by part number: 88576 |
| 63. | 21993R1 | [1] |
SPLIT PIN/SAFETY PIN |
IHPIN - headed, 1/2 x 3-1/2 inch Superseded by part number: 86624062 |
| 64. | 27342R1 | [1] |
WASHER |
IHWASHER - flat, 17/32 x 1 x 3/64 inch (13 x 25 x 1 MM) Superseded by part number: 495-81254 |
| 65. | 432-1216 | [1] |
COTTER PIN,3/16" x 1" |
CASPin, Split (Cotter), 3/16" x 1" |
| 66. | 1960708C1 | [2] |
BOLT |
CAS- hex, special (replaces 196708C1) |
| 67. | 180077 | [12] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5 |
IH- hex, 5/16 NC x 3/4 inch Superseded by part number: 87872 |
