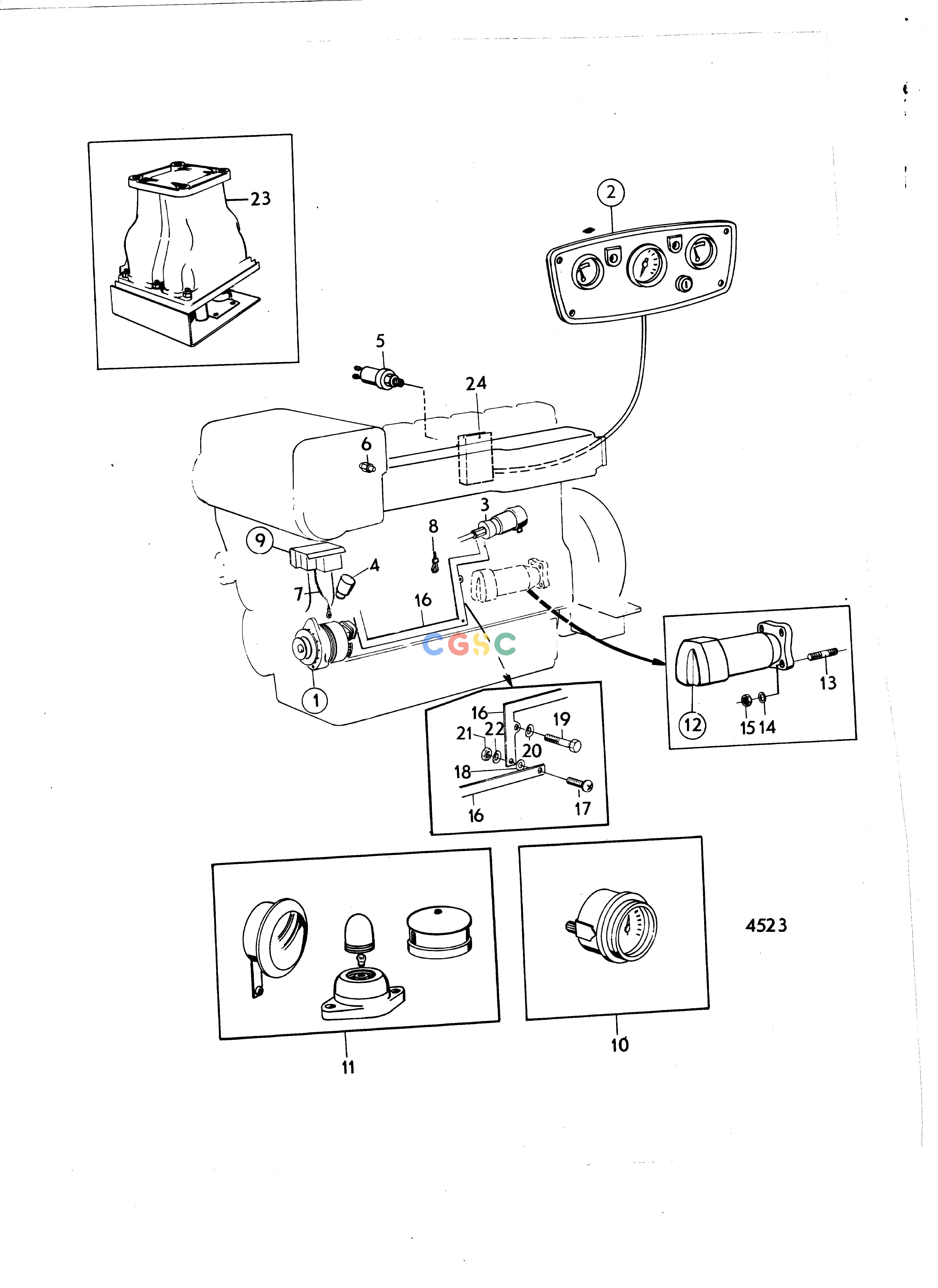

| 1. |
|
|
|
24V 62A
|
| 2. |
|
|
|
|
| 2. |
823363
|
[1] |
Instrument panel
|
For fly bridge., 12V
|
| 2. |
823364
|
[1] |
Instrument panel
|
For fly bridge., 24V
|
| 2. |
823365
|
[1] |
Instrument panel
|
For fly bridge., 32V
|
| 2. |
823403
|
[1] |
Instrument, instrument panel for el. stop
|
For instrument panel 841096 and 841097., 24V
|
| 2. |
823404
|
[1] |
Instrument panel, instrument panel for alarm system
|
For instrument panel 841096 and 841097., 24V
|
| 2. |
823405
|
[1] |
Instrument, instrument panel for aut. stop system
|
For instrument panel 841096 and 841097., 24V
|
| 2. |
823406
|
[1] |
Instrument, instrument panel for manual stop system
|
For instrument panel 841096 and 841097., 24V
|
| 3. |
|
|
|
|
| 4. |
1507899
|
[1] |
Tachometer sensor
|
VD0
|
| 4. |
807703
|
[1] |
Tachometer sensor
|
Spec.867055 alt., Deuta
|
| 5. |
881432
|
[1] |
Sensor
|
|
| 6. |
|
|
|
For charging of 2 batteries use charge distributor 831793, Early type
|
| 6. |
827150
|
[1] |
Sensor
|
Marked Steward Warner., Late type
|
| 7. |
7742120_085
|
|
cables and cable terminal
|
|
| 7. |
|
|
|
|
| 8. |
948210
|
[1] |
Cable tie
|
(827353)
|
| 9. |
|
|
|
12V 38A, 24V 25A
|
| 9. |
238703
|
[1] |
Charge regulator
|
24V 38A
|
| 9. |
233622
|
[1] |
Relay
|
24V 62A
|
| 9. |
823272
|
[1] |
Charge regulator, charging relay
|
24V 70A
|
| 9. |
827595
|
[1] |
Governor, charging relay
|
32V 70A
|
| 9. |
823851
|
[1] |
Charge regulator
|
32V 60A
|
| 9. |
823766
|
[1] |
Governor
|
24V 60A
|
| 10. |
|
|
|
See group 9
|
| 11. |
|
|
|
|
| 12. |
240347
|
[1] |
Starter motor
|
24V
|
| 12. |
870704
|
[1] |
Starter motor
|
32V
|
| 13. |
953486
|
[3] |
Stud
|
|
| 14. |
942336
|
[3] |
Spring washer
|
|
| 15. |
955827
|
[3] |
Hexagon nut
|
|
| 16. |
|
|
|
|
| 17. |
950144
|
[2] |
Screw
|
L=13mm MOXXXX/10233-
|
| 17. |
950148
|
[1] |
Cross recessed sunk
|
L=25mm MOXXXX/10233-
|
| 18. |
120265
|
[3] |
Washer
|
|
| 19. |
940133
|
[1] |
Hexagon screw
|
|
| 20. |
942336
|
[1] |
Spring washer
|
|
| 21. |
955825
|
[1] |
Hexagon nut
|
MOXXXX/10233-
|
| 22. |
941906
|
[1] |
Spring washer
|
MOXXXX/10233-
|
| 23. |
233933
|
[1] |
Switch
|
12V-24V
|
| 24. |
7742120_064
|
|
connecting box and installation comps
|
|
| 24. |
|
|
|
|
