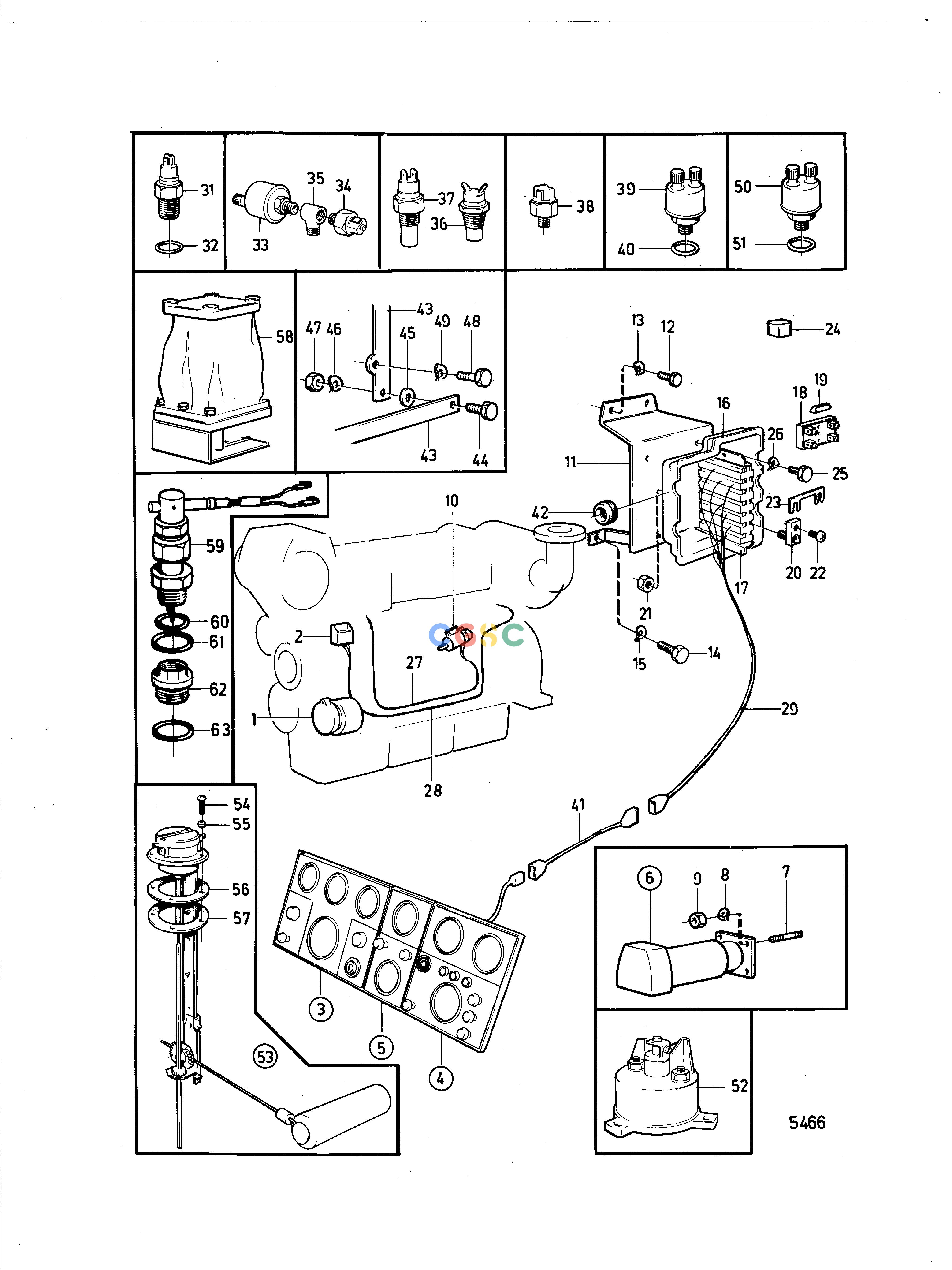

| 1. |
|
|
|
28V 60A
|
| 2. |
|
|
|
12V 38A, 24V 25A
|
| 2. |
823766
|
[1] |
Governor
|
24V 60A
|
| 3. |
842568
|
[1] |
Instrument panel
|
12V
|
| 3. |
842567
|
[1] |
Instrument panel
|
24V
|
| 4. |
837993
|
[1] |
Instrument panel
|
For MS3B reverse gear., 12V
|
| 4. |
837994
|
[1] |
Instrument panel
|
For MS3B reverse gear., 24V
|
| 5. |
837995
|
[1] |
Instrument panel
|
Not included in alternator 841765., 12V
|
| 5. |
837996
|
[1] |
Instrument panel
|
Not included in alternator 841765., 24V
|
| 6. |
240347
|
[1] |
Starter motor
|
24V
|
| 7. |
953486
|
[3] |
Stud
|
|
| 8. |
942336
|
[3] |
Spring washer
|
|
| 9. |
955827
|
[3] |
Hexagon nut
|
|
| 10. |
|
|
|
|
| 11. |
843553
|
[1] |
Bracket
|
|
| 12. |
940133
|
[2] |
Hexagon screw
|
L=16mm
|
| 13. |
942336
|
[2] |
Spring washer
|
|
| 14. |
955561
|
[1] |
Hexagon screw
|
L=32mm
|
| 15. |
940280
|
[1] |
Spring washer
|
|
| 16. |
837791
|
[2] |
Clutch housing
|
Ground cable-starter.
|
| 17. |
837829
|
[1] |
Terminal block
|
|
| 18. |
88578
|
[1] |
Fuse box
|
|
| 19. |
943905
|
[2] |
Fuse, blue
|
25A
|
| 20. |
837796
|
[4] |
Fitting screw
|
|
| 21. |
17602
|
[8] |
Hexagon nut
|
|
| 22. |
941616
|
[4] |
Cross recessed screw
|
|
| 23. |
77796
|
[2] |
Fuse
|
50A
|
| 23. |
239148
|
[2] |
Fuse
|
80A
|
| 24. |
1501832
|
[1] |
Relay
|
12V (839367)
|
| 24. |
1501833
|
[1] |
Relay
|
24V (839434)
|
| 25. |
950059
|
[3] |
Cross recessed screw
|
|
| 26. |
941907
|
[3] |
Spring washer
|
|
| 27. |
842734
|
[1] |
Cable block
|
BB225B MO 20394-, BB260B MO 20364-.
|
| 28. |
842703
|
[1] |
Cable block
|
BB225B MO 20325-20393, BB260B MO 20325-20363., 12V 38A
|
| 28. |
842701
|
[1] |
Cable block
|
BB225B MO 20325-20393, BB260B MO 20325-20363., 24V 25A
|
| 28. |
842711
|
[1] |
Cable block
|
BB225B MO 20325-20393, BB260B MO 20325-20363., 24V 60A
|
| 29. |
837836
|
[1] |
Cable block
|
|
| 30. |
7742120_085
|
|
cables and cable terminal
|
|
| 30. |
|
|
|
|
| 31. |
354671
|
[1] |
Tachometer sensor
|
(837783)
|
| 32. |
925059
|
[1] |
O-ring
|
|
| 33. |
843231
|
[1] |
Oil pressure sensor
|
|
| 34. |
843812
|
[1] |
Contact
|
Stop
|
| 35. |
942490
|
[1] |
T-nipple
|
|
| 36. |
827150
|
[1] |
Sensor
|
|
| 37. |
822858
|
[1] |
Thermo monitor
|
|
| 38. |
880281
|
[1] |
Pressure monitor
|
|
| 39. |
837781
|
[1] |
Oil pressure sensor, reverse gear
|
See group 4A
|
| 39. |
|
|
|
|
| 40. |
957181
|
[1] |
Gasket
|
See group 4A
|
| 41. |
825738
|
[1] |
Cable block
|
L=2500mm
|
| 41. |
820419
|
[1] |
Cable block
|
L=7000mm
|
| 42. |
941269
|
[1] |
Plug
|
|
| 43. |
|
|
|
|
| 44. |
950144
|
[4] |
Screw
|
L=13mm
|
| 44. |
950148
|
[1] |
Cross recessed sunk
|
L=25mm
|
| 45. |
120265
|
[5] |
Washer
|
|
| 46. |
941906
|
[1] |
Spring washer
|
|
| 47. |
955825
|
[1] |
Hexagon nut
|
|
| 48. |
940133
|
[1] |
Hexagon screw
|
|
| 49. |
942336
|
[1] |
Spring washer
|
|
| 50. |
837782
|
[1] |
Pressure sensor
|
See group 2B
|
| 51. |
957181
|
[1] |
Gasket
|
See group 2B
|
| 52. |
837772
|
[1] |
Position sensor
|
|
| 53. |
837999
|
[1] |
Sensor
|
|
| 54. |
956078
|
[4] |
Cross recessed screw
|
L=16mm
|
| 54. |
956081
|
[1] |
Cross recessed screw
|
L=25mm
|
| 55. |
834481
|
[5] |
Gasket
|
|
| 56. |
89865
|
[1] |
Gasket
|
|
| 57. |
|
|
|
|
| 58. |
233933
|
[1] |
Switch, series and parallell switch
|
12V-24V
|
| 58. |
|
|
|
|
| 59. |
844589
|
[1] |
Flow monitor
|
|
| 60. |
18817
|
[1] |
Gasket
|
|
| 61. |
947626
|
[1] |
Gasket
|
|
| 62. |
844588
|
[1] |
Nipple
|
|
| 63. |
469328
|
[1] |
Gasket
|
(468462)
|
