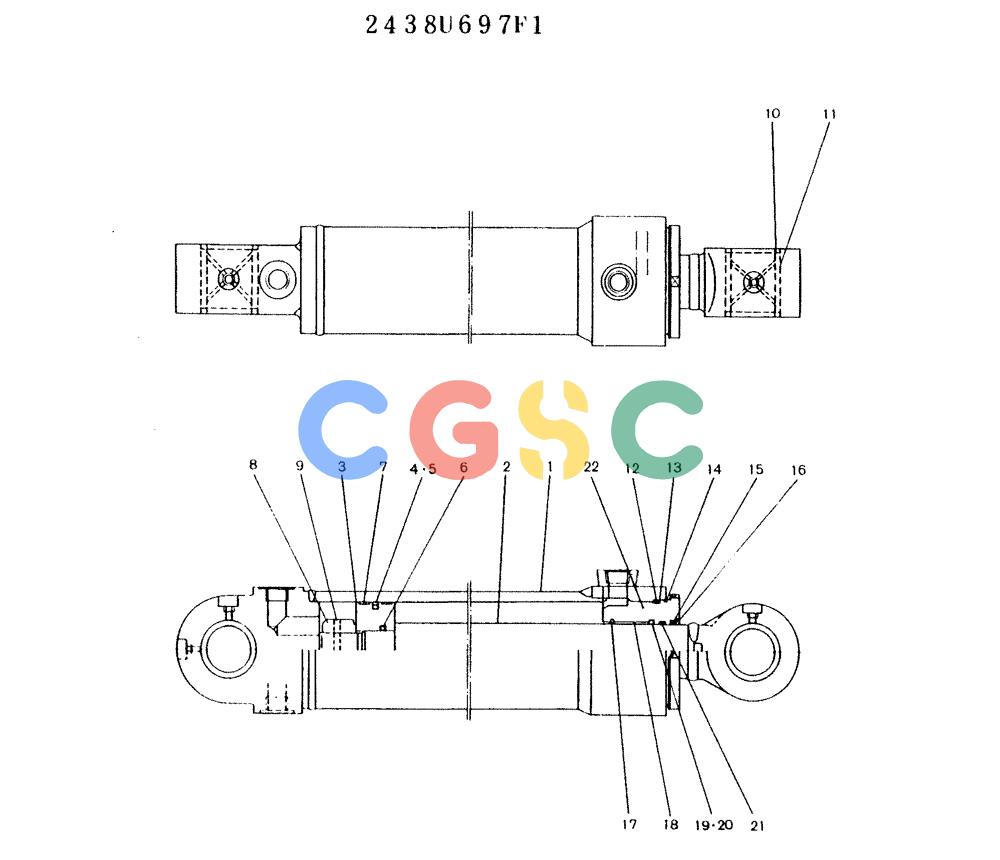

| . . | 2438U697F1 | [1] | CYLINDER ASSY | CYLINDER ASSY |
| 1. | 2438U697S1 | [1] | TUBE, CYLINDER TUBE. CYLINDER TUBE, CYLINDER | |
| 2. | 2438U697S2 | [1] | PISTON-ROD | |
| 3. | 2438U697S3 | [1] | PISTON | |
| 4. | R45P0049D9 | [1] | SEAL | KOB |
| 5. | R45P0051D14 | [1] | O-RING | KOB |
| 6. | ZD12P04800 | [1] | O-RING,3.5mm Thk x 47.7mm ID | KOBID 47.70 ± 0.44 x OD 54.7mm |
| 7. | R45T0098D4 | [1] | PISTON RING | KOB |
| 8. | 2438U697S8 | [1] | NUT | KOB |
| 9. | ZP26D08070 | [1] | ROLL PIN | KOB |
| 10. | 2438U697S10 | [4] | SEAL | KOBDUST Superseded by part number: 2445R138D3 |
| 11. | 2438U515S2 | [2] | BUSHING | KOB |
| 12. | ZD12P12000 | [1] | O-RING | KOB |
| 13. | 2438U697S13 | [1] | RING, BACK-UP | |
| 14. | ZD12G12500 | [1] | O-RING,124.40mm ID x 130.60mm OD x 3.10mm | KOBID 124.40 ± 1.01 x OD 130mm |
| 15. | 2438U697S15 | [1] | SEAL, DUST SEAL., DUST SEAL, DUST | |
| 16. | B38K0025E10 | [1] | SNAP RING | KOB |
| 17. | 2438U504S22 | [1] | RING, RETAINER | |
| 18. | 2438U444S12 | [1] | BUSHING | |
| 19. | R45P0050D1 | [1] | SEAL | KOB |
| 20. | R45P0051D1 | [1] | O-RING | O-RING |
| 21. | 2438U554S26 | [1] | PACKING | |
| 22. | 2438U697S22 | [1] | COVER | |
| . . | 2438U697R100 | [1] | REPAIR KIT, INCLUDE ITEM 12 TO 15 & 19 TO 21 | |
| . . | 2438U697R110 | [1] | REPAIR KIT, INCLUDE ITEM 4 TO 7 | |
