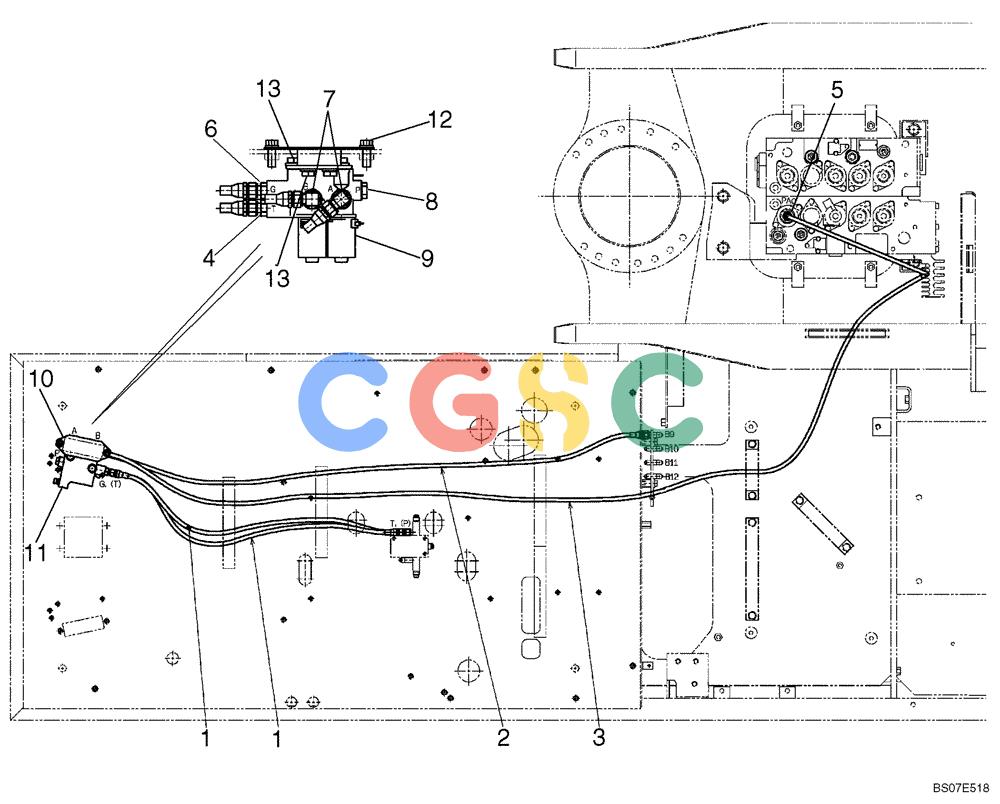

| 1. | 2420R349D090 | [2] | HOSE,6.35mm ID x 900mm L | KOB900mm Long (35-7/16 in) |
| 2. | 2420R349D165 | [1] | HOSE,1650.00 mm | KOB Superseded by part number: HX21E04165DX |
| 3. | 2420R349D370 | [1] | HOSE,3700.00 mm | KOB Superseded by part number: HX21E04370DX |
| 4. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring 237-6004) |
| . . | 237-6004 | [1] | O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro | CAS(Part of ZH22X04000), SAE No. 4-1, Not shown Superseded by part number: 165202, 72186131 |
| 5. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| . . | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CAS(Part of ZH22X04006), SAE No. 6-1, Not shown Superseded by part number: 9617873 |
| 6. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of HH25X04004G2), ID 10.8mm x OD 13.2mm, Not shown |
| 7. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 8. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 9. | LC35V00004F3 | [1] | HYDRAULIC VALVE | SMAssembly, Solenoid, See Figure 08-15 |
| 10. | LC68H01081P1 | [1] | BRACKET | KOB |
| 11. | LC68H01084P1 | [1] | BRACKET | KOB |
| 12. | HM83C10030G1 | [2] | BOLT | KOBM10x30mm |
| 13. | ZM73C10020 | [4] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
