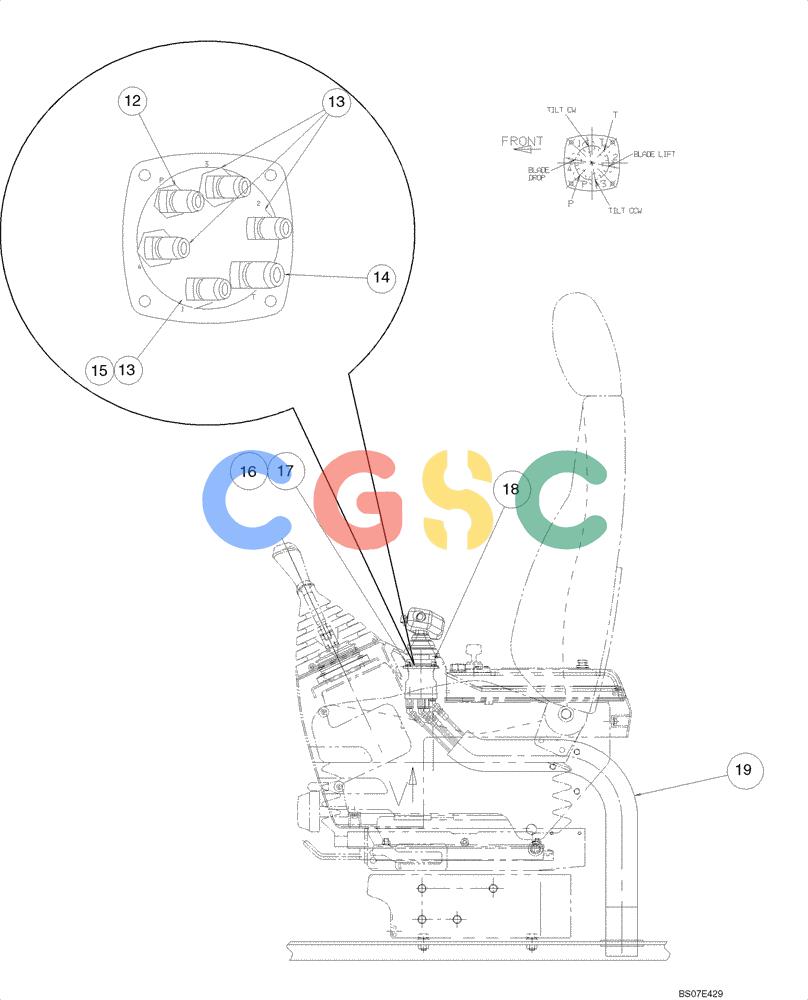

| 12. | HH45X04004G2 | [1] | 45 ELBOW | HIT45° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of HH45X04004G2), ID 10.8mm x OD 13.2mm, Not Shown |
| 13. | ZH42X04000 | [4] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| . . | 237-6004 | [1] | O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro | CAS(Part of ZH42X04000), SAE No. 4-1, Not Shown Superseded by part number: 165202, 72186131 |
| 14. | 2444T3288 | [1] | 45 ELBOW | KOB45° -- (Incls. O-Ring ZD12P01100) |
| 15. | 2444Z2525 | [1] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| 16. | ZW16X06000 | [4] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 17. | ZS28C06025 | [4] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 18. | 2436U3059F2 | [1] | PILOT VALVE | KOBSee Figure 08-16 |
| 19. | YM68HU1003D1 | [1] | Cover, Hose | |
