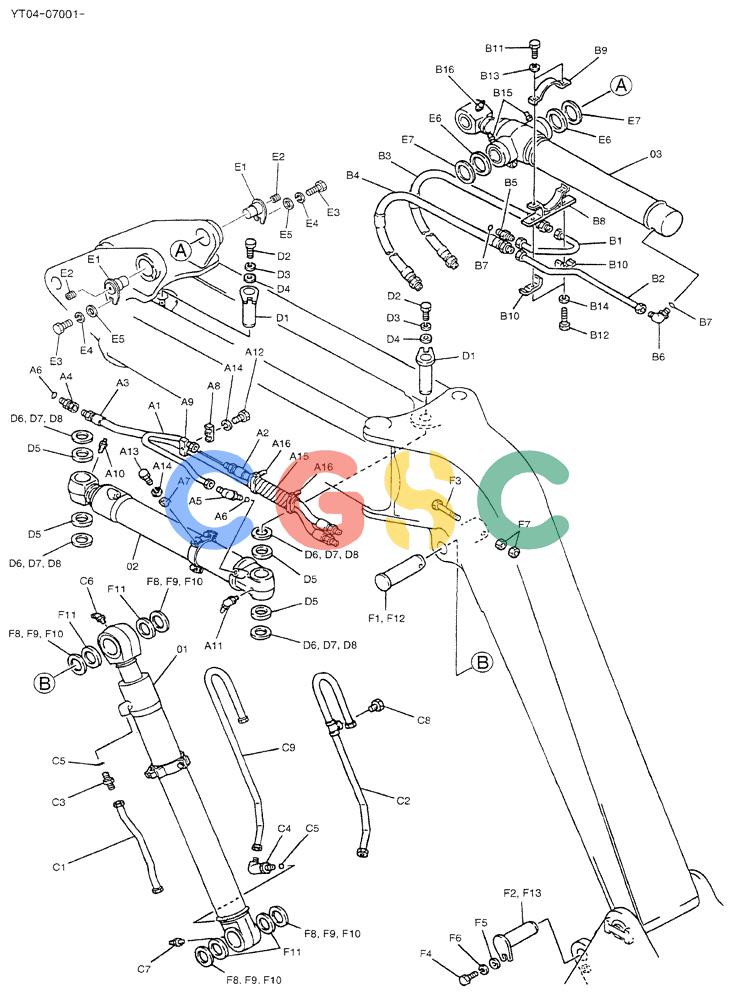

Pos.	Part No	Qty	Parts name	Comments
01.	YT01V00012F1	[1]	CYLINDER ASSY.	KOBBOOM
02.	YR01V00019F1	[1]	CYLINDER	KOBASSY, OFFSET
03.	YT01V00013F1	[1]	CYLINDER ASSY.	KOBARM
. .	YR42H00033F1	[1]	HYD LINES, CYLINDER
A1.	YR42H01089P1	[1]	TUBE	KOB
A2.	YR42H01093D1	[1]	HOSE	KOBHOSE
A3.	YR42H01093D3	[1]	HOSE	KOBHOSE
A4.	ZA23H15008	[1]	HYD CONNECTOR	KOB
A5.	ZA33F15008	[1]	ELBOW	KOB
A6.	ZD12P01800	[2]	O-RING	KOBID 17.8mm x OD 20.2mm
A7.	ZC27X15009	[1]	CLAMP	KOB
A8.	YR42H01087P1	[1]	CLAMP	KOBCLAMP
A9.	YR42H01088P1	[1]	CLAMP	KOBCLAMP
A10.	ZG91S02000	[1]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB1/8" PT -- Straight
A11.	ZG91V02000	[1]	LUBE NIPPLE,67 Degree x 1/8" PT	KOB67° x 1/8" PT Superseded by part number: 72283072
A12.	ZS18C08035	[1]	SCREW,Hex, M8 x 35mm	KOBM08x1.25x35mm
A13.	ZS18C08040	[1]	SCREW,Hex, M8 x 40mm	KOBM08x1.25x40mm
A14.	ZW26X08000	[2]	LOCK WASHER	KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583
A15.	2414Z199D100	[1]	PROTECTIVE SLEEVE	KOBHose -- 1000mm Long (39-3/8 in)
A16.	PY01P01043D3	[2]	CABLE TIE,188mm L	KOBWire Ties -- 188mm Long
. .	YT42H00070F1	[1]	HYD LINES, CYLINDER
B1.	YR42H01069P1	[1]	TUBE	KOBTUBE
B2.	YR42H01070P1	[1]	TUBE	KOB
B3.	YR42H01173P1	[1]	FLEXIBLE HOSE	KOB
B4.	YR42H01174P1	[1]	FLEXIBLE HOSE	KOB
B5.	ZA23F22008	[1]	HYD CONNECTOR	KOB1/2" PT - M30x1.50 x 43mm Long
B6.	ZA33F22008	[1]	90 ELBOW,M30 x 1.5 ORB x 1/2" NPT	KOB90° -- 1/2" PF - M30x1.50x34mm Long (Incls. O-Ring ZD12P02400)
B7.	ZD12P01800	[2]	O-RING	KOBID 17.8mm x OD 20.2mm
B8.	YR42H01192P1	[1]	BAND	KOBBAND
B9.	YR42H01193P1	[1]	BAND	KOBBAND
BI0.	ZC26X22011	[2]	CLAMP	KOBSingle Line -- 38x29x65mm Long
B11.	ZS18C08030	[2]	SCREW,Hex, M8 x 30mm	KOBM08x1.25x30mm
B12.	ZS18C10045	[2]	SCREW,Hex, M10 x 45mm	KOBM10x1.50x45mm
B13.	ZW26X08000	[2]	LOCK WASHER	KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583
B14.	ZW26X10000	[2]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
B15.	ZG91S02000	[2]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB1/8" PT -- Straight
B16.	ZG91V02000	[1]	LUBE NIPPLE,67 Degree x 1/8" PT	KOB67° x 1/8" PT Superseded by part number: 72283072
. .	YT42H00043F1	[1]	HYD LINES, CYLINDER (EU)
. .	YT42H00043F2	[1]	HYD LINES, CYLINDER (KAI, OCEANIA)
C1.	YT42H01189P1	[1]	TUBE	KOBTUBE
C2.	YT42H01188P1	[1]	TUBE	KOBTUBE
C3.	ZA23F22008	[1]	HYD CONNECTOR	KOB1/2" PT - M30x1.50 x 43mm Long
C4.	ZA33F22008	[1]	90 ELBOW,M30 x 1.5 ORB x 1/2" NPT	KOB90° -- 1/2" PF - M30x1.50x34mm Long (Incls. O-Ring ZD12P02400)
C5.	ZD12P01800	[2]	O-RING	KOBID 17.8mm x OD 20.2mm
C6.	ZG91V02000	[1]	LUBE NIPPLE,67 Degree x 1/8" PT	KOB67° x 1/8" PT Superseded by part number: 72283072
C7.	ZG91S02000	[1]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB1/8" PT -- Straight
C8.	ZE72X04000	[1]	PLUG	KOB(PF 1/4) (Incls. O-Ring ZD12P01100)
C9.	YR42H01068P1	[1]	TUBE	KOBTUBE
. .	YR02B00070F1	[1]	CYLINDER INSTAL
D1.	YR02B01193P1	[2]	PIN	KOB
D2.	ZS18C10016	[2]	SCREW,Hex, M10 x 16mm	KOBM10x1.50x16mm
D3.	ZW26X10000	[2]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
D4.	2418T18152D7	[2]	SPACER	KOB
D5.	YR12B01029P1	[4]	SHIM	KOB2.0
D6.	B16T0442D42	[4]	SHIM,90mm OD x 57mm ID x 0.9mm Thk	KOBID 57 x OD 90 x Th 0.9mm
D7.	B16T0442D26	[4]	SHIM,90mm OD x 57mm ID x 1.2mm Thk	KOBID 57 x OD 90 x Th 1.2mm
D8.	B16T0442D55	[4]	SHIM,90mm OD x 57mm ID x 0.5mm Thk	KOBID 57 x OD 90 x Th 0.5mm
. .	YR02B00073F1	[1]	CYLINDER INSTAL
E1.	YR02B01289P1	[2]	PIN	KOBPIN
E2.	ZS83C16020	[2]	SCREW	KOBSet -- M16x2.0x20mm
E3.	ZS18C16030	[2]	SCREW,Hex, M16 x 30mm	KOBM16x2.0x30mm
E4.	ZW26X16000	[2]	LOCK WASHER	KOBID 16 x OD 28 x Th 4.0mm
E5.	PW12B01216P1	[2]	WASHER	KOB
E6.	YR02B01261P1	[2]	SHIM,2mm Thk	KOB2.0
E7.	B16T0442D81	[2]	SHIM,120mm OD x 77mm ID x 0.9mm Thk	KOBID 77 x OD 120 x Th 0.9mm
. .	YR02B00068F1	[1]	CYLINDER INSTAL (KAI, OCEANIA)
. .	YR02B00068F2	[1]	CYLINDER INSTAL (EU)
F1.	YR02B01280P1	[1]	PIN	KOB
F2.	YT02B01006P1	[1]	PIN	KOB Superseded by part number: YR02B01298P1
F3.	HS18C16130G2	[1]	BOLT,Hex, M16 x 130mm, Cl 10.9	KOBM16x2.0x130mm
F4.	ZS18C10020	[1]	SCREW,Hex, M10 x 20mm	KOBM10x1.50x20mm
F5.	2418T21137	[1]	WASHER	KOB
F6.	ZW26X10000	[1]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
F7.	ZN18C16013	[2]	NUT	KOBM16x2.0mm
F8.	B16T0442D82	[2]	SHIM,120mm OD x 77mm ID x 0.5mm Thk	KOBID 77 x OD 120 x Th 0.5mm
F9.	B16T0442D81	[2]	SHIM,120mm OD x 77mm ID x 0.9mm Thk	KOBID 77 x OD 120 x Th 0.9mm
F10.	B16T0442D80	[2]	SHIM,120mm OD x 77mm ID x 1.2mm Thk	KOBID 77 x OD 120 x Th 1.2mm
F11.	YR02B01261P1	[4]	SHIM,2mm Thk	KOB2.0
F12.	YT02B01049P1	[1]	PIN	KOBPIN
F13.	YT02B01027P1	[1]	PIN	KOB
