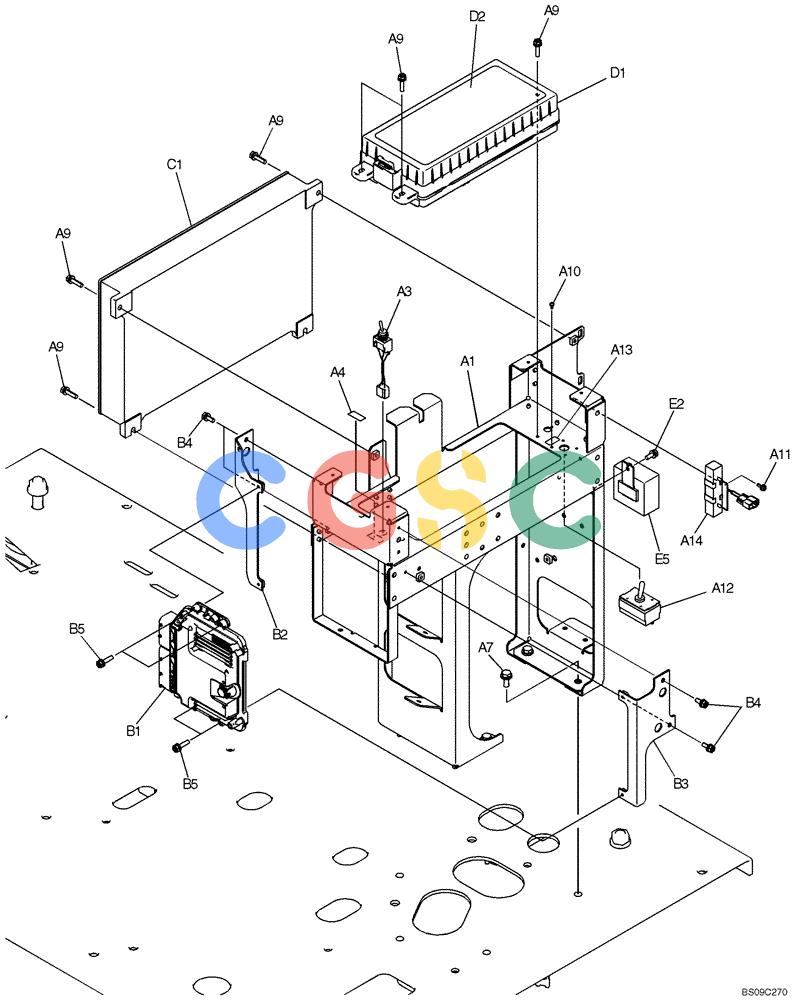

| A1. | YB22E01027P3 | [1] | SUPPORT | KOB |
| A3. | YN50S00047P1 | [1] | TOGGLE SWITCH | KOBAssembly, Toggle (Swing Parking Brake Release) |
| A4. | YN22M01014P1 | [1] | LABEL | KOBDecal, Swing Parking Brake Release Lock and Normal |
| A7. | ZM73C08020 | [5] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| A9. | ZM61C06025 | [7] | BOLT | KOBM06x1.0x25mm (Incls. Washer & Lockwasher) |
| A10. | ZM41C03008 | [4] | BOLT | KOBM03x0.5x08mm (Incls. Washer & Lockwasher) |
| A11. | ZM61C04012 | [1] | BOLT | KOBM04x0.7x12mm (Incls. Washer & Lockwasher) |
| A12. | YX50S00001F1 | [1] | TOGGLE SWITCH | SMAssembly, Toggle Superseded by part number: YX50S00004F1 |
| A13. | YV22E01002P1 | [1] | LABEL | KOBDecal, KPSS/Release |
| A14. | LC22E01001D1 | [1] | RESISTOR,16ohm | KOB16 Ohm |
| B1. | VA32F9810115 | [1] | CONTROLLER | KOBMitsubishi Engine Parts Superseded by part number: VA32G8749340 |
| B2. | YY22E01054P1 | [1] | BRACKET | KOB |
| B3. | YY22E01056P1 | [1] | BRACKET | KOB |
| B4. | ZM61C06016 | [4] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| B5. | ZM61C06025 | [4] | BOLT | KOBM06x1.0x25mm (Incls. Washer & Lockwasher) |
| . . | YY22E00113F1 | [1] | Controller Assembly, Incls. Refs. C1 & C2 | |
| C1. | YN22E00291F1 | [1] | CONTROLLER | KOBController Assembly Superseded by part number: YN22E00426F1 |
| C2. | NSS | [1] | NOT SOLD SEPARAT | CONSoftware, Not Shown |
| . . | YY24E00009F1 | [1] | FUSE BOX | KOBRelay Box Assembly, Incls. Refs. D1 & D2 |
| D1. | YY24E00008F2 | [1] | BOX, FUSE | KOBRelay Assembly |
| D2. | YY73E01009P2 | [1] | LABEL | KOB |
| . . | YN24E00017F1 | [1] | Flasher Relay Assembly, Incls. Refs. E2 & E5 | |
| E2. | ZM61C06016 | [2] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| E5. | YY24S00001P2 | [1] | RELAY | KOBFlasher |
