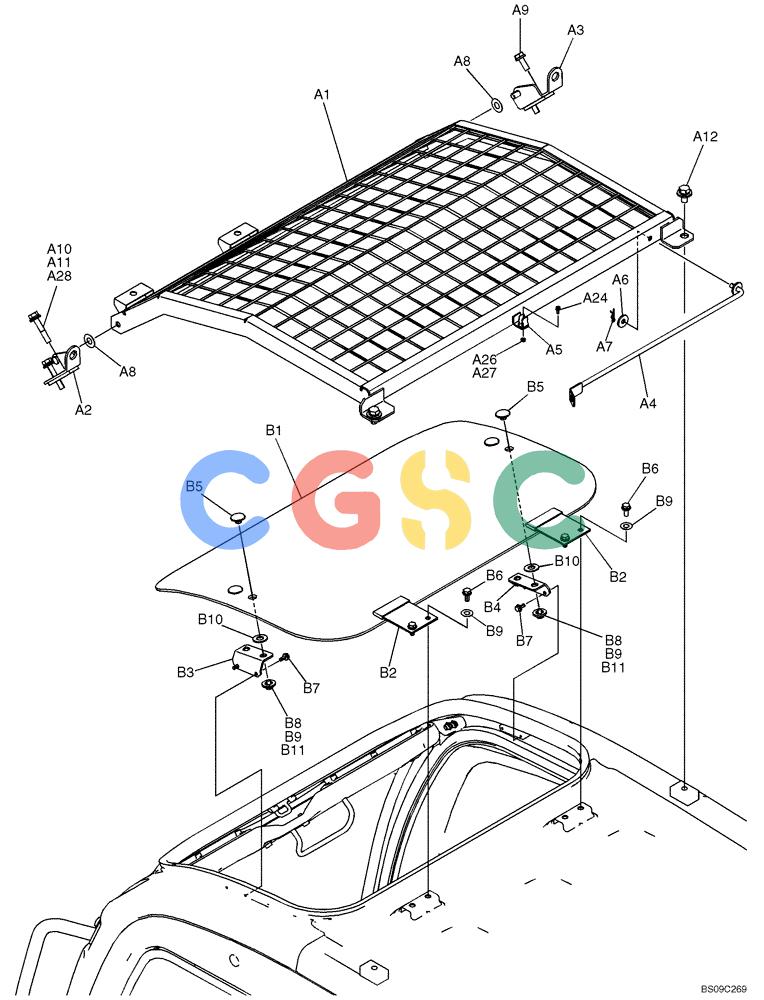

| . . | YB02C01110F1 | [1] | GUARD | KOBAssembly, Incls. Refs. A1 - A28 |
| A1. | YB02C01242P1 | [1] | GUARD | KOB |
| A2. | YB02C01239P1 | [1] | PLATE | KOBAssembly |
| A3. | YB02C01241P1 | [1] | PLATE | KOBAssembly |
| A4. | YB02C01095P1 | [1] | STAY | KOBStay Assembly |
| A5. | YN21C01178P1 | [1] | CLIP | KOB |
| A6. | HY25X10027G1 | [1] | WASHER,10mm ID x 27mm OD x 3.2mm Thk | KOBID 10 x OD 27 x Th 3.2mm |
| A7. | 2419R9D2 | [1] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| A8. | YN02C01858P1 | [2] | WASHER | KOB |
| A9. | ZM73C10030 | [2] | BOLT,M10x30mm - Course Thread | KOBM10x1.50x30mm (Incls. Washer) |
| A10. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOBM10x1.50x60mm |
| A11. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| A12. | ZM32C12025 | [2] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) |
| A24. | ZM66C04012 | [1] | BOLT | KOBM04x0.7x12mm (Incls. Washer & Lockwasher) |
| A26. | ZW16P04000 | [1] | WASHER | KOBID 04 x OD 09 x Th 0.8mm |
| A27. | ZN16C04003 | [1] | NUT | KOBM04x0.7mm Superseded by part number: ZN18C04003 |
| A28. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | YB02C01224F1 | [1] | WINDOW | KOBAssembly, Roof, Incls. Refs. B1 - B11 |
| B1. | YB02C01115P1 | [1] | GLASS | KOB |
| B2. | YN02C03763P1 | [2] | PLATE | KOB |
| B3. | YN02C03294P1 | [1] | PLATE | KOB |
| B4. | YN02C03295P1 | [1] | PLATE | KOB |
| B5. | YT50C01020P1 | [4] | RETAINER | KOB |
| B6. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| B7. | ZM73C06016 | [4] | BOLT,M6x16mm - Course Thread | KOBM06x1.0x16mm (Incls. Washer) |
| B8. | YT02C01241D1 | [4] | BOLT | KOBM08x1.25x12mm |
| B9. | YR21C01161P1 | [8] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOBID 09 x OD 22 x Th 2.3mm |
| B10. | YT50C01022P1 | [4] | SEAL,15mm ID x 30mm OD x 2mm Thk | KOB |
| B11. | ZW16X14000 | [4] | WASHER | KOBID 14 x OD 28 x Th 3.2mm |
