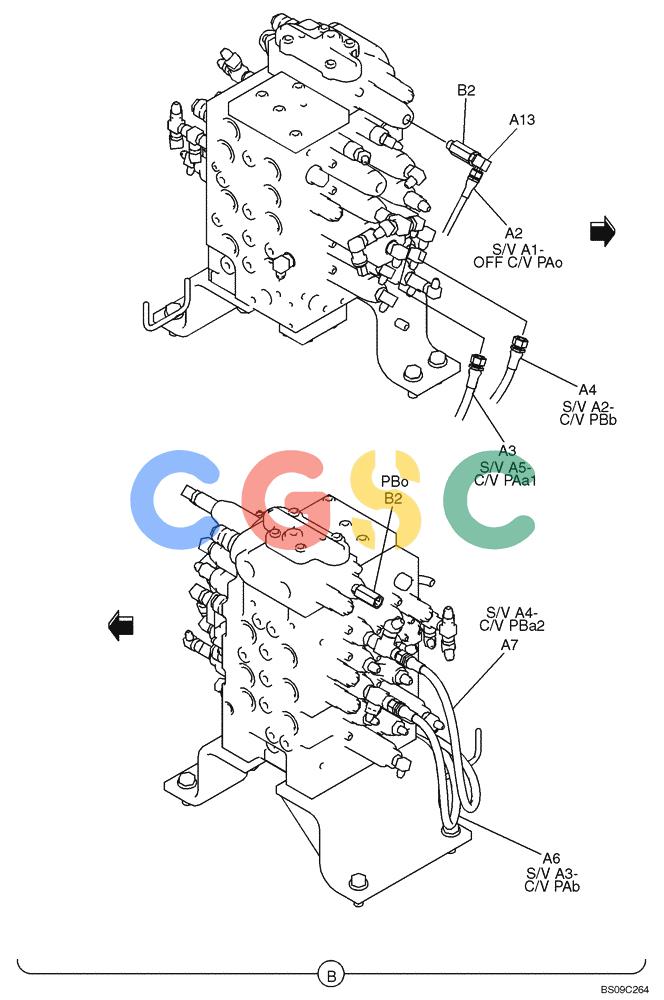

| A2. | 2420R349D084 | [1] | HYDRAULIC HOSE,6.35 mm ID x 840.00 mm, SAE 100R7 | KOBWas 2420R349D064, 640mm long (25-3/16 in) Superseded by part number: 2420R349D085 |
| A3. | ZX23M06066 | [1] | HOSE ASSY. | KOB660mm Long (25-63/64 in) -- Was 2420R537D058, 580mm Long (22-53/64 in) Superseded by part number: ZX23M06070 |
| A4. | ZX23M06070 | [1] | HOSE ASSY. | KOB700mm Long (27-1/2 in) -- Was 2420R537D066, 660mm Long (25-63/64 in) |
| A6. | 2420R537D115 | [1] | HOSE,9.53mm ID x 1150mm L | KOB |
| A7. | 2420R537D120 | [1] | HOSE ASSY.,9.60mm ID x 1200mm L | KOB1200mm Long (47-1/4 in) Superseded by part number: HX21E06120DX |
| A13. | ZH32X04006 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) |
| B2. | 2444Z3711 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
