Pos.	Part No	Qty	Parts name
1.	5R-5718	[1]	PLUG-DUST
2.	161-2560C	[1]	CAP-DUST
3.	5R-6304	[1]	COUPLER AS-QUICK DISCONNECT(FEMALE)
	3S-9233	[1]	SEAL-O-RING
		[1]	RETAINER
4.	153-2996C	[1]	FITTING AS(QUICK DISCONNECT, MALE)
5.	6V-0852	[1]	CAP-DUST
6.	7R-7954	[1]	PLATE
7.	7V-5628	[3]	PLATE(TOP)
8.	102-8703	[1]	PLATE-COVER
9.	102-8705	[2]	PLATE(TOP)
10.	106-6322	[1]	SUPPORT AS
11.	164-5586	[1]	TEE AS
	6V-8398	[1]	SEAL-O-RING
	7X-0871	[1]	TEE
12.	177-2215	[5]	STRAP-DUAL CLAMP
13.	196-4205M	[2]	BOLT-STACKING(M6X1X44-MM)
14.	200-6345	[2]	SADDLE-MOUNTING(DUAL SWIVEL)
15.	206-0451M	[1]	BOLT-STACKING(M8X1.25X44-MM)
16.	206-0452	[1]	PLATE
17.	307-8433	[1]	TUBE AS
18.	308-0468	[4]	MOUNT AS
19.	308-2125Y	[4]	MOTOR GP-GEAR
20.	310-1011	[1]	TUBE AS
21.	310-1012	[1]	TUBE AS
22.	328-3593I	[1]	HOSE AS
23.	328-3596I	[3]	HOSE AS
24.	328-3597I	[1]	HOSE AS
25.	328-3598I	[1]	HOSE AS
26.	328-3599I	[1]	HOSE AS
27.	328-3615I	[1]	HOSE AS
28.	328-3616I	[1]	HOSE AS
29.	328-3617I	[1]	HOSE AS
30.	337-9955I	[1]	HOSE AS
31.	338-0687I	[1]	HOSE AS
32.	338-0688I	[1]	HOSE AS
33.	338-0690I	[1]	HOSE AS
34.	338-0691I	[1]	HOSE AS
35.	338-0692I	[1]	HOSE AS
36.	338-0694I	[1]	HOSE AS
37.	338-9502	[1]	PLATE AS(LH)
38.	338-9588	[1]	PLATE AS(RH)
39.	360-4524I	[2]	HOSE AS
40.	360-4525I	[1]	HOSE AS
41.	360-4526I	[1]	HOSE AS
42.	360-4527I	[1]	HOSE AS
43.	148-8318	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8634	[1]	CONNECTOR
44.	148-8319	[2]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8715	[1]	CONNECTOR
45.	148-8327	[1]	CONNECTOR AS
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
46.	148-8340	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
47.	148-8358	[1]	ELBOW AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8624	[1]	ELBOW
48.	148-8361	[3]	ELBOW AS(90-DEG)
			(EACH INCLUDES)
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9200	[1]	ELBOW
49.	148-8364	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
50.	148-8366	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
	6V-8987	[1]	ELBOW
51.	148-8367	[6]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-9850	[1]	ELBOW
52.	148-8377	[3]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-8980	[1]	ELBOW
53.	148-8380	[1]	ELBOW AS
	6V-8398	[1]	SEAL-O-RING
	6V-8988	[1]	ELBOW
54.	148-8415	[2]	REDUCER AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-8936	[1]	REDUCER
55.	148-8433	[1]	TEE AS
	6V-8397	[2]	SEAL-O-RING
	6V-9836	[1]	TEE-SWIVEL
56.	148-8457	[4]	UNION AS(STRAIGHT)
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8995	[1]	UNION(STRAIGHT)
57.	153-6245	[3]	ELBOW AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	136-6811	[1]	ELBOW
58.	153-6246	[2]	TEE AS
			(EACH INCLUDES)
	6V-8397	[3]	SEAL-O-RING
	7X-0820	[1]	TEE
59.	154-4879	[2]	CLAMP-HALF
60.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
	214-7568	[1]	SEAL-O-RING
61.	164-5580	[1]	TEE AS
	6V-8398	[2]	SEAL-O-RING
	6V-9489	[1]	TEE-BULKHEAD
	6V-9746	[1]	SEAL-O-RING
62.	164-7908	[1]	ELBOW AS
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	8T-7546	[1]	ELBOW
63.	205-3692	[2]	ELBOW AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	9X-2134	[1]	ELBOW
64.	206-6411	[6]	CLAMP-HALF
65.	5C-7261M	[20]	NUT(M8X1.25-THD)
66.	6V-8397	[3]	SEAL-O-RING
67.	6V-9168	[6]	NUT(11/16-16-THD)
68.	6V-9169	[6]	NUT(13/16-16-THD)
69.	7K-1181	[5]	STRAP-CABLE
70.	7R-7908	[8]	CLAMP
71.	7X-0818M	[3]	BOLT(M8X1.25X45-MM)
72.	8C-8451M	[6]	BOLT(M6X1X40-MM)
73.	8M-2770	[1]	CLIP(LOOP)
74.	8T-4121	[10]	WASHER-HARD(11X21X2.5-MM THK)
75.	8T-4123	[6]	WASHER(3.62X5.75X0.375-MM THK)
76.	8T-4137M	[10]	BOLT(M10X1.5X20-MM)
77.	8T-4224	[45]	WASHER-HARD(8.8X16X2-MM THK)
78.	8T-7547M	[24]	BOLT(M8X1.25X30-MM)
79.	160-2251G		SLEEVE-ABRASION(43-IN)
79A.	160-2251G		SLEEVE-ABRASION(75-IN)
	C		CHANGE FROM PREVIOUS TYPE
	G		ORDER BY THE INCH
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

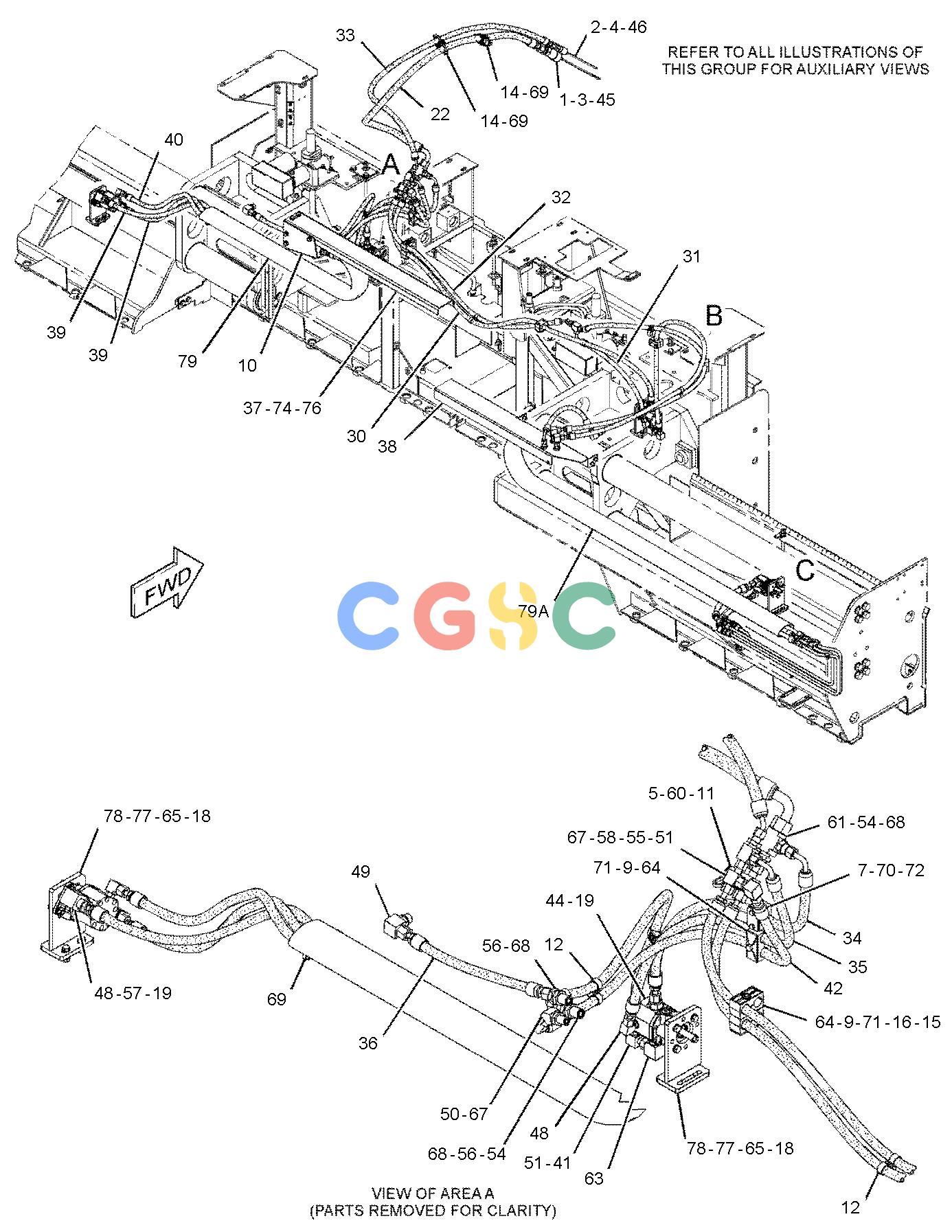

卡特零件查询（BG1055E） 328-3601: LINES GP-VIBRATORY
