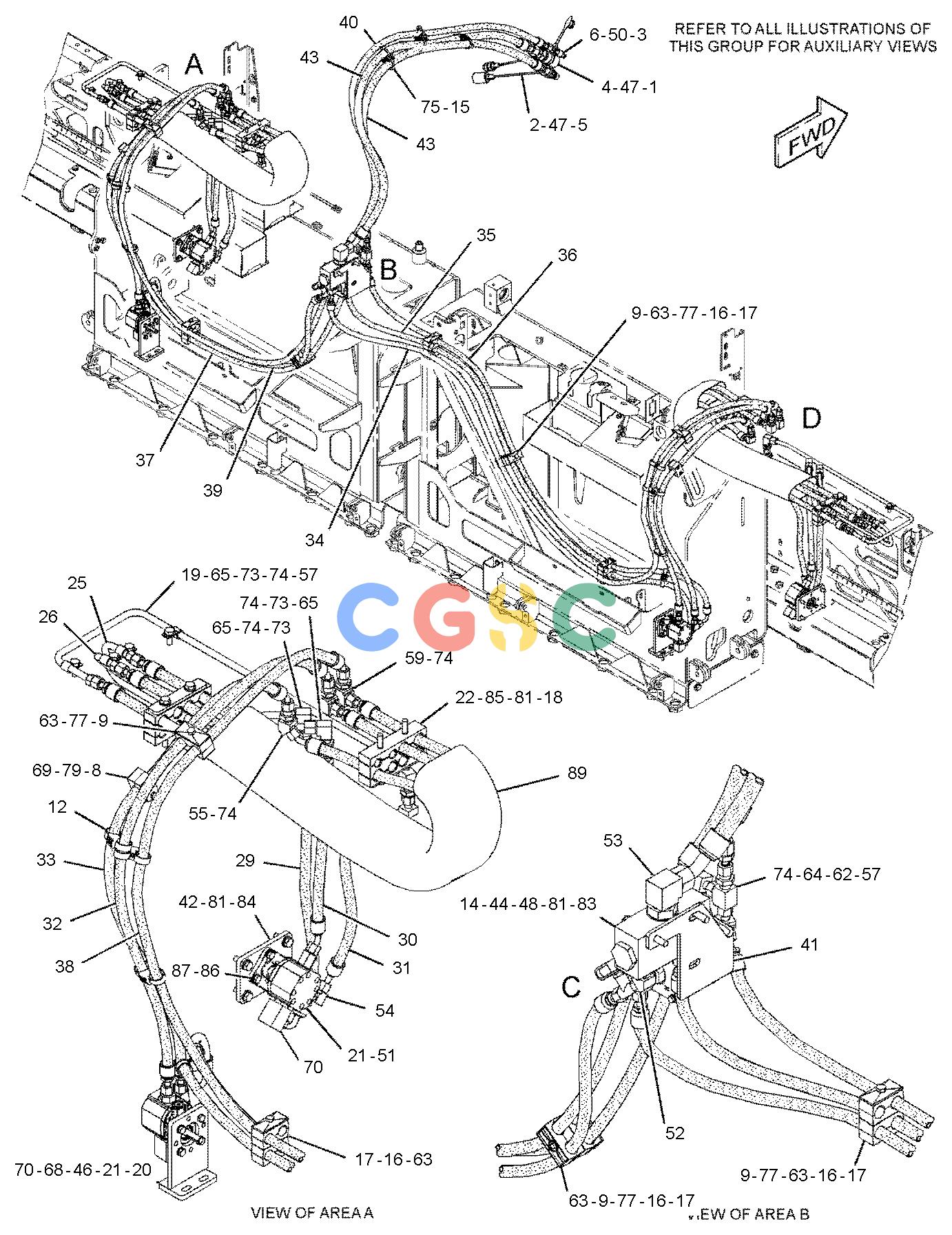

卡特零件查询（BG1055E） 328-3517: LINES GP-VIBRATORY

作者：广数供应链运营团队
浏览数：
时间：2025-01-25 04:03:59
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos.Part NoQtyParts nameComments
1. 5R-5718 [1]PLUG-DUST
2. 5R-5719 [1]CAP-DUST
3. 161-2560C[1]CAP-DUST
4. 5R-6304 [1]COUPLER AS-QUICK DISCONNECT(FEMALE)
3S-9233 [1]SEAL-O-RING
[1]RETAINER
5. 5R-6305 [1]COUPLER AS-QUICK DISCONNECT(MALE)
6. 153-2996C[1]FITTING AS(QUICK DISCONNECT, MALE)
7. 6V-0852 [1]CAP-DUST
8. 7V-5628 [2]PLATE(TOP)
9. 102-8705 [6]PLATE(TOP)
10. 107-0003 [1]MANIFOLD
11. 148-8424 [1]TEE AS
6V-8397 [1]SEAL-O-RING
8T-8902 [1]ADAPTER-TEE
12. 177-2215B[9]STRAP-DUAL CLAMP
13. 183-3403 [1]ELBOW AS
214-7568 [1]SEAL-O-RING
6V-8724 [1]ELBOW
8L-2779 [1]SEAL-O-RING
14. 197-5273 [1]VALVE GP-FLOW DIVIDER(VIBRATORY)
15. 200-6345 [3]SADDLE-MOUNTING(DUAL SWIVEL)
16. 206-0451M[6]BOLT-STACKING(M8X1.25X44-MM)
17. 206-0452 [6]PLATE
18. 289-8491 [4]PLATE
19. 307-8413 [2]TUBE AS
20. 308-0468 [2]MOUNT AS
21. 308-2125Y[4]MOTOR GP-GEAR(VIBRATORY)
22. 308-5823 [4]CLAMP AS
23. 309-0932 [1]TUBE AS
24. 309-0934 [1]TUBE AS
25. 309-1584 [1]TUBE AS
26. 309-1616 [1]TUBE AS
27. 338-9290I[4]HOSE AS
28. 338-9291I[2]HOSE AS
29. 338-9292I[2]HOSE AS
30. 338-9293I[2]HOSE AS
31. 338-9294I[2]HOSE AS
32. 338-9295I[2]HOSE AS
33. 338-9296I[2]HOSE AS
34. 338-9297I[1]HOSE AS
35. 338-9298I[1]HOSE AS
36. 338-9299I[1]HOSE AS
37. 338-9300I[1]HOSE AS
38. 338-9499I[1]HOSE AS
39. 338-9500I[1]HOSE AS
40. 338-9501I[1]HOSE AS
41. 338-9507 [1]BRACKET
42. 341-8399 [2]PLATE
43. 346-1987I[2]HOSE AS
44. 148-8309 [3]ADAPTER AS
(EACH INCLUDES)
2P-8421 [1]ADAPTER-O-RING
3D-2824 [1]SEAL-O-RING
45. 148-8318 [1]CONNECTOR AS
3K-0360 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8634 [1]CONNECTOR
46. 148-8319 [2]CONNECTOR AS
(EACH INCLUDES)
2M-9780 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8715 [1]CONNECTOR
47. 148-8327 [2]CONNECTOR AS
(EACH INCLUDES)
3D-2824 [1]SEAL-O-RING
6V-8637 [1]CONNECTOR
6V-9746 [1]SEAL-O-RING
48. 148-8336 [1]CONNECTOR AS
3J-1907 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8636 [1]CONNECTOR
49. 148-8339 [1]CONNECTOR AS
6V-8716 [1]CONNECTOR(STRAIGHT)
6V-9746 [1]SEAL-O-RING
7M-8485 [1]SEAL-O-RING
50. 148-8340 [1]CONNECTOR AS
3K-0360 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
6V-8639 [1]CONNECTOR
51. 148-8343 [2]CONNECTOR AS
(EACH INCLUDES)
2M-9780 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
9X-6550 [1]CONNECTOR
52. 148-8353 [1]ELBOW AS
3J-1907 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-9001 [1]ELBOW
53. 148-8360 [1]ELBOW AS
6V-9182 [1]ELBOW
6V-9746 [1]SEAL-O-RING
7M-8485 [1]SEAL-O-RING
54. 148-8361 [2]ELBOW AS(90-DEG)
(EACH INCLUDES)
3J-7354 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-9200 [1]ELBOW
55. 148-8366 [2]ELBOW AS
(EACH INCLUDES)
6V-8397 [1]SEAL-O-RING
6V-8987 [1]ELBOW
56. 148-8367 [1]ELBOW AS
6V-8397 [1]SEAL-O-RING
6V-9850 [1]ELBOW
57. 148-8371 [3]ELBOW AS
(EACH INCLUDES)
6V-8397 [1]SEAL-O-RING
8C-8988 [1]ELBOW
58. 148-8374 [1]ELBOW AS
3K-0360 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8723 [1]ELBOW
59. 148-8377 [4]ELBOW AS
(EACH INCLUDES)
6V-8397 [1]SEAL-O-RING
6V-8980 [1]ELBOW
60. [1]PLUG AS
3D-2824 [1]SEAL-O-RING
9S-4183 [1]PLUG(1-1/16-12-THD)
61. 148-8411 [2]PLUG AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
9S-4185 [1]PLUG(3/4-16-THD)
62. 153-6246 [1]TEE AS
6V-8397 [3]SEAL-O-RING
7X-0820 [1]TEE
63. 154-6583 [24]CLAMP-HALF
64. 155-3502 [1]ADAPTER AS
3E-7403 [1]ADAPTER
6V-8398 [1]SEAL-O-RING
65. 162-3052 [6]ELBOW AS
(EACH INCLUDES)
6V-8397 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
8T-0130 [1]ELBOW
66. 164-5567 [1]COUPLER AS-QUICK DISCONNECT(MALE)
6V-3965 [1]FITTING(QUICK DISCONNECT)
214-7568 [1]SEAL-O-RING
67. 164-5616 [1]PLUG AS
2S-4078 [1]SEAL-O-RING
9S-6130 [1]PLUG
68. 173-7225 [2]TEE AS
(EACH INCLUDES)
3J-7354 [1]SEAL-O-RING
6V-8397 [2]SEAL-O-RING
6V-9161 [1]TEE
69. 1G-9959 [4]CLAMP
70. 205-3692 [4]ELBOW AS
(EACH INCLUDES)
2M-9780 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
9X-2134 [1]ELBOW
71. 5C-2890BM[3]NUT(M6X1-THD)
72. 5C-7261M[8]NUT(M8X1.25-THD)
73. 6V-8397 [6]SEAL-O-RING
74. 6V-9168 [13]NUT(11/16-16-THD)
75. 7K-1181 [6]STRAP-CABLE
76. 7X-0465M[2]BOLT(M6X1X100-MM)
77. 7X-0818M[6]BOLT(M8X1.25X45-MM)
78. 7X-2537M[12]BOLT(M8X1.25X35-MM)
79. 8C-8451M[4]BOLT(M6X1X40-MM)
80. 8M-2770 [8]CLIP(LOOP)
81. 8T-4121 [26]WASHER-HARD(11X21X2.5-MM THK)
82. 8T-4136M[8]BOLT(M10X1.5X25-MM)
83. 8T-4172M[2]BOLT(M10X1.5X80-MM)
84. 8T-4195M[8]BOLT(M10X1.5X30-MM)
85. 8T-4178BM[8]BOLT(M10X1.5X90-MM)
86. 8T-4200M[8]BOLT(M8X1.25X16-MM)
87. 8T-4224 [28]WASHER-HARD(8.8X16X2-MM THK)
88. 9X-8256B[5]WASHER(6.6X12X2-MM THK)
89. 160-2252G SLEEVE-ABRASION(31.5-IN EACH)
B USE AS REQUIRED
C CHANGE FROM PREVIOUS TYPE
G ORDER BY THE INCH
I REFER TO HYDRAULIC INFORMATION SYSTEM
M METRIC PART
Y SEPARATE ILLUSTRATION
