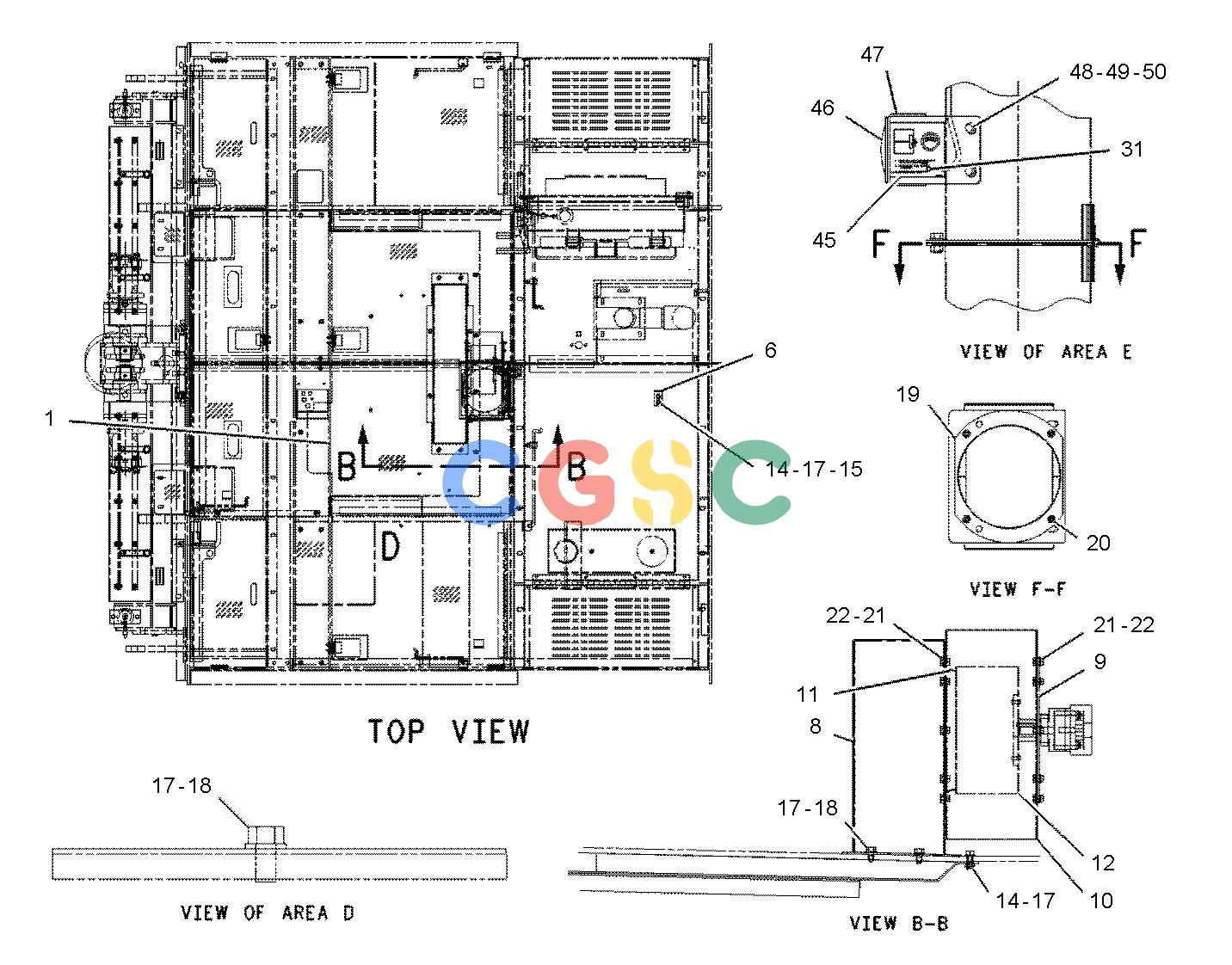

| 1. | 147-0661 | [1] | PANEL AS | |
| 2. | 147-6557 | [2] | FRAME AS | |
| 3. | 147-6563 | [2] | DUCT AS | |
| | | | (EACH INCLUDES) |
| | 1F-0750 | [8] | NUT-WELD(3/8-16-THD) | |
| 4. | 147-6558 | [2] | COVER | |
| 5. | 169-1517 | [1] | STACK AS-PAVER VENTILATION | |
| | 6H-2867 | [1] | HINGE | |
| 6. | 147-9691 | [1] | PLATE | |
| 7. | 7X-7877BE | | STRIP-EDGE | |
| 8. | 147-5394 | [1] | DUCT AS | |
| 9. | 147-5457 | [1] | PLATE | |
| 10. | 147-8904 | [1] | HOUSING AS-BLOWER | |
| 11. | 143-3500 | [1] | INLET-BLOWER | |
| 12. | 147-6956 | [1] | BLOWER GP-PAVER VENTILATION | |
| | 3B-8601 | [2] | SETSCREW-SOCKET(3/8-16X0.5-IN) | |
| 13. | 146-8992 | [1] | ANGLE | |
| 14. | 4L-6454 | [8] | BOLT(3/8-16X1-IN) | |
| 15. | 6V-8801 | [26] | NUT(3/8-16-THD) | |
| 16. | 8T-4896C | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 17. | 5P-1075 | [54] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 18. | 5M-3062 | [22] | BOLT(3/8-16X0.75-IN) | |
| 19. | 2M-5139 | [4] | SCREW-MACHINE(1/4-20X0.25-IN) | |
| 20. | 169-1511 | [1] | SCREEN | |
| 21. | 8T-9364C | [18] | BOLT(1/4-20X0.625-IN) | |
| 22. | 8T-4205C | [18] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 23. | 9B-7237 | [2] | BOLT(3/8-16X1.25-IN) | |
| 24. | 8M-2771C | [2] | CLIP | |
| 25. | 3J-7354 | [1] | SEAL-O-RING | |
| 26. | 6V-8647 | [1] | CONNECTOR | |
| 27. | 156-7026Y | [1] | MOTOR GP-GEAR | |
| 28. | 147-4551 | [1] | VALVE-FLOW CONTROL | |
| 29. | 6V-9873 | [4] | CONNECTOR | |
| 30. | 8T-0249 | [1] | ELBOW(SWIVEL) | |
| 31. | 154-7194CE | | HOSE(4CM) | |
| 32. | 148-0805I | [1] | HOSE AS | |
| 33. | 152-6124I | [1] | HOSE AS | |
| 34. | 6V-8935 | [1] | REDUCER | |
| 35. | 6V-8554 | [1] | NUT(13/16-16-THD) | |
| 36. | 3J-1907 | [4] | SEAL-O-RING | |
| 37. | 3K-0360 | [3] | SEAL-O-RING | |
| 38. | 6V-8398 | [7] | SEAL-O-RING | |
| 39. | 102-2739 | [1] | KEY-SQUARE | |
| 40. | 6V-8918 | [4] | BOLT(5/16-18X1.25-IN) | |
| 41. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 42. | 6V-8189 | [4] | NUT(5/16-18-THD) | |
| 43. | 4J-5477 | [2] | SEAL-O-RING | |
| 44. | 4L-9337 | [20] | BOLT(3/8-16X1.5-IN) | |
| 45. | 151-2726 | [1] | FILM-INSTRUCTION(VENTILATION) | |
| 46. | 150-8702 | [1] | GAUGE-DIFFERENTIAL PRESSURE | |
| 47. | 150-8703 | [1] | BRACKET-GAUGE | |
| 48. | 2D-6235C | [6] | LOCKNUT(1/4-20-THD) | |
| 49. | 4B-4274 | [4] | WASHER(5.5X13X1.2-MM THK) | |
| 50. | 8T-8908 | [4] | BOLT(1/4-20X1-IN) | |
| 51. | 149-0195 | [1] | VALVE-SHUTOFF | |
| 52. | 8T-0252 | [1] | ELBOW | |
| 53. | 6V-8722 | [1] | ELBOW | |
| 54. | 7J-9108 | [1] | SEAL-O-RING | |
| 55. | 1C-7657I | [1] | HOSE AS | |
| 56. | 6V-9837 | [1] | TEE-SWIVEL | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
