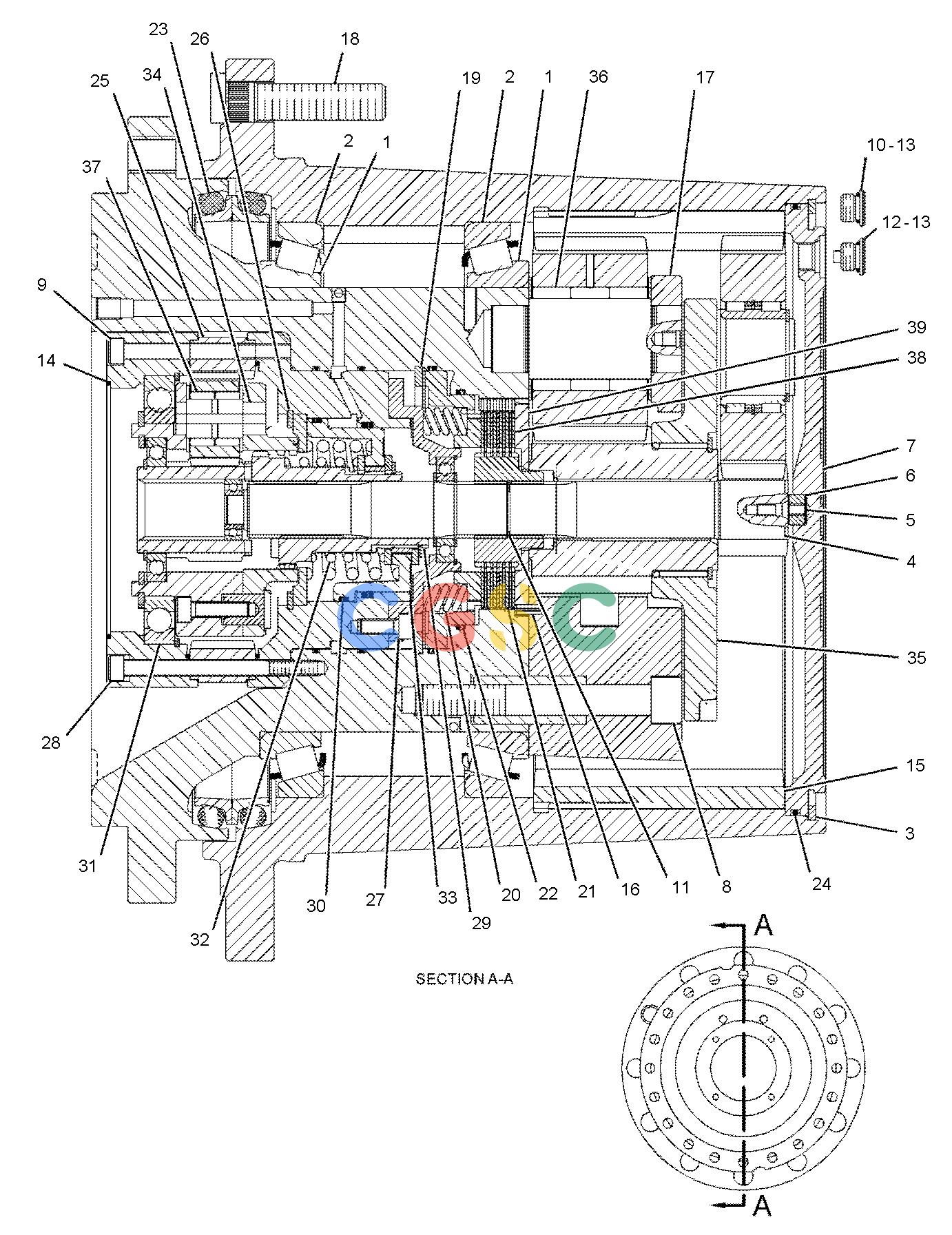

| 1. | 151-3084 | [2] | CONE | |
| 2. | 151-3085 | [2] | CUP | |
| 3. | 241-0163 | [1] | RING-RETAINING | |
| 4. | 240-9113 | [1] | GEAR-SUN | |
| 5. | 191-4441 | [1] | KIT-SHIM(INCLUDES 3-SHIMS) | |
| | | | (INLUDES SHIMS) |
| 6. | 191-2287 | [1] | PAD | |
| 7. | 240-9112 | [1] | COVER | |
| 8. | 095-0707M | [4] | BOLT(M16X2X120-MM) | |
| 9. | 8T-4776M | [8] | BOLT-SOCKET HEAD(M8X1.25X100-MM) | |
| 10. | 9S-8004 | [3] | PLUG(9/16-18-THD) | |
| 11. | 8C-3312 | [1] | RING-RETAINING | |
| 12. | 235-3610 | [1] | PLUG-MAGNETIC | |
| 13. | 3J-1907 | [4] | SEAL-O-RING | |
| 14. | 7J-6285 | [1] | SEAL-O-RING | |
| 15. | 243-0716 | [1] | GEAR-RING(69-TEETH) | |
| 16. | 243-5389 | [4] | PIN-SPRING | |
| 17. | 268-8204 | [1] | KIT-PLANETARY CARRIER(THIRD STAGE) | |
| | | | (INCLUDES WASHERS, GEAR SHAFTS, GEARS, CARRIER & BEARINGS) |
| 18. | 244-5890 | [12] | STUD-WHEEL | |
| 19. | 8C-3113 | [1] | RING-RETAINING | |
| 20. | 151-7494 | [16] | SPRING | |
| 21. | 240-5321 | [1] | KIT-BRAKE DISC | |
| | | | (INCLUDES DISK BRAKES) |
| 22. | 240-5322 | [1] | KIT-SEAL(BRAKE) | |
| | | | (INCLUDES RINGS & SEALS) |
| 23. | 243-0954 | [1] | SEAL GP-DUO-CONE | |
| 24. | 2D-6533 | [1] | SEAL-O-RING | |
| 25. | 244-6453 | [1] | GEAR GP-PLANETARY(SHIFTER) | |
| | | | (INCLUDES RING WHEEL, PISTON HOUSING, END PLATE, BUSHING, SNAP RING, FLANGES, PISTON, WASHERS, COUPLING, SUN GEAR, |
| | | | CONNECTION SHAFT & BOLTS) |
| 26. | 6V-5203 | [1] | RING-RETAINING | |
| 27. | 8T-1158M | [4] | BOLT-SOCKET HEAD(M8X1.25X20-MM) | |
| 28. | 6V-5196M | [2] | BOLT-SOCKET HEAD(M8X1.25X80-MM) | |
| 29. | 240-5324 | [1] | KIT-RETAINING RING(SHIFTER, BEARING) | |
| | | | (INCLUDES RINGS) |
| 30. | 240-5325 | [1] | KIT-SEAL(SHIFTER) | |
| | | | (INCLUDES RINGS & SEALS) |
| 31. | 240-5326 | [1] | KIT-BEARING(SHIFTER) | |
| | | | (INCLUDES BEARINGS) |
| 32. | 240-5327 | [1] | KIT-SPRING(SHIFTER) | |
| | | | (INCLUDES SPRINGS) |
| 33. | 240-5328 | [1] | KIT-SHIM(SHIFTER) | |
| | | | (INCLUDES SHIMS) |
| 34. | 244-6554 | [1] | KIT-PLANETARY CARRIER(FIRST STAGE) | |
| | | | (INCLUDES WASHERS, GEAR SHAFTS, GEARS, CARRIERS, DOWEL PINS, BOLTS & BEARINGS) |
| 35. | 244-6559 | [1] | KIT-PLANETARY CARRIER(SECOND STAGE) | |
| | | | (INCLUDES CARRIER, GEARS, SNAP RINGS, SUN GEAR, & BEARINGS) |
| 36. | 151-7513 | [300] | NEEDLE | |
| 37. | 176-9289 | [114] | BEARING AS-NEEDLE | |
| 38. | 251-9614 | [1] | KIT-SHIM(PARKING BRAKE) | |
| | | | (INCLUDES SHIMS) |
| 39. | 280-9800 | [1] | PLATE-BRAKE | |
| | M | | METRIC PART |
