Pos.	Part No	Qty	Parts name
2.	194-4779Y	[2]	MOTOR GP-PISTON(PROPEL)
3.	201-7363Y	[1]	PUMP GP-PISTON(PROPEL)
4.	133-9866	[2]	PLATE
5.	7X-5312Y	[2]	FILTER GP-OIL(HYDRAULIC)
6.	116-7215	[1]	PLATE
7.	5M-3062	[16]	BOLT(3/8-16X0.75-IN)
8.	8T-4896	[9]	WASHER-HARD(10.2X18.5X2.5-MM THK)
9.	030-7573	[2]	BOLT(3/8-16X1.5-IN)
10.	148-8381	[6]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-5429	[1]	ELBOW
13.	111-6939I	[1]	HOSE AS
14.	118-0388I	[1]	HOSE AS
15.	5G-8317I	[1]	HOSE AS
16.	118-0387I	[1]	HOSE AS
19.	4M-6424	[1]	BOLT(5/16-18X3-IN)
21.	117-9655I	[1]	HOSE AS
22.		[1]	PLUG AS
	3D-2824	[1]	SEAL-O-RING
	9S-4183	[1]	PLUG(1-1/16-12-THD)
23.	117-9657I	[1]	HOSE AS
24.	117-9658I	[1]	HOSE AS
25.	117-9659I	[1]	HOSE AS
26.	117-9660I	[1]	HOSE AS
27.	210-2041	[8]	FITTING AS
			(EACH INCLUDES)
	5K-9090	[1]	SEAL-O-RING
	7X-9733	[1]	FITTING
28.	5E-8841	[16]	FLANGE-SPLIT
29.	4F-7391	[8]	SEAL-O-RING
30.	8T-5360	[32]	WASHER(12X22.5X2.5-MM THK)
31.	8C-6877	[32]	BOLT(7/16-14X1.75-IN)
33.	219-9654	[2]	CONNECTOR AS
			(EACH INCLUDES)
	6K-6307	[1]	SEAL-O-RING
	6V-8400	[1]	SEAL-O-RING
	109-3657	[1]	CONNECTOR
34.	164-4058	[2]	REDUCER AS
			(EACH INCLUDES)
	5K-9090	[1]	SEAL-O-RING
	6V-8948	[1]	REDUCER
37.	9B-7237	[1]	BOLT(3/8-16X1.25-IN)
40.	8V-0408	[6]	CLAMP
41.	7V-6234	[3]	PLATE
42.	5P-2955	[2]	BOLT(5/16-18X2.5-IN)
43.	7R-7940	[2]	CLAMP
44.	7R-7951	[1]	PLATE
45.	7X-0264	[2]	BOLT(1/4-20X2.5-IN)
46.	155-2026	[2]	UNION AS
			(EACH INCLUDES)
	5K-9090	[2]	SEAL-O-RING
	6V-8998	[1]	UNION
47.	6V-9172	[2]	NUT(1-7/16-12-THD)
48.	8T-8917	[4]	BOLT(1/2-13X1.25-IN)
49.	8T-4223	[12]	WASHER-HARD(13.5X25.5X3-MM THK)
51.	208-0027I	[1]	HOSE AS
52.		[1]	UNION AS
	6V-8398	[2]	SEAL-O-RING
	208-2859	[1]	UNION
53.	6V-9169	[1]	NUT(13/16-16-THD)
55.	118-0669I	[1]	HOSE AS
56.	118-0666I	[1]	HOSE AS
57.	118-0667I	[1]	HOSE AS
58.	6V-8801	[3]	NUT(3/8-16-THD)
59.	1S-0994	[2]	CLIP(LOOP)
60.	5S-7379	[4]	BOLT(3/8-16X0.875-IN)
61.	8V-5718	[2]	CLAMP
62.	4V-0612	[1]	PLATE
63.	7X-0440	[1]	BOLT(5/16-18X1.75-IN)
65.	148-8347	[2]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
66.	158-5052	[4]	CLAMP-HALF
67.	148-8352	[1]	ELBOW AS
	5K-9090	[1]	SEAL-O-RING
	6V-9854	[1]	ELBOW(SWIVEL)
69.	031-4392	[1]	SEAL-O-RING
70.	8T-8919	[8]	BOLT(1/2-13X1.75-IN)
71.	8S-0948	[2]	CLIP
72.	126-5519I	[1]	HOSE AS
73.	112-3344I	[1]	HOSE AS
74.	148-8364	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
76.	148-8395	[2]	PLUG AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	9S-8005	[1]	PLUG(3/4-16-THD)
77.	7J-6285	[2]	SEAL-O-RING
78.	118-0476	[2]	COVER
79.	118-0477	[2]	COVER
80.	164-5567	[8]	COUPLER AS-QUICK DISCONNECT(MALE)
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
81.	6V-0852	[8]	CAP-DUST
82.	148-8340	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
83.	8T-4205	[3]	WASHER-HARD(7.2X14.5X2-MM THK)
84.	4T-8338	[2]	PLATE
85.	8T-9101	[8]	BOLT(3/8-16X2.75-IN)
89.	128-2482Y	[1]	FILTER GP-OIL(HYDRAULIC, CASE DRAIN)
90.	4M-5281	[3]	BOLT(1/4-20X0.75-IN)
91.	153-6237	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9004	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
92.	128-2483I	[1]	HOSE AS
93.	086-8656	[2]	NUT
94.	170-1822	[1]	PLATE-COVER
95.	2T-2559	[4]	CLAMP
96.	6V-8185	[1]	NUT(1/4-20-THD)
99.	6V-4369	[1]	CLIP
100.	148-8323	[2]	CONNECTOR AS
			(EACH INCLUDES)
	2S-4078	[1]	SEAL-O-RING
	5K-9090	[1]	SEAL-O-RING
	6V-9875	[1]	CONNECTOR
102.	148-8345	[4]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8638	[1]	CONNECTOR
104.	164-5586	[3]	TEE AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	7X-0871	[1]	TEE
105.	148-8357	[1]	ELBOW AS
	5K-9090	[1]	SEAL-O-RING
	6V-9008	[1]	ELBOW
	7M-8485	[1]	SEAL-O-RING
106.	5P-1075	[14]	WASHER-HARD(10.2X22.5X3-MM THK)
107.	9X-2332	[2]	CLIP
108.	191-2934	[4]	CLAMP-HALF
109.	7V-5628	[2]	PLATE
110.	4M-5282	[4]	BOLT(1/4-20X1.5-IN)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

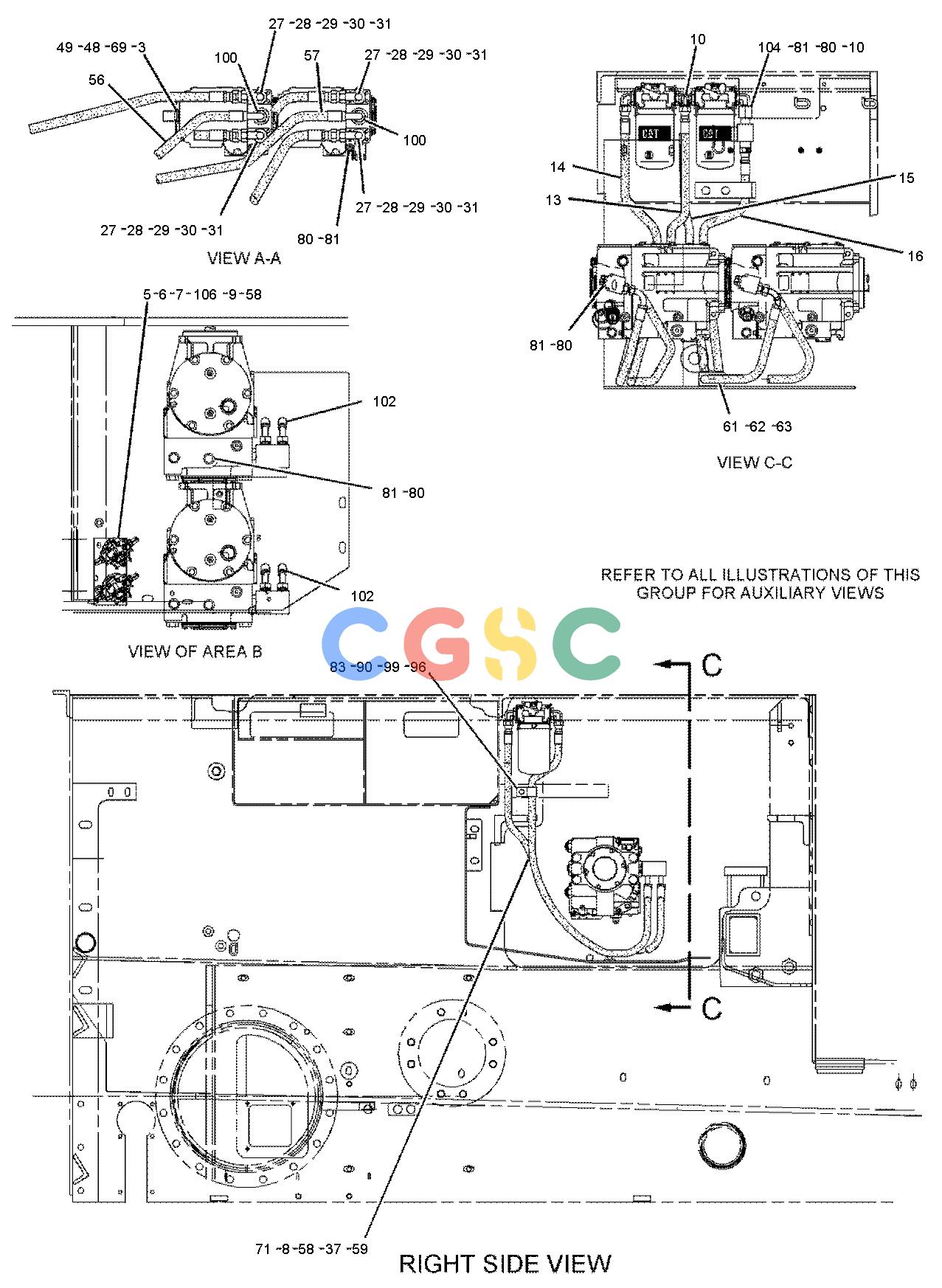

卡特零件查询（AP-1055B） 239-6853: LINES GP-PROPEL
