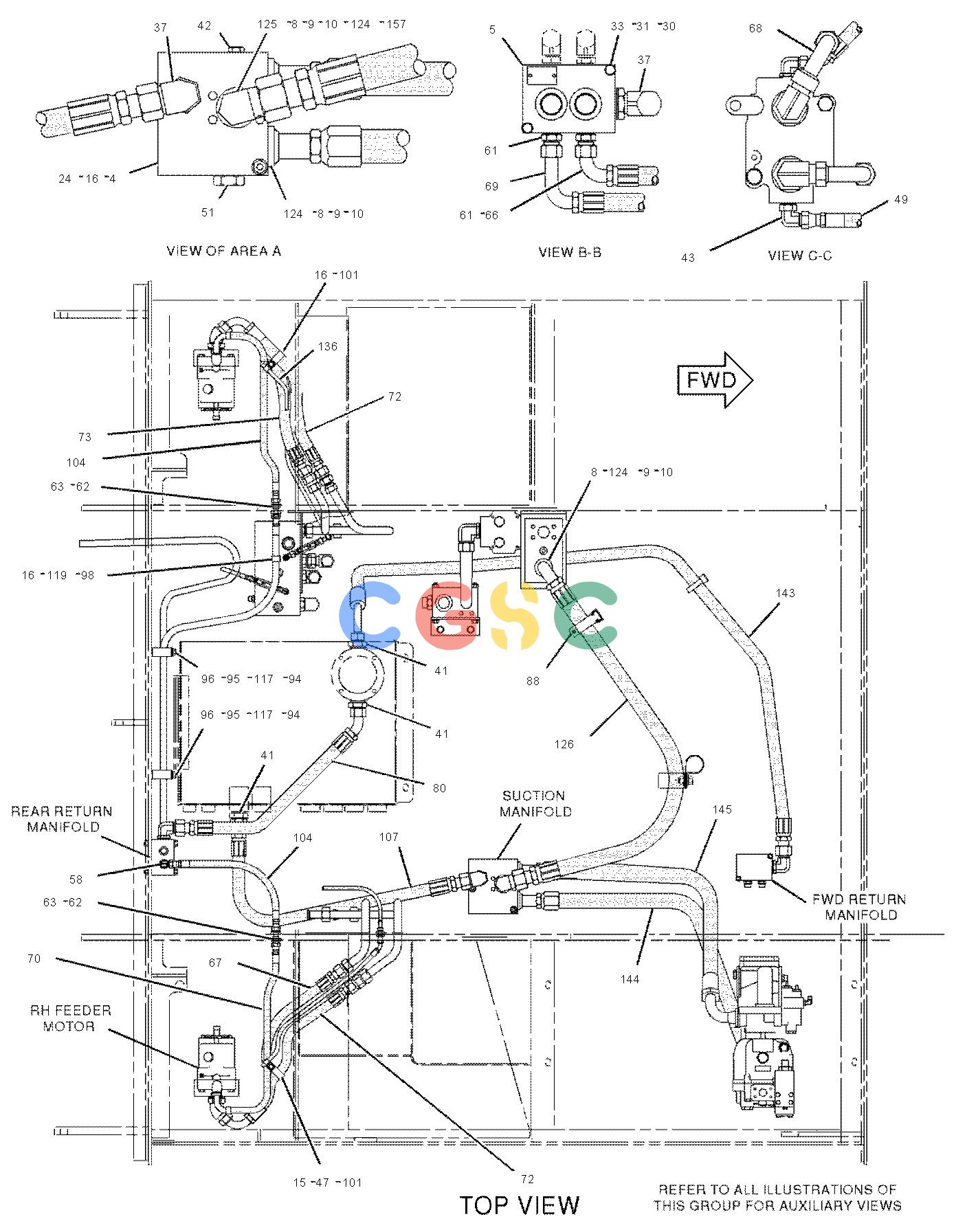

卡特零件查询（AP-1000B） 227-8948: LINES GP-CONVEYOR

作者：广数供应链运营团队
浏览数：
时间：2025-01-24 20:46:07
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos.Part NoQtyParts nameComments
1. 216-7961Y[2]VALVE GP-CONTROL(DRAG CONVEYOR, AUGER CONVEYOR)
2. 177-0264Y[1]FILTER GP-OIL
3. 107-0099 [1]MANIFOLD(FILTER RETURN)
4. 107-0002Y[1]MANIFOLD GP-SUCTION
5. 107-0003 [2]MANIFOLD
6. 127-5438 [1]TUBE AS
7. 128-5996 [1]TUBE AS
8. 1P-4579 [12]FLANGE-HALF
9. 0S-1587 [32]BOLT(1/2-13X1.75-IN)
10. 5P-8245 [32]WASHER-HARD(13.5X25.5X3-MM THK)
11. 190-8351 [2]BRACKET AS
12. 127-5436 [1]PLATE
13. 5C-6565 [10]BOLT(1/2-13X1.125-IN)
14. 8T-4223 [26]WASHER-HARD(13.5X25.5X3-MM THK)
15. 5S-7379 [18]BOLT(3/8-16X0.875-IN)
16. 8T-4896 [31]WASHER-HARD(10.2X18.5X2.5-MM THK)
17. 154-6613Y[1]PUMP GP-PISTON(DRAG CONVEYOR, AUGER CONVEYOR)
18. 154-6612Y[1]PUMP GP-PISTON(DRAG CONVEYOR, AUGER CONVEYOR)
19. 132-2453 [4]UNION
20. 223-0581Y[4]MOTOR GP-PISTON
21. 6V-1320 [4]SEAL-O-RING
22. 5P-2566 [16]BOLT(1/2-13X1.5-IN)
23. 107-9126 [1]PLATE
24. 7X-0294 [2]BOLT(3/8-16X5-IN)
25. 6V-8801 [6]NUT(3/8-16-THD)
26. 8I-0960 [1]COUPLING
27. 4L-6454 [3]BOLT(3/8-16X1-IN)
28. 127-5435Y[1]MANIFOLD GP-COOLING
29. 127-5437 [1]PLATE
30. 6V-8185 [6]NUT(1/4-20-THD)
31. 8T-4205 [12]WASHER-HARD(7.2X14.5X2-MM THK)
32. 7X-0268 [6]BOLT(1/4-20X3.5-IN)
33. 8C-3793 [2]BOLT(1/4-20X3.75-IN)
34. 204-9815 [2]ELBOW AS
(EACH INCLUDES)
6K-6307 [1]SEAL-O-RING
8T-0315 [1]SEAL-O-RING
8T-1682 [1]ELBOW
35. 5P-1075 [2]WASHER-HARD(10.2X22.5X3-MM THK)
36. 5P-4116 [3]WASHER-HARD(8.8X20.5X2-MM THK)
37. 148-8356 [3]ELBOW AS
(EACH INCLUDES)
2S-4078 [1]SEAL-O-RING
6V-8400 [1]SEAL-O-RING
6V-9009 [1]ELBOW
38. 7X-0293 [2]BOLT(3/8-16X4.75-IN)
39. 9M-8406 [1]CLIP(LOOP)
40. 7J-6285 [1]SEAL-O-RING
41. 219-9654 [3]CONNECTOR AS
(EACH INCLUDES)
6K-6307 [1]SEAL-O-RING
6V-8400 [1]SEAL-O-RING
109-3657 [1]CONNECTOR
42. 155-3624 [2]PLUG AS
(EACH INCLUDES)
3J-7354 [1]SEAL-O-RING
9S-4182 [1]PLUG(7/16-20-THD)
43. 148-8362 [4]ELBOW AS
(EACH INCLUDES)
3D-2824 [1]SEAL-O-RING
5K-9090 [1]SEAL-O-RING
8T-6684 [1]ELBOW
44. 6V-3966 [1]FITTING AS(VALVED)
45. 4J-0520 [2]SEAL-O-RING
46. 148-8424 [1]TEE AS
6V-8397 [1]SEAL-O-RING
8T-8902 [1]ADAPTER-TEE
47. 178-3620 [1]STRAP-DUAL CLAMP
48. 188-2008 [4]ELBOW AS
(EACH INCLUDES)
3D-2824 [1]SEAL-O-RING
5K-9090 [1]SEAL-O-RING
8T-7970 [1]ELBOW
49. 148-8372 [4]ELBOW AS
(EACH INCLUDES)
2M-9780 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
6V-8721 [1]ELBOW
50. 122-9033I[1]HOSE AS
51. 164-5616 [2]PLUG AS
(EACH INCLUDES)
2S-4078 [1]SEAL-O-RING
9S-6130 [1]PLUG
52. 148-8391 [2]ELBOW AS
(EACH INCLUDES)
2S-4078 [1]SEAL-O-RING
5K-9090 [1]SEAL-O-RING
8T-8987 [1]ELBOW
53. 148-8352 [2]ELBOW AS
(EACH INCLUDES)
5K-9090 [1]SEAL-O-RING
6V-9854 [1]ELBOW(SWIVEL)
54. 148-8335 [6]CONNECTOR AS
(EACH INCLUDES)
5K-9090 [1]SEAL-O-RING
6V-8635 [1]CONNECTOR
7M-8485 [1]SEAL-O-RING
55. 148-8429 [2]TEE AS
(EACH INCLUDES)
5K-9090 [2]SEAL-O-RING
6V-9840 [1]TEE-SWIVEL
56. 148-8423 [1]TEE AS
3J-1907 [1]SEAL-O-RING
4J-5477 [1]SEAL-O-RING
8T-3311 [1]TEE
57. 148-8355 [2]ELBOW AS
(EACH INCLUDES)
5K-9090 [1]SEAL-O-RING
6V-9005 [1]ELBOW
7M-8485 [1]SEAL-O-RING
58. 148-8364 [1]ELBOW AS
3K-0360 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
6V-8625 [1]ELBOW
59. 148-8368 [1]ELBOW AS
3J-1907 [1]SEAL-O-RING
4J-5477 [1]SEAL-O-RING
6V-8627 [1]ELBOW
60. 148-8411 [3]PLUG AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
9S-4185 [1]PLUG(3/4-16-THD)
61. 148-8340 [6]CONNECTOR AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
6V-8639 [1]CONNECTOR
62. 148-8457 [2]UNION AS(STRAIGHT)(ORFS)
(EACH INCLUDES)
6V-8398 [2]SEAL-O-RING
6V-8995 [1]UNION(STRAIGHT)
63. 6V-9169 [2]NUT(13/16-16-THD)
64. 148-8328 [1]CONNECTOR AS
3D-2824 [1]SEAL-O-RING
6V-8398 [1]SEAL-O-RING
6V-8633 [1]CONNECTOR
65. 8M-2773 [1]CLIP(LOOP)
66. 111-4171I[1]HOSE AS
67. 229-5393I[1]HOSE AS
68. 205-3692 [4]ELBOW AS
(EACH INCLUDES)
2M-9780 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
9X-2134 [1]ELBOW
69. 4E-9280I[1]HOSE AS
70. 128-0282I[1]HOSE AS
71. 148-8353 [1]ELBOW AS
3J-1907 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-9001 [1]ELBOW
72. 111-4176I[2]HOSE AS
73. 111-4178I[1]HOSE AS
74. 145-1039I[1]HOSE AS
75. 173-7034I[1]HOSE AS
76. 144-2893I[1]HOSE AS
77. 107-8260I[1]HOSE AS
78. 130-5834I[1]HOSE AS
79. 140-8389I[1]HOSE AS
80. 111-4647I[1]HOSE AS
81. 130-6620I[1]HOSE AS
82. 130-5835I[1]HOSE AS
83. 111-4454I[1]HOSE AS
84. 150-4050 [4]ELBOW AS
(EACH INCLUDES)
3J-1907 [1]SEAL-O-RING
8T-0788 [1]ELBOW
85. 148-8337 [4]CONNECTOR AS
(EACH INCLUDES)
4J-5477 [1]SEAL-O-RING
8C-6866 [1]CONNECTOR
86. 121-0379I[2]HOSE AS
87. 111-4450I[1]HOSE AS
88. 150-9556 [1]CLAMP AS
89. 067-2551 [2]CLIP
90. 4S-1936 [2]CLIP
91. 5V-6152 [4]CLAMP
92. 7R-7951 [2]PLATE
93. 7X-0264 [4]BOLT(1/4-20X2.5-IN)
94. 8V-5718 [4]CLAMP(DOUBLE)
95. 4V-0612 [2]PLATE
96. 8T-8911 [2]BOLT(5/16-18X2-IN)
97. 8C-1020 [2]CLAMP-TUBE(TUBE)
98. 8S-0948 [1]CLIP
99. 111-4452I[1]HOSE AS
100. 8C-6427 [1]ADAPTER
101. 8M-2770 [2]CLIP(LOOP)
102. 112-9483 [1]TUBE AS
103. 112-9484 [1]TUBE AS
104. 8X-6790I[2]HOSE AS
105. 148-8378 [3]ELBOW AS
(EACH INCLUDES)
3J-1907 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8724 [1]ELBOW
106. 148-8374 [2]ELBOW AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8723 [1]ELBOW
107. 111-4481I[1]HOSE AS
108. 113-1547I[1]HOSE AS
109. 107-1978 [2]CLAMP
110. 113-1548 [2]PLATE
111. 113-1549 [2]BAR
112. 153-6248 [2]ADAPTER AS
(EACH INCLUDES)
6V-8397 [1]SEAL-O-RING
8T-6663 [1]ADAPTER-PORT
113. 1P-4582 [4]FLANGE-HALF
114. 4J-0527 [2]SEAL-O-RING
115. 148-8318 [2]CONNECTOR AS
(EACH INCLUDES)
3K-0360 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-8634 [1]CONNECTOR
116. 8T-9043 [3]BOLT(5/16-18X0.875-IN)
117. 8T-4224 [2]WASHER-HARD(8.8X16X2-MM THK)
118. 1S-0994 [1]CLIP(LOOP)
119. 8T-9371 [1]BOLT(3/8-16X0.5-IN)
120. 137-4610I[1]HOSE AS
121. 5P-3501 [1]ADAPTER(PIPE)
122. 2D-7325 [1]TEE-PIPE
123. 110-6349 [4]FITTING AS(QUICK DISCONNECT)
124. 4J-0524 [6]SEAL-O-RING
125. 113-3353 [1]ELBOW
126. 131-3167I[1]HOSE AS
127. 091-7857I[1]HOSE AS
128. 7D-7233 [2]CLIP
129. 1P-4577 [4]FLANGE-HALF
130. 3B-1915 [8]BOLT(3/8-16X1.375-IN)
131. 5M-2894 [8]WASHER-HARD(10.2X18.5X2.5-MM THK)
132. 156-1772I[1]HOSE AS
133. 110-6366I[1]HOSE AS
134. 120-7113I[1]HOSE AS
135. 120-7114I[1]HOSE AS
136. 120-7115I[1]HOSE AS
137. 148-8361 [4]ELBOW AS(90-DEG)
(EACH INCLUDES)
3J-7354 [1]SEAL-O-RING
6V-8397 [1]SEAL-O-RING
6V-9200 [1]ELBOW
138. 120-0571 [2]VALVE GP-CHECK(CONVEYOR)
(EACH INCLUDES)
5K-9090 [2]SEAL-O-RING
139. 164-5597 [4]CONNECTOR AS
(EACH INCLUDES)
6V-8397 [1]SEAL-O-RING
8C-6868 [1]CONNECTOR
140. 7X-8180 [4]REGULATOR-FLOW(FLOW)
141. 8C-3446 [1]VALVE-SAMPLING
142. 5M-3062 [5]BOLT(3/8-16X0.75-IN)
143. 111-4646I[1]HOSE AS
144. 130-5828I[1]HOSE AS
145. 130-5829I[1]HOSE AS
146. 164-4180 [1]PLUG AS
7M-8485 [1]SEAL-O-RING
9S-4181 [1]PLUG(1-5/16-12-THD)
147. 162-0177 [1]PLUG AS
3J-1907 [1]SEAL-O-RING
9S-8004 [1]PLUG(9/16-18-THD)
148. 031-4847 [3]SPACER(0.38X0.625X0.25-IN)
149. 150-4047 [4]ADAPTER AS
(EACH INCLUDES)
3J-7354 [1]SEAL-O-RING
8T-2353 [1]ADAPTER
150. 2P-1279 [1]LOCKNUT(9/16-18-THD)(BULKHEAD)
151. 164-5567 [8]COUPLER AS-QUICK DISCONNECT(MALE)
(EACH INCLUDES)
3J-1907 [1]SEAL-O-RING
6V-3965 [1]FITTING(QUICK DISCONNECT)
152. 6V-0852 [14]CAP-DUST
153. 150-4052 [1]UNION AS
4J-5477 [2]SEAL-O-RING
6V-8993 [1]UNION
154. 031-4392 [1]SEAL-O-RING
155. 5K-9090 [4]SEAL-O-RING
156. 148-8357 [2]ELBOW AS
(EACH INCLUDES)
5K-9090 [1]SEAL-O-RING
6V-9008 [1]ELBOW
7M-8485 [1]SEAL-O-RING
157. 8T-0315 [1]SEAL-O-RING
158. 3J-7354 [4]SEAL-O-RING
159. 148-8392 [1]ELBOW AS
6V-9746 [1]SEAL-O-RING
6V-9853 [1]ELBOW
I REFER TO HYDRAULIC INFORMATION SYSTEM
R REMANUFACTURED PART MAY BE AVAILABLE
Y SEPARATE ILLUSTRATION
