Pos.	Part No	Qty	Parts name
1.	5M-3062	[5]	BOLT(3/8-16X0.75-IN)
2.	111-4481I	[1]	HOSE AS
3.	130-5828I	[1]	HOSE AS
4.	107-0002Y	[1]	MANIFOLD GP-SUCTION
5.	107-0003	[2]	MANIFOLD
6.	130-5829I	[1]	HOSE AS
7.	111-4646I	[1]	HOSE AS
8.	1P-4579	[12]	FLANGE-HALF
9.	0S-1587	[32]	BOLT(1/2-13X1.75-IN)
10.	5P-8245	[32]	WASHER-HARD(13.5X25.5X3-MM THK)
11.	4J-0524	[6]	SEAL-O-RING
12.	113-3353	[1]	ELBOW
13.	131-3167I	[1]	HOSE AS
14.	150-9556	[1]	CLAMP AS
15.	5S-7379	[15]	BOLT(3/8-16X0.875-IN)
16.	8T-4896	[28]	WASHER-HARD(10.2X18.5X2.5-MM THK)
17.	6V-9169	[2]	NUT(13/16-16-THD)
18.	9S-6130	[2]	PLUG
19.	6V-8995	[2]	UNION(STRAIGHT)
20.	6V-8639	[6]	CONNECTOR
21.	8T-9371	[1]	BOLT(3/8-16X0.5-IN)
22.	8S-0948	[1]	CLIP
23.	7X-0440	[2]	BOLT(5/16-18X1.75-IN)
24.	7X-0294	[4]	BOLT(3/8-16X5-IN)
25.	6V-8801	[3]	NUT(3/8-16-THD)
26.	4V-0612	[2]	PLATE
27.	6V-8625	[3]	ELBOW
28.	6R-1317	[4]	CLAMP
29.	8X-6790I	[1]	HOSE AS
30.	6V-8185	[6]	NUT(1/4-20-THD)
31.	8T-4205	[12]	WASHER-HARD(7.2X14.5X2-MM THK)
32.	4E-9280I	[1]	HOSE AS
33.	9S-4182	[2]	PLUG(7/16-20-THD)
34.	3J-7354	[15]	SEAL-O-RING
35.	6K-6307	[5]	SEAL-O-RING
36.	8T-0315	[3]	SEAL-O-RING
37.	6V-9009	[3]	ELBOW
38.	6V-8400	[6]	SEAL-O-RING
39.	2S-4078	[7]	SEAL-O-RING
40.	111-4647I	[1]	HOSE AS
41.	109-3657	[3]	CONNECTOR
42.	8M-2770	[3]	CLIP(LOOP)
43.	1S-0994	[1]	CLIP(LOOP)
44.	111-4175I	[1]	HOSE AS
45.	4E-3451I	[1]	HOSE AS
46.	3K-0360	[20]	SEAL-O-RING
47.	6V-8398	[16]	SEAL-O-RING
48.	111-4171I	[1]	HOSE AS
49.	5V-6152	[4]	CLAMP
50.	7R-7951	[2]	PLATE
51.	7X-0264	[4]	BOLT(1/4-20X2.5-IN)
52.	130-5834I	[1]	HOSE AS
53.	111-4452I	[1]	HOSE AS
54.	6V-8724	[2]	ELBOW
55.	3J-1907	[12]	SEAL-O-RING
56.	6V-8397	[10]	SEAL-O-RING
59.	1P-4577	[4]	FLANGE-HALF
60.	3B-1915	[8]	BOLT(3/8-16X1.375-IN)
61.	5M-2894	[8]	WASHER-HARD(10.2X18.5X2.5-MM THK)
62.	8T-4223	[26]	WASHER-HARD(13.5X25.5X3-MM THK)
63.	4J-0520	[2]	SEAL-O-RING
64.	031-4392	[1]	SEAL-O-RING
65.	8I-0962Y	[1]	PUMP GP-PISTON(CONVEYOR)
66.	8I-0961Y	[1]	PUMP GP-PISTON(CONVEYOR)
67.	8T-8917	[8]	BOLT(1/2-13X1.25-IN)
68.	8I-0843Y	[4]	MOTOR GP-PISTON
69.	6V-1320	[4]	SEAL-O-RING
70.	5P-2566	[8]	BOLT(1/2-13X1.5-IN)
71.	4J-0527	[2]	SEAL-O-RING
72.	1P-4582	[4]	FLANGE-HALF
73.	130-3910I	[1]	HOSE AS
74.	8I-0960	[1]	COUPLING
75.	130-6620I	[1]	HOSE AS
76.	140-8389I	[1]	HOSE AS
77.	130-3906I	[1]	HOSE AS
78.	144-2893I	[1]	HOSE AS
79.	8C-1020	[2]	CLAMP-TUBE
80.	7X-0268	[6]	BOLT(1/4-20X3.5-IN)
81.	112-9484	[1]	TUBE AS
82.	120-0571	[2]	VALVE GP-CHECK(CONVEYOR)
			(EACH INCLUDES)
	5K-9090	[2]	SEAL-O-RING
83.	111-4176I	[2]	HOSE AS
84.	111-4178I	[3]	HOSE AS
85.	6V-8723	[4]	ELBOW
86.	130-3909I	[1]	HOSE AS
87.	111-4172I	[1]	HOSE AS
88.	7J-6285	[1]	SEAL-O-RING
89.	120-7115I	[1]	HOSE AS
90.	9S-4185	[3]	PLUG(3/4-16-THD)
91.	120-7111I	[1]	HOSE AS
92.	7M-8485	[19]	SEAL-O-RING
93.	5K-9090	[32]	SEAL-O-RING
94.	8C-6868	[4]	CONNECTOR
95.	2D-7325	[1]	TEE-PIPE
96.	6V-9005	[6]	ELBOW
97.	112-9483	[1]	TUBE AS
98.	6V-8627	[2]	ELBOW
99.	4J-5477	[12]	SEAL-O-RING
100.	6V-9008	[6]	ELBOW
101.	115-0060Y	[2]	VALVE GP-CONTROL
102.	9S-8004	[1]	PLUG(9/16-18-THD)
103.	8T-1682	[2]	ELBOW
104.	8T-8987	[2]	ELBOW
105.	6V-0852	[12]	CAP-DUST
106.	6V-3965	[6]	FITTING(QUICK DISCONNECT)
107.	132-2453	[4]	UNION
108.	6V-9200	[4]	ELBOW
109.	110-6349	[4]	FITTING AS(QUICK DISCONNECT)
110.	8T-2353	[4]	ADAPTER
111.	108-2564	[2]	BRACKET AS
112.	111-4450I	[1]	HOSE AS
113.	5C-6565	[10]	BOLT(1/2-13X1.125-IN)
114.	6V-3966	[1]	FITTING AS
115.	9S-4181	[1]	PLUG(1-5/16-12-THD)
116.	127-5437	[1]	PLATE
117.	127-5435Y	[1]	MANIFOLD GP-COOLING
118.	121-0379I	[2]	HOSE AS
119.	113-1547I	[1]	HOSE AS
120.	6V-8635	[6]	CONNECTOR
121.	6V-9854	[2]	ELBOW(SWIVEL)
122.	8T-3311	[2]	TEE
123.	6V-9840	[2]	TEE-SWIVEL
124.	107-1978	[2]	CLAMP
125.	113-1548	[2]	PLATE
126.	113-1549	[2]	BAR
127.	8C-6866	[4]	CONNECTOR
128.	7X-8180	[4]	REGULATOR-FLOW
129.	8T-0788	[4]	ELBOW
130.	4L-6454	[3]	BOLT(3/8-16X1-IN)
131.	130-5835I	[1]	HOSE AS
133.	8C-3793	[2]	BOLT(1/4-20X3.75-IN)
135.	6V-9876	[2]	ELBOW
136.	120-7112I	[1]	HOSE AS
137.	120-7113I	[1]	HOSE AS
138.	6V-8993	[1]	UNION
139.	2P-1279	[1]	LOCKNUT(9/16-18-THD)
140.	031-4847	[3]	SPACER(0.38X0.625X0.25-IN)
141.	120-7114I	[1]	HOSE AS
142.	8T-4224	[3]	WASHER-HARD(8.8X16X2-MM THK)
145.	128-5996	[1]	TUBE AS
146.	127-5438	[1]	TUBE AS
147.	5P-3501	[1]	ADAPTER
148.	8C-6427	[1]	ADAPTER
149.	6V-9002	[2]	ELBOW
150.	6V-8633	[1]	CONNECTOR
151.	3D-2824	[1]	SEAL-O-RING
152.	107-0099	[1]	MANIFOLD
153.	111-4454I	[1]	HOSE AS
154.	8C-3446	[1]	VALVE-SAMPLING
155.	123-2872Y	[1]	FILTER GP-OIL
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

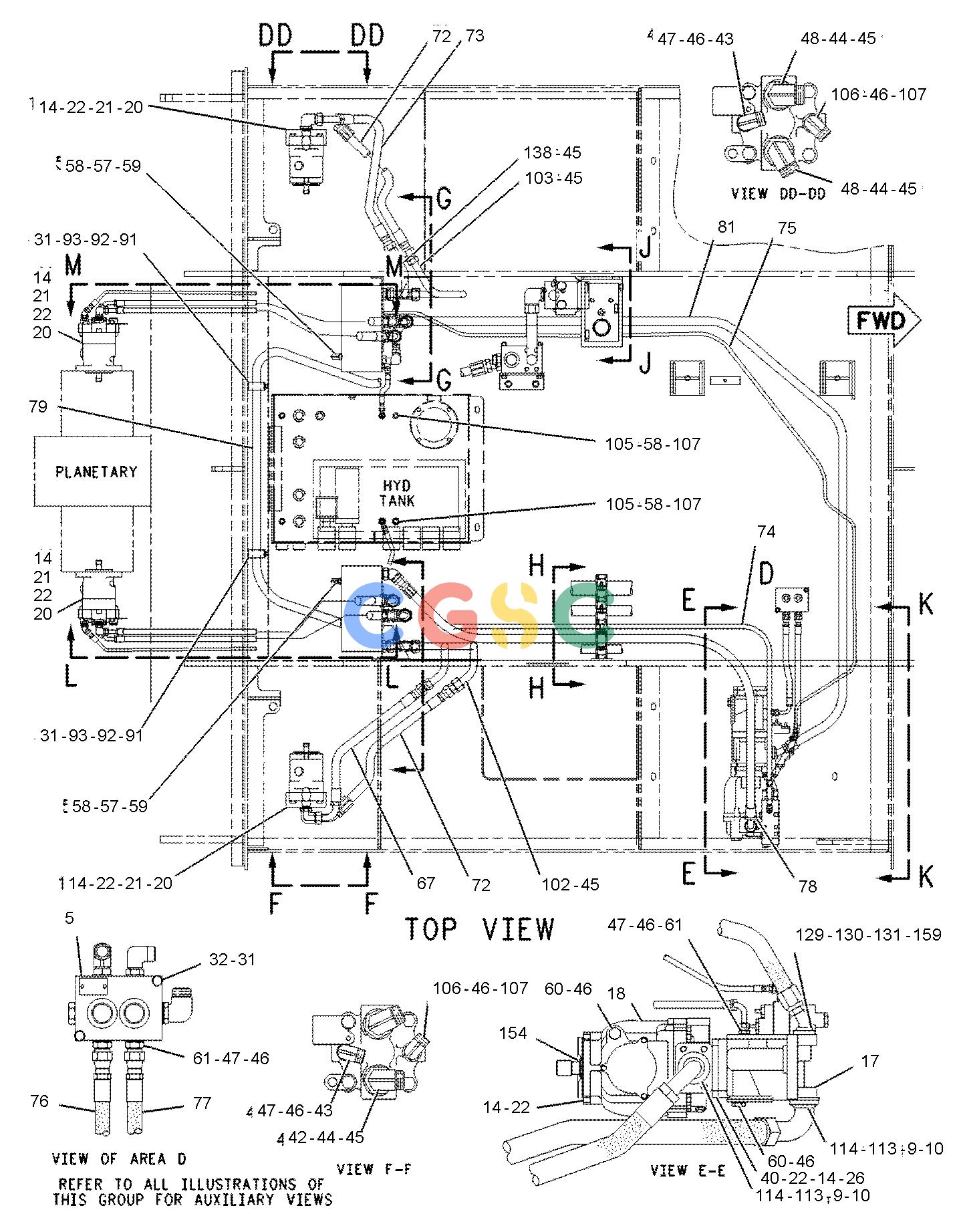

卡特零件查询（AP-1000B） 115-8335: LINES GP-CONVEYOR
