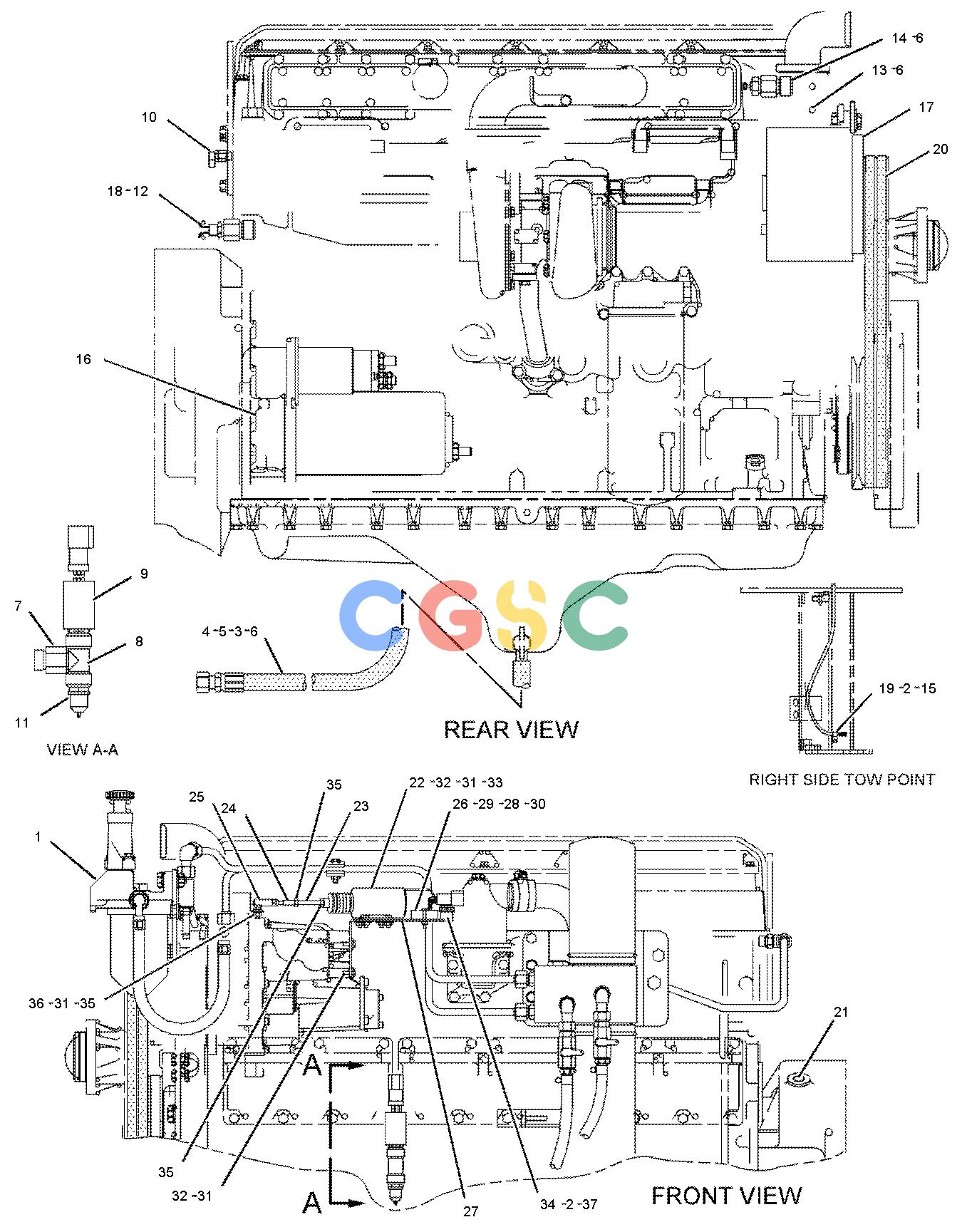

| 1. | 159-5999Y | [1] | ENGINE AR | |
| 2. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 3. | 183-3633I | [1] | HOSE AS | |
| 4. | 165-4935 | [1] | PLUG AS | |
| | 6V-9510 | [1] | PLUG | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 5. | 9X-2488 | [1] | CLAMP-HOSE | |
| 6. | 3K-0360 | [3] | SEAL-O-RING | |
| 7. | 148-8331 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 3Y-2888 | [1] | CONNECTOR | |
| 8. | 6V-1240 | [1] | TEE-PIPE | |
| 9. | 162-0782 | [1] | SWITCH AS-PRESSURE(ENGINE OIL) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 10. | 103-9408Y | [1] | VALVE GP-FLUID SAMPLING(COOLANT) | |
| 11. | 295-3145 | [1] | SENDER AS-PRESSURE(ENGINE OIL) | |
| | 4B-2049 | [1] | NUT(10-32-THD) | |
| | 8F-1434 | [1] | LOCKWASHER | |
| 12. | 203-3219 | [1] | SWITCH AS-TEMPERATURE(COOLANT) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 13. | 3E-6449 | [1] | SWITCH AS-TEMPERATURE(COOLANT) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 14. | 7W-9943 | [1] | SENDER-TEMPERATURE(COOLANT) | |
| 15. | 4L-6454 | [1] | BOLT(3/8-16X1-IN) | |
| 16. | 108-3858Y | [1] | STARTING MOTOR GP-ELECTRIC | |
| 17. | 9Y-8187Y | [1] | ALTERNATOR GP-CHARGING | |
| 18. | 194-3886 | [1] | ADAPTER AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6L-9952 | [1] | ADAPTER | |
| 19. | 7C-4355 | [1] | CLIP | |
| 20. | 9L-1226 | [1] | V-BELT SET(INCLUDES 2-BELTS)(ALTERNATOR) | |
| 21. | 189-5746Y | [1] | SENSOR GP-SPEED(ENGINE) | |
| 22. | Y | [1] | SOLENOID GP-THROTTLE |
| 23. | 183-4788 | [1] | ROD | |
| 24. | 119-7018 | [1] | BALL JOINT | |
| 25. | 9L-2685 | [1] | BALL JOINT AS | |
| 26. | 160-7395 | [1] | MODULE GP-TIMER | |
| | 186-3735 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| 27. | 227-5101 | [1] | BRACKET AS | |
| | 4V-7717 | [1] | BOSS(3/8-16-THD) | |
| 28. | 4B-4863 | [2] | WASHER(4.7X11X1.2-MM THK) | |
| 29. | 6V-7697 | [2] | SCREW-MACHINE(8-32X1.25-IN) | |
| 30. | 6D-5801 | [2] | LOCKNUT(8-32-THD) | |
| 31. | 5P-4115 | [7] | WASHER-HARD(7.2X19X2-MM THK) | |
| 32. | 5C-9553M | [6] | BOLT(M6X1X16-MM) | |
| 33. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 34. | 116-0118 | [2] | CLIP | |
| 35. | 6V-8187 | [3] | NUT(1/4-28-THD) | |
| 36. | 1H-3338 | [1] | LOCKWASHER(EXTERNAL TOOTH) | |
| 37. | 8T-9371 | [1] | BOLT(3/8-16X0.5-IN) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
