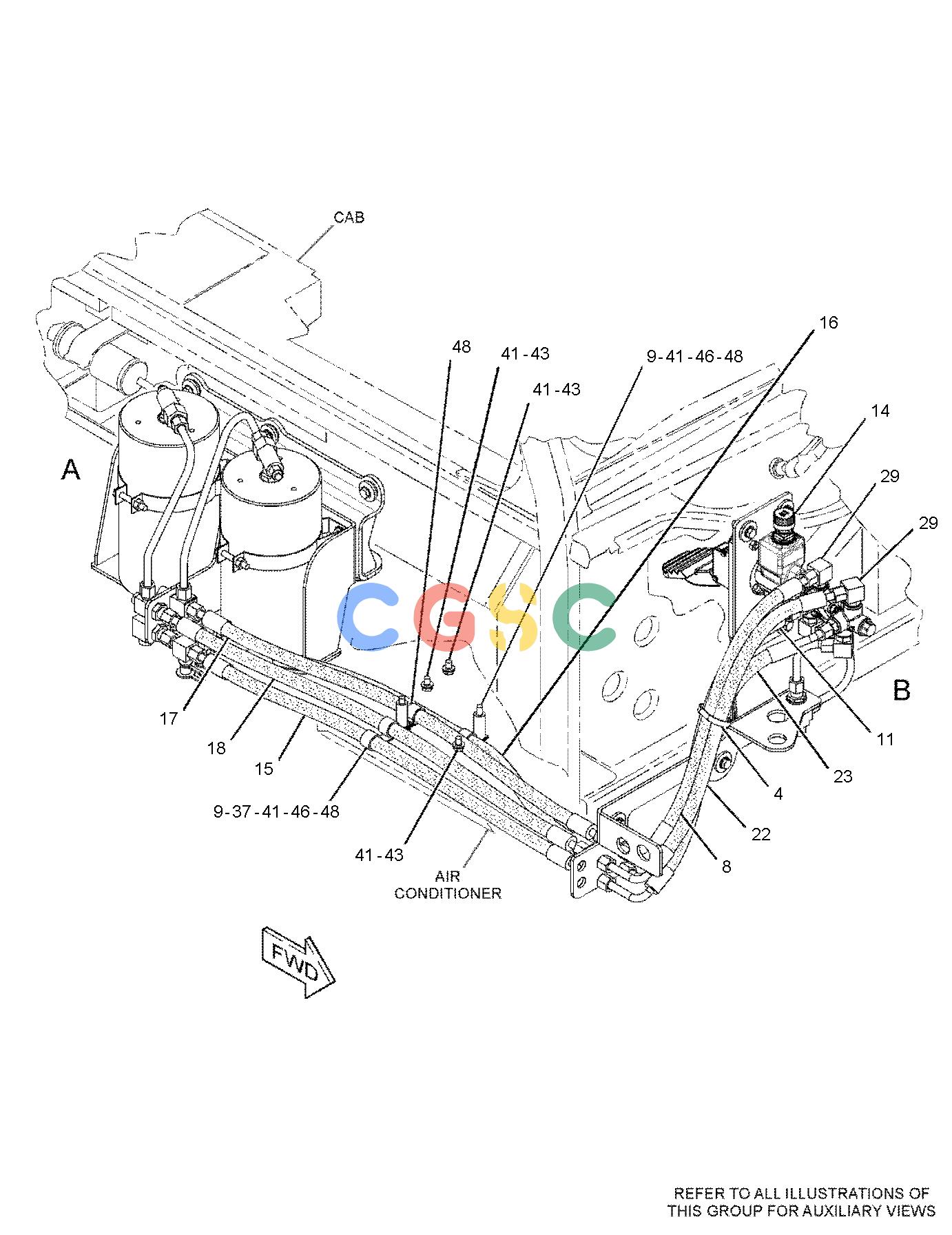

卡特零件查询（740B） 347-9518: CONTROL GP-SERVICE BRAKE

作者：广数供应链运营团队

浏览数：

时间：2025-01-24 09:11:56

Pos.	Part No	Qty	Parts name
1.	2W-9710	[3]	MOUNT AS
2.	3E-2345	[2]	ADAPTER-TEE
3.	6N-6984	[9]	MOUNT-RUBBER
4.	6U-0456	[1]	STRAP
5.	6V-0852	[2]	CAP-DUST(HYDRAULIC OIL)
6.	9F-2167	[2]	SCREW-PURGE(3/8-24X1.164-IN)
7.	108-8393	[2]	CAP
8.	125-9481I	[1]	HOSE AS
9.	141-3983	[2]	SPACER(11X19X48-MM THK)
10.	164-5586	[2]	TEE AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	7X-0871	[1]	TEE
11.	165-9993I	[1]	HOSE AS
12.	169-7403	[2]	ADAPTER AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6G-3432	[1]	ADAPTER
13.	180-8145	[1]	SEAL
14.	183-3873	[1]	BREATHER(BRAKE CONTROL VALVE)
15.	208-7973I	[1]	HOSE AS
16.	208-7974I	[1]	HOSE AS
17.	208-7975I	[1]	HOSE AS
18.	209-9136I	[1]	HOSE AS
19.	251-1446Y	[1]	ACCUMULATOR & MTG GP-BRAKE(COLD WEATHER)
20.	251-1934	[1]	TUBE AS
21.	251-1935	[1]	TUBE AS
22.	343-5501I	[1]	HOSE AS
23.	343-5502I	[1]	HOSE AS
24.	351-0628Y	[1]	VALVE GP-BRAKE CONTROL(SERVICE)
25.	354-0737	[1]	PLATE
26.	358-8792	[1]	TUBE AS
27.	358-8793	[1]	TUBE AS
28.	148-8340	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
29.	148-8364	[4]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
30.	148-8418	[2]	REDUCER AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	6V-8942	[1]	REDUCER-O-RING
31.	148-8427	[2]	TEE AS
			(EACH INCLUDES)
	6V-8398	[3]	SEAL-O-RING
	8T-6895	[1]	TEE-UNION
32.	148-8457	[4]	UNION AS(STRAIGHT)
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8995	[1]	UNION(STRAIGHT)
33.	164-5567	[2]	COUPLER AS-QUICK DISCONNECT(MALE)
			(EACH INCLUDES)
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
	214-7568	[1]	SEAL-O-RING
34.	164-5580	[1]	TEE AS
	6V-8398	[2]	SEAL-O-RING
	6V-9489	[1]	TEE-BULKHEAD
	6V-9746	[1]	SEAL-O-RING
35.	164-6864	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	7J-9108	[1]	SEAL-O-RING
	8T-1810	[1]	ELBOW
36.	3D-2824	[2]	SEAL-O-RING
37.	6V-1228	[1]	CLIP
38.	6V-9169	[9]	NUT(13/16-16-THD)
39.	6V-9746	[2]	SEAL-O-RING
40.	8M-4069	[12]	WASHER(10.3X38.1X5-MM THK)
41.	8T-4121	[17]	WASHER-HARD(11X21X2.5-MM THK)
42.	8T-4186M	[7]	BOLT(M10X1.5X40-MM)
43.	8T-4191M	[3]	BOLT(M10X1.5X16-MM)
44.	8T-4195M	[2]	BOLT(M10X1.5X30-MM)
45.	8T-4196M	[3]	BOLT(M10X1.5X35-MM)
46.	8T-5005M	[2]	BOLT(M10X1.5X70-MM)
47.	9X-6580	[2]	NUT(1-3/16-12-THD)
48.	9X-8250	[3]	CLIP(LOOP)
49.	8T-4123	[1]	WASHER(22X35X3.5-MM THK)
50.	8T-4167	[1]	WASHER-HARD(26X44X4-MM THK)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
