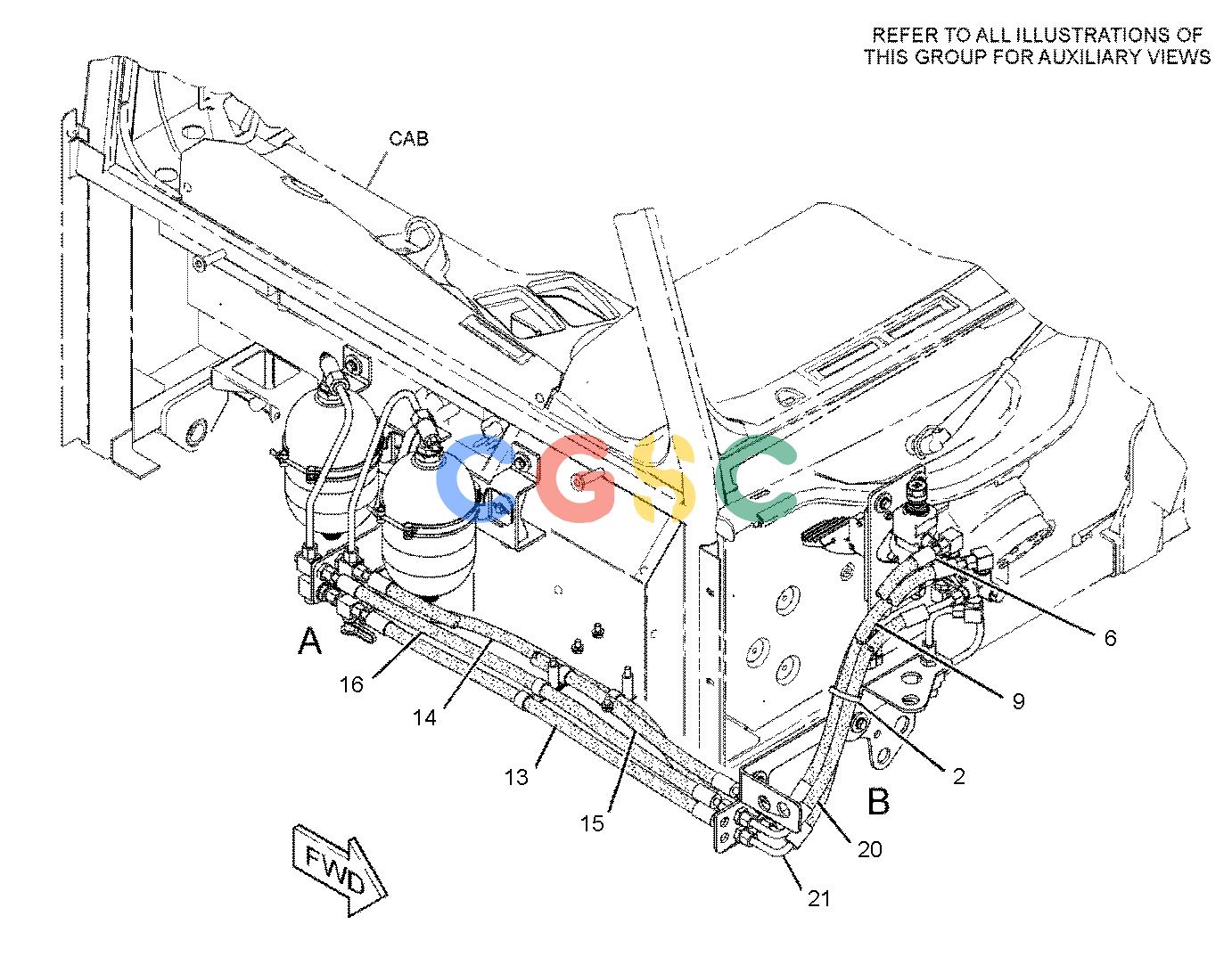

| 1. | 6N-6984 | [10] | MOUNT-RUBBER | |
| 2. | 6U-0456 | [1] | STRAP | |
| 3. | 6V-0852 | [2] | CAP-DUST(HYDRAULIC OIL) | |
| 4. | 9F-2167 | [2] | SCREW-PURGE(3/8-24X1.164-IN) | |
| 5. | 108-8393 | [2] | CAP | |
| 6. | 125-9481I | [1] | HOSE AS | |
| 7. | 141-3983 | [2] | SPACER(11X19X48-MM THK) | |
| 8. | 164-5586 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 7X-0871 | [1] | TEE | |
| 9. | 165-9993I | [1] | HOSE AS | |
| 10. | 180-8145 | [1] | SEAL | |
| 11. | 180-9286 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 3E-2345 | [1] | ADAPTER-TEE | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 12. | 183-3873 | [1] | BREATHER(BRAKE CONTROL VALVE) | |
| 13. | 208-7973I | [1] | HOSE AS | |
| 14. | 208-7974I | [1] | HOSE AS | |
| 15. | 208-7975I | [1] | HOSE AS | |
| 16. | 209-9136I | [1] | HOSE AS | |
| 17. | 340-5200 | [1] | TUBE AS | |
| 18. | 340-5201 | [1] | TUBE AS | |
| 19. | 342-3828Y | [1] | ACCUMULATOR GP-BRAKE(SERVICE) | |
| 20. | 343-5501I | [1] | HOSE AS | |
| 21. | 343-5502I | [1] | HOSE AS | |
| 22. | 351-0628Y | [1] | VALVE GP-BRAKE CONTROL(SERVICE) | |
| 23. | 354-0737 | [1] | PLATE | |
| 24. | 358-8792 | [1] | TUBE AS | |
| 25. | 358-8793 | [1] | TUBE AS | |
| 26. | 148-8340 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 27. | 148-8364 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 28. | 148-8427 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 8T-6895 | [1] | TEE-UNION | |
| 29. | 148-8457 | [4] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 30. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 31. | 164-5580 | [1] | TEE AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9489 | [1] | TEE-BULKHEAD | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 32. | 164-6864 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8T-1810 | [1] | ELBOW | |
| 33. | 329-5525 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 6G-3432 | [1] | ADAPTER | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 34. | 6V-1228 | [1] | CLIP | |
| 35. | 6V-9169 | [11] | NUT(13/16-16-THD) | |
| 36. | 8M-4069 | [10] | WASHER(10.3X38.1X5-MM THK) | |
| 37. | 8T-4121 | [15] | WASHER-HARD(11X21X2.5-MM THK) | |
| 38. | 8T-4167 | [1] | WASHER-HARD(26X44X4-MM THK) | |
| 39. | 8T-4186M | [6] | BOLT(M10X1.5X40-MM) | |
| 40. | 8T-4191M | [3] | BOLT(M10X1.5X16-MM) | |
| 41. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 42. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 43. | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| 44. | 9X-8250 | [3] | CLIP(LOOP) | |
| 45. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
