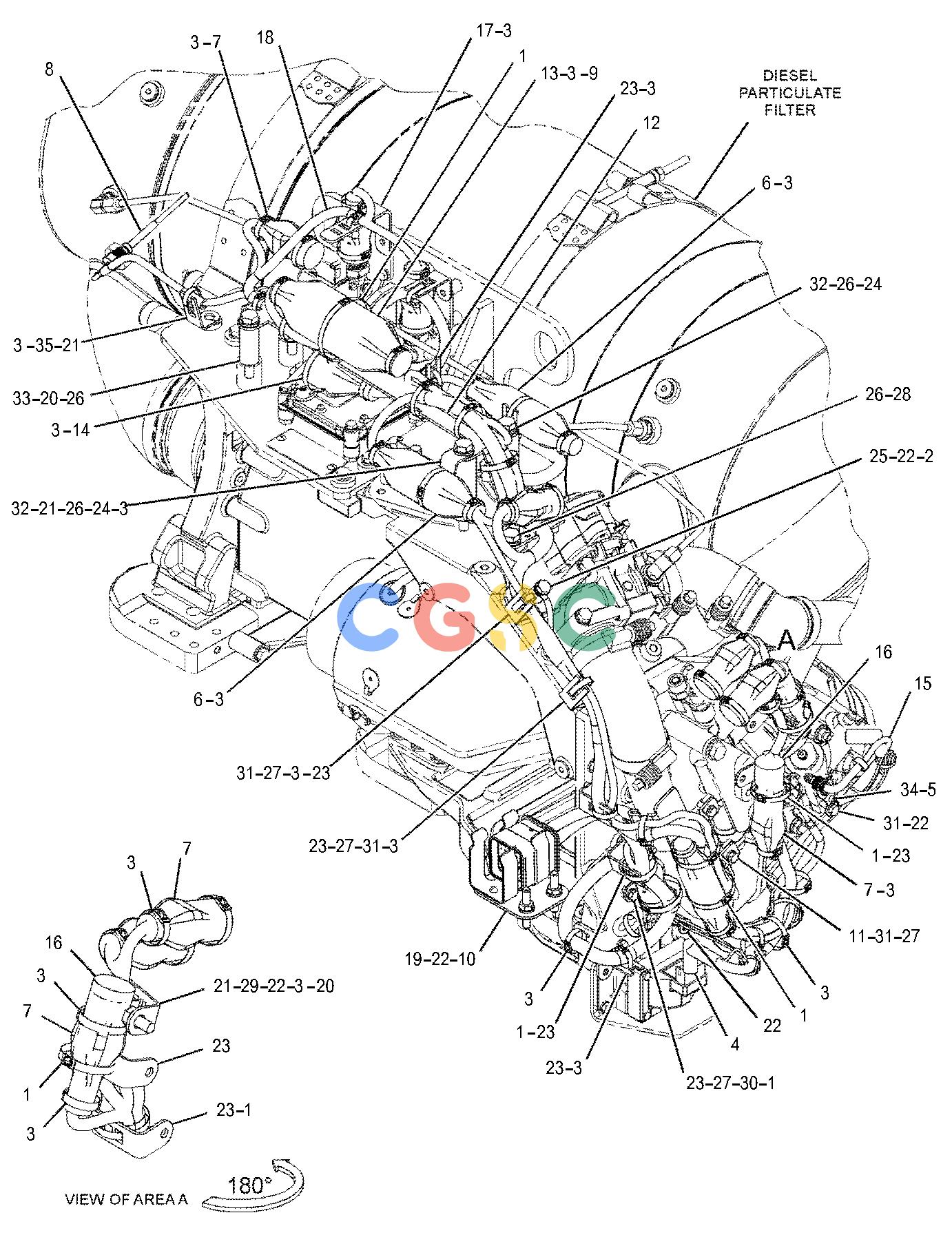

| 1. | 143-9607 | [7] | STRAP-CABLE | |
| 2. | 267-4211 | [1] | SPACER(8.8X16X15-MM THK) | |
| 3. | 290-1993 | [66] | STRAP-CABLE | |
| 4. | 295-6238 | [1] | WIRE AS-IGNITION | |
| 5. | 315-0225 | [1] | CLAMP-WIRE | |
| 6. | 334-9644 | [4] | SLEEVE | |
| | | | (EACH INCLUDES) |
| | E | | SLEEVE(15-CM) |
| 7. | 334-9645 | [10] | SLEEVE | |
| | | | (EACH INCLUDES) |
| | E | | SLEEVE(8-CM) |
| 8. | 341-4176 | [1] | SENSOR GP-TEMPERATURE(DUAL SENSOR- DPF, FLAME DETECT) | |
| 9. | 342-9070 | [1] | RECEPTACLE AS(AFTERTREATMENT IDENTIFICATION) | |
| | 5P-5677D | | WIRE(18-GA, BLACK)(0.2-M) | |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 281-8812 | [1] | RECEPTACLE AS-CONNECTOR(6-PIN) | |
| 10. | 344-2769 | [2] | STUD | |
| 11. | 344-5516 | [1] | PLATE | |
| 12. | 344-5518 | [1] | PLATE | |
| 13. | 344-8949 | [1] | SLEEVE | |
| | 326-3570E | | INSULATION(18-CM) | |
| 14. | 344-8950 | [1] | SLEEVE | |
| | 324-9708E | | INSULATION(8-CM) | |
| 15. | 352-4756 | [1] | HARNESS AS-CEM(NOZZLE HEATER) | |
| 16. | 355-8808 | [2] | SLEEVE | |
| | | | (EACH INCLUDES) |
| | E | | SLEEVE(9-CM) |
| 17. | 363-0614 | [1] | PLATE | |
| 18. | 363-0625 | [1] | HARNESS AS-CEM | |
| | 3E-6446 | [1] | CAP AS-CONNECTOR | |
| | 110-6844 | [1] | SEAL | |
| | 193-6910E | | INSULATION(296-CM) | |
| | 324-9702E | | INSULATION(219-CM) | |
| | 9X-3401 | [25] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [25] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 240-7877 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 240-7876 | [2] | PLUG AS-CONNECTOR(2-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 264-7029 | [1] | SEAL-CONNECTOR | |
| | 240-7879 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 281-3119 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 281-3120 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 240-7878 | [3] | PLUG AS-CONNECTOR(3-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 281-3125 | [1] | PLUG AS-CONNECTOR(4-PIN) | |
| | 261-0524 | [1] | PLUG AS-CONNECTOR(4-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 264-7031 | [1] | SEAL-CONNECTOR | |
| | 281-3132 | [1] | PLUG AS-CONNECTOR(6-PIN) | |
| | 281-3134 | [1] | PLUG AS-CONNECTOR(6-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 264-7032 | [1] | SEAL-CONNECTOR | |
| | 281-3395 | [1] | PLUG AS-CONNECTOR(12-PIN) | |
| | 264-7034 | [1] | SEAL-CONNECTOR | |
| | 8T-8737 | [23] | PLUG-SEAL | |
| | 324-6267 | [1] | RECEPTACLE AS-CONNECTOR(40-PIN) | |
| | 9X-3402 | [48] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [48] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 268-4412B | | TAPE-INSULATOR | |
| | 2L-8078 | [1] | TERMINAL-RING(14-GA TO 16-GA, 5/16-IN SCREW) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(10-CM) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(7-CM) | |
| 19. | 364-8334 | [1] | PLATE AS | |
| 20. | 196-6723M | [2] | BOLT(M10X1.5X70-MM) | |
| 21. | 285-6395 | [4] | CLIP(LADDER) | |
| 22. | 311-8366 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 23. | 341-3624 | [12] | CLIP(LADDER) | |
| 24. | 344-1191 | [2] | BOLT(M10X1.5X100-MM) | |
| 25. | 344-1193M | [1] | BOLT(M8X1.25X25-MM) | |
| 26. | 344-1199 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 344-1200 | [8] | WASHER-HARD(6.6X12X2-MM THK) | |
| 28. | 344-1201 | [2] | BOLT(M10X1.5X20-MM) | |
| 29. | 344-1203M | [1] | BOLT(M8X1.25X16-MM) | |
| 30. | 344-1205 | [1] | BOLT(M6X1X12-MM) | |
| 31. | 344-1206M | [8] | BOLT(M6X1X16-MM) | |
| 32. | 346-9081 | [2] | SPACER(11X26X75-MM THK) | |
| 33. | 346-9082 | [2] | SPACER(11X26X45-MM THK) | |
| 34. | 8T-9405M | [1] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| 35. | 372-8827 | [1] | INSULATION | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
