Pos.	Part No	Qty	Parts name
1.	3E-5239	[1]	RELAY AS(24-VOLT)(WIPER)
2.	3E-6328Y	[1]	ALARM GP(24-VOLT)(CATERPILLAR MONITORING SYSTEM)
3.	6I-1418	[8]	SPACER(8.2X12.7X28.7-MM THK)
4.	7G-1060	[1]	STRAP AS-GROUND(CHASSIS)
5.	8E-1118	[1]	ANTENNA AS(RADIO)
6.	8T-9655	[16]	MOUNT-ISOLATION(POWER TRAIN)
7.	9D-4068	[1]	SWITCH AS-PUSH BUTTON(DOME LIGHT)
8.	9U-8263	[1]	COVER
9.	9X-2185	[4]	SCREW(8-15X0.44-IN)
10.	107-6032	[1]	LAMP AS-DOME(24-VOLT)(CAB)
	259-1286	[1]	LAMP(24-VOLT, 10-WATT)
11.	109-8981	[1]	CABLE AS-COAXIAL
12.	116-5710	[1]	GROMMET
13.	117-2311	[1]	SOCKET-AUXILIARY POWER(12-VOLT)
14.	124-6046	[2]	SPEAKER AS-RADIO
15.	128-6157	[2]	PLATE
16.	163-6088	[1]	MODULE AS(INTERMITTENT WIPER)
	102-8803	[1]	KIT-RECEPTACLE(3-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
	8T-8729	[3]	PIN-CONNECTOR(16-GA TO 18-GA)
17.	164-8473	[2]	LOUVER AS
18.	189-3744	[1]	SEAL
19.	195-9223	[4]	SCREW-PAN HEAD(10-14X0.63-IN)
20.	241-4505	[8]	PLUG
21.	241-8368Y	[1]	SWITCH GP-MAGNETIC(24-VOLT)(MAIN POWER RELAY)
22.	255-2752Y	[1]	SWITCH GP-START(IGNITION)(KEY)
23.	260-0162Y	[1]	LAMP GP-FLOOD(24-VOLT)
24.	267-5243	[1]	PANEL AS
	271-7312	[1]	KNOB
	285-7415	[1]	KNOB
25.	271-2818	[1]	SWITCH AS-ROCKER(HEADLIGHTS)
26.	271-2825	[1]	SWITCH AS-ROCKER(AIR CONDITIONER)
27.	271-2826	[1]	SWITCH AS-ROCKER(WORK LIGHT)
28.	271-2827	[1]	SWITCH AS-ROCKER(REAR WASHER, WIPER)
29.	271-2828	[1]	SWITCH AS-ROCKER(HAZARD)
30.	271-2830	[1]	SWITCH AS-ROCKER(SECONDARY STEERING)
31.	271-9408M	[4]	SCREW-TRUSS HEAD(M5X0.8X10-MM)
32.	273-9761	[1]	BRACKET
33.	283-1433	[1]	PLATE-MOUNTING
34.	288-1401	[1]	BRACKET
35.	299-9240	[1]	SWITCH AS-MULTIFUNCTION(HD LIGHT, TURN SIG, WDO WIPER)(LH)
	8T-8729	[12]	PIN-CONNECTOR(16-GA TO 18-GA)
	174-3091	[1]	KIT-RECEPTACLE(12-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
36.	299-9241	[1]	SWITCH AS-MULTIFUNCTION(RH)
	8T-8729	[4]	PIN-CONNECTOR(16-GA TO 18-GA)
	8T-8737	[2]	PLUG-SEAL
	151-9275	[1]	KIT-RECEPTACLE(6-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
37.	302-6392	[2]	PLUG
38.	319-6827Y	[1]	HARNESS AS-WIRING(CAMERA)
39.	320-9715	[1]	CABLE AS(CAMERA)
40.	329-2477	[1]	PLATE AS
	5C-9855M	[8]	BOSS(M8X1.25X19-MM)
41.	331-2886	[1]	SWITCH AS-ROCKER(ENGINE RATING)
42.	331-2887	[1]	SWITCH AS-ROCKER(HEADLIGHT DIMMER)
			(EACH SWITCH AS INCLUDES)
	111-7899	[1]	GASKET
43.	332-7644	[1]	MODULE GP-DISPLAY(INSTRUMENT CLUSTER)
	364-8277	[1]	FILM-IDENTIFICATION(CAT)
44.	332-9701Y	[1]	HARNESS AS-WINDOW WIPER
45.	332-9704Y	[1]	HARNESS AS-CAB(GEARSHIFT)
46.	332-9706Y	[1]	HARNESS AS-CAB
47.	332-9707Y	[1]	HARNESS AS-CAB(ROOF)
48.	334-7785	[1]	SWITCH AS-ROCKER(HOOD RELEASE)
	111-7899	[1]	GASKET
49.	336-6687	[1]	CAP-PROTECTIVE(FEMALE)
50.	336-8940	[1]	DISPLAY GP-MONITOR(CMPD)
51.	340-7161	[1]	CONVERTER-POWER(24-VOLT TO 12-VOLT)
52.	340-7389	[1]	PANEL AS-INSTRUMENT
53.	466-2495	[1]	BEZEL
54.	344-2592	[1]	PLATE AS
	6V-9632M	[8]	NUT-WELD(M6X1-THD)
	7T-1099	[3]	LINK
	8C-8499M	[1]	BOSS-WELD(M10X1.5X50-MM)
	8T-3490M	[2]	NUT-WELD(M10X1.5-THD)
55.	346-8101	[1]	HARNESS AS-TRANSMISSION(TRANSMISSION OUTPUT SPEED)
	8T-8729	[8]	PIN-CONNECTOR(16-GA TO 18-GA)
	245-0168	[1]	RECEPTACLE AS-CONNECTOR(8-PIN)
56.	346-9671Y	[1]	HARNESS AS-WIRING(SEAT)
57.	347-9507	[1]	BEZEL-RADIO
58.	354-0738	[1]	PLATE AS
	6V-9632M	[6]	NUT-WELD(M6X1-THD)
	7T-1099	[1]	LINK
59.	354-7732	[1]	WIRE AS
60.	354-7735Y	[1]	HARNESS AS-CAB(FUSE BLOCK)
61.	358-8802	[1]	INSULATION
62.	363-7677	[1]	DOOR GP-ACCESS(FUSE PANEL)
	3H-0240	[7]	WASHER(5X9.7X0.8-MM THK)
	9M-5733	[7]	RIVET-POP
	302-4764	[1]	LATCH AS
	344-2588	[1]	HINGE AS
63.	367-0794	[2]	PLUG
64.	367-5213	[1]	SWITCH AS-ROCKER(24-VOLT)
65.	379-2433Y	[1]	HARNESS AS-PANEL
66.	379-2434Y	[1]	HARNESS AS-CAB
67.	114-6658	[2]	WASHER(6.5X17X1-MM THK)
68.	104-2091	[8]	SCREW-FLAT HEAD(6-20X0.5-IN)
69.	124-0174	[1]	CLIP(LOOP)
70.	130-5300	[2]	CLIP
71.	161-6987	[2]	WASHER-HARD(5.2X16X1.5-MM THK)
72.	174-8131M	[4]	SCREW-TRUSS HEAD(M4X0.7X12-MM)
73.	213-7315M	[6]	SCREW-TRUSS HEAD(M4X0.7X25-MM)
74.	298-6434M	[2]	SCREW(M5X0.8X12-MM)
75.	304-5687	[2]	CONTROL GP-UNPROGRAMMED(ELECTRONIC)
76.	3E-8020M	[6]	SCREW-TRUSS HEAD(M6X1X25-MM)
77.	3S-2093	[51]	STRAP-CABLE
78.	3S-9557	[8]	SCREW-PAN HEAD(4-40X0.5-IN)
79.	4P-7581	[7]	CLIP(LADDER)
80.	4P-8134	[2]	CLIP(LADDER)
81.	5C-9553M	[1]	BOLT(M6X1X16-MM)
82.	5P-4116	[10]	WASHER-HARD(8.8X20.5X2-MM THK)
83.	5P-8525	[1]	GROMMET
84.	5P-9297	[2]	CLIP(LOOP)
85.	6D-4244	[1]	CLIP(LOOP)
86.	6V-5839	[1]	WASHER(11X21X2.5-MM THK)
87.	7I-2272M	[8]	BOLT(M5X0.8X12-MM)
88.	7K-1181	[18]	STRAP-CABLE
89.	7X-0818M	[8]	BOLT(M8X1.25X45-MM)
91.	7X-7729	[3]	WASHER(11X25X3-MM THK)
92.	8C-8451M	[2]	BOLT(M6X1X40-MM)
93.	8D-6946	[1]	FLASHER AS(24-VOLT)(TURN SIGNAL)
94.	8M-2770	[2]	CLIP(LOOP)
95.	8T-0289M	[2]	BOLT(M5X0.8X20-MM)
96.	8T-0328	[8]	WASHER-HARD(5.5X10X1-MM THK)
97.	8T-4121	[16]	WASHER-HARD(11X21X2.5-MM THK)
98.	8T-4133M	[1]	NUT(M10X1.5-THD)
99.	8T-4137M	[17]	BOLT(M10X1.5X20-MM)
100.	8T-4138M	[4]	BOLT(M6X1X20-MM)
101.	8T-4191M	[3]	BOLT(M10X1.5X16-MM)
102.	8T-4205	[6]	WASHER-HARD(7.2X14.5X2-MM THK)
103.	8T-4970M	[2]	BOLT(M6X1X14-MM)
104.	9W-0335	[1]	LIGHTER AS-CIGAR(24-VOLT)
105.	9X-1046M	[16]	SCREW(M4X0.7X18-MM)
106.	9X-2045M	[8]	SCREW-TRUSS HEAD(M6X1X20-MM)
107.	9X-8256	[3]	WASHER(6.6X12X2-MM THK)
	M		METRIC PART
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

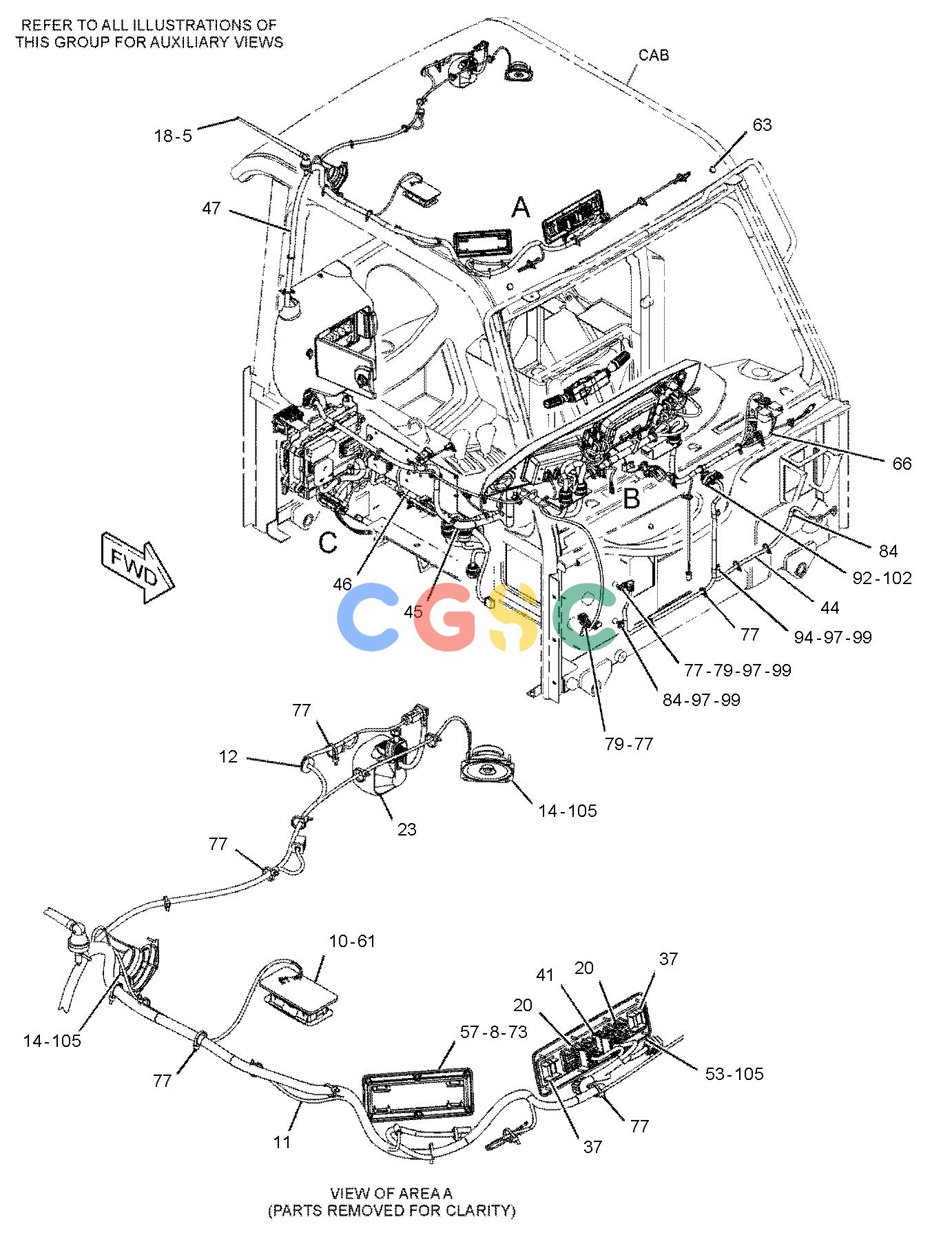

卡特零件查询（740B） 358-6986: WIRING GP-CAB
