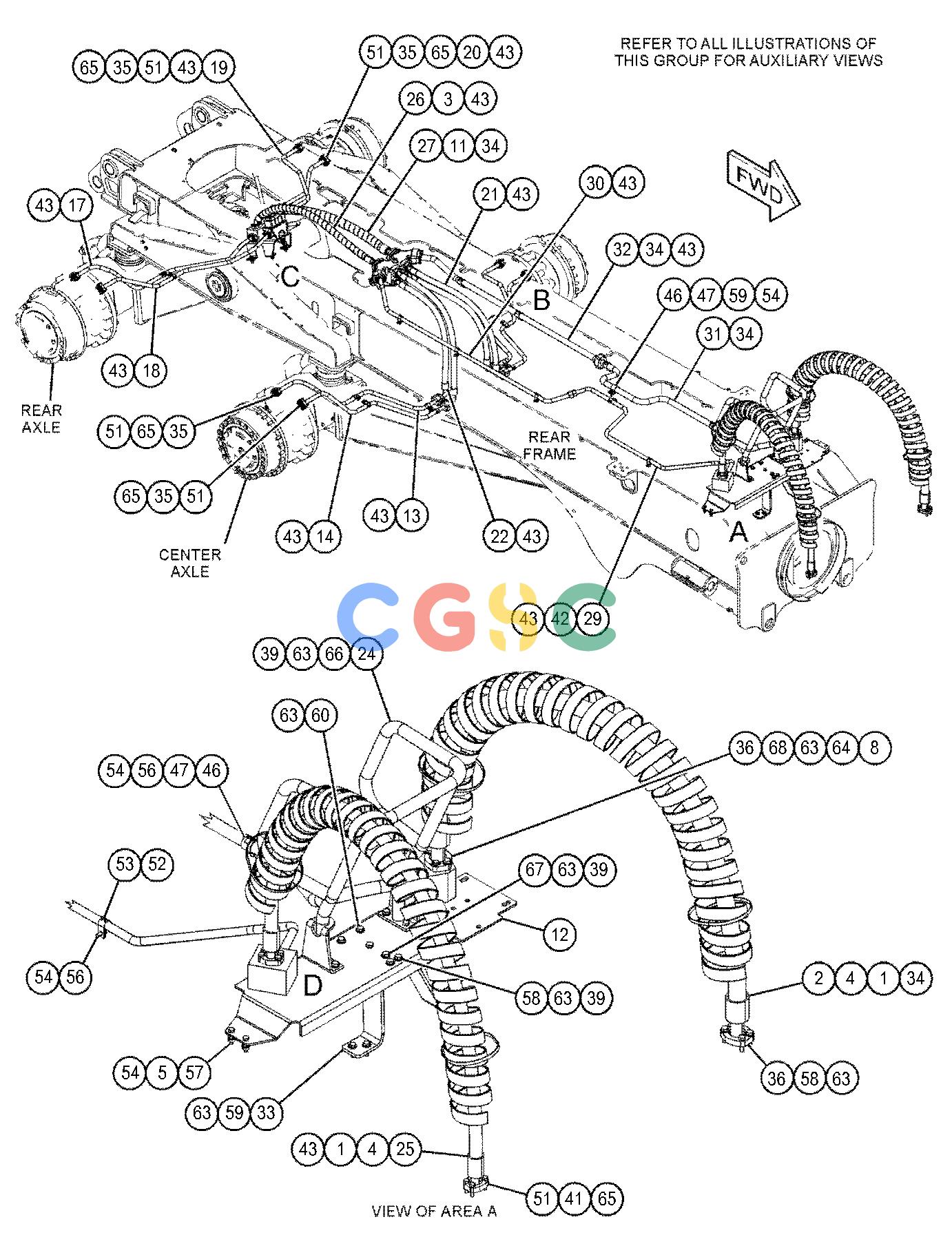

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6U-0456 | [4] | STRAP | |
| 2. | 194-6933I | [1] | HOSE AS | |
| 3. | I | [1] | HOSE AS | |
| 4. | 357-2072 | [2] | GUARD-HOSE | |
| 5. | 380-8803M | [2] | NUT-INSERT(M10X1.5-THD) | |
| 6. | 392-2426 | [1] | MANIFOLD | |
| 7. | 394-9649 | [1] | MANIFOLD | |
| 8. | 397-5019 | [1] | MANIFOLD | |
| 9. | 431-1696 | [1] | MANIFOLD | |
| 10. | 436-2910 | [1] | MANIFOLD | |
| 11. | 438-6863I | [1] | HOSE AS | |
| 12. | 445-6342 | [1] | PLATE AS | |
| 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | ||
| 8T-3597M | [3] | NUT-WELD(M12X1.75-THD) | ||
| 13. | 453-7604 | [1] | TUBE AS | |
| 14. | 453-7606 | [1] | TUBE AS | |
| 15. | 453-7607 | [1] | TUBE AS | |
| 16. | 453-7608 | [1] | TUBE AS | |
| 17. | 453-7772 | [1] | TUBE AS | |
| 18. | 453-7773 | [1] | TUBE AS | |
| 19. | 453-7774 | [1] | TUBE AS | |
| 20. | 453-7775 | [1] | TUBE AS | |
| 21. | 453-8251I | [2] | HOSE AS | |
| 22. | 453-8252I | [2] | HOSE AS | |
| 23. | 456-6749 | [1] | BRACKET AS | |
| 24. | 462-9583 | [1] | FRAME AS | |
| 25. | 464-7949I | [1] | HOSE AS | |
| 26. | 469-9731 | [1] | GUARD-HOSE | |
| 27. | 469-9732 | [1] | GUARD-HOSE | |
| 28. | 475-8749 | [1] | BRACKET | |
| 29. | 481-1122 | [1] | TUBE AS | |
| 30. | 481-1123 | [1] | TUBE AS | |
| 31. | 481-1124 | [1] | TUBE AS | |
| 32. | 481-1125 | [1] | TUBE AS | |
| 33. | 481-8433 | [1] | BRACKET | |
| 34. | 061-9455 | [6] | SEAL-O-RING | |
| 35. | 118-9573M | [56] | BOLT-12 POINT HEAD(M10X1.5X35-MM) | |
| 36. | 1P-4579 | [12] | FLANGE-HALF | |
| 37. | 1V-8230 | [1] | SPACER(0.531X1X0.57-IN THK) | |
| 38. | 222-9151 | [4] | WASHER-HARD(11X32X5-MM THK) | |
| 39. | 329-3356M | [7] | NUT(M12X1.75-THD) | |
| 40. | 4D-4835 | [2] | PIPE | |
| 41. | 4L-9337 | [4] | BOLT(3/8-16X1.5-IN) | |
| 42. | 5K-9090 | [1] | SEAL-O-RING | |
| 43. | 5P-8066 | [27] | SEAL-O-RING | |
| 44. | 6V-5843M | [4] | BOLT(M10X1.5X45-MM) | |
| 45. | 6V-7673M | [1] | BOLT(M12X1.75X50-MM) | |
| 46. | 7S-8920 | [5] | CLIP(SLOT) | |
| 47. | 7S-8921 | [5] | CLIP(TAB) | |
| 48. | 7X-2544M | [4] | BOLT(M10X1.5X140-MM) | |
| 49. | 7X-2550M | [2] | BOLT(M12X1.75X110-MM) | |
| 50. | 7X-7729 | [19] | WASHER(11X25X3-MM THK) | |
| 51. | 8C-3206 | [52] | FLANGE-HALF | |
| 52. | 8T-1889 | [17] | CLIP(SLOT) | |
| 53. | 8T-1890 | [17] | CLIP(TAB) | |
| 54. | 8T-4121 | [72] | WASHER-HARD(11X21X2.5-MM THK) | |
| 55. | 8T-4133M | [12] | NUT(M10X1.5-THD) | |
| 56. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 57. | 8T-4182M | [2] | BOLT(M10X1.5X45-MM) | |
| 58. | 8T-4184M | [22] | BOLT(M12X1.75X45-MM) | |
| 59. | 8T-4186M | [10] | BOLT(M10X1.5X40-MM) | |
| 60. | 8T-4192M | [3] | BOLT(M12X1.75X25-MM) | |
| 61. | 8T-4195M | [13] | BOLT(M10X1.5X30-MM) | |
| 62. | 8T-4196M | [44] | BOLT(M10X1.5X35-MM) | |
| 63. | 8T-4223 | [49] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 64. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 65. | 8T-4896 | [60] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 66. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| 67. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 68. | 8T-5092M | [4] | BOLT(M12X1.75X150-MM) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
