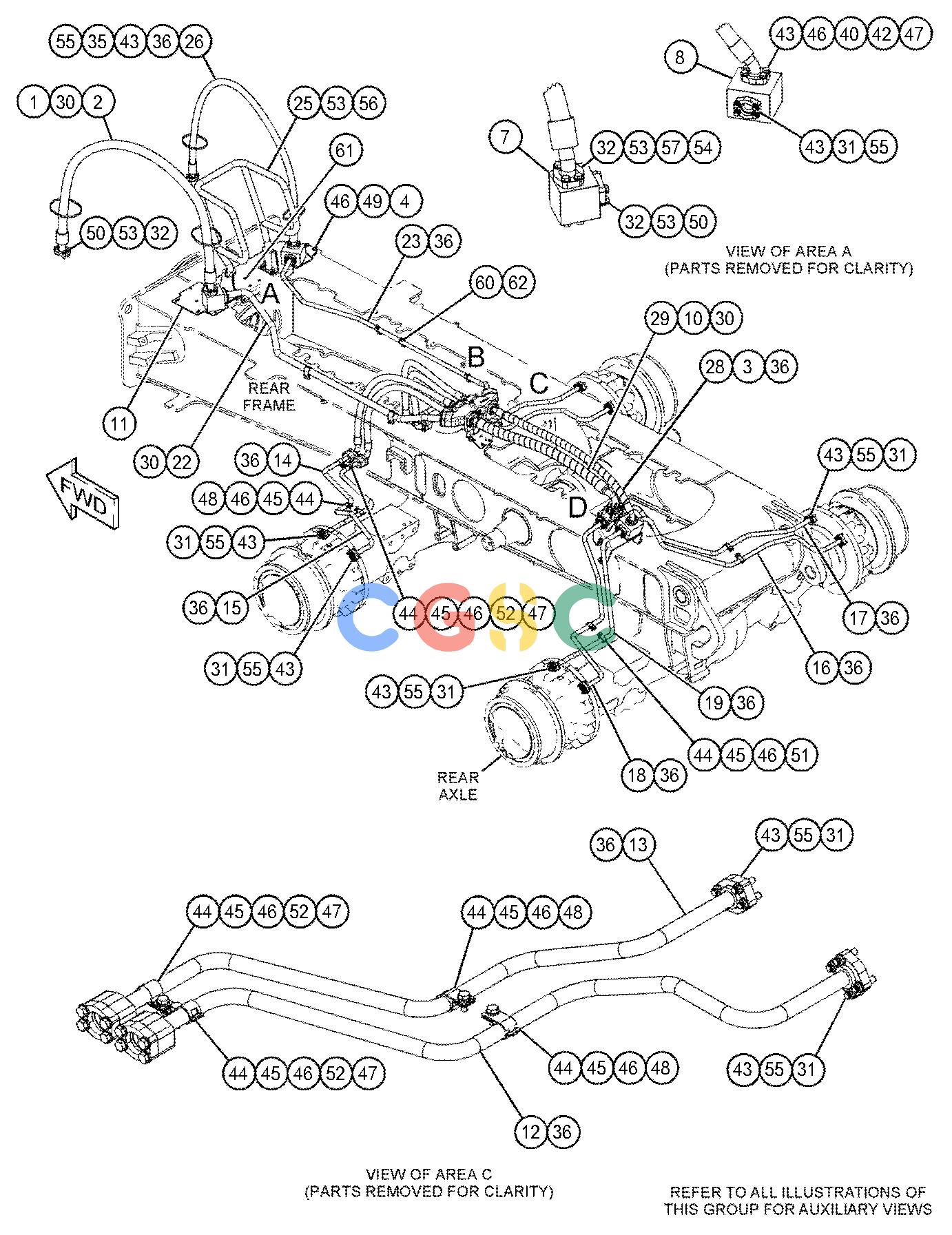

| 1. | 6U-0456 | [4] | STRAP | |
| 2. | 194-6933I | [1] | HOSE AS | |
| 3. | I | [1] | HOSE AS |
| 4. | 380-8803M | [2] | NUT-INSERT(M10X1.5-THD) | |
| 5. | 392-2426 | [1] | MANIFOLD | |
| 6. | 394-9649 | [1] | MANIFOLD | |
| 7. | 397-5019 | [1] | MANIFOLD | |
| 8. | 431-1696 | [1] | MANIFOLD | |
| 9. | 436-2910 | [1] | MANIFOLD | |
| 10. | 438-6863I | [1] | HOSE AS | |
| 11. | 445-6342 | [1] | PLATE AS | |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [3] | NUT-WELD(M12X1.75-THD) | |
| 12. | 453-7604 | [1] | TUBE AS | |
| 13. | 453-7606 | [1] | TUBE AS | |
| 14. | 453-7607 | [1] | TUBE AS | |
| 15. | 453-7608 | [1] | TUBE AS | |
| 16. | 453-7772 | [1] | TUBE AS | |
| 17. | 453-7773 | [1] | TUBE AS | |
| 18. | 453-7774 | [1] | TUBE AS | |
| 19. | 453-7775 | [1] | TUBE AS | |
| 20. | 453-8251I | [2] | HOSE AS | |
| 21. | 453-8252I | [2] | HOSE AS | |
| 22. | 454-4015 | [1] | TUBE AS | |
| 23. | 456-4129 | [1] | TUBE AS | |
| 24. | 456-6749 | [1] | BRACKET AS | |
| 25. | 462-9583 | [1] | FRAME AS | |
| 26. | 464-7949I | [1] | HOSE AS | |
| 27. | 475-8749 | [1] | BRACKET | |
| 28. | 469-9731 | [1] | GUARD-HOSE | |
| 29. | 469-9732 | [1] | GUARD-HOSE | |
| 30. | 061-9455 | [6] | SEAL-O-RING | |
| 31. | 118-9573M | [56] | BOLT-12 POINT HEAD(M10X1.5X35-MM) | |
| 32. | 1P-4579 | [12] | FLANGE-HALF | |
| 33. | 1S-4305 | [1] | SPACER(0.531X1X0.56-IN THK) | |
| 34. | 481-7842 | [2] | PIPE | |
| 35. | 4L-9337 | [4] | BOLT(3/8-16X1.5-IN) | |
| 36. | 5P-8066 | [26] | SEAL-O-RING | |
| 37. | 6V-7673M | [1] | BOLT(M12X1.75X50-MM) | |
| 38. | 7S-8920 | [2] | CLIP(SLOT) | |
| 39. | 7S-8921 | [2] | CLIP(TAB) | |
| 40. | 7X-2544M | [4] | BOLT(M10X1.5X140-MM) | |
| 41. | 7X-2550M | [2] | BOLT(M12X1.75X110-MM) | |
| 42. | 7X-7729 | [19] | WASHER(11X25X3-MM THK) | |
| 43. | 8C-3206 | [52] | FLANGE-HALF | |
| 44. | 8T-1889 | [15] | CLIP(SLOT) | |
| 45. | 8T-1890 | [15] | CLIP(TAB) | |
| 46. | 8T-4121 | [66] | WASHER-HARD(11X21X2.5-MM THK) | |
| 47. | 8T-4133M | [12] | NUT(M10X1.5-THD) | |
| 48. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 49. | 8T-4182M | [2] | BOLT(M10X1.5X45-MM) | |
| 50. | 8T-4184M | [20] | BOLT(M12X1.75X45-MM) | |
| 51. | 8T-4195M | [11] | BOLT(M10X1.5X30-MM) | |
| 52. | 8T-4196M | [48] | BOLT(M10X1.5X35-MM) | |
| 53. | 8T-4223 | [35] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 54. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 55. | 8T-4896 | [60] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 56. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| 57. | 8T-5092M | [4] | BOLT(M12X1.75X150-MM) | |
| 58. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 59. | 222-9151 | [4] | WASHER-HARD(11X32X5-MM THK) | |
| 60. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 61. | 8T-4192M | [3] | BOLT(M12X1.75X25-MM) | |
| 62. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 63. | 7D-1649 | [3] | WASHER-HARD(13.5X32X5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
