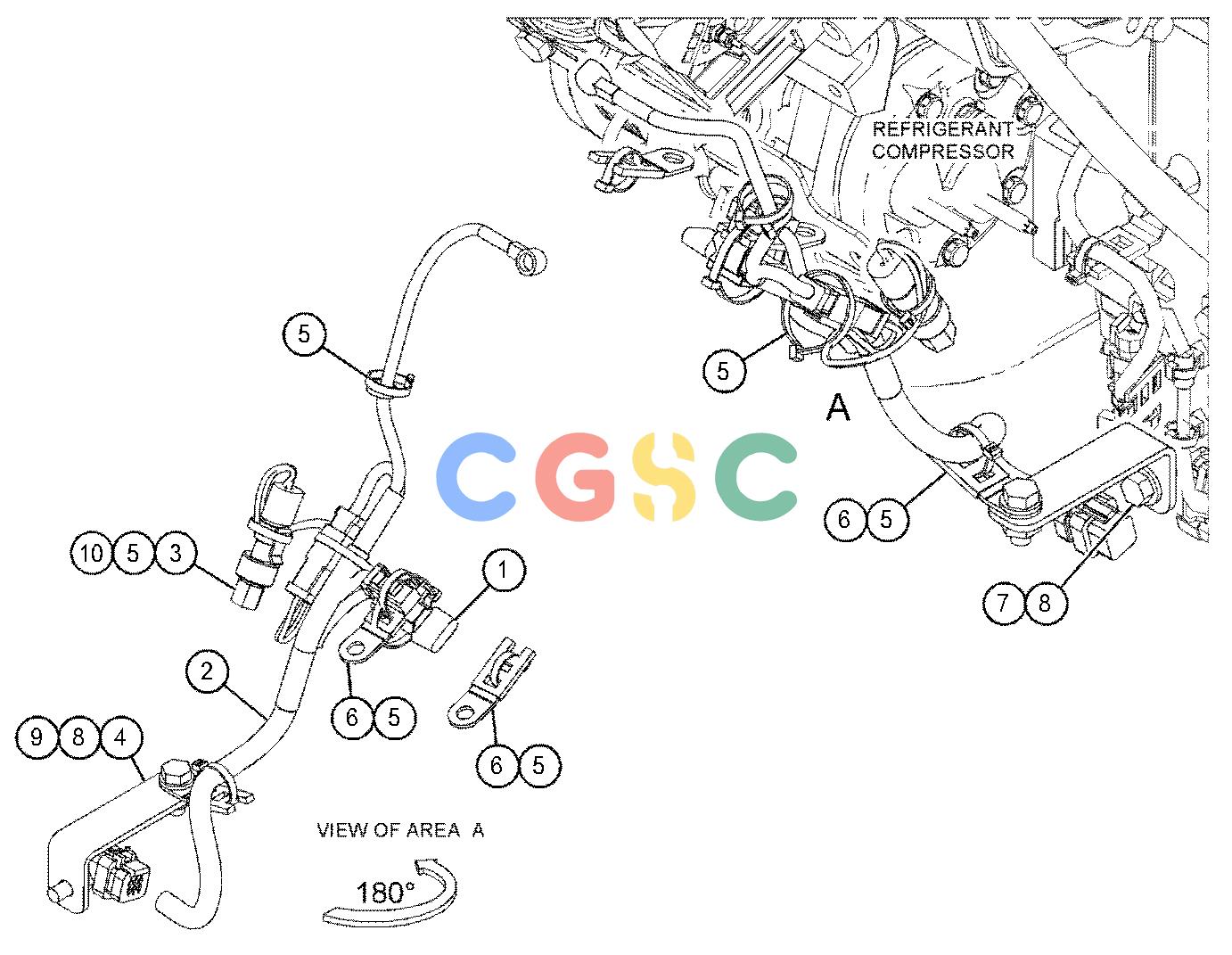

| 1. | 189-3158 | [1] | SUPPRESSOR-ARC | |
| 2. | 336-2820 | [1] | HARNESS AS-ENGINE(ALTERNATOR) | |
| | 155-2270 | [3] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 230-5010 | [1] | PLUG AS-CONNECTOR(6-PIN) | |
| | 455-0707 | [1] | SEAL-CONNECTOR | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 9W-0844 | [6] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-3402 | [4] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [4] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 110-8769 | [1] | WIRE AS(16-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 3. | 355-3148 | [1] | SWITCH AS-PRESSURE(HIGH, LOW)(REFRIGERANT COMPRESSOR) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 4. | 357-9581 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 5. | 3S-2093 | [8] | STRAP-CABLE | |
| 6. | 4P-7581 | [3] | CLIP(LADDER) | |
| 7. | 5M-3062 | [1] | BOLT(3/8-16X0.75-IN) | |
| 8. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 10. | 9X-7378 | [1] | SEAL-O-RING | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
