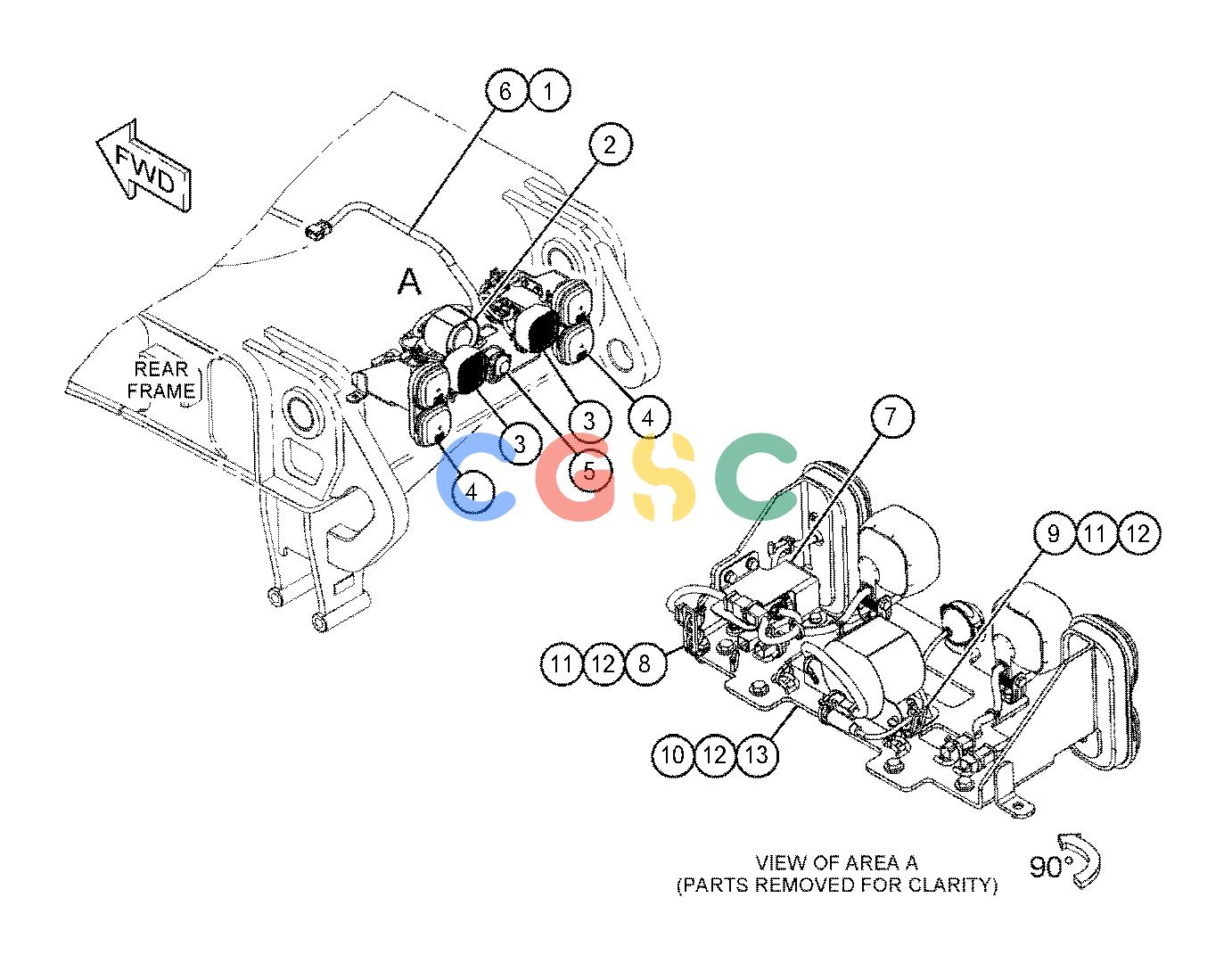

| 1. | 3S-2093 | [16] | STRAP-CABLE | |
| 2. | 213-9100 | [1] | ALARM AS(BACKUP) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-1813E | | SLEEVE(29-CM) | |
| | 5P-5623D | | WIRE-ELECTRICAL(16-GA, BLACK)(0.4-M) | |
| 3. | 260-0161Y | [2] | LAMP GP-FLOOD(24-VOLT) | |
| 4. | 444-6526 | [2] | LAMP GP-SIGNAL(24-VOLT)(STOP, TAIL, TURN) | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 5. | 336-6684Y | [1] | CAMERA GP(12-VOLT, 24-VOLT)(WORK AREA VISUAL SYSTEM, REAR) | |
| 6. | 438-1021Y | [1] | HARNESS AS-REAR LIGHTING | |
| 7. | 472-7783Y | [1] | WIRING GP-SENSOR | |
| 8. | 352-3968 | [1] | CLIP(LADDER) | |
| 9. | 4P-8134 | [2] | CLIP(LADDER) | |
| 10. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 13. | | [1] | PLATE AS |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [8] | LINK | |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
