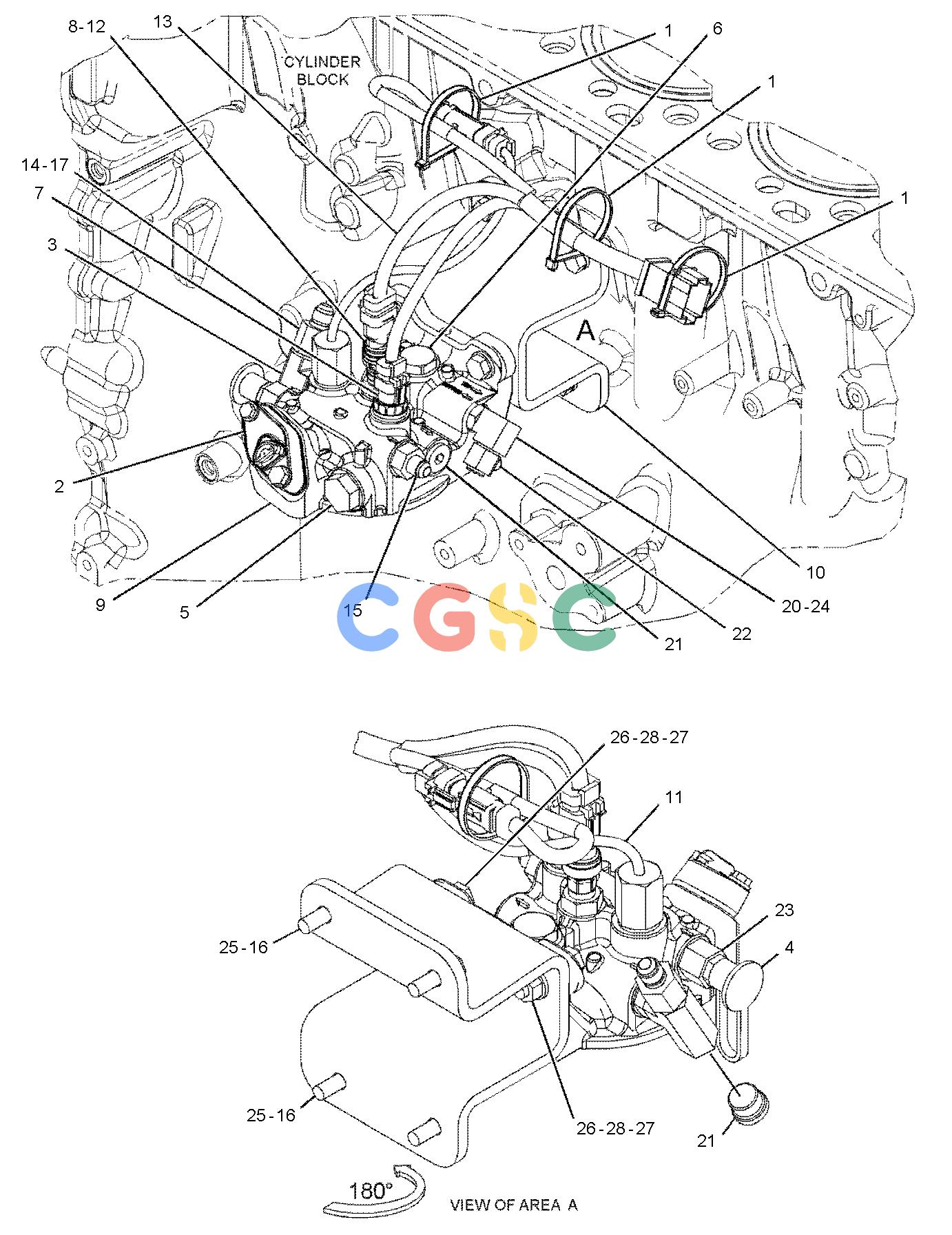

| 1. | 3S-2093 | [3] | STRAP-CABLE | |
| 2. | 116-5410Y | [1] | COVER GP-FUEL FILTER BASE | |
| 3. | 389-3698 | [1] | TEE AS | |
| | 120-9127 | [1] | TEE | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 4. | 123-0783Y | [1] | VALVE GP-FLUID SAMPLING(FUEL) | |
| 5. | 382-6044Y | [1] | VALVE GP-CHECK(FUEL FILTER) | |
| 6. | 233-6742Y | [1] | VALVE GP-CHECK(FUEL) | |
| 7. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(FUEL) | |
| 8. | 235-3596 | [1] | ADAPTER AS | |
| | 214-7566 | [1] | SEAL-O-RING | |
| | 235-3595 | [1] | ADAPTER | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 9. | 237-9314 | [1] | BASE AS | |
| | 9S-4167 | [1] | STUD-HOLLOW(1-14X1.47-IN) | |
| 10. | 240-9567 | [1] | BRACKET AS | |
| 11. | 275-1253Y | [1] | SWITCH GP-PRESSURE(DIFFERENTIAL) | |
| 12. | 274-6719 | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 13. | 357-8449 | [1] | HARNESS AS-ENGINE(FUEL FILTER) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 9X-3402 | [5] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [5] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-3401 | [9] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [9] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 230-4011 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 264-7029 | [1] | SEAL-CONNECTOR | |
| | 230-4012 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| | 237-0227 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| 14. | 030-8144 | [1] | REDUCER-FLARED | |
| 15. | 321-8671 | [1] | CONNECTOR AS | |
| | 030-8188 | [1] | CONNECTOR | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 16. | 1A-2029 | [4] | BOLT(3/8-16X1.125-IN) | |
| 17. | 1P-1441 | [1] | NUT-FLARED(3/4-16-THD) | |
| 20. | 250-1424 | [1] | ELBOW AS | |
| | 6V-8724 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 21. | 307-2673 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 22. | 313-9614 | [1] | ADAPTER AS | |
| | 2R-6806 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 23. | 330-9732 | [1] | ADAPTER AS | |
| | 5P-6944 | [1] | ADAPTER | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 24. | 6V-9829 | [1] | CAP(ORFS) | |
| 25. | 8M-3175 | [4] | WASHER-HARD(10.2X16X3-MM THK) | |
| 26. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 28. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
